GAIA-100 Inground LED

Efficacy

106-165 lm/W

CRI

IP67

Warranty

5 years

The GAIA-100 inground LED luminaires are made of stainless steel 316 and aluminium, offering both refined appearance and structural strength.

They feature impact resistance IK10 and ingress protection IP67, ensuring long-term durability in outdoor environments.

Produced in multiple power and beam-angle versions, the GAIA-100 series is an excellent tool for architectural outdoor lighting.

They deliver up to 8 935 lm with an efficacy of 165 lm/W and come with a 5-year warranty.

Applications:
Plazas · Pedestrian zones · Parks · Architectural façade lighting · Public spaces

✉️ Request Quote Download PDF

📐

Calculate Required Luminaires

Via Techlumen Lux Calculator

📄

Luminaire Brochure

Detailed specifications

📊

Photometric Files

LDT / IES for lighting design

Technical Specifications

Luminous Flux 1980 - 8935 lm

Power 13 - 58W

Efficacy 106 - 165 lm/W

CRI 80

CCT 2700K-5000K

IP Rating IP67

IK Rating IK10

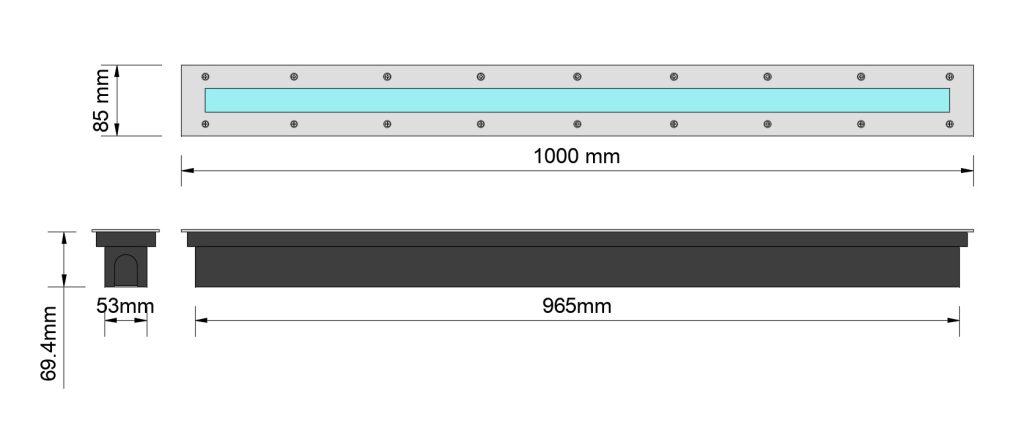

Dimensions 1000mm x 85mm x 72mm

Weight 6 kg

Warranty 5 years

Certifications & Compliance

CE ROHS EN 60598-1 EN 61000-3 EN 61547 EN 55015 EN 62471 EN 62493 EN 63000

Available Versions

Power	Code	CCT	CRI	Lumen	Efficacy
13W	GAIA-100-827-13	2700K	80	1,980 lm	152 lm/W
13W	GAIA-100-830-13	3000K	80	2,025 lm	155 lm/W
13W	GAIA-100-840-13	4000K	80	2,145 lm	165 lm/W
19W	GAIA-100-827-19	2700K	80	2,745 lm	144 lm/W
19W	GAIA-100-830-19	3000K	80	2,810 lm	147 lm/W
19W	GAIA-100-840-19	4000K	80	2,980 lm	157 lm/W
27W	GAIA-100-827-27	2700K	80	3,715 lm	137 lm/W
27W	GAIA-100-830-27	3000K	80	3,800 lm	140 lm/W
27W	GAIA-100-840-27	4000K	80	4,030 lm	149 lm/W
38W	GAIA-100-827-38	2700K	80	5,490 lm	144 lm/W
38W	GAIA-100-830-38	3000K	80	5,620 lm	148 lm/W
38W	GAIA-100-840-38	4000K	80	5,960 lm	156 lm/W
38W	GAIA-100-850-38	5000K	80	5,920 lm	155 lm/W
44W	GAIA-100-827-44	2700K	80	6,705 lm	152 lm/W
44W	GAIA-100-830-44	3000K	80	6,870 lm	156 lm/W
44W	GAIA-100-840-44	4000K	80	7,280 lm	165 lm/W
44W	GAIA-100-850-44	5000K	80	7,230 lm	164 lm/W
50W	GAIA-100-S-820-50	2000K	80	5,280 lm	106 lm/W
50W	GAIA-100-S-827-50	2700K	80	6,720 lm	134 lm/W
50W	GAIA-100-S-830-50	3000K	80	7,200 lm	144 lm/W
50W	GAIA-100-S-840-50	4000K	80	7,680 lm	154 lm/W
50W	GAIA-100-S-850-50	5000K	80	7,800 lm	156 lm/W
30W	GAIA-100-F-827-30	2700K	80	4,320 lm	144 lm/W
30W	GAIA-100-F-830-30	3000K	80	4,320 lm	144 lm/W
30W	GAIA-100-F-840-30	4000K	80	4,600 lm	153 lm/W
30W	GAIA-100-F-850-30	5000K	80	4,900 lm	163 lm/W
58W	GAIA-100-F-827-58	2700K	80	7,890 lm	136 lm/W
58W	GAIA-100-F-830-58	3000K	80	7,890 lm	136 lm/W
58W	GAIA-100-F-840-58	4000K	80	8,410 lm	145 lm/W
58W	GAIA-100-F-850-58	5000K	80	8,935 lm	154 lm/W
