Architectural lighting

THIN-IP67 linear fixture

Efficacy
81 lm/W
CRI
95
IP
IP67
Warranty
5 years

Manufactured in Greece, the THIN IP67 linear LED luminaire is defined by its exceptionally slim profile of just 8 mm × 7 mm, offering a minimal yet highly durable lighting solution.

With an IP67 ingress protection rating, it is ideal for both indoor and outdoor use — including architectural facades, corridors, staircases, wet areas, outdoor pathways and marine applications.

Delivering a high CRI 95, it ensures excellent colour rendering in all versions.

The fixture supports advanced dimming protocols such as DALI, CASAMBI and PWM, and is available with a 3-hour emergency lighting option, providing versatility and reliability for demanding projects.

Technical Specifications

Luminous Flux 81 - 2430 lm
Power 0.1 - 30W
Ambient Temperature -30°C to +50°C
Efficacy 81 lm/W
Power Factor 0.95
CRI 95
CCT 2700K-4000K
IP Rating IP67
IK Rating IK06
Body Aluminium
Finishing any RAL
Dimensions 8mm x 7mm x (100mm - 3000mm)
Weight .1 - 1 kg
Warranty 5 years

Certifications & Compliance

CE ROHS EN 60598-1 EN 61000-3 EN 61547 EN 55015 EN 62471 EN 62493 EN 63000

No versions available for this product.

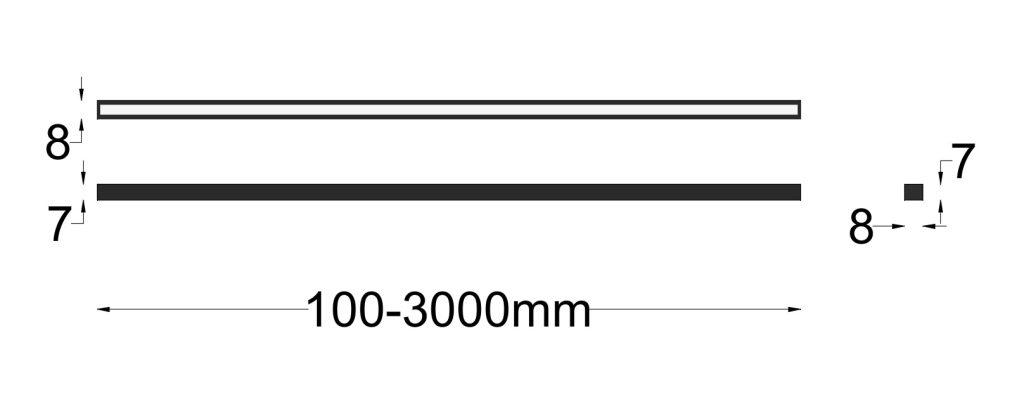

Technical Drawing

Polar Intensity Diagrams

Polar intensity diagram
