Sports Lighting Applications
EN 12193:2018 European Standard
About TECHLUMEN
TECHLUMEN specializes in innovative LED lighting solutions for diverse indoor and outdoor spaces, serving clients across multiple countries.
With extensive experience in creating and upgrading lighting systems for new and existing sports venues, we are dedicated to providing superior lighting solutions that align with international standards, including the stringent criteria of EN 12193:2018.
At TECHLUMEN, we focus on meticulously crafting lighting systems that adhere to regulatory guidelines across all sports, with a strong emphasis on controlling glare in indoor and outdoor environments.
Our dedication to advancing lighting technology and integrating energy-efficient systems enables us to offer products that effectively reduce operational expenses while delivering safety, comfort, and exceptional performance for athletes and spectators.
This brochure highlights examples of lighting solutions primarily centered on horizontal illumination, a core component of lighting design. For complex requirements, such as vertical lighting or illumination specifically oriented for broadcast cameras, we encourage you to contact the TECHLUMEN support team for tailored solutions.
EN 12193:2018 Standard
The EN 12193:2018 is the European standard that defines lighting requirements for sports facilities. It specifies three lighting classes based on competition level:
Lighting Classes
Class I - International
Top level competition such as international and national competition which will generally involve large spectator capacities with long potential viewing distances. Top level training can also be included in this class. For some sports the requirements of the governing body might take precedence over the values in this standard.
Class II - Regional
Mid-level competition such as regional or local club competition which generally involve medium size spectator capacities with medium viewing distances. High level training can also be included in this class.
Class III - Recreational
Low level competition such as local or small club competition which generally do not involve spectators. General training, physical education (school sports) and recreational activities will also come into this category.
Useful Terms
Principal Area (PA): Actual playing area needed for the performance of a certain sport.
Total Area (TA): Area generally comprising the principal area (PA) plus an additional safety area outside the principal area.
Grid points for measurement and calculation: Arrangement of calculation and measurement points and their number in each dimension of the reference area.
Average illuminance over a surface: Illuminance averaged over the specified surface. Note: Horizontal illuminance calculated at ground level (0 m) and vertical illuminance calculated at a height of 1.5 m, unless stated otherwise.
Key Parameters
- (Ehor Min) - Minimum Horizontal Illuminance (lx)
- (Ehor Max) - Maximum Horizontal Illuminance (lx)
- (Ehor Ave) / Em - Average Horizontal Illuminance (lx)
- (U1hor) - Minimum to Maximum Horizontal Uniformity
- (U2hor) / Emin/Em - Minimum to Average Horizontal Uniformity
- (RG) - Glare Rating
- (RUG) - Unified Glare Rating
- (Ra) - Colour Rendering Index
- (FLM) - Maintenance Factor
Tennis - Outdoor
EN 12193:2018 | Court: 36m x 18m
| Class | Em (lx) | Uniformity | RG | Ra |
|---|---|---|---|---|
| Class I | 500 | 0.70 | 50 | 70 |
| Class II | 300 | 0.70 | 50 | 60 |
| Class III | 200 | 0.60 | 55 | 60 |

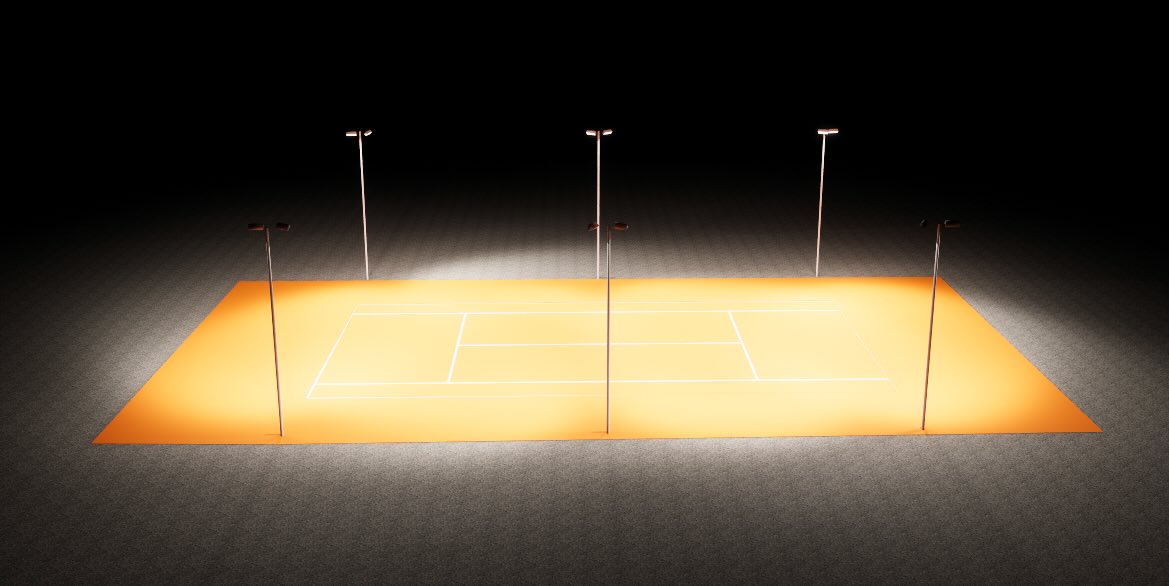

Class I - 500 lx
3D Visualization

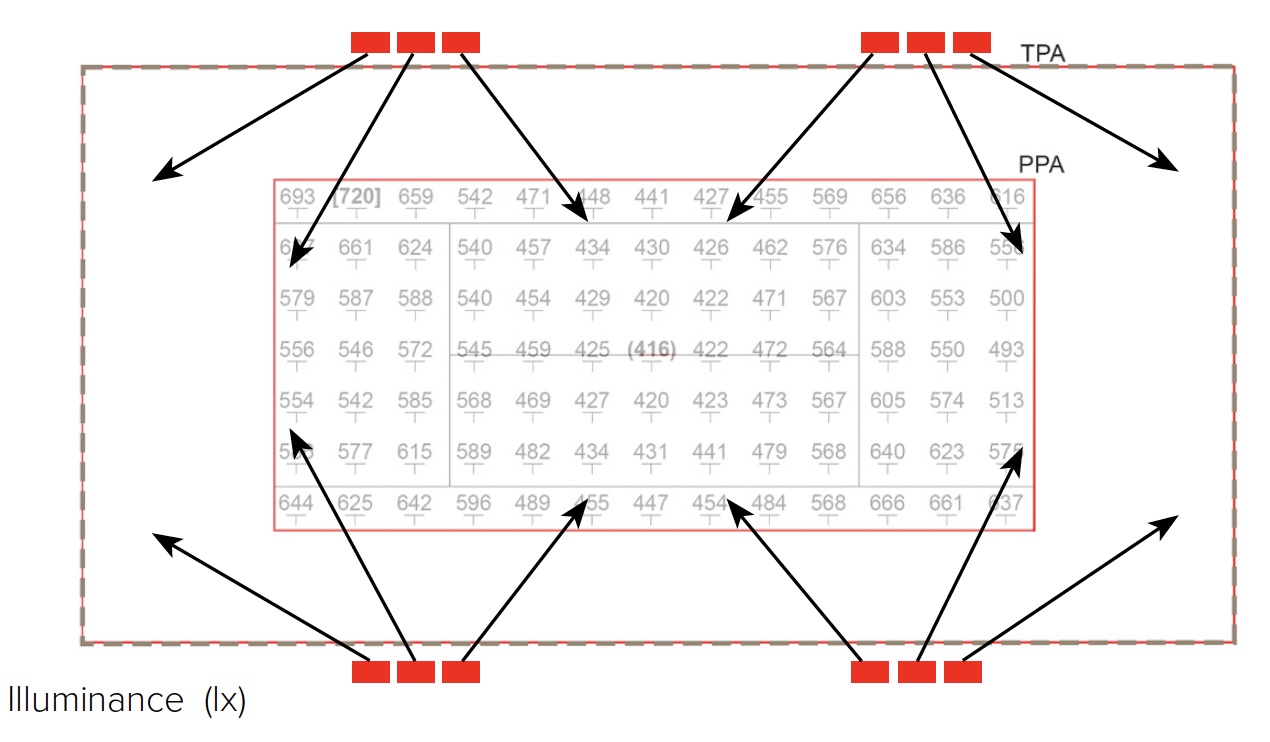

Illuminance Grid (lx)
FL-I-6-740-337-R62
12 floodlights
4.04 kW
Height: 10.0m
PPA Results
- Average Illuminance: 532 lx
- Uniformity Emin/Em: 0.78
- RGmax: 32.9
- Maintenance Factor: 80%
TPA Results
- Average Illuminance: 515 lx
- Uniformity Emin/Em: 0.69
- RGmax: 33.2
- Maintenance Factor: 80%
Class II - 300 lx

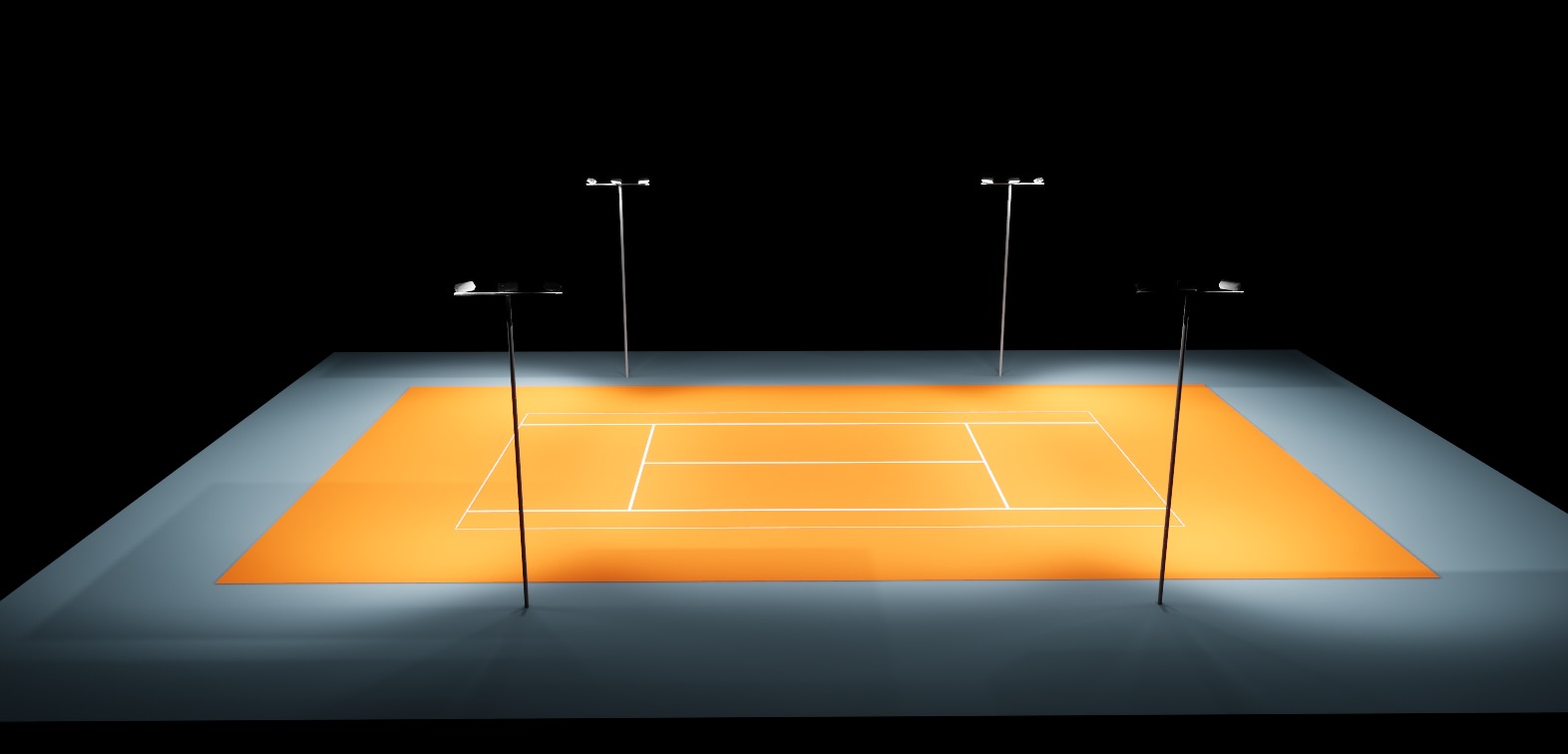

3D Visualization

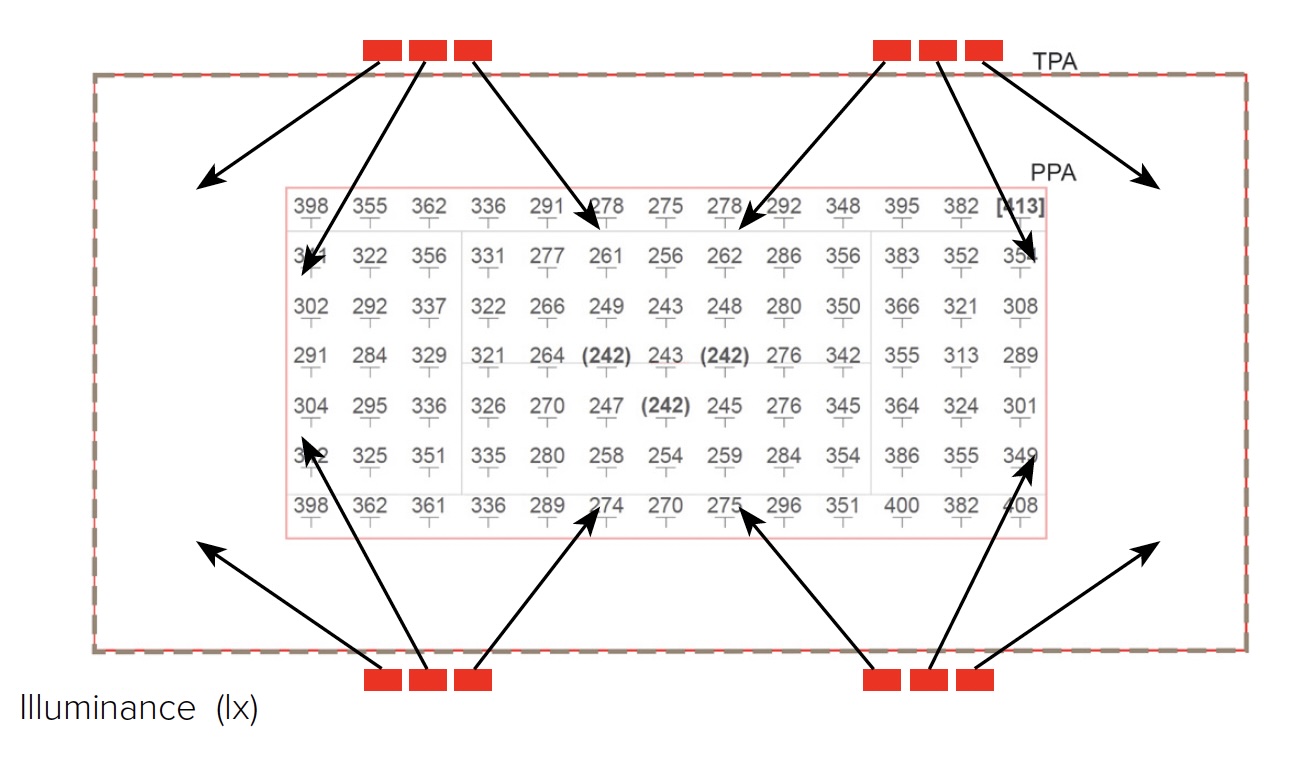

Illuminance Grid (lx)
FL-I-4-740-200-R62
12 floodlights
2.40 kW
Height: 9.0m
PPA Results
- Average Illuminance: 315 lx
- Uniformity Emin/Em: 0.77
- RGmax: 34.5
- Maintenance Factor: 80%
TPA Results
- Average Illuminance: 306 lx
- Uniformity Emin/Em: 0.62
- RGmax: 35.1
- Maintenance Factor: 80%

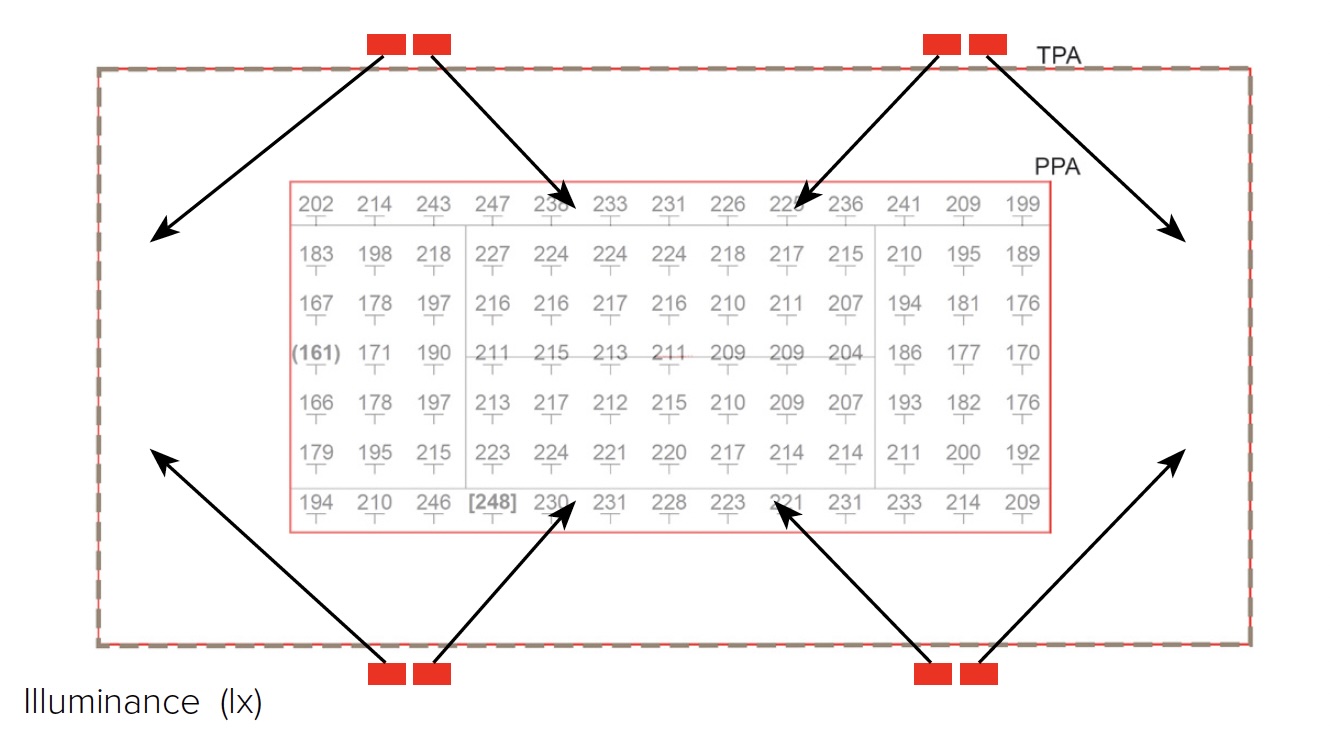

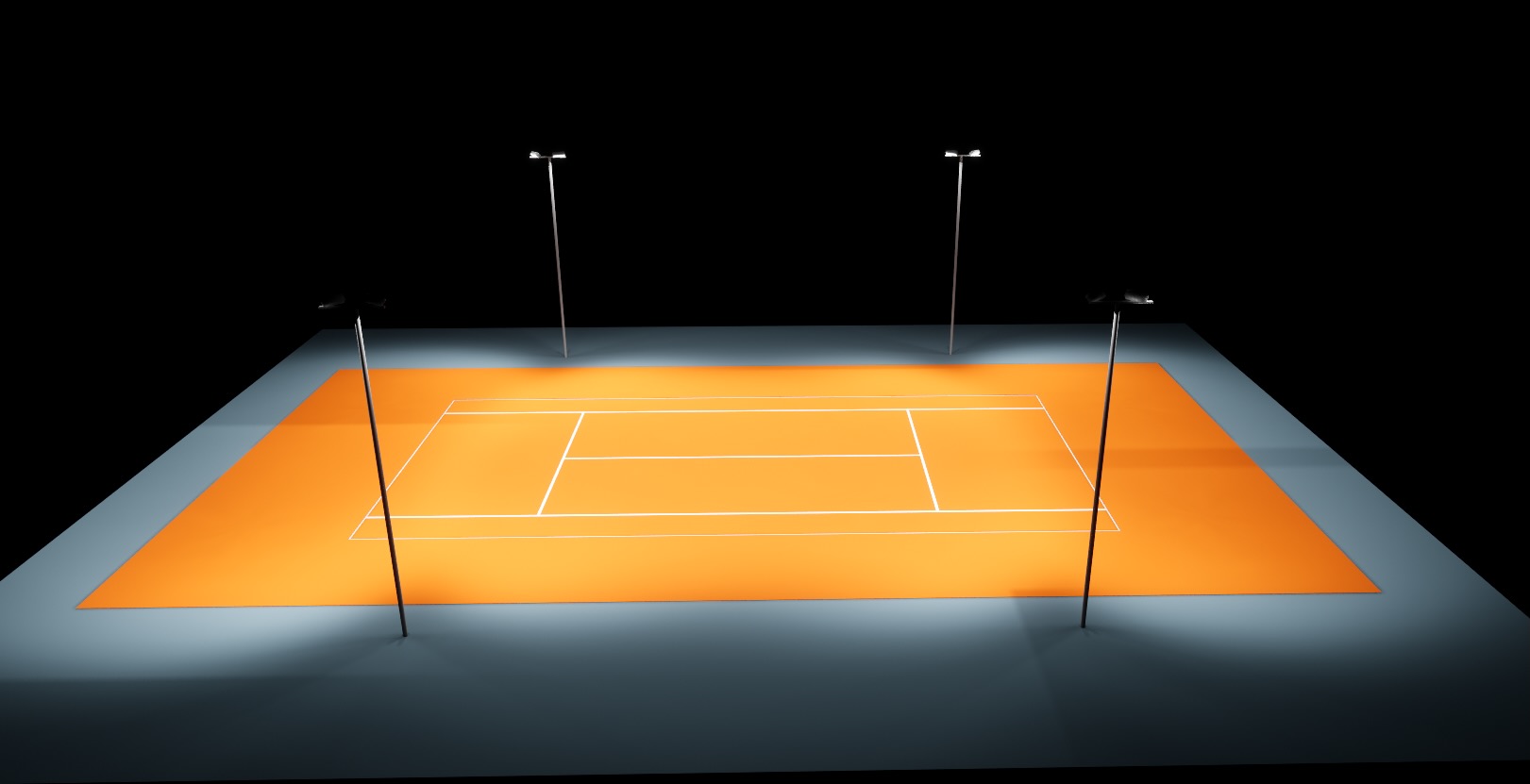

Class III - 200 lx
3D Visualization
Illuminance Grid (lx)
FL-I-4-740-200-R62
8 floodlights
1.60 kW
Height: 9.0m
PPA Results
- Average Illuminance: 209 lx
- Uniformity Emin/Em: 0.77
- RGmax: 33.3
- Maintenance Factor: 80%
TPA Results
- Average Illuminance: 197 lx
- Uniformity Emin/Em: 0.61
- RGmax: 34.8
- Maintenance Factor: 80%
Padel - Outdoor
EN 12193:2018 | Court: 20m x 10m
| Class | Em (lx) | Uniformity | RG | Ra |
|---|---|---|---|---|
| Class I | 500 | 0.70 | 50 | 70 |
| Class II | 300 | 0.70 | 50 | 60 |
| Class III | 200 | 0.60 | 55 | 60 |

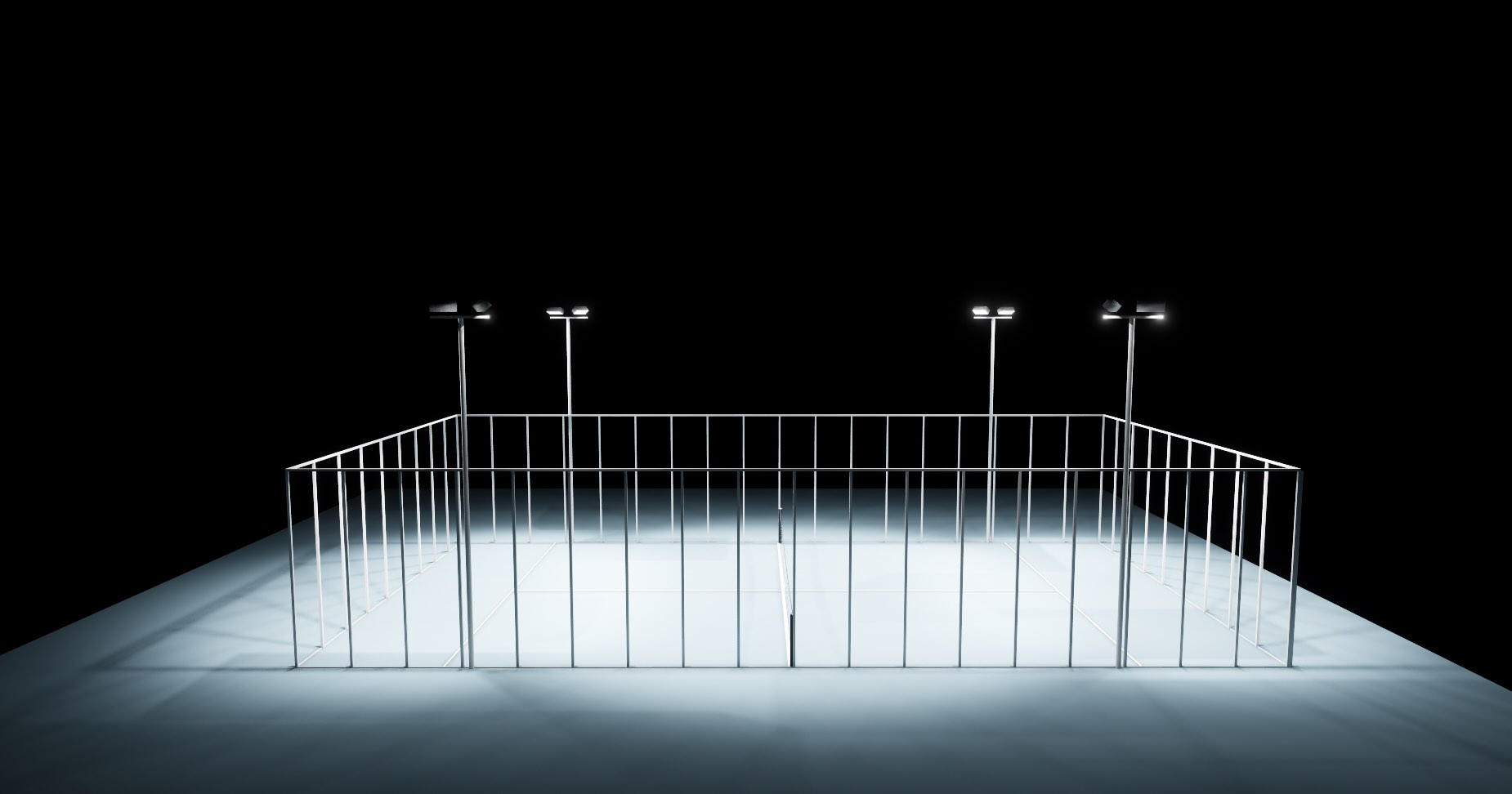

Class I - 500 lx
3D Visualization

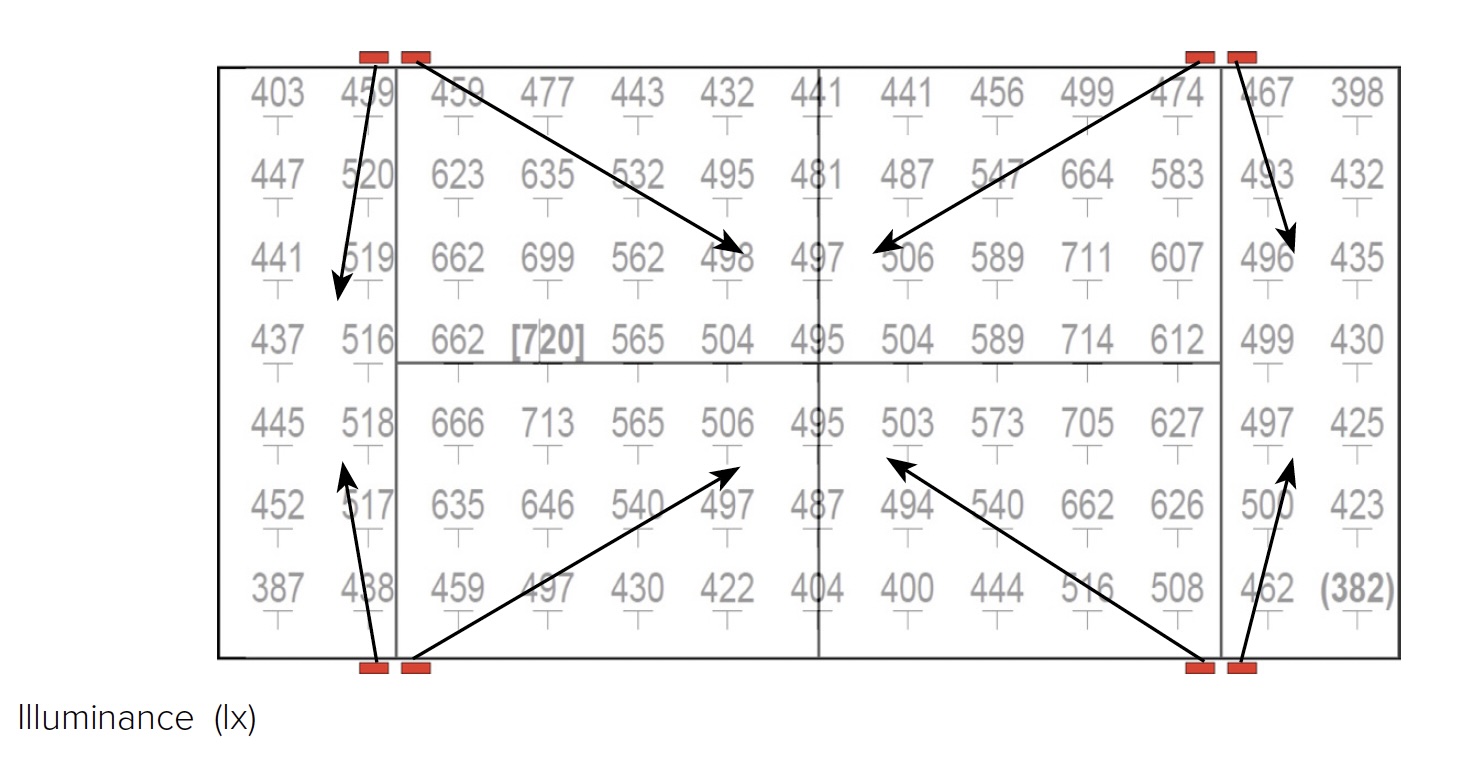

Illuminance Grid (lx)
FL-I-3-740-168-R62
8 floodlights
1.34 kW
Height: 7.0m
- Average Illuminance: 519 lx
- Uniformity Emin/Em: 0.73
- RGmax: 27.2
- Maintenance Factor: 80%

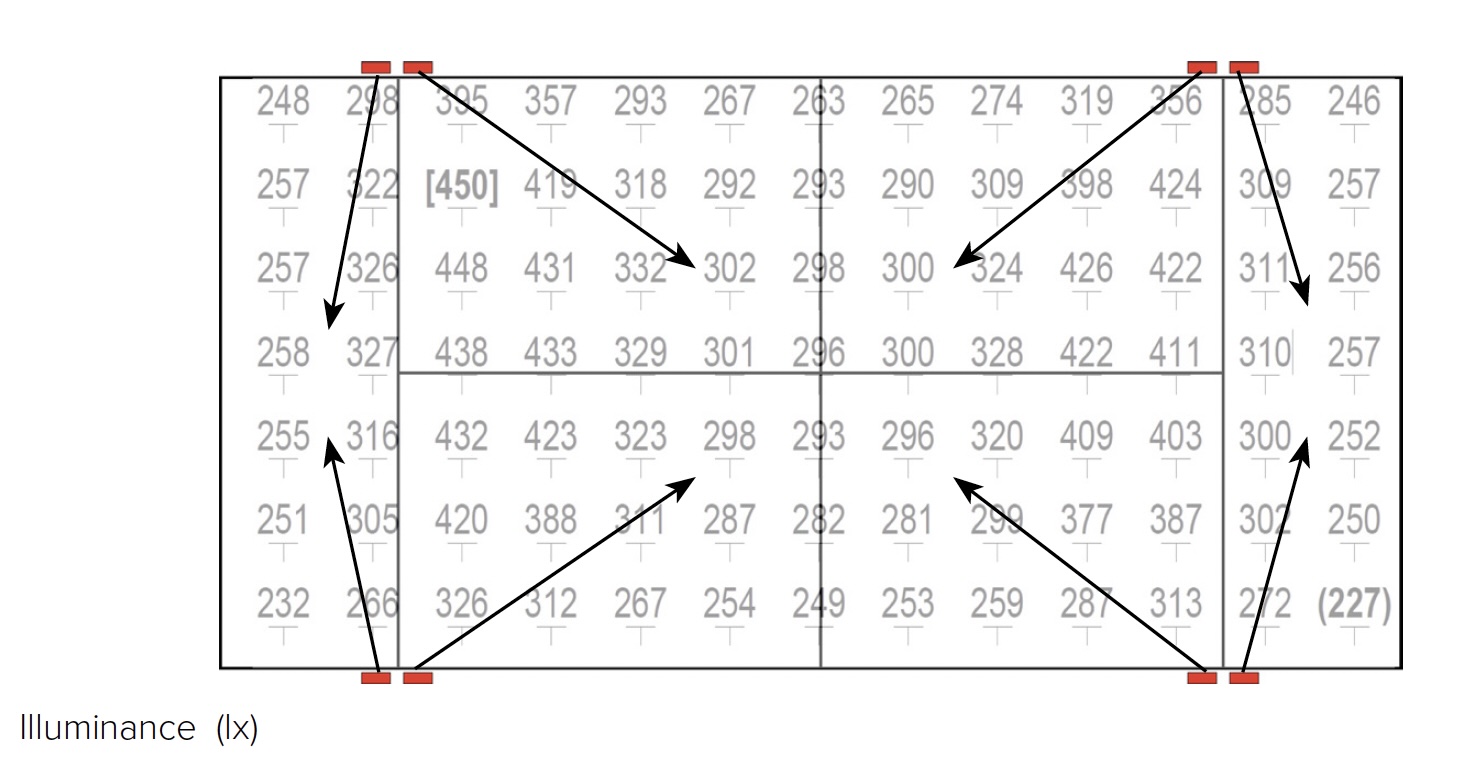

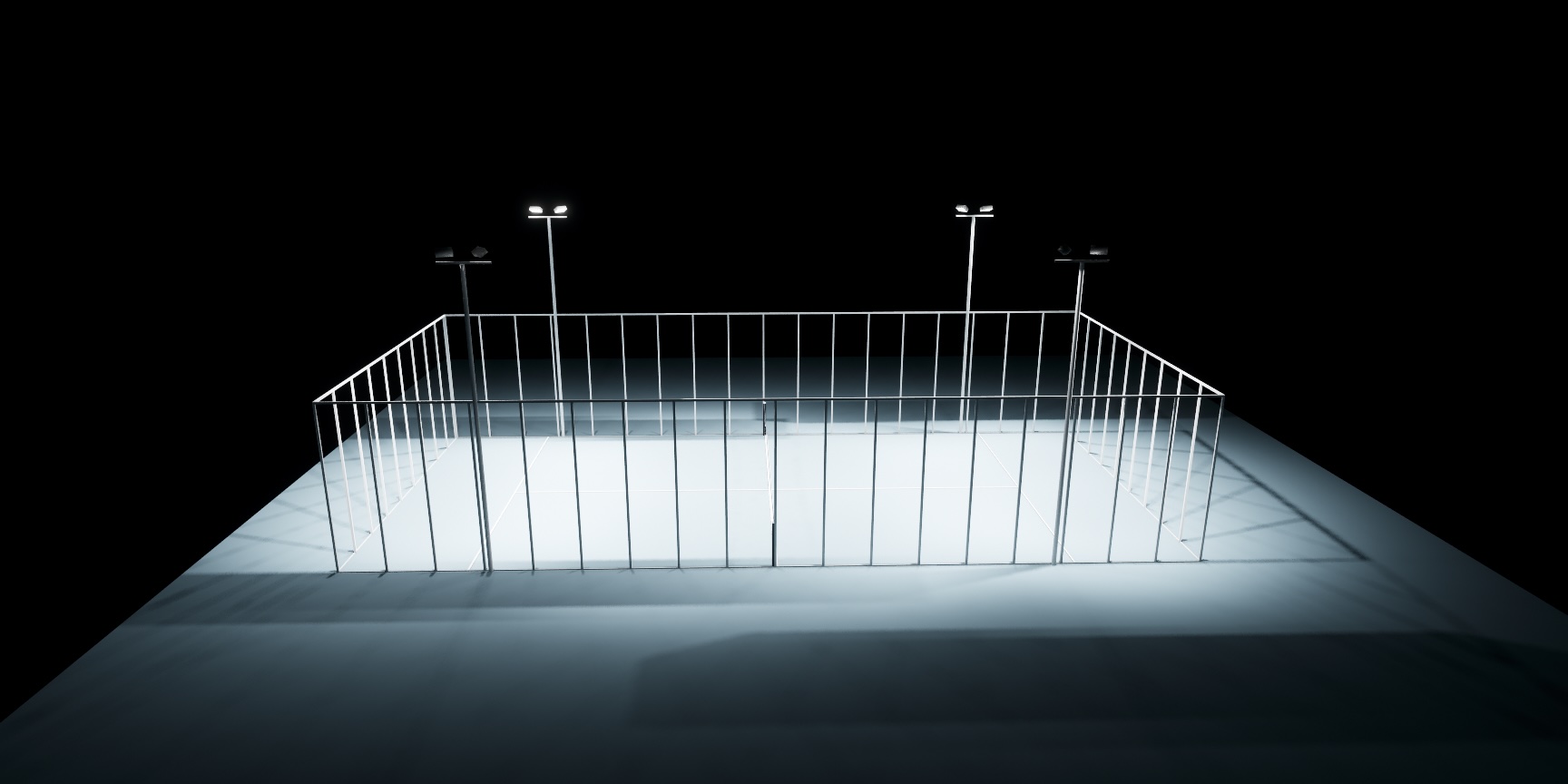

Class II - 300 lx
3D Visualization
Illuminance Grid (lx)
FL-I-2-750-100-R62
8 floodlights
0.80 kW
Height: 7.0m
- Average Illuminance: 319 lx
- Uniformity Emin/Em: 0.71
- RGmax: 25.3
- Maintenance Factor: 80%

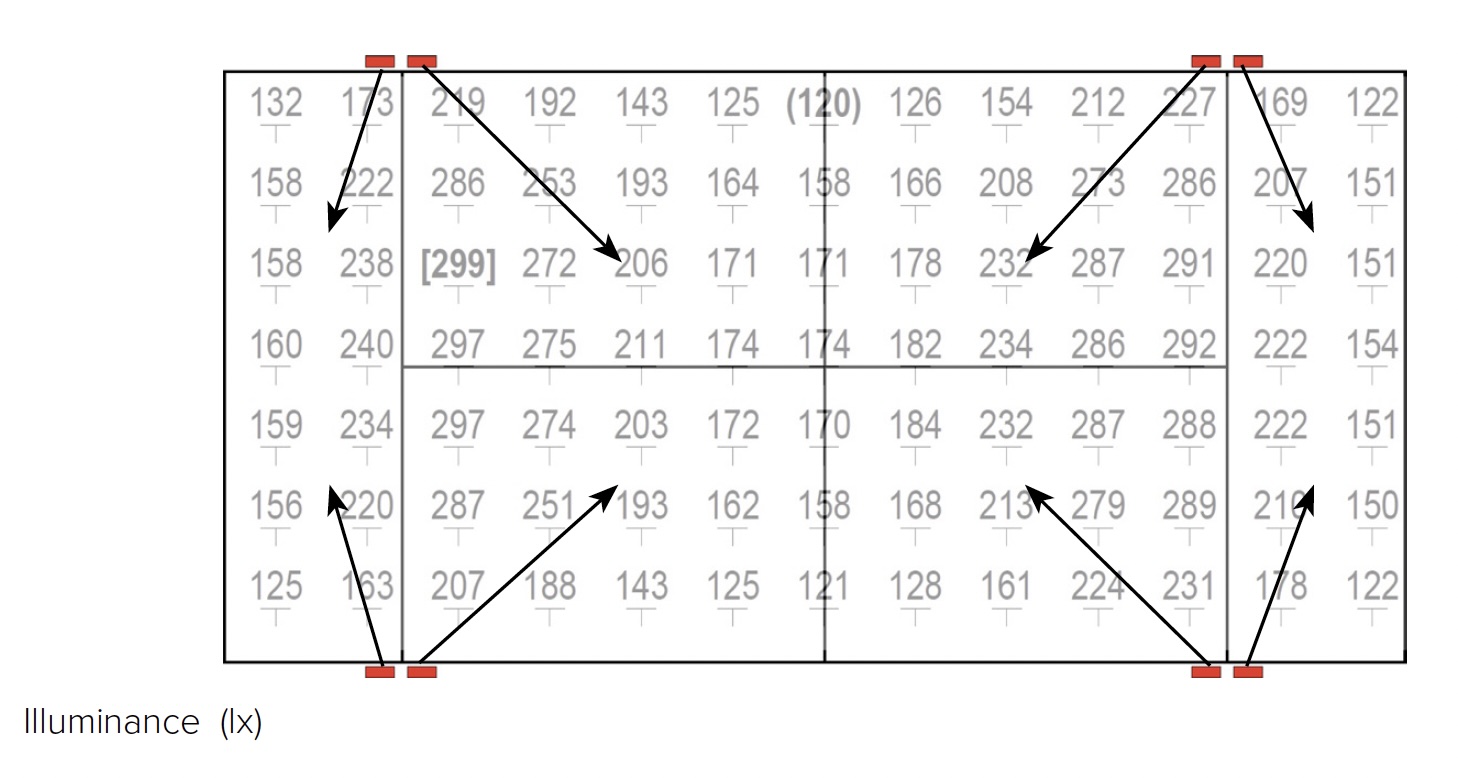

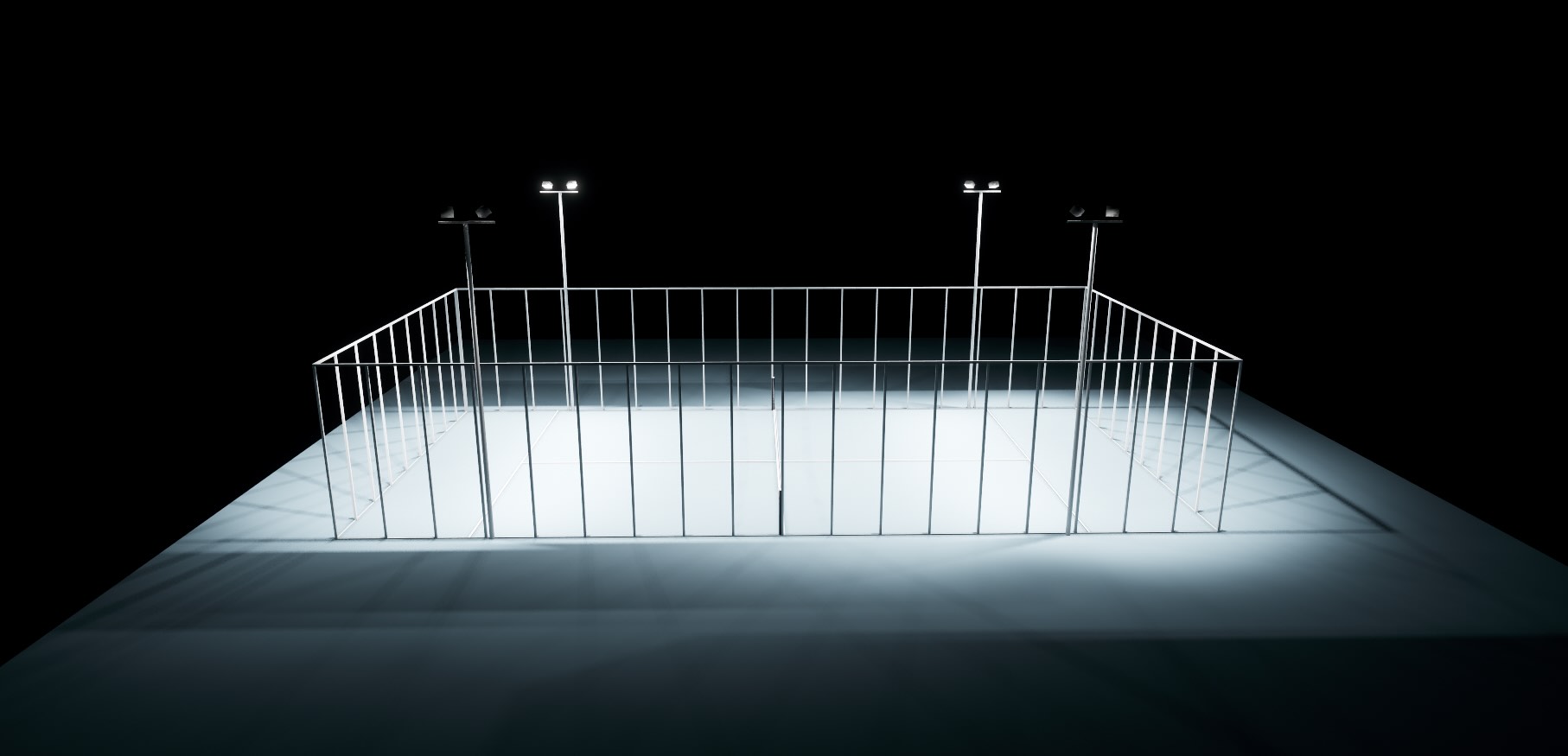

Class III - 200 lx
3D Visualization
Illuminance Grid (lx)
FL-I-1-750-56-R62
8 floodlights
0.45 kW
Height: 7.0m
- Average Illuminance: 202 lx
- Uniformity Emin/Em: 0.60
- RGmax: 26.3
- Maintenance Factor: 80%
Basketball
EN 12193:2018
Indoor
Court: 28m x 15m
| Class | Em (lx) | Uniformity | RG | Ra |
|---|---|---|---|---|
| Class I | 750 | 0.70 | 35 | 80 |
| Class II | 500 | 0.70 | 40 | 60 |
| Class III | 200 | 0.50 | 40 | 60 |

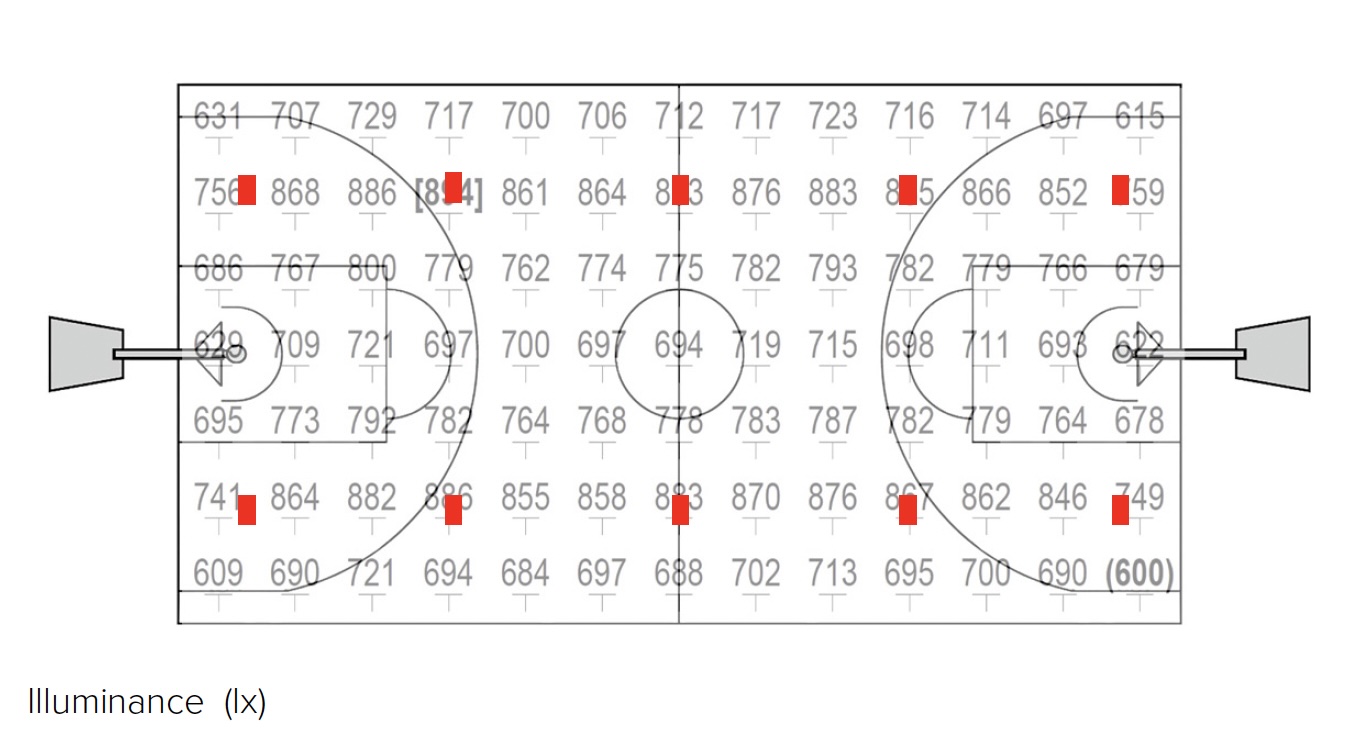

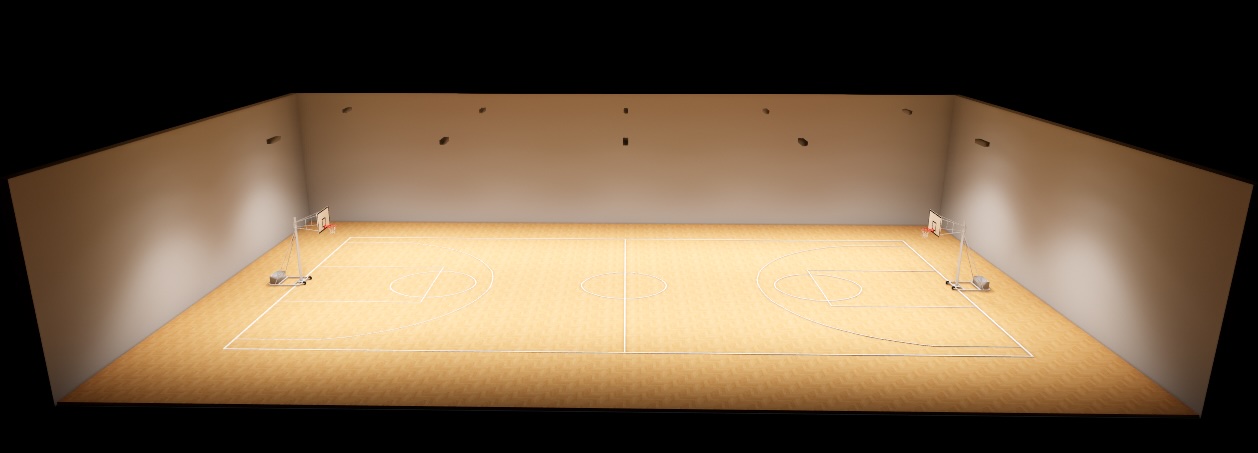

Class I - 750 lx
3D Visualization
Illuminance Grid (lx)
FL-I-6-840-337-R87
10 floodlights
3.37 kW
Height: 7.0m
- Average Illuminance: 752 lx
- Uniformity Emin/Em: 0.70
- RGmax: 20.9
- Maintenance Factor: 90%

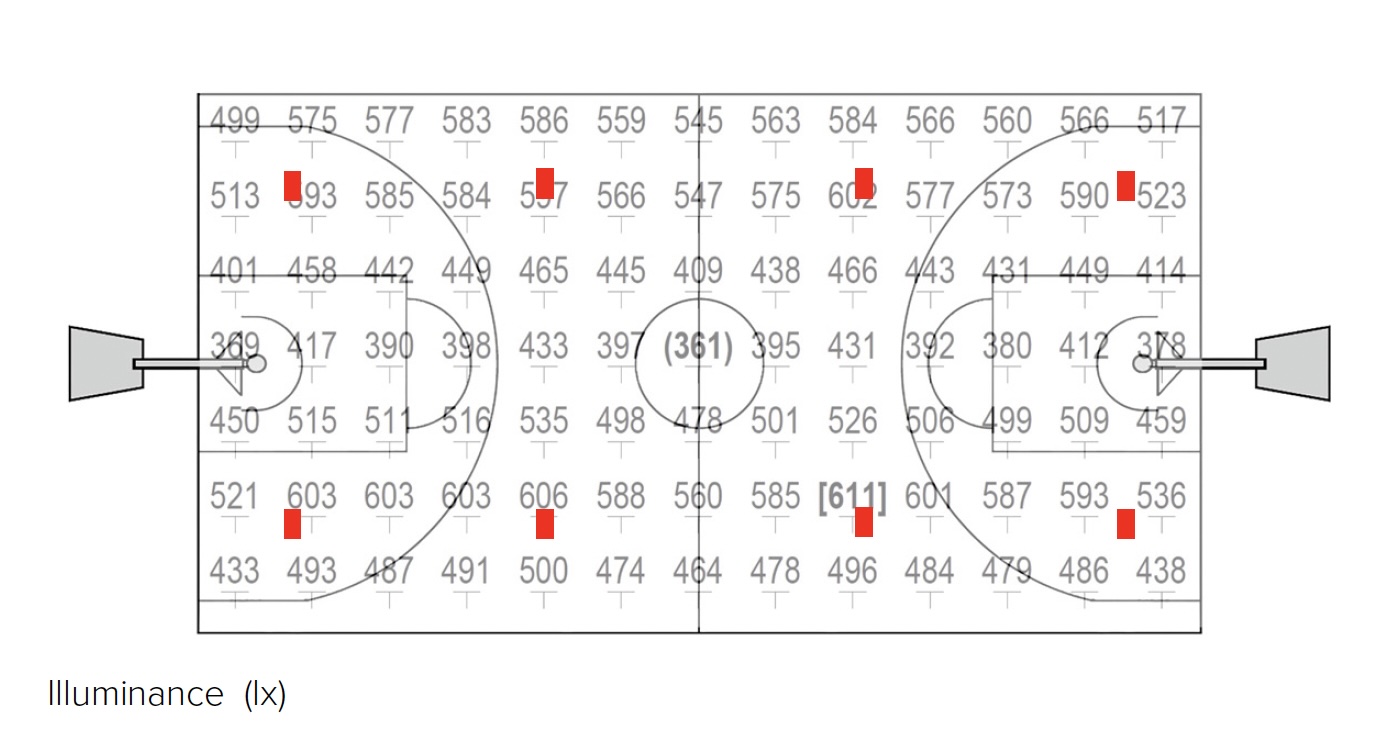

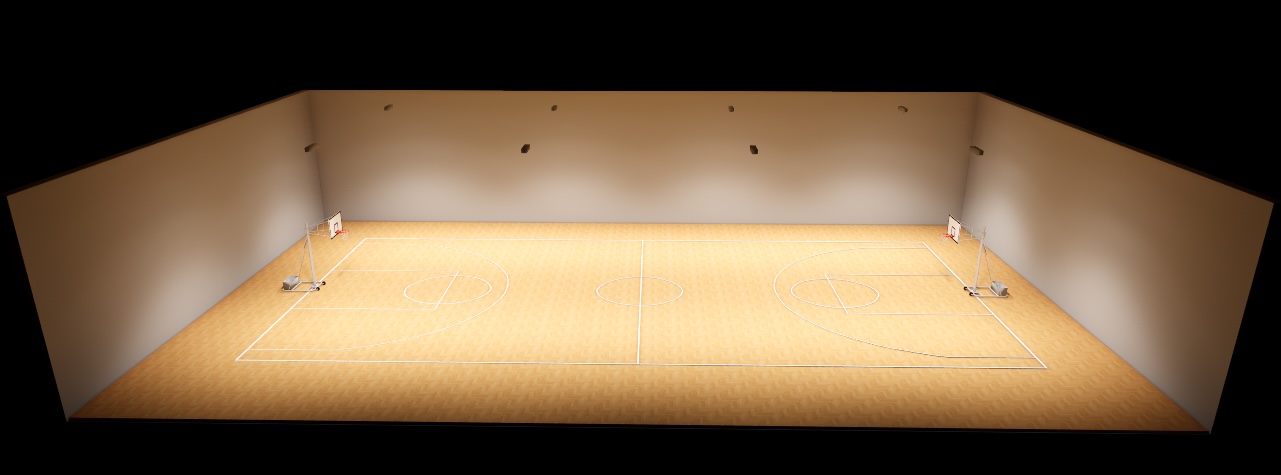

Class II - 500 lx
3D Visualization
Illuminance Grid (lx)
FL-I-5-740-280-R87
8 floodlights
2.24 kW
Height: 7.0m
- Average Illuminance: 506 lx
- Uniformity Emin/Em: 0.70
- RGmax: 21.8
- Maintenance Factor: 90%

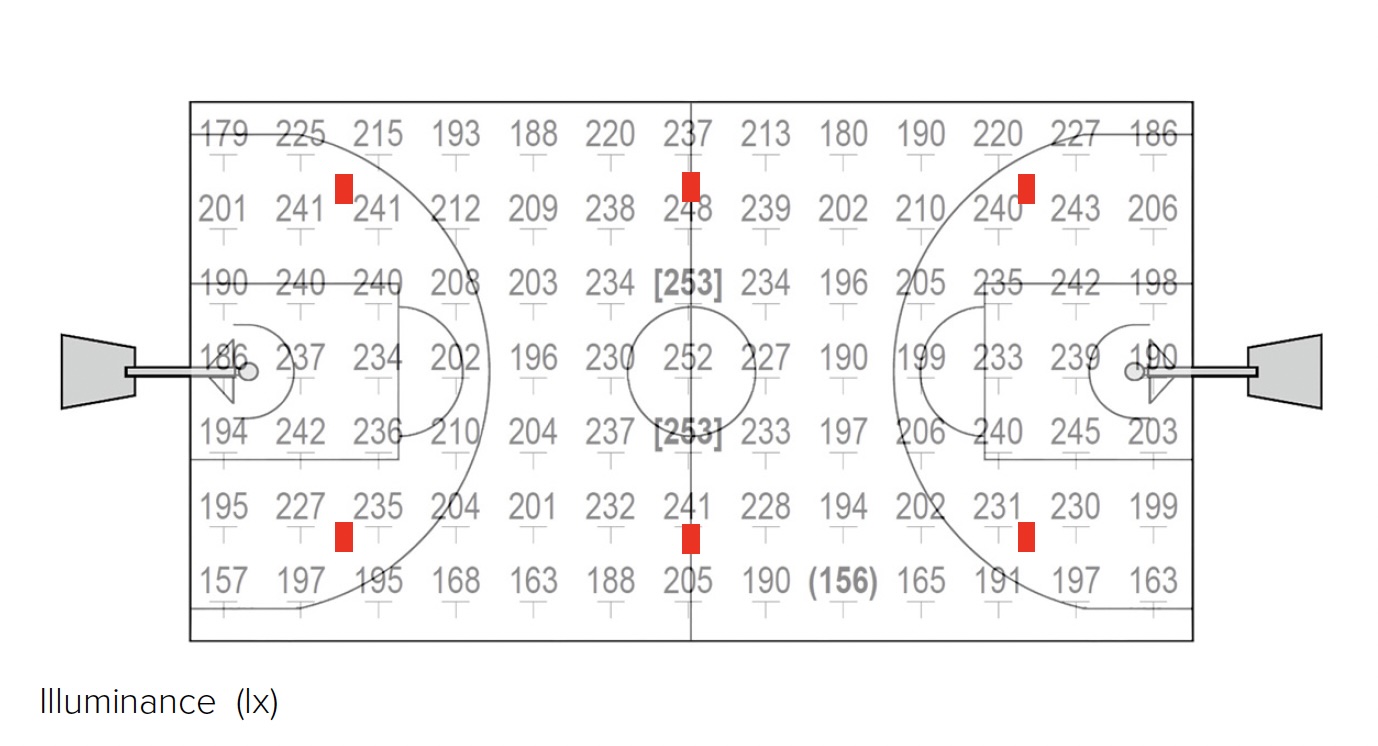

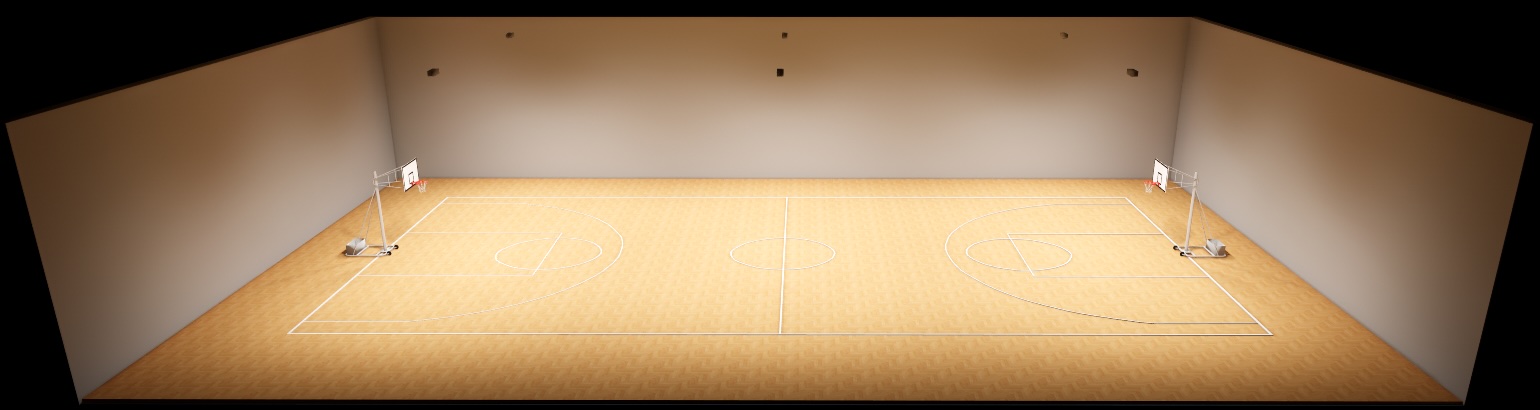

Class III - 200 lx
3D Visualization
Illuminance Grid (lx)
FL-I-3-740-168-R87
6 floodlights
1.00 kW
Height: 7.0m
- Average Illuminance: 202 lx
- Uniformity Emin/Em: 0.70
- RGmax: 24.5
- Maintenance Factor: 90%
Outdoor
TPA: 32m x 19m
| Class | Em (lx) | Uniformity | RG | Ra |
|---|---|---|---|---|
| Class I | 500 | 0.70 | 55 | 80 |
| Class II | 200 | 0.60 | 55 | 60 |
| Class III | 75 | 0.50 | 55 | 60 |

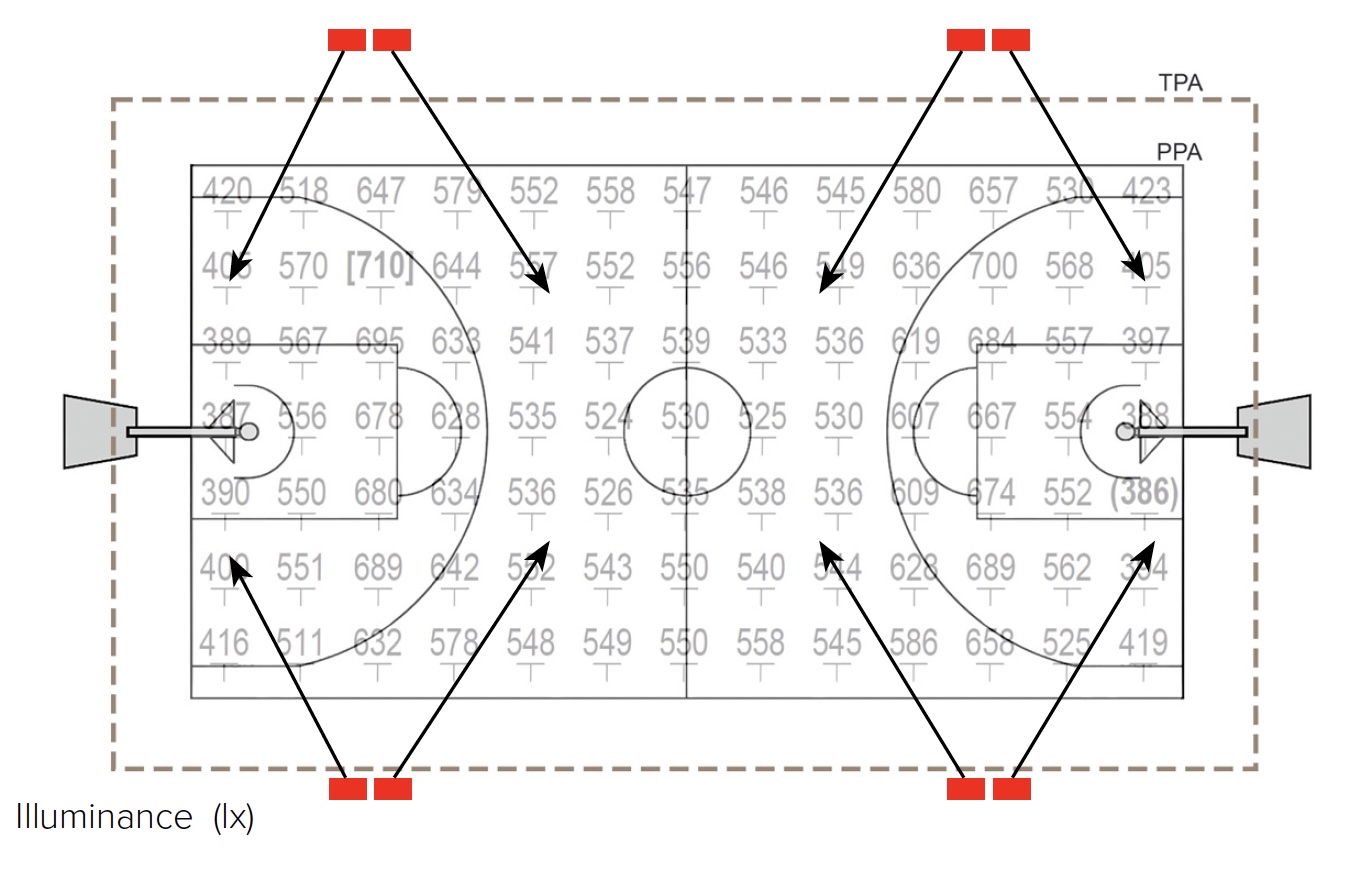

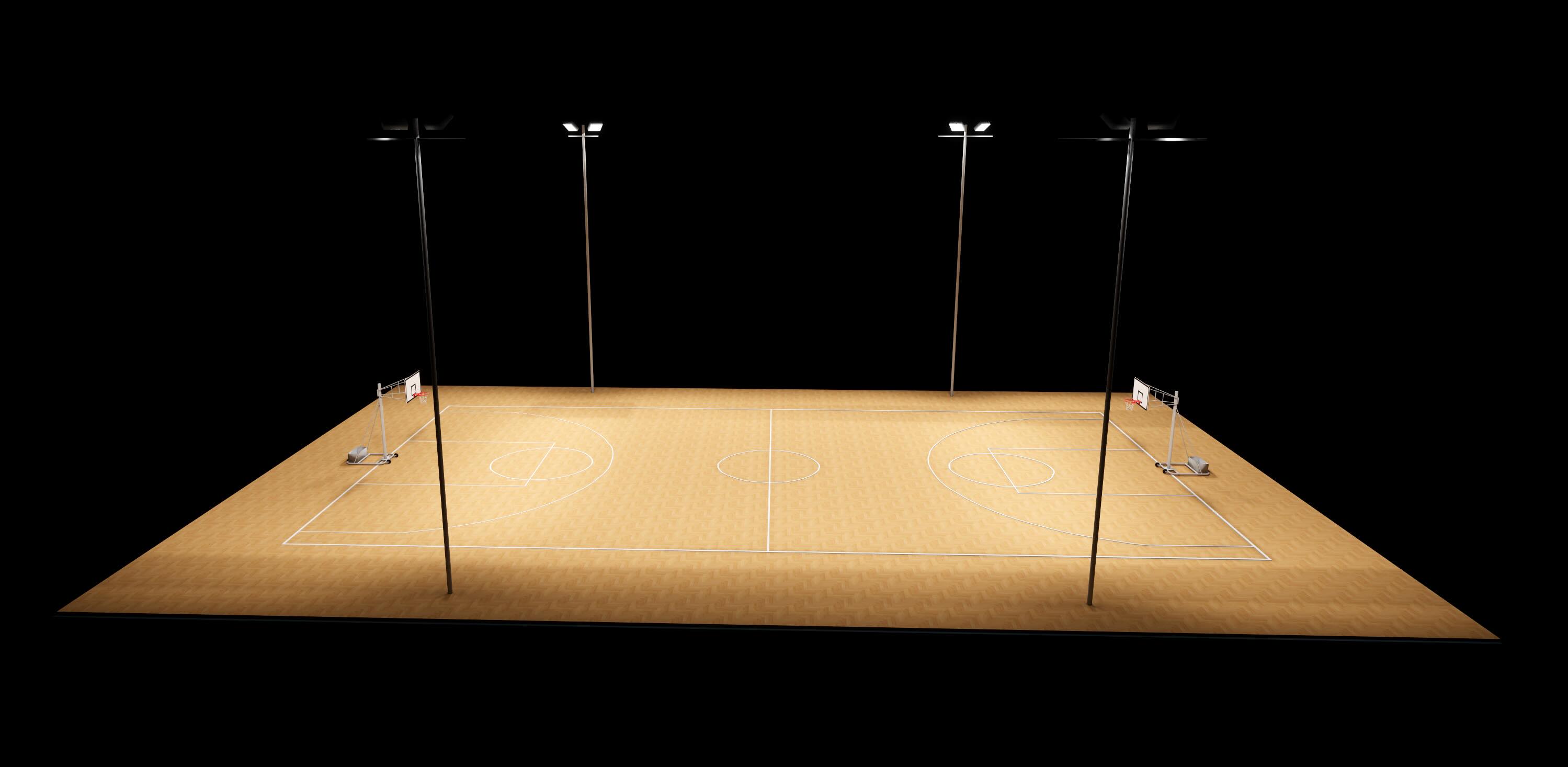

Class I - 500 lx
3D Visualization
Illuminance Grid (lx)
FL-I-8-750-448-R62
8 floodlights
3.58 kW
Height: 12.0m
PPA Results
- Average Illuminance: 553 lx
- Uniformity Emin/Em: 0.70
- RGmax: 29.2
- Maintenance Factor: 80%
TPA Results
- Average Illuminance: 487 lx
- Uniformity Emin/Em: 0.56
- RGmax: 30.6
- Maintenance Factor: 80%

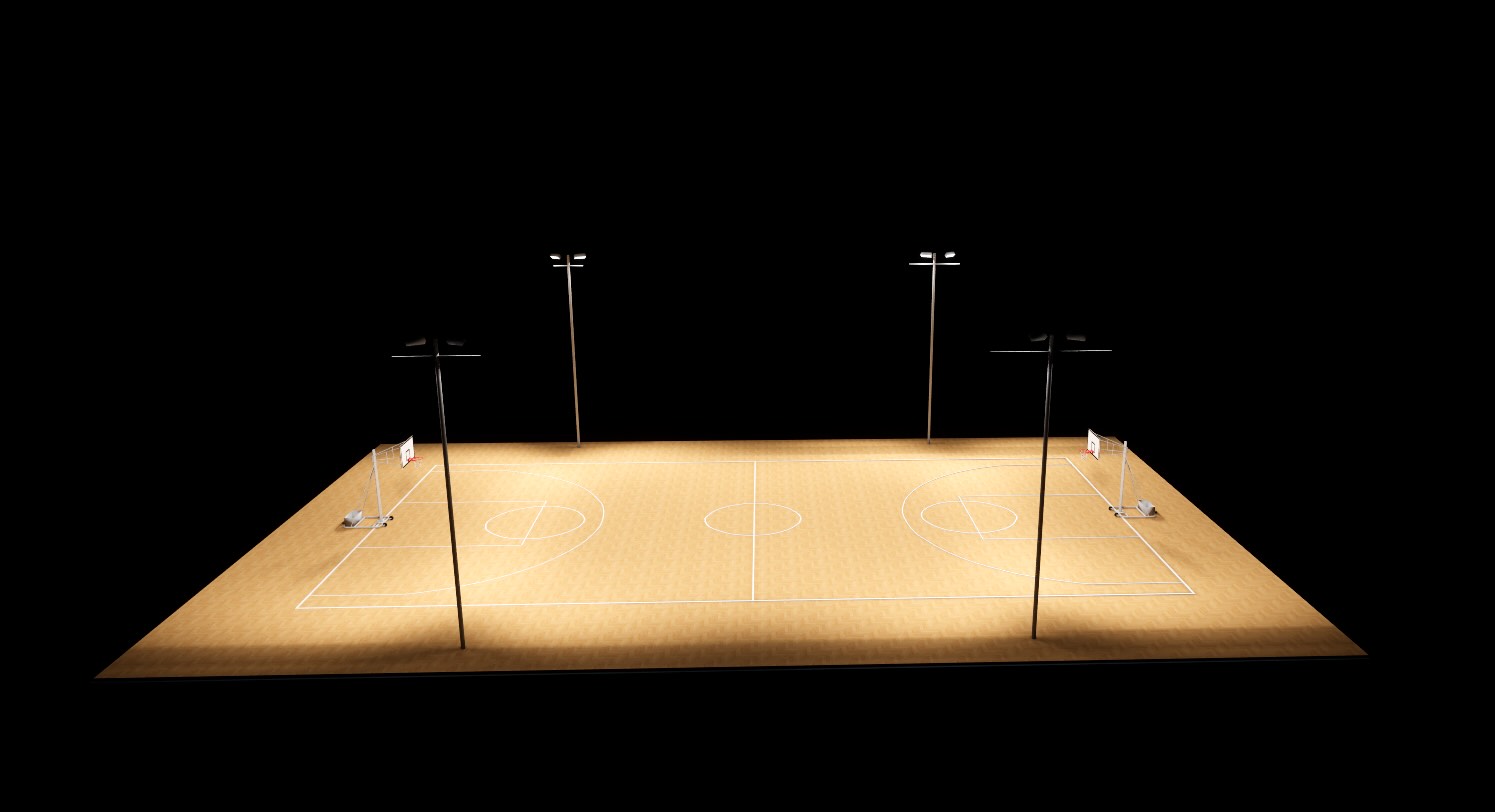

Class II - 200 lx
3D Visualization

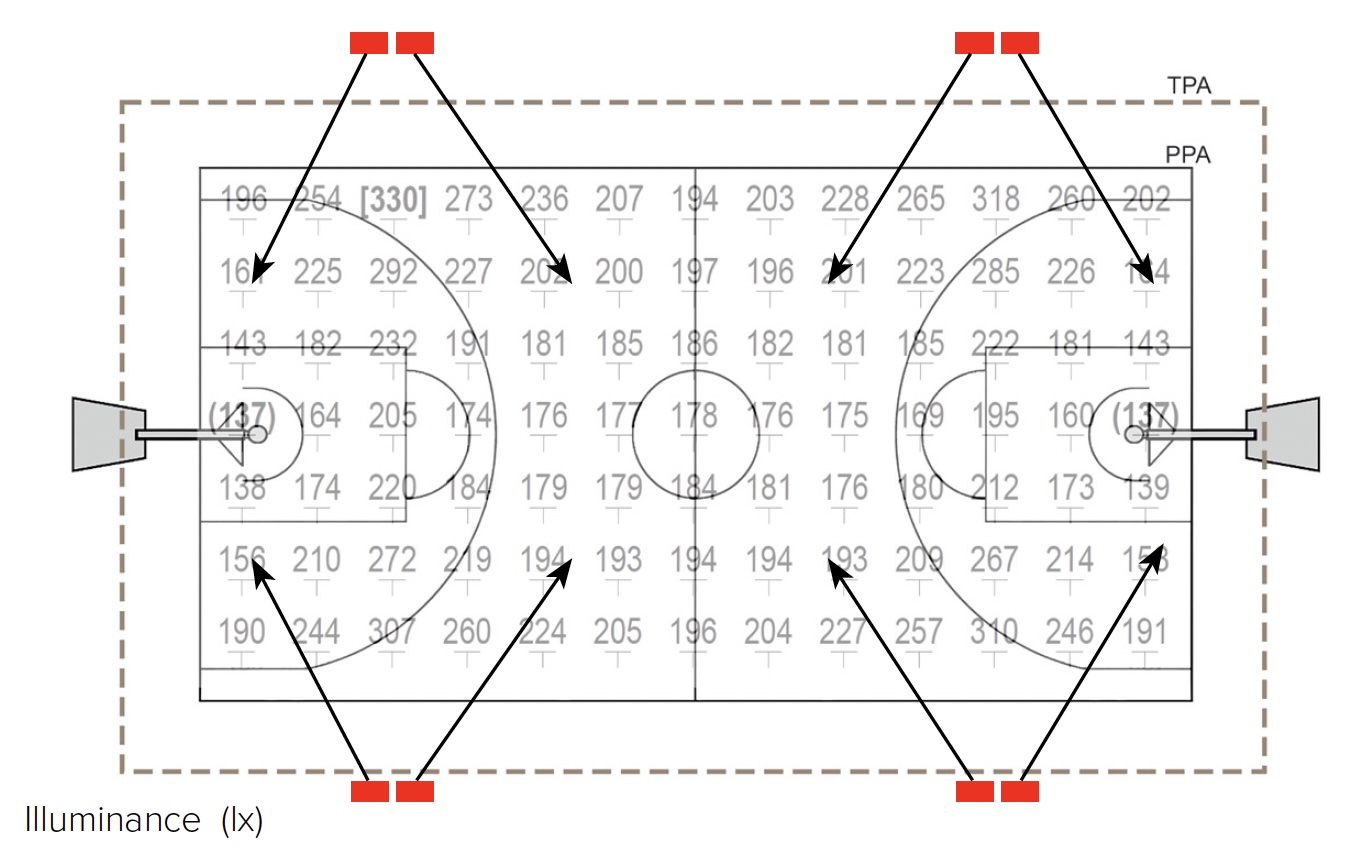

Illuminance Grid (lx)
FL-I-3-750-168-R62
8 floodlights
1.34 kW
Height: 9.0m
PPA Results
- Average Illuminance: 205 lx
- Uniformity Emin/Em: 0.67
- RGmax: 33.6
- Maintenance Factor: 80%
TPA Results
- Average Illuminance: 190 lx
- Uniformity Emin/Em: 0.60
- RGmax: 34.5
- Maintenance Factor: 80%

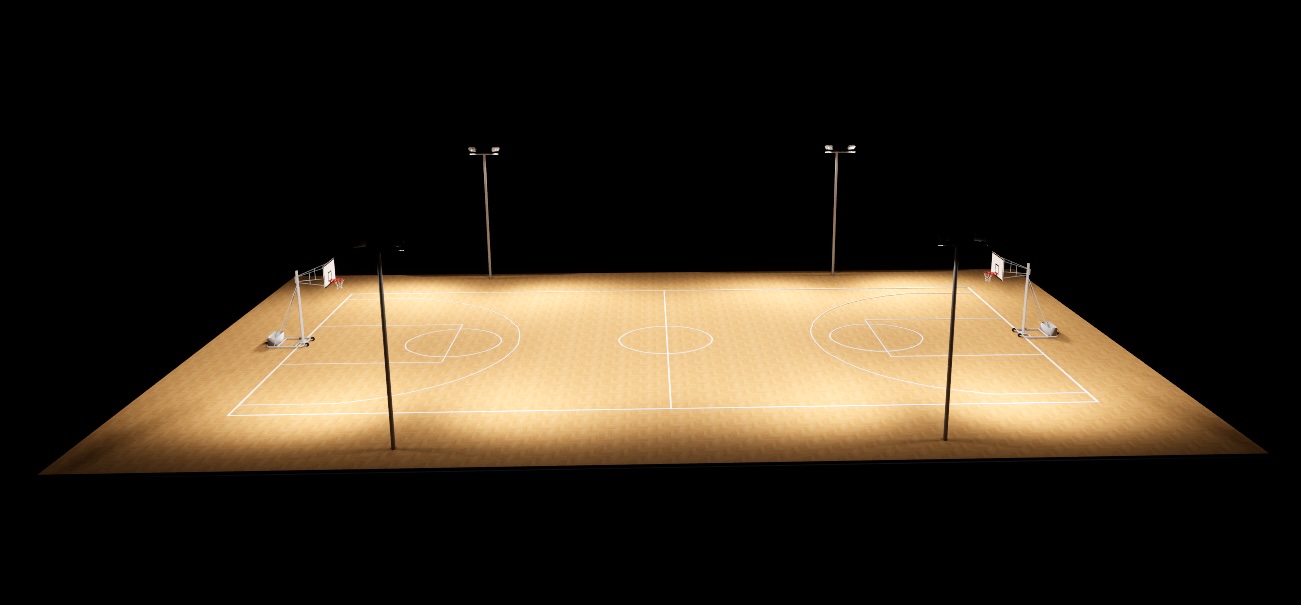

Class III - 75 lx
3D Visualization

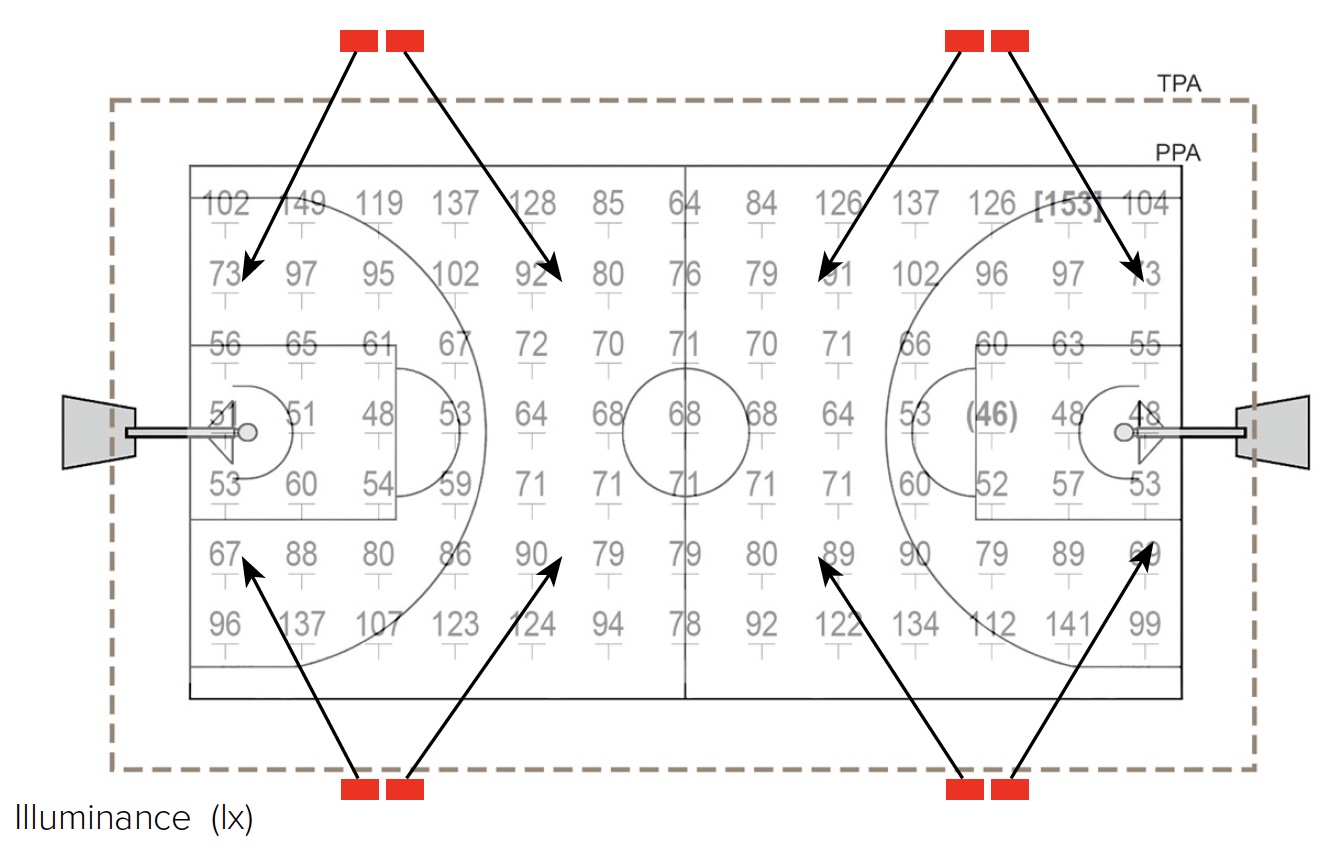

Illuminance Grid (lx)
SPC-H-750-70-R60
8 floodlights
0.48 kW
Height: 6.0m
PPA Results
- Average Illuminance: 83.2 lx
- Uniformity Emin/Em: 0.55
- RGmax: 41.4
- Maintenance Factor: 80%
TPA Results
- Average Illuminance: 76.1 lx
- Uniformity Emin/Em: 0.44
- RGmax: 42.7
- Maintenance Factor: 80%
Football - Outdoor
EN 12193:2018 | Field: 100m x 65m
| Class | Em (lx) | Uniformity | RG | Ra |
|---|---|---|---|---|
| Class I | 500 | 0.70 | 55 | 70 |
| Class II | 200 | 0.60 | 55 | 60 |
| Class III | 75 | 0.50 | 55 | 60 |

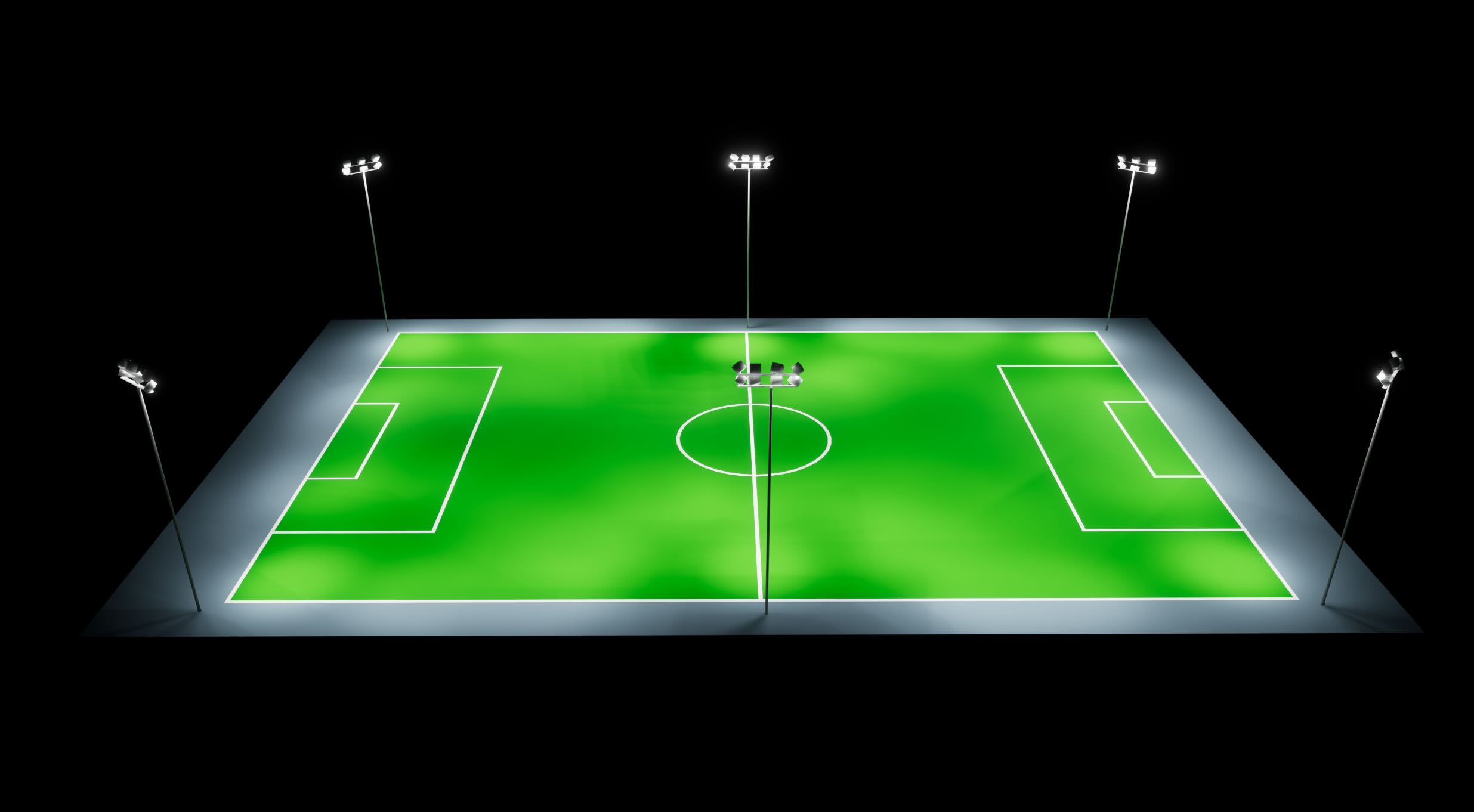

6 poles - 23m
3D Visualization

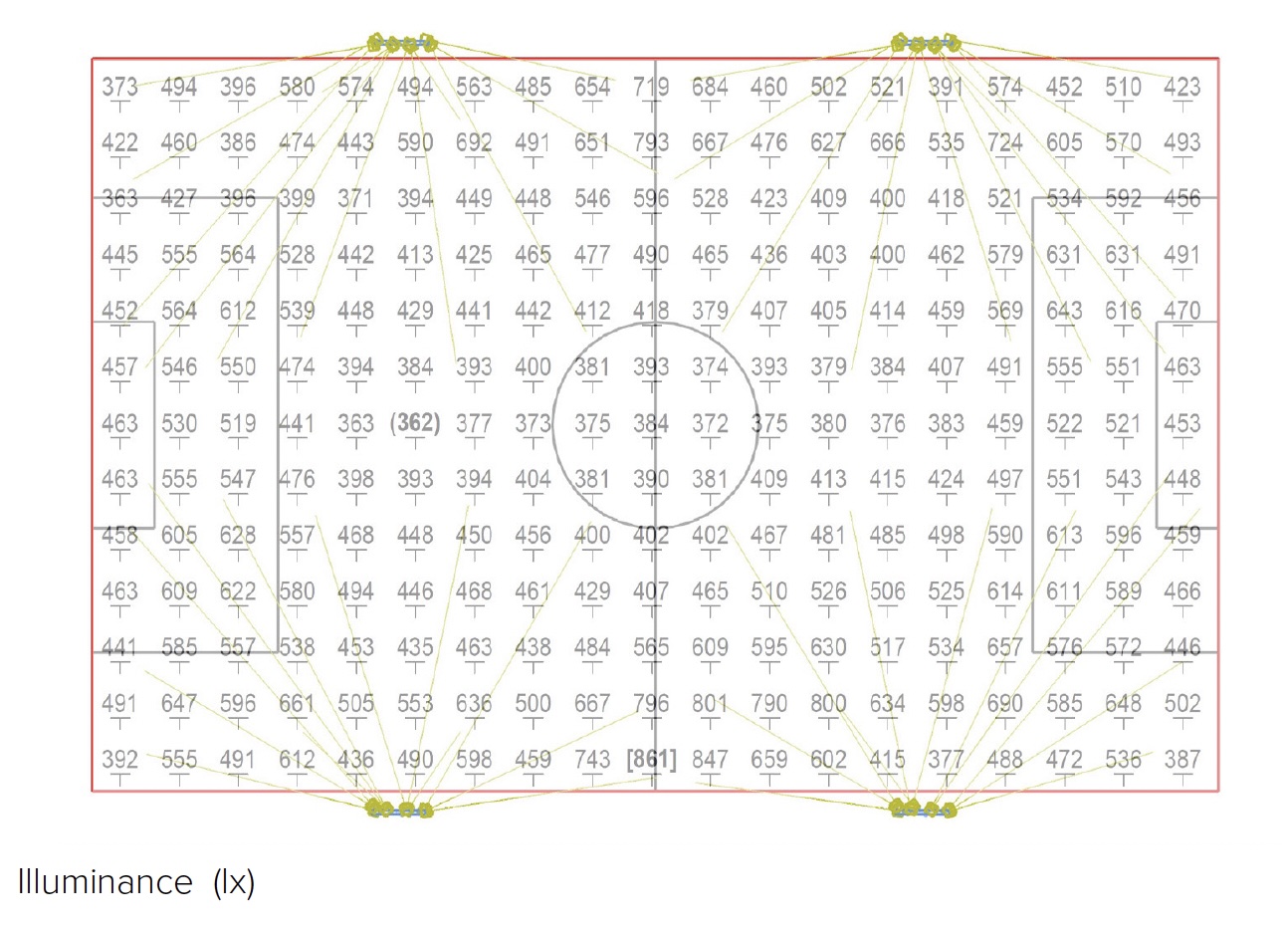

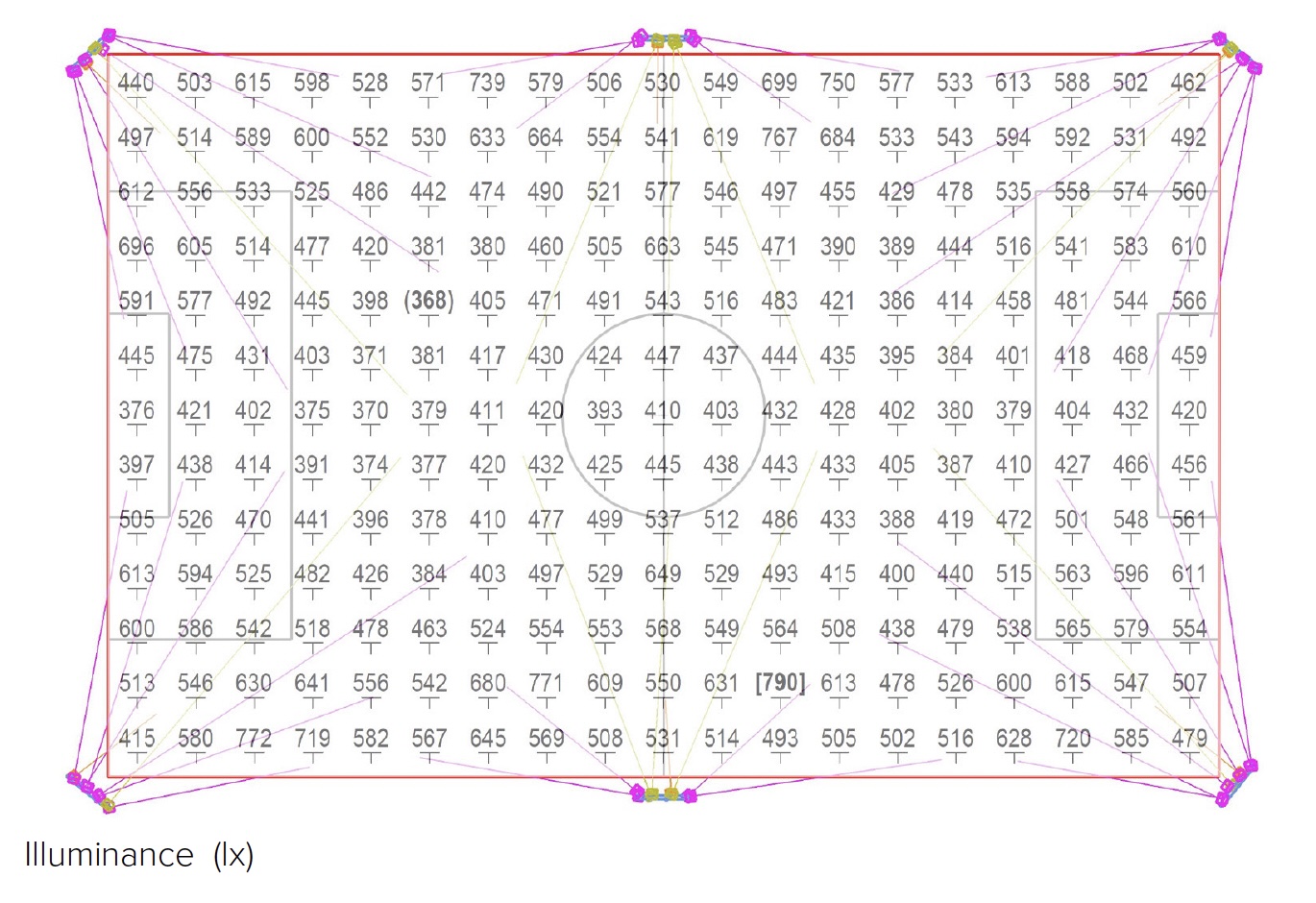

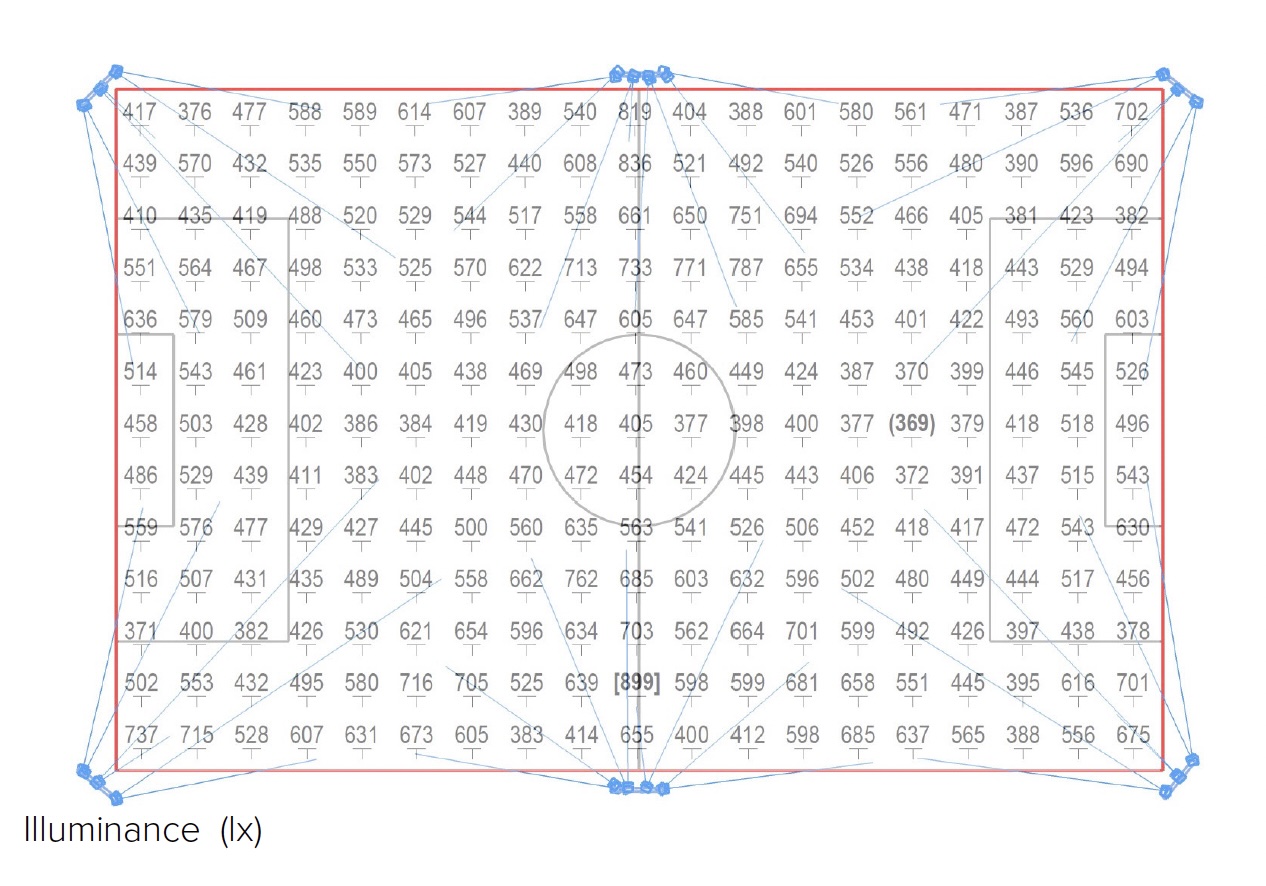

Illuminance Grid (lx)
FL-I-18-750-1010-R14
40 floodlights
40.4 kW
Height: 23.0m
- Average Illuminance: 519 lx
- Uniformity Emin/Em: 0.73
- RGmax: 38.1
- Maintenance Factor: 80%

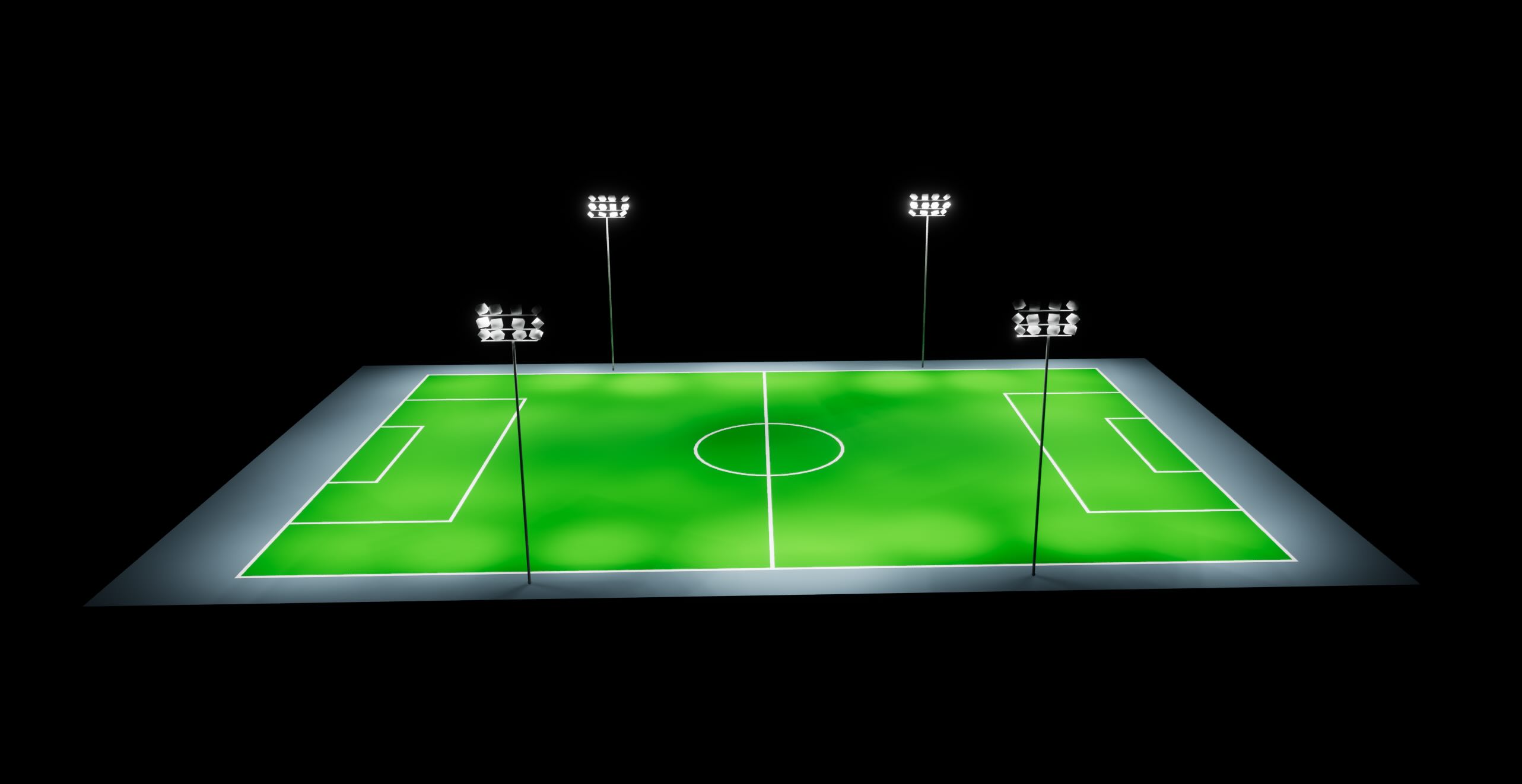

4 poles - 23m
3D Visualization
Illuminance Grid (lx)
FL-I-15-750-840-R14
48 floodlights
40.32 kW
Height: 23.0m
- Average Illuminance: 504 lx
- Uniformity Emin/Em: 0.73
- RGmax: 40.8
- Maintenance Factor: 80%

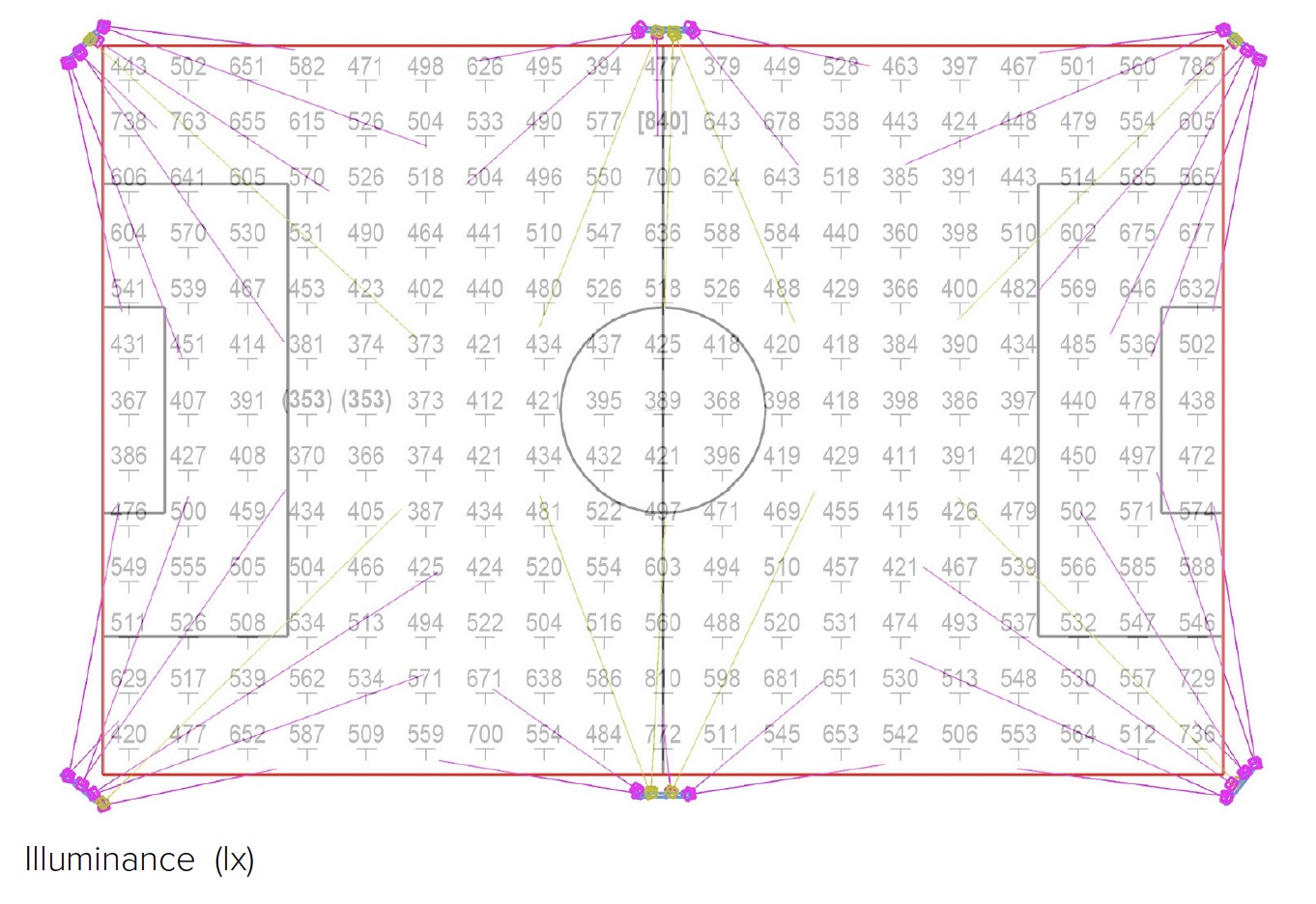

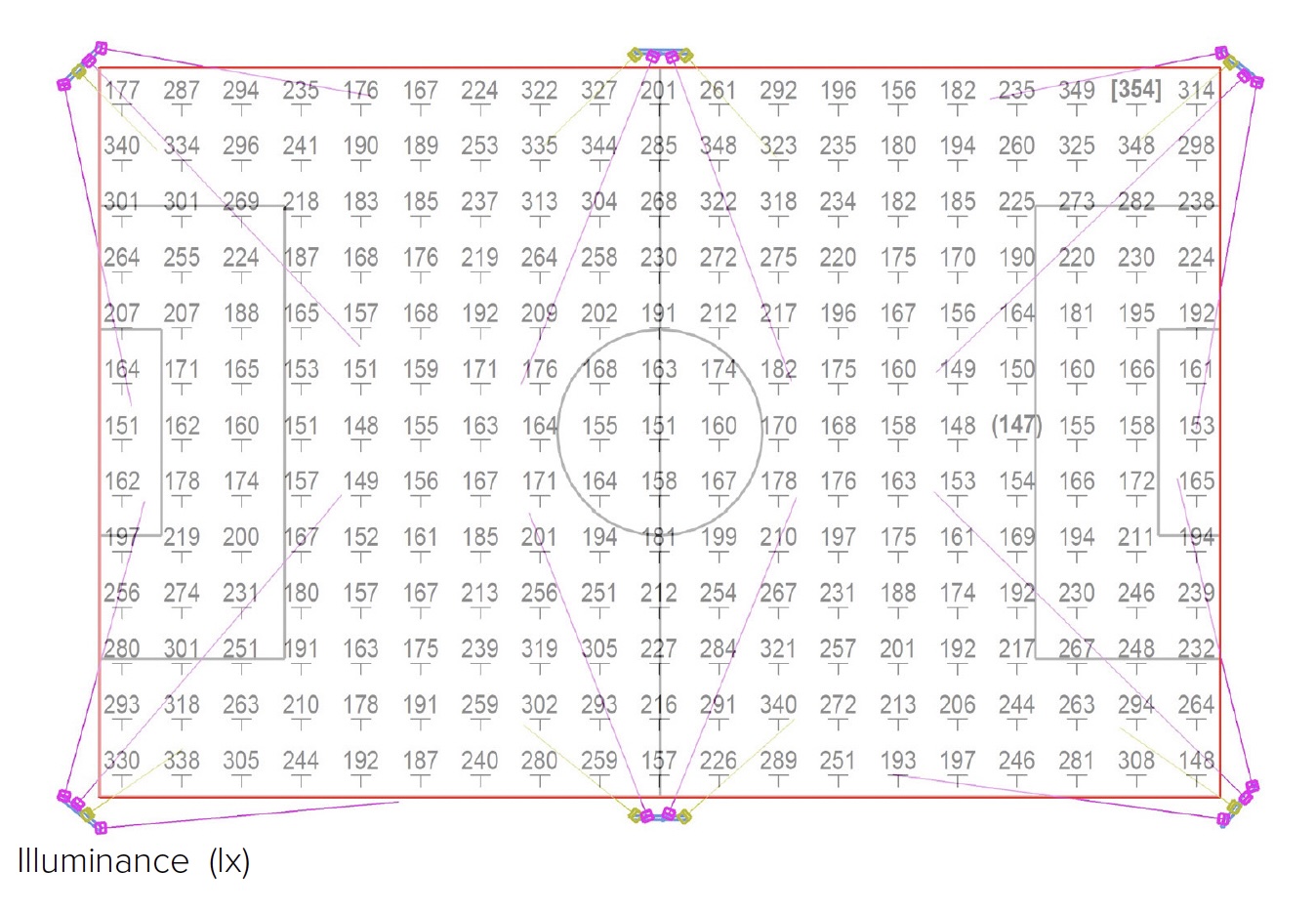

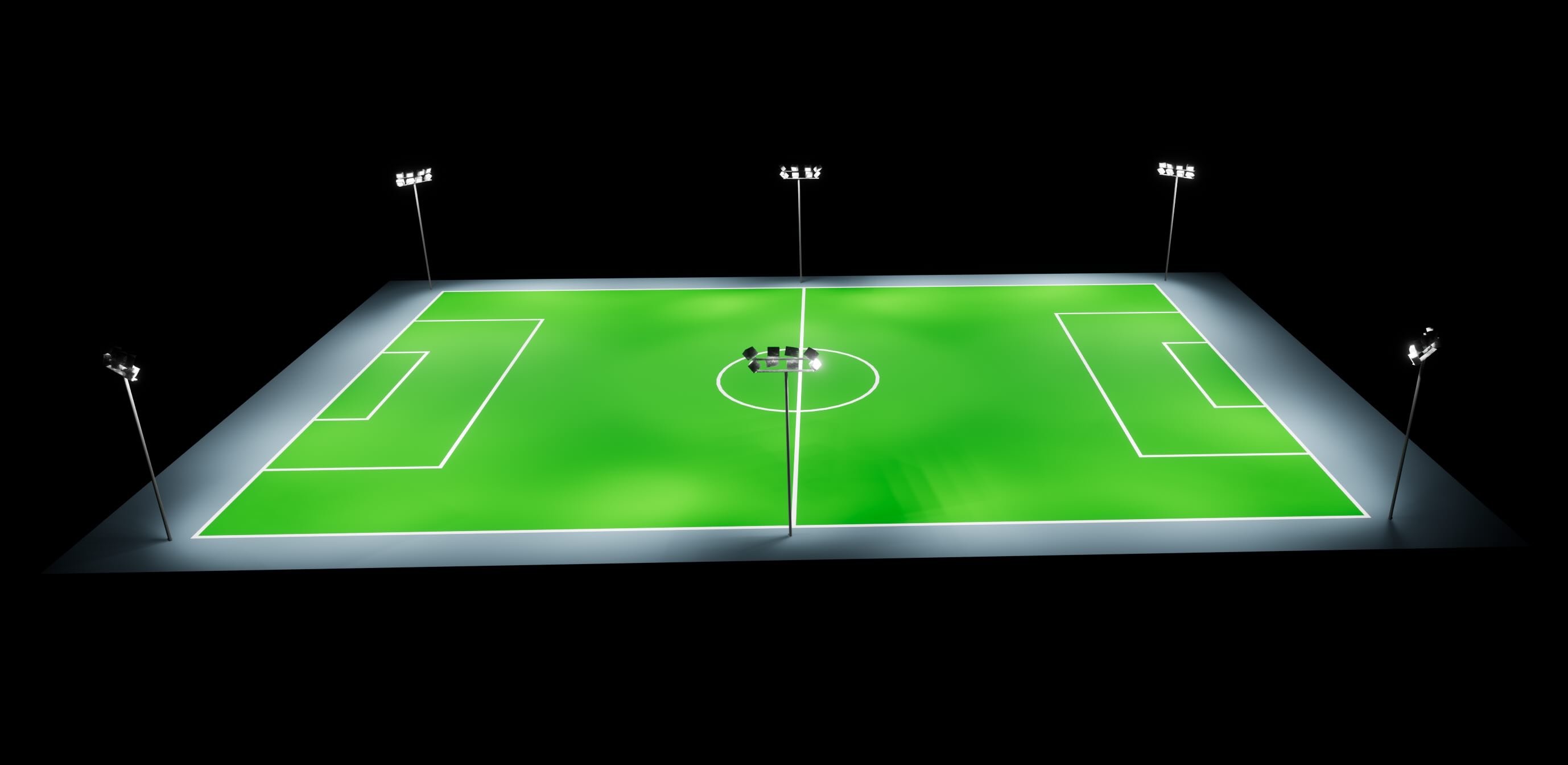

6 poles - 18m
3D Visualization
Illuminance Grid (lx)
FL-I-15-750-840-R14 x 10
FL-I-15-750-840-R21 x 38
48 floodlights
40.32 kW
Height: 18.0m
- Average Illuminance: 506 lx
- Uniformity Emin/Em: 0.70
- RGmax: 44.4
- Maintenance Factor: 80%

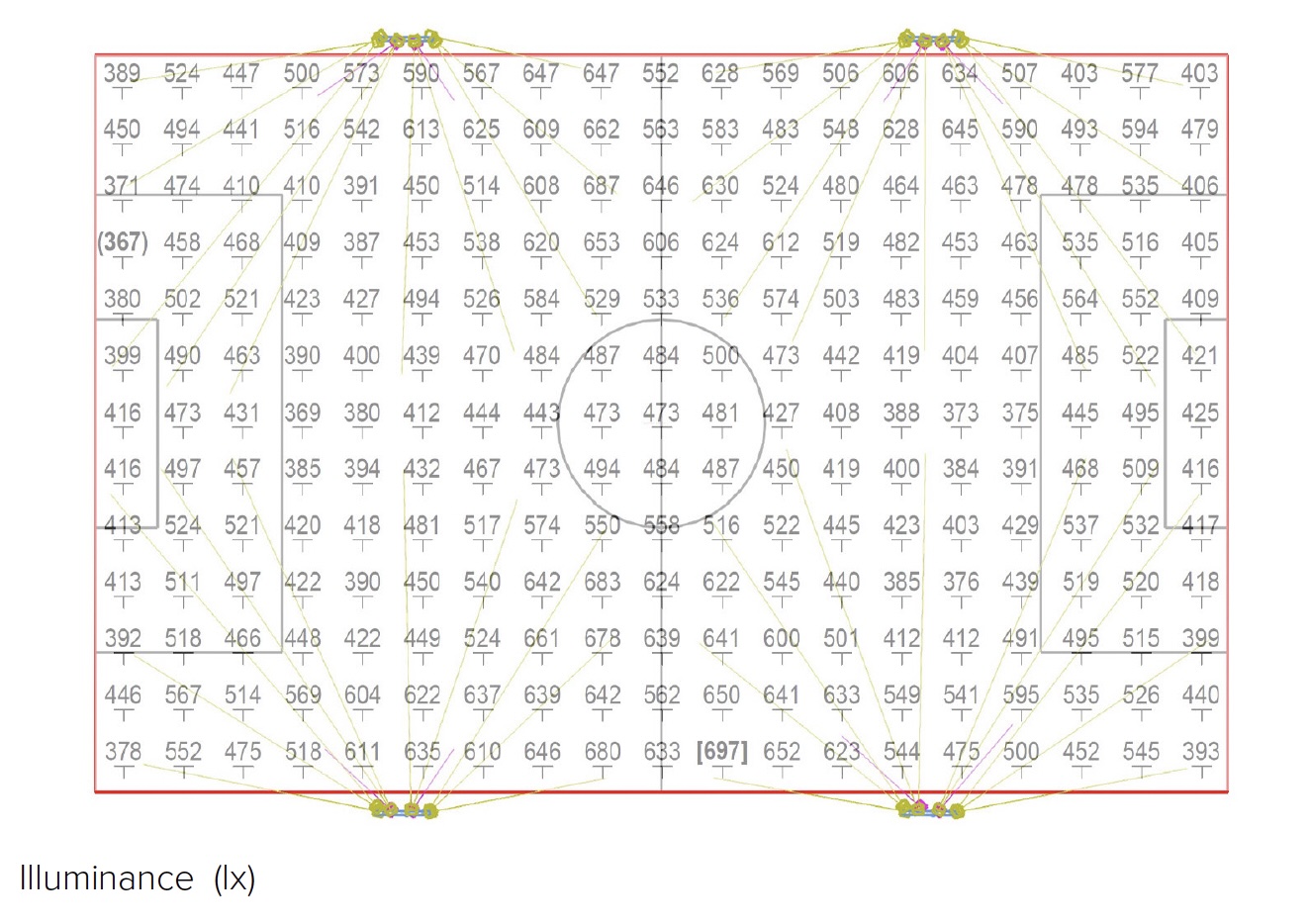

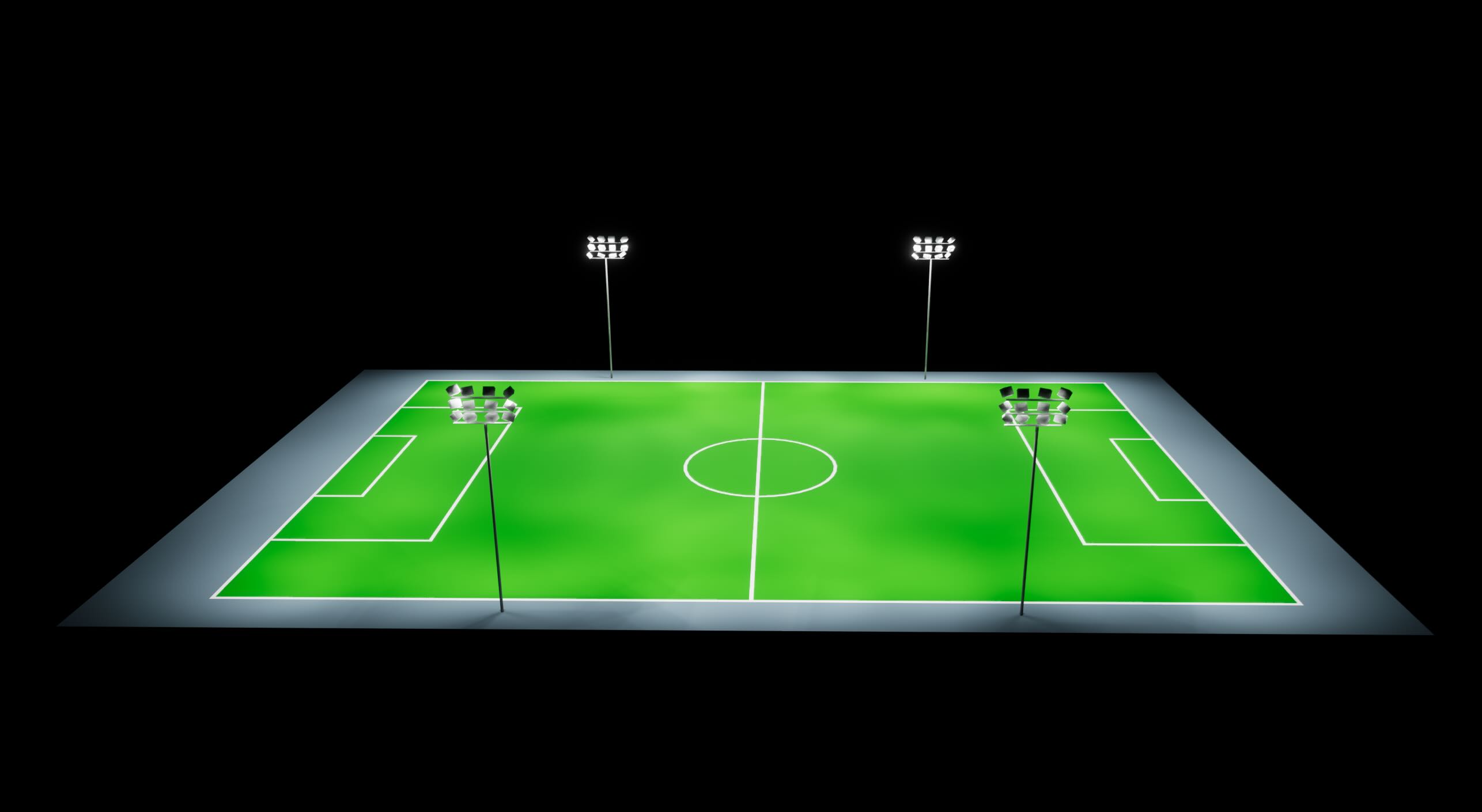

4 poles - 18m
3D Visualization
Illuminance Grid (lx)
FL-I-15-750-840-R14 x 40
FL-I-15-750-840-R30 x 8
48 floodlights
40.32 kW
Height: 18.0m
- Average Illuminance: 503 lx
- Uniformity Emin/Em: 0.73
- RGmax: 46
- Maintenance Factor: 80%
6 poles - 15m
3D Visualization
Illuminance Grid (lx)
FL-I-15-750-840-R14 x 10
FL-I-15-750-840-R21 x 32
FL-I-15-750-840-R62 x 6
48 floodlights
40.32 kW
Height: 15.0m
- Average Illuminance: 506 lx
- Uniformity Emin/Em: 0.74
- RGmax: 49.3
- Maintenance Factor: 80%

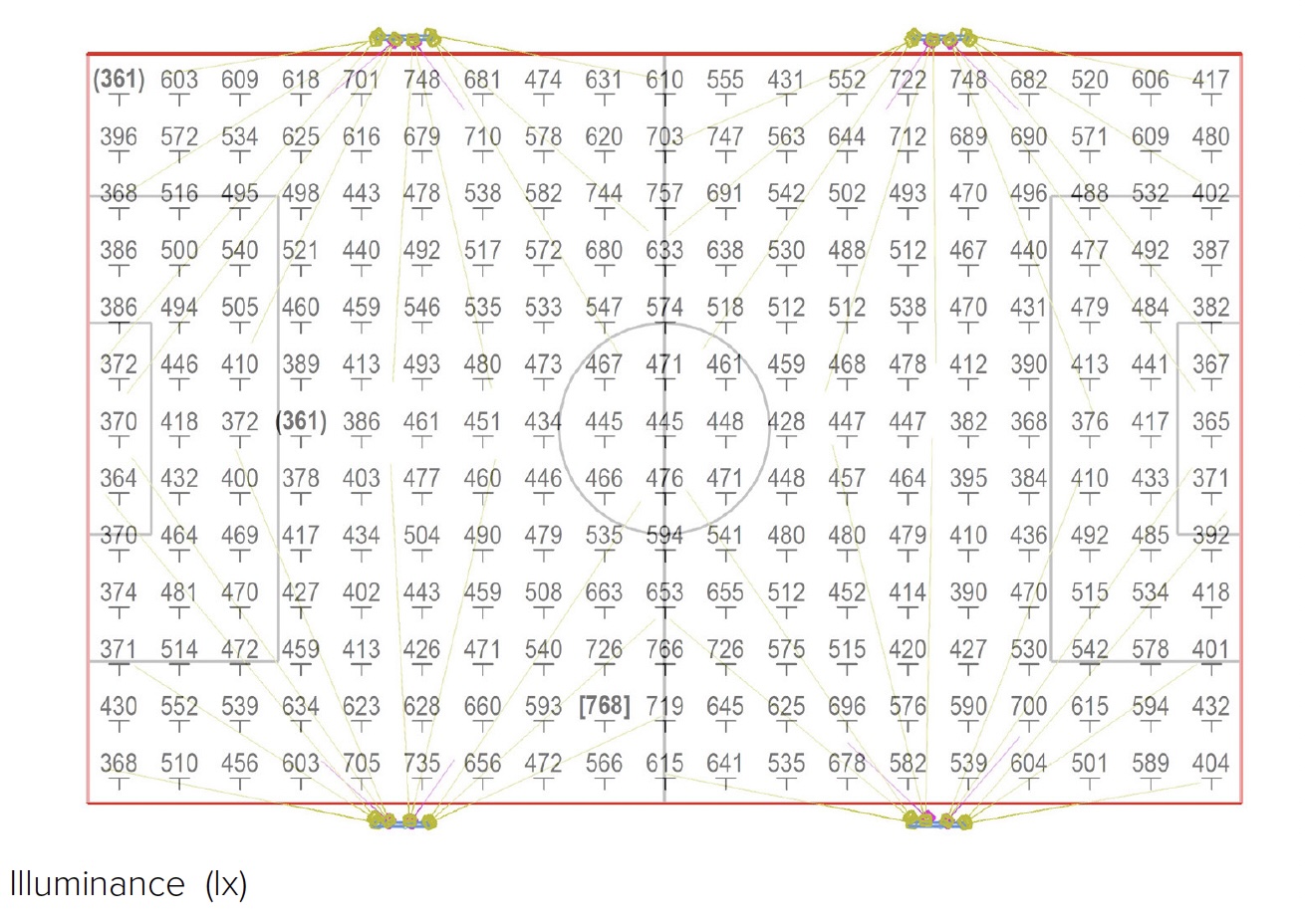

4 poles - 15m

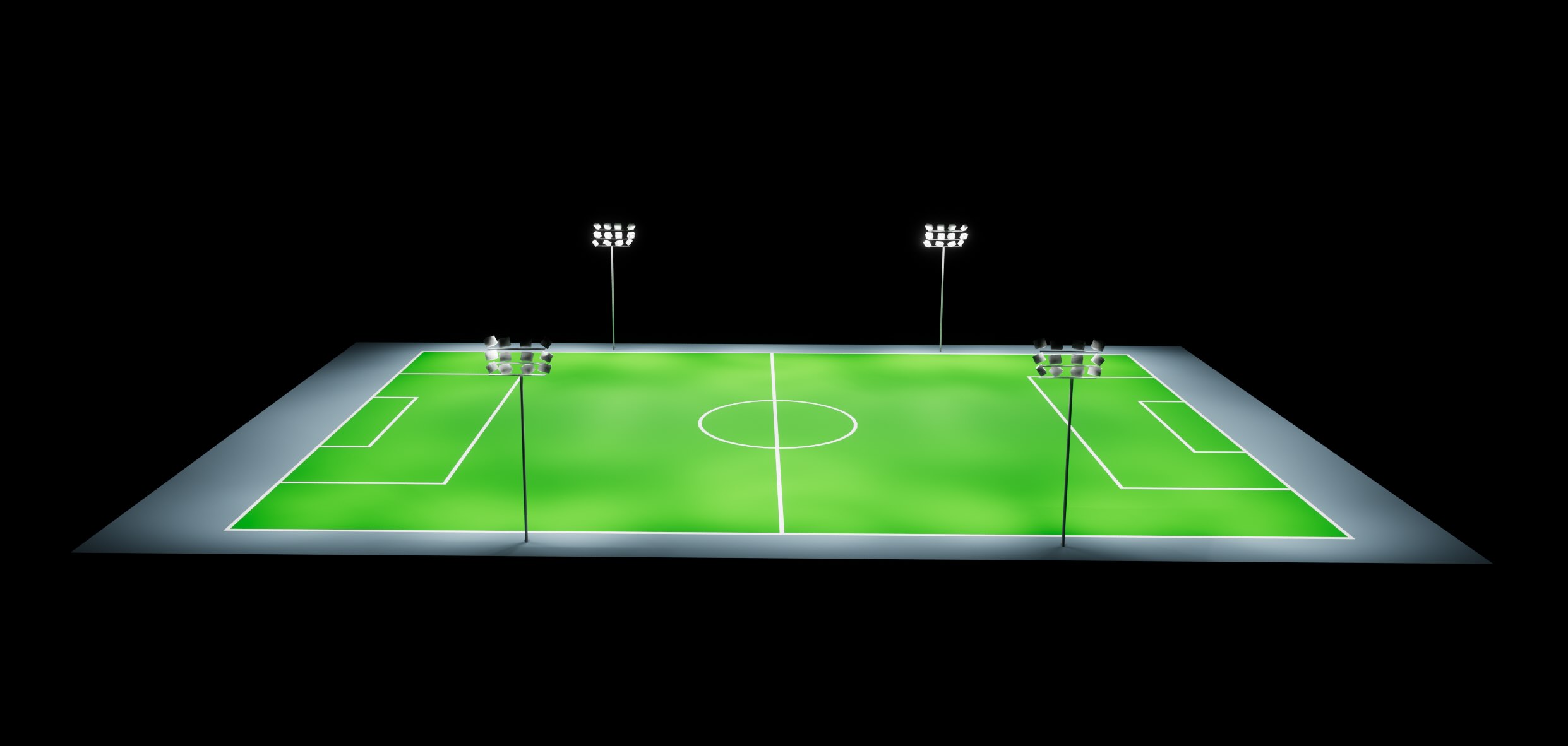

3D Visualization
Illuminance Grid (lx)
FL-I-15-750-840-R14 x 40
FL-I-15-750-840-R30 x 8
48 floodlights
40.32 kW
Height: 15.0m
- Average Illuminance: 513 lx
- Uniformity Emin/Em: 0.70
- RGmax: 48.9
- Maintenance Factor: 80%
6 poles - 18m

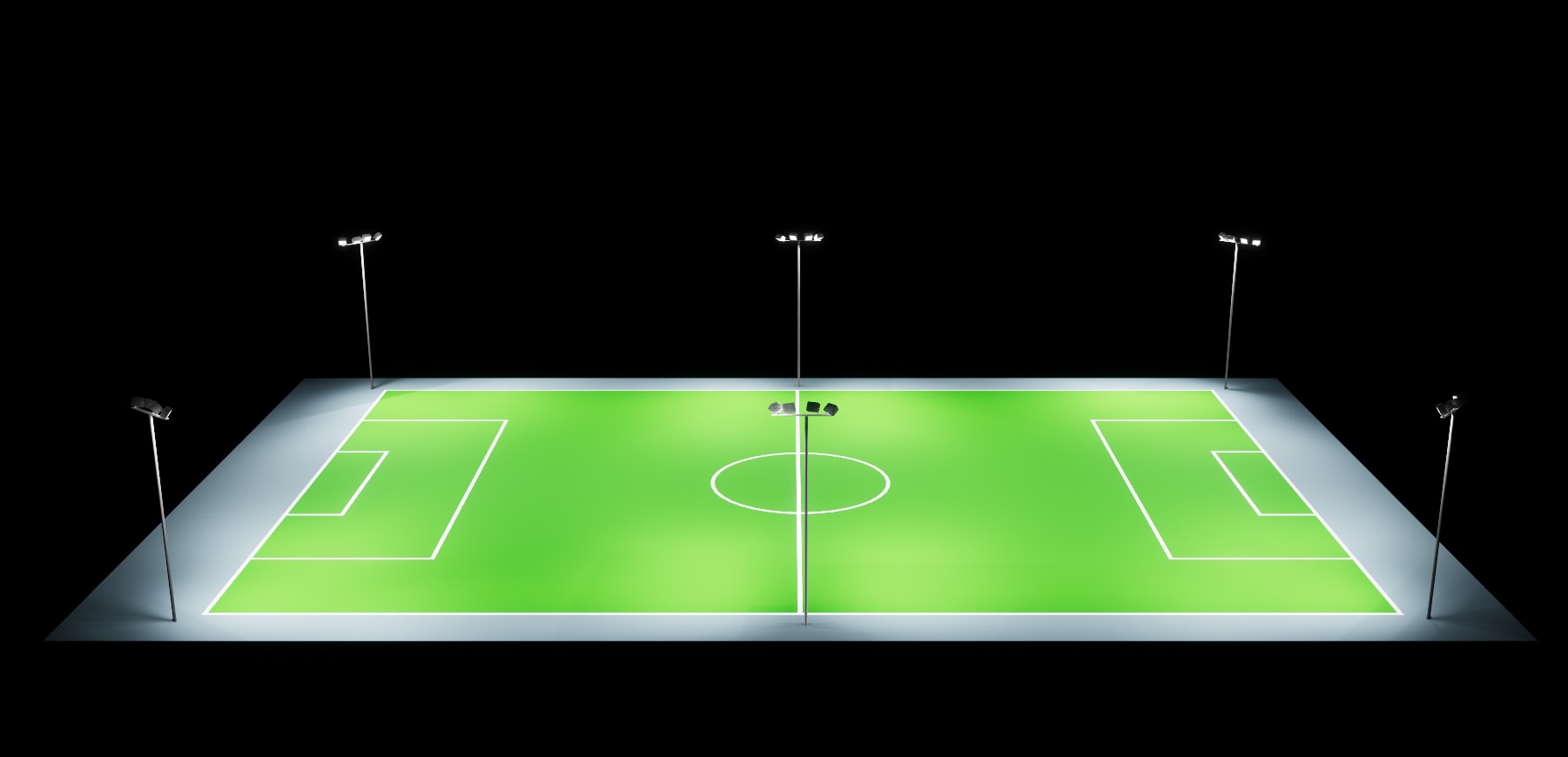

3D Visualization
Illuminance Grid (lx)
FL-I-15-750-735-R30 x 16
FL-I-15-750-840-R46 x 8
24 floodlights
17.64 kW
Height: 18.0m
- Average Illuminance: 218 lx
- Uniformity Emin/Em: 0.67
- RGmax: 41.4
- Maintenance Factor: 80%

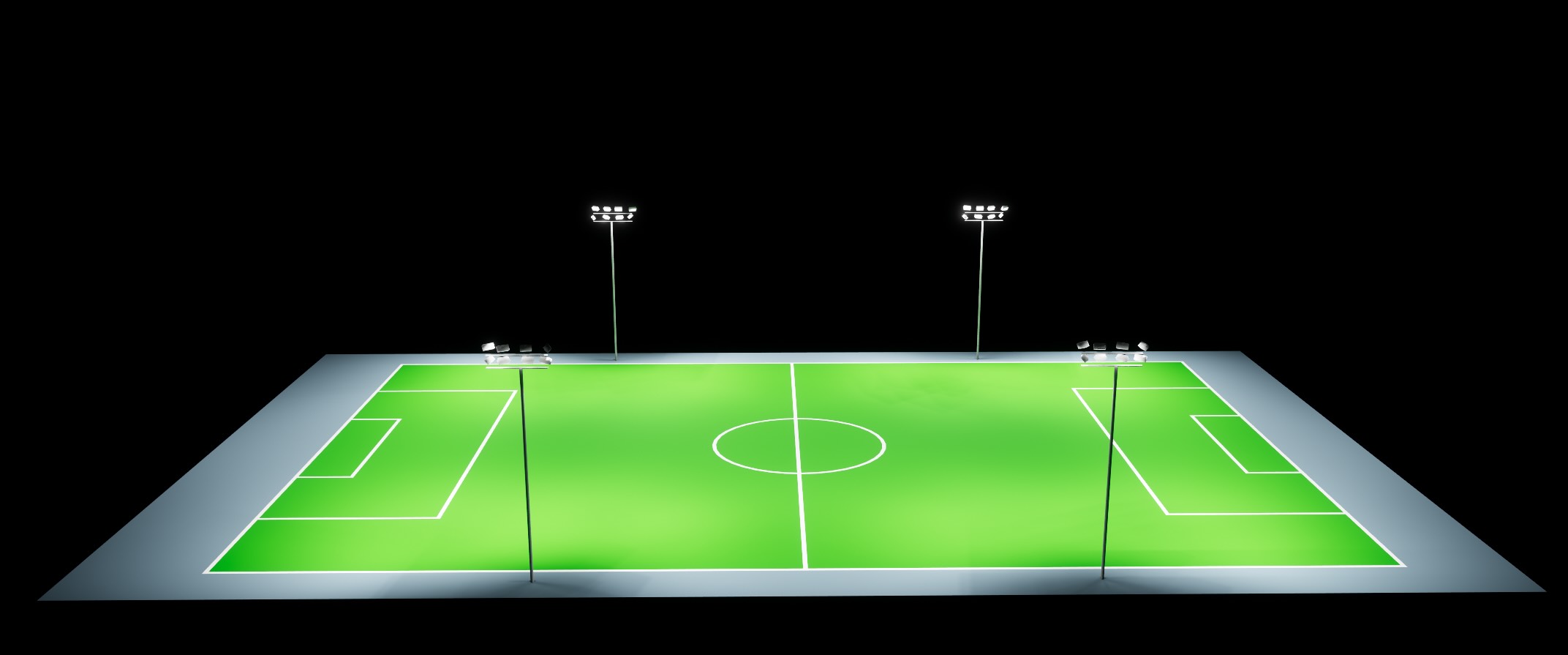

4 poles - 18m
3D Visualization

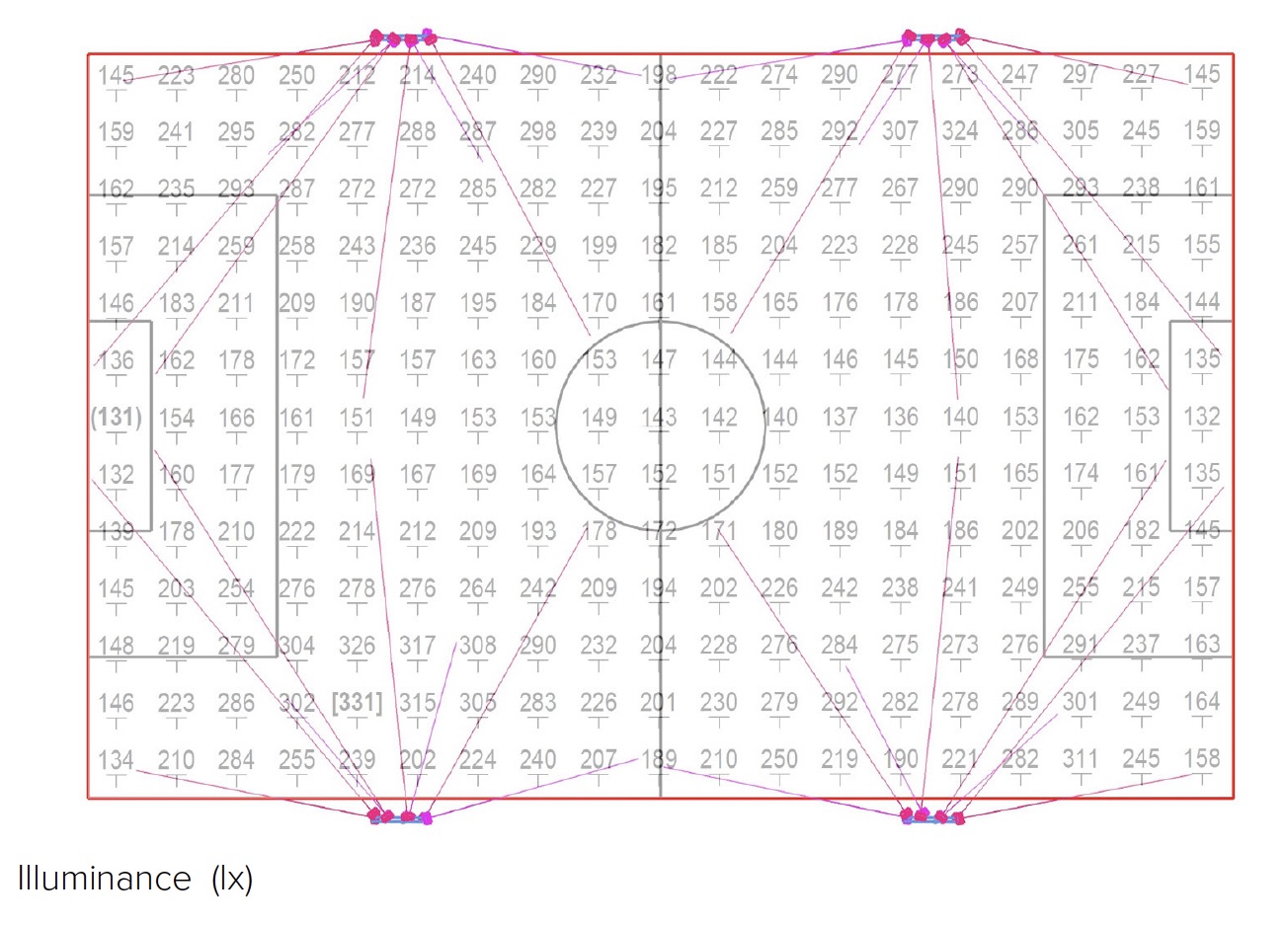

Illuminance Grid (lx)
FL-I-10-750-560-R30 x 20
FL-I-10-750-560-R46 x 12
32 floodlights
17.92 kW
Height: 18.0m
- Average Illuminance: 214 lx
- Uniformity Emin/Em: 0.61
- RGmax: 42.5
- Maintenance Factor: 80%

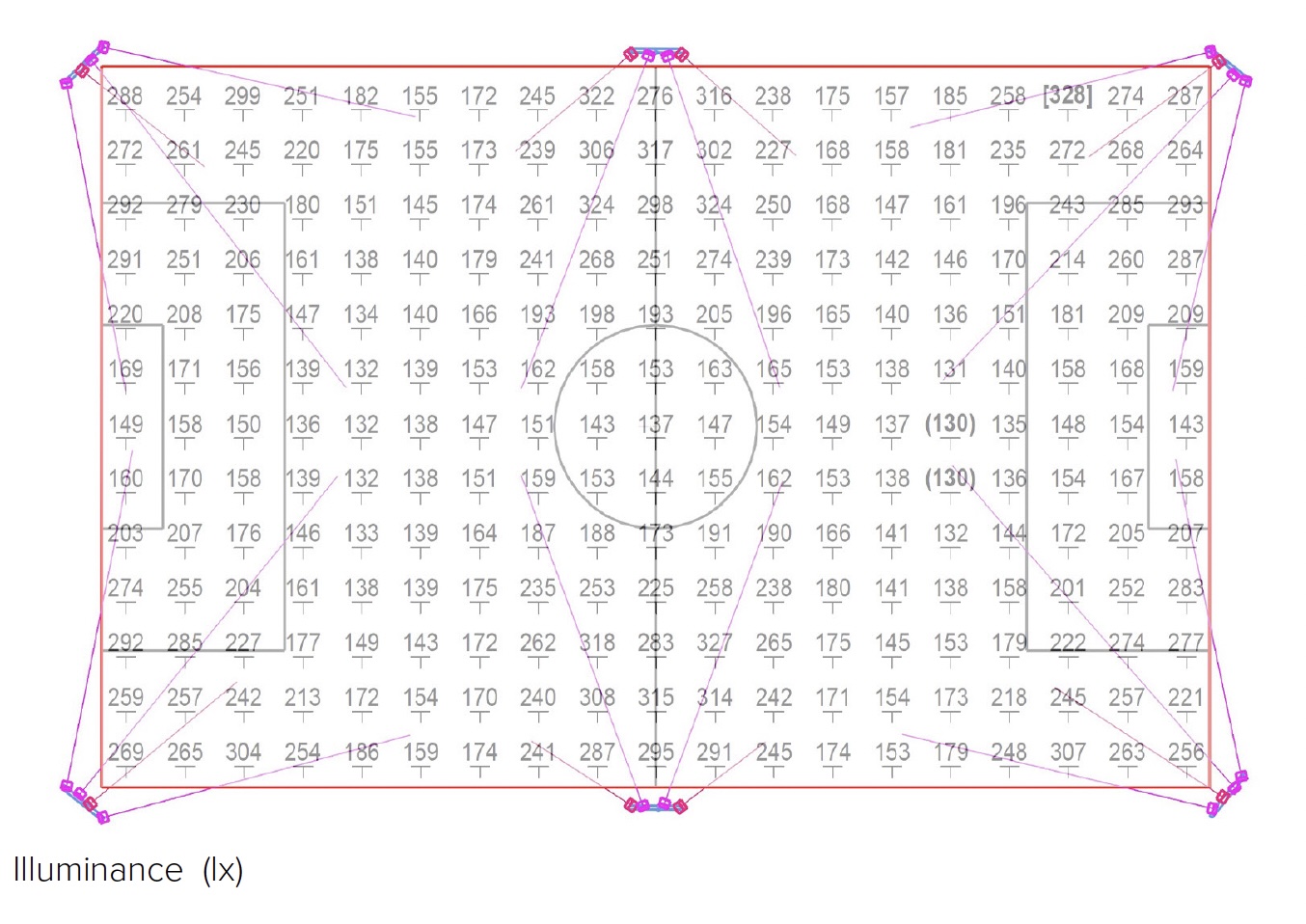

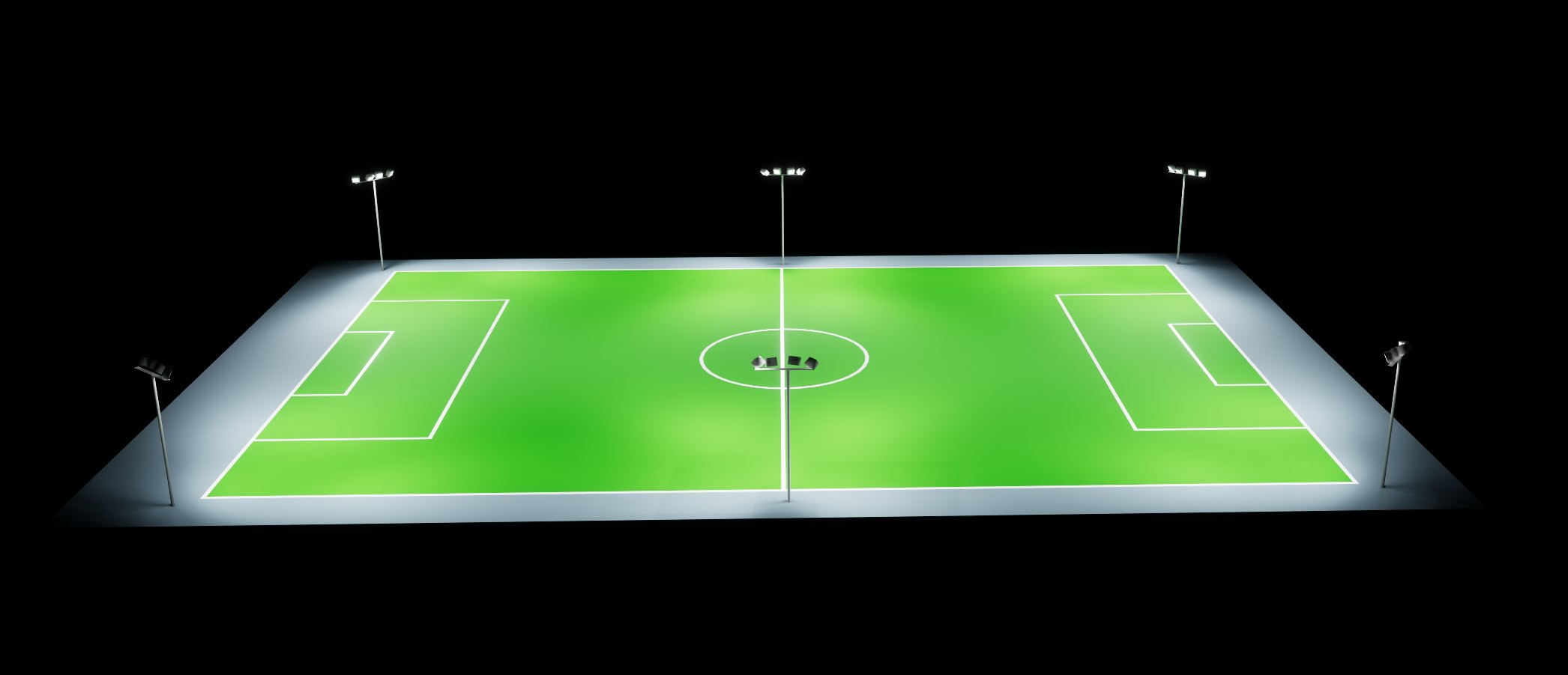

6 poles - 12m
3D Visualization
Illuminance Grid (lx)
FL-I-15-750-735-R30 x 16
FL-I-15-750-735-R87 x 8
24 floodlights
17.64 kW
Height: 12.0m
- Average Illuminance: 202 lx
- Uniformity Emin/Em: 0.64
- RGmax: 52
- Maintenance Factor: 80%

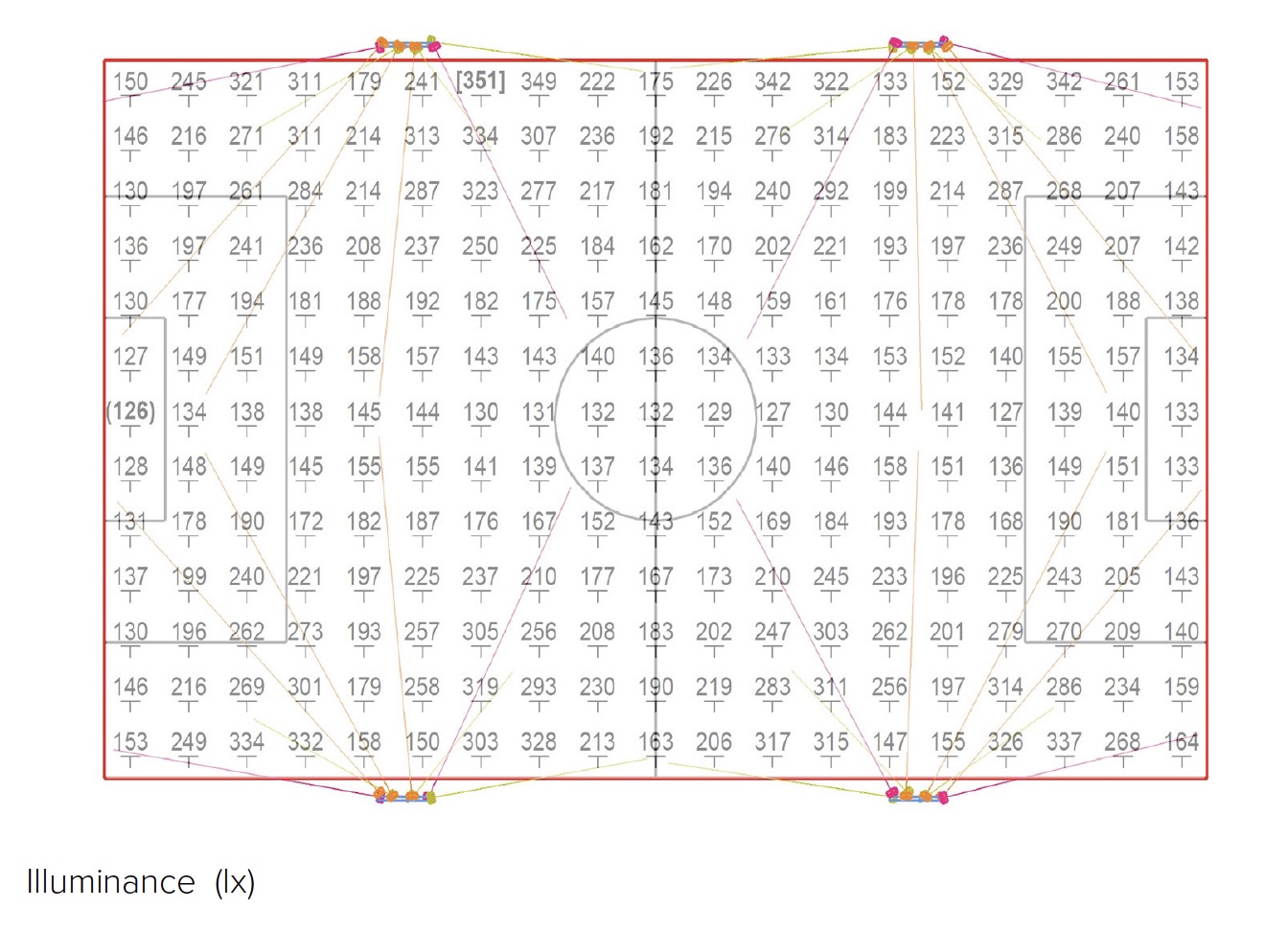

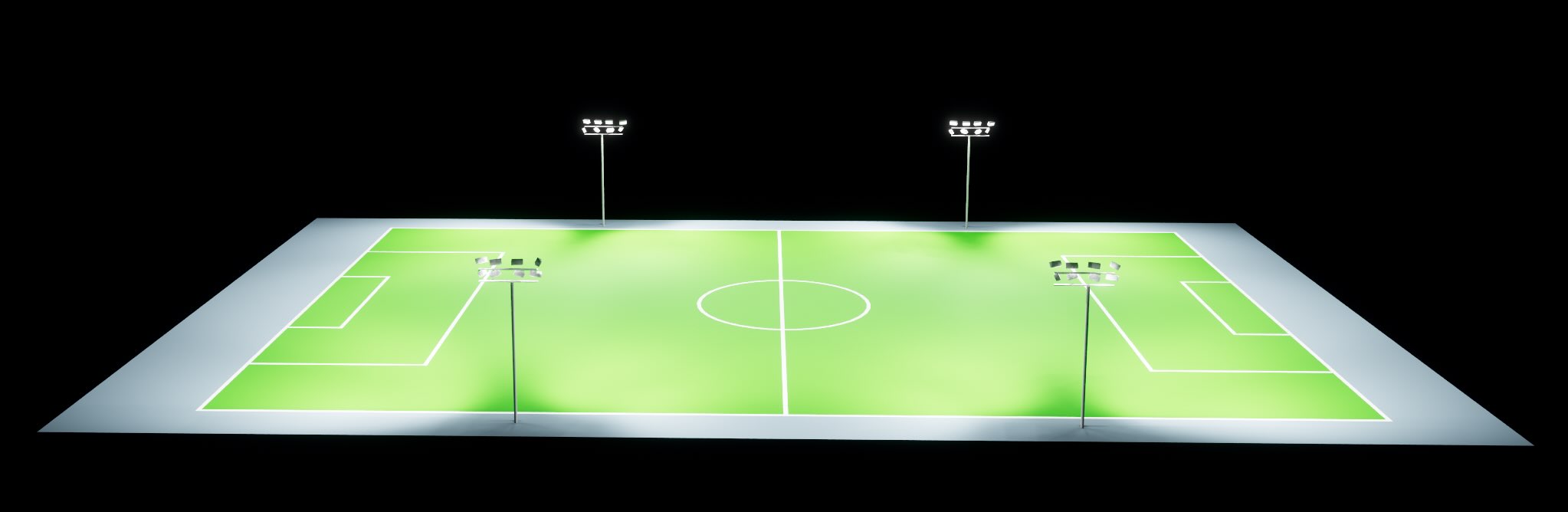

4 poles - 12m
3D Visualization
Illuminance Grid (lx)
FL-I-10-750-560-R21 x 12
FL-I-10-750-560-R30 x 8
FL-I-10-750-560-R62 x 12
32 floodlights
17.92 kW
Height: 12.0m
- Average Illuminance: 202 lx
- Uniformity Emin/Em: 0.63
- RGmax: 54.4
- Maintenance Factor: 80%
6 poles - 12m

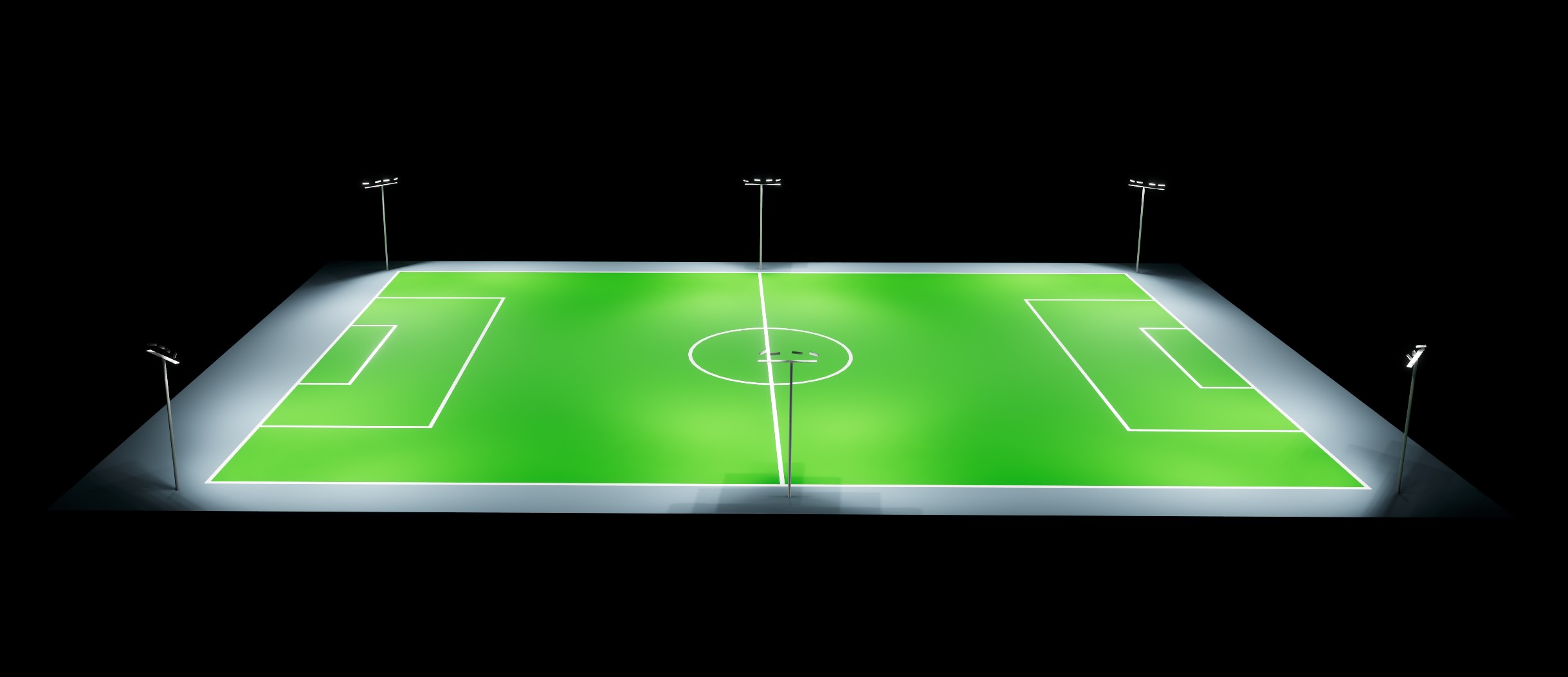

3D Visualization

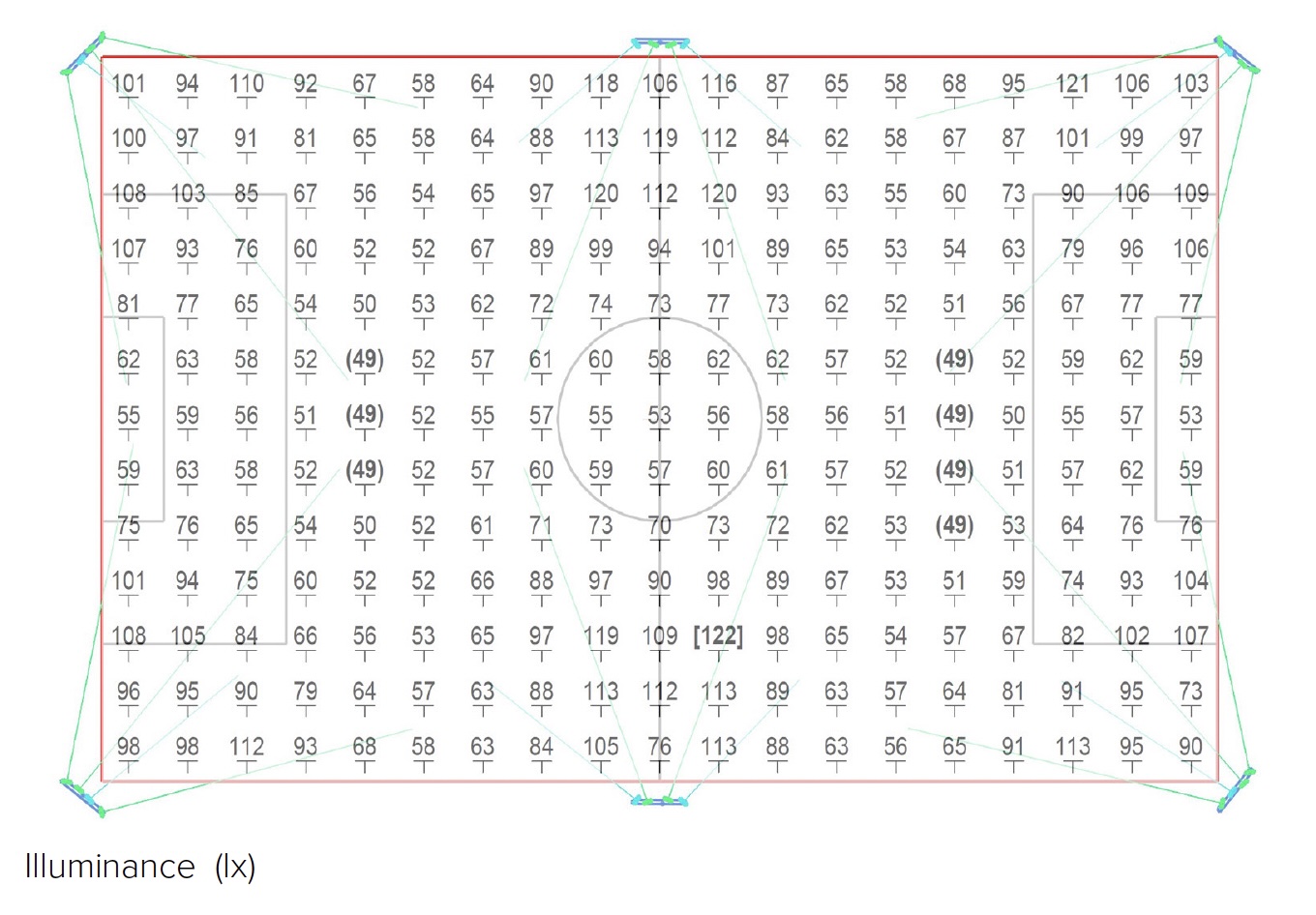

Illuminance Grid (lx)
FL-I-5-750-280-R30 x 16
FL-I-5-750-280-R87 x 8
24 floodlights
6.72 kW
Height: 12.0m
- Average Illuminance: 75 lx
- Uniformity Emin/Em: 0.65
- RGmax: 50.9
- Maintenance Factor: 80%

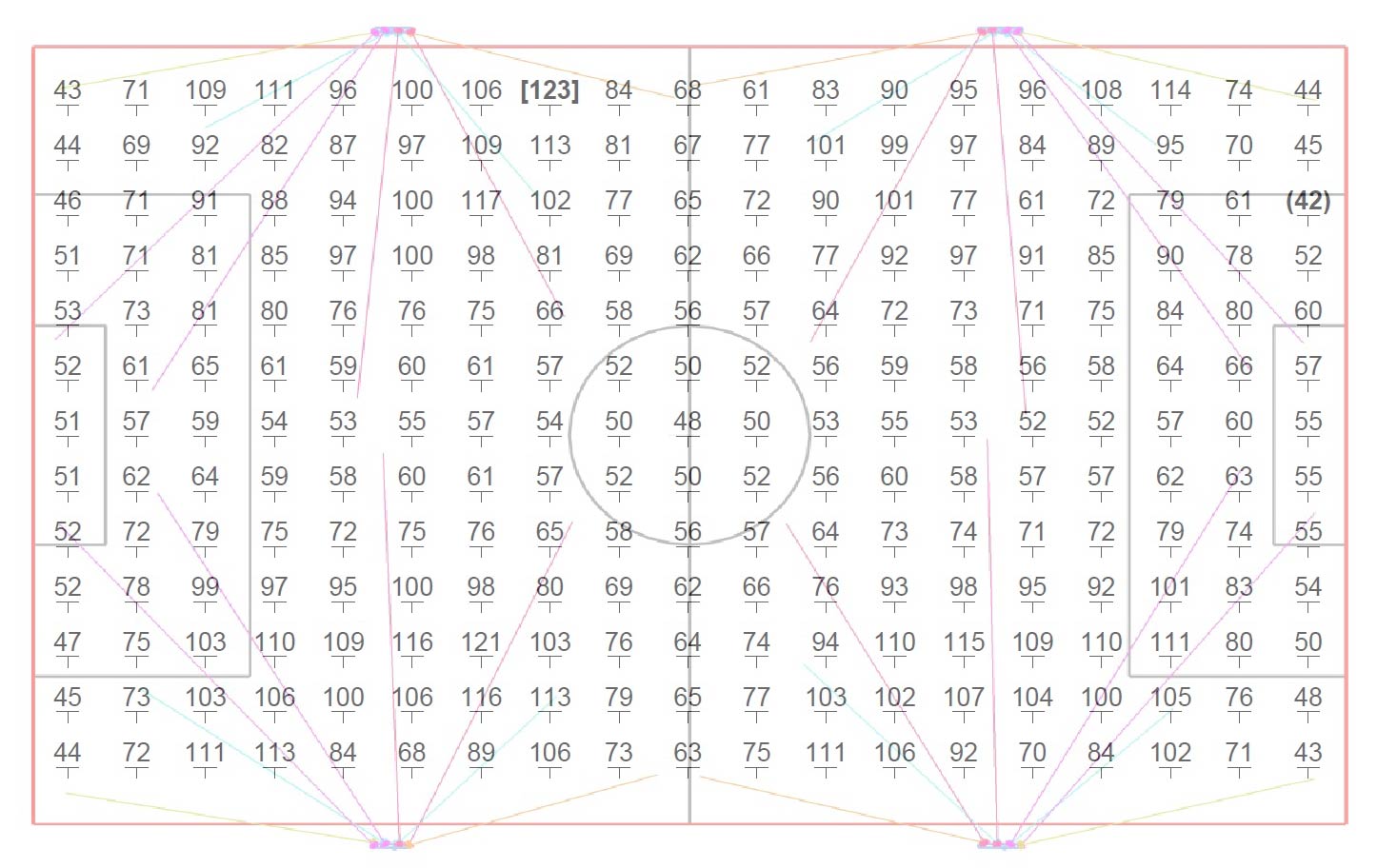

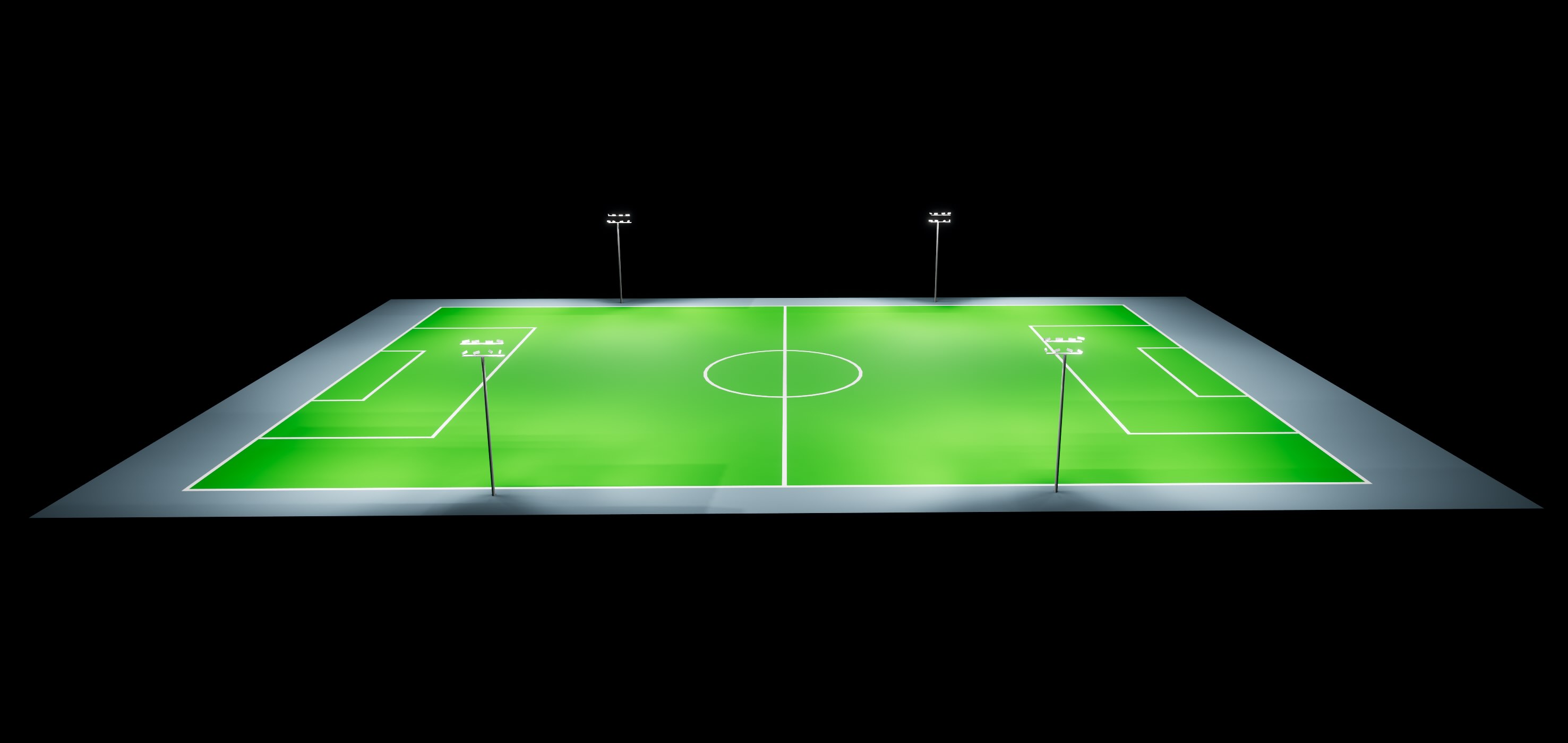

4 poles - 12m
3D Visualization
Illuminance Grid (lx)
FL-I-4-750-224-R21 x 8
FL-I-4-750-224-R30 x 8
FL-I-4-750-224-R46 x 4
FL-I-4-750-224-R62 x 4
FL-I-4-750-224-R87 x 8
32 floodlights
7.16 kW
Height: 12.0m
- Average Illuminance: 76 lx
- Uniformity Emin/Em: 0.55
- RGmax: 55
- Maintenance Factor: 80%
5-a-side / 6-a-side Football
EN 12193:2018 | Small-sided Football
| Class | Em (lx) | Uniformity | RG | Ra |
|---|---|---|---|---|
| Class I | 500 | 0.70 | 55 | 70 |
| Class II | 200 | 0.60 | 55 | 60 |
| Class III | 75 | 0.50 | 55 | 60 |
5-a-side
30m x 18.5m

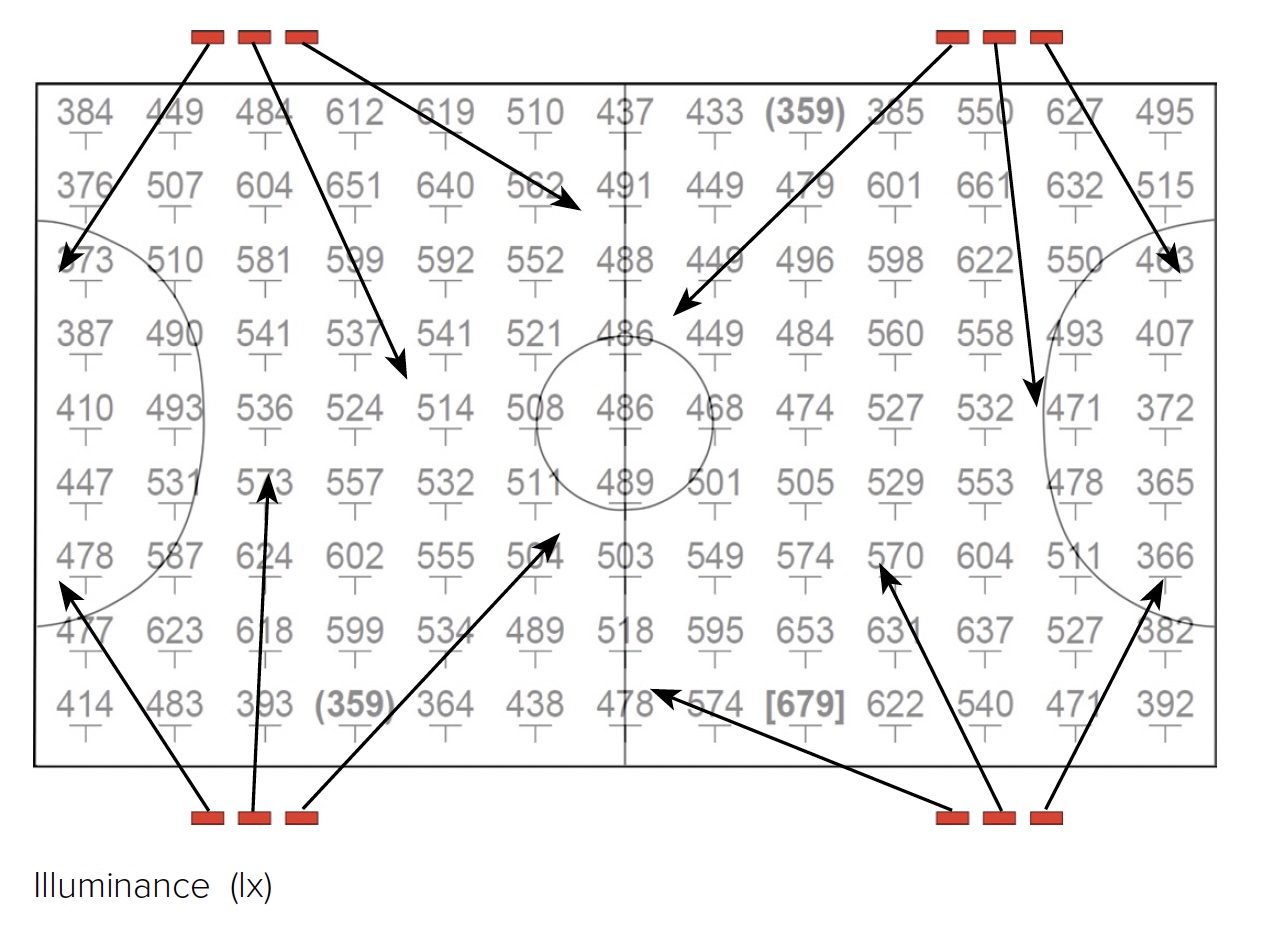

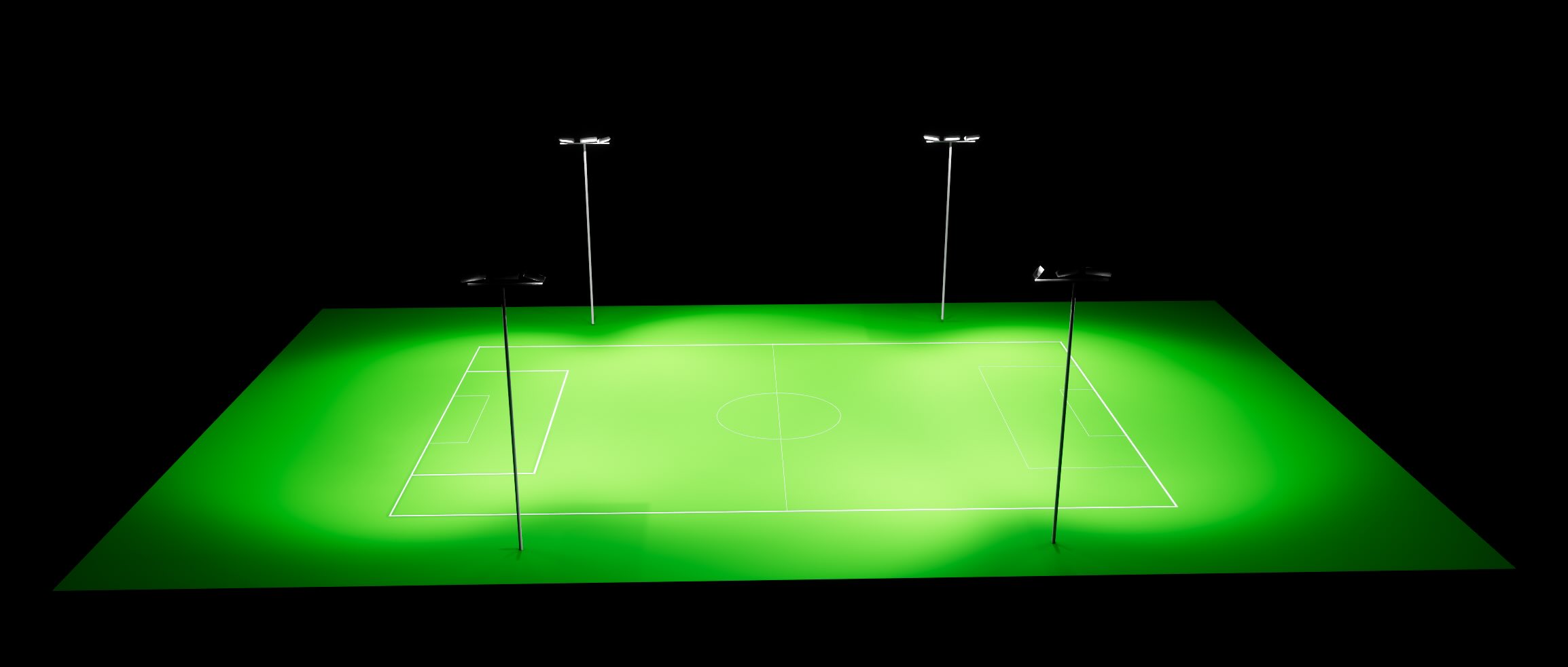

Class I - 4 poles 10m
3D Visualization
Illuminance Grid (lx)
FL-I-6-750-337-R62
12 floodlights
4.04 kW
Height: 10.0m
- Average Illuminance: 515 lx
- Uniformity Emin/Em: 0.70
- RGmax: 35.5
- Maintenance Factor: 80%

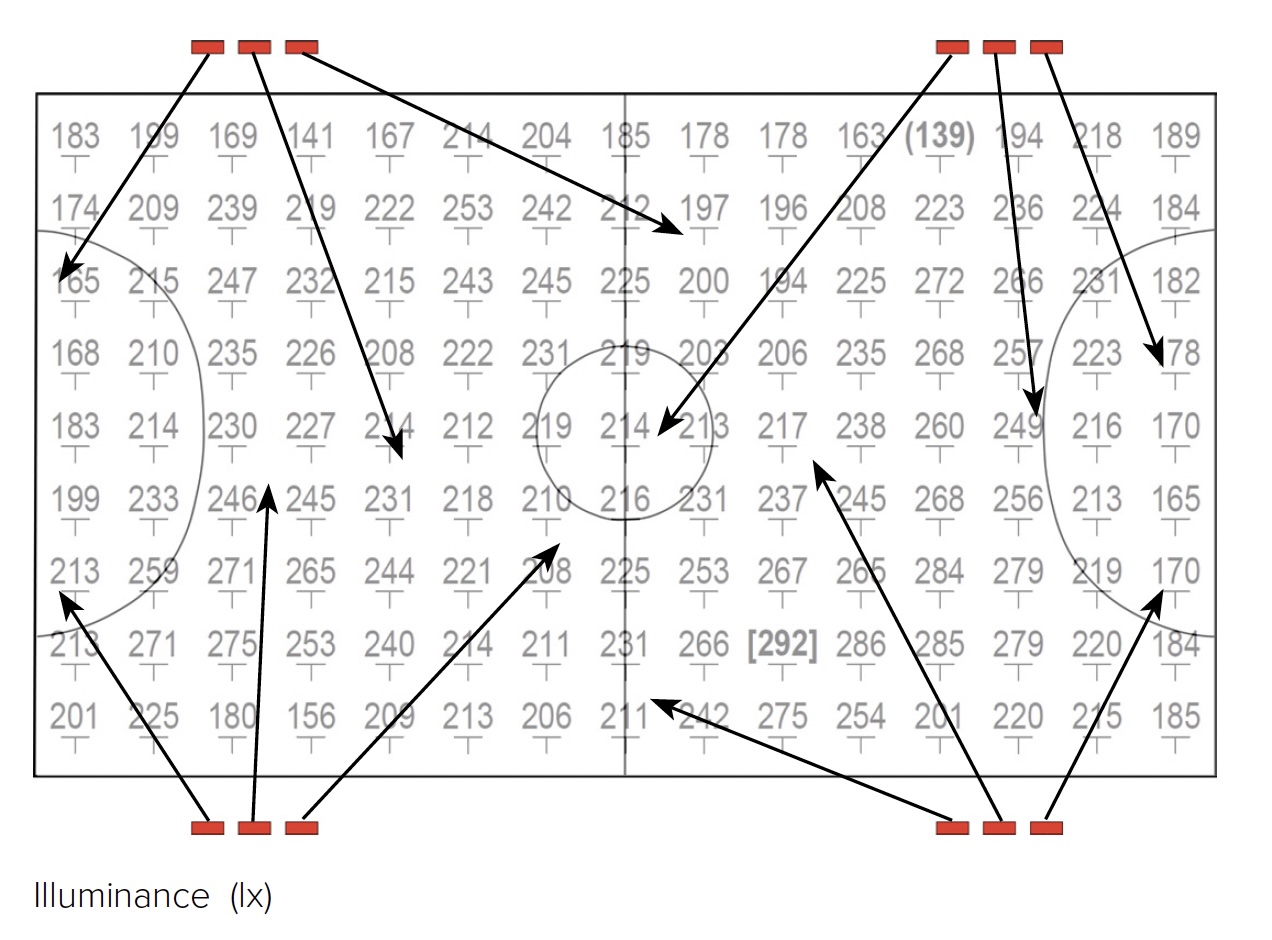

Class II - 4 poles 10m

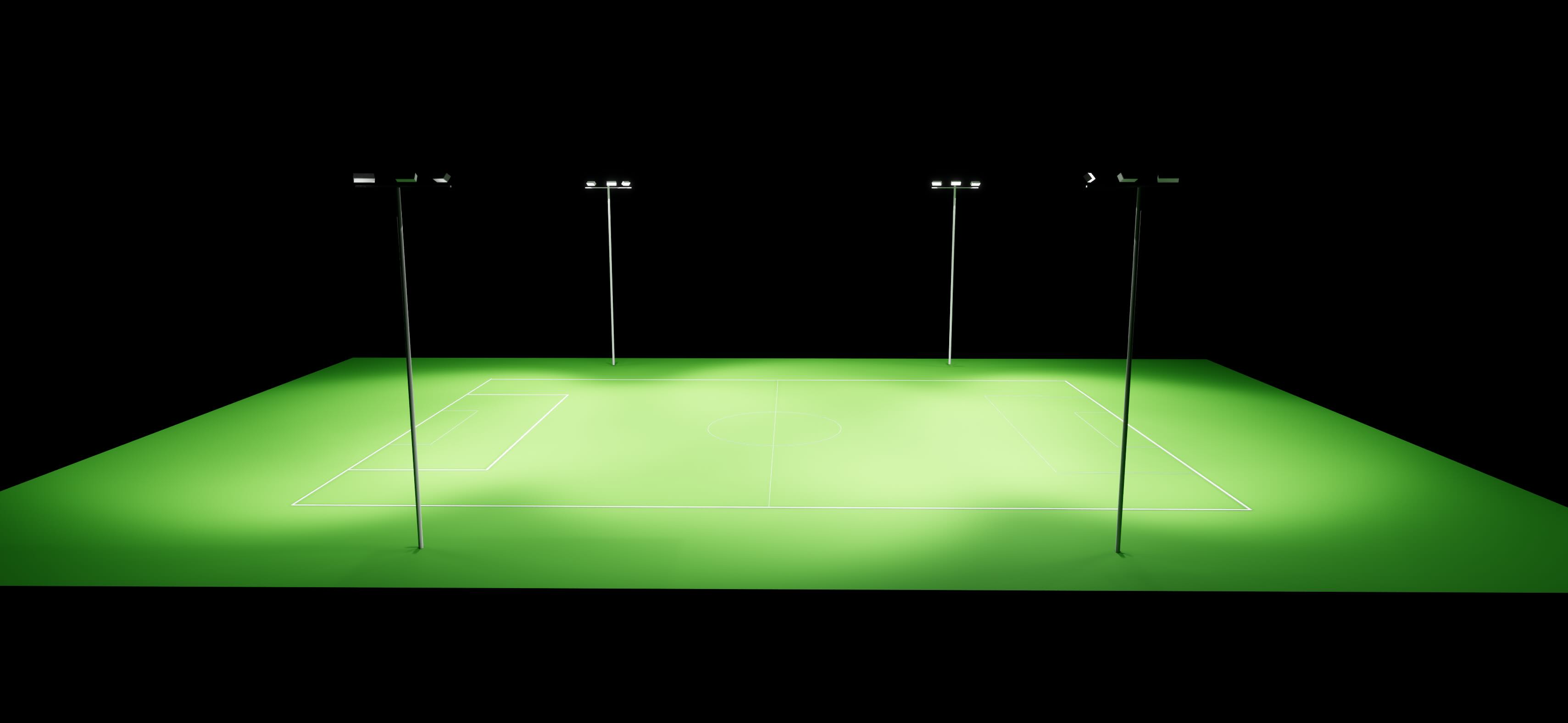

3D Visualization
Illuminance Grid (lx)
FL-I-3-750-168-R62
12 floodlights
2.01 kW
Height: 10.0m
- Average Illuminance: 221 lx
- Uniformity Emin/Em: 0.63
- RGmax: 37.7
- Maintenance Factor: 80%
Class III - 4 poles 7m

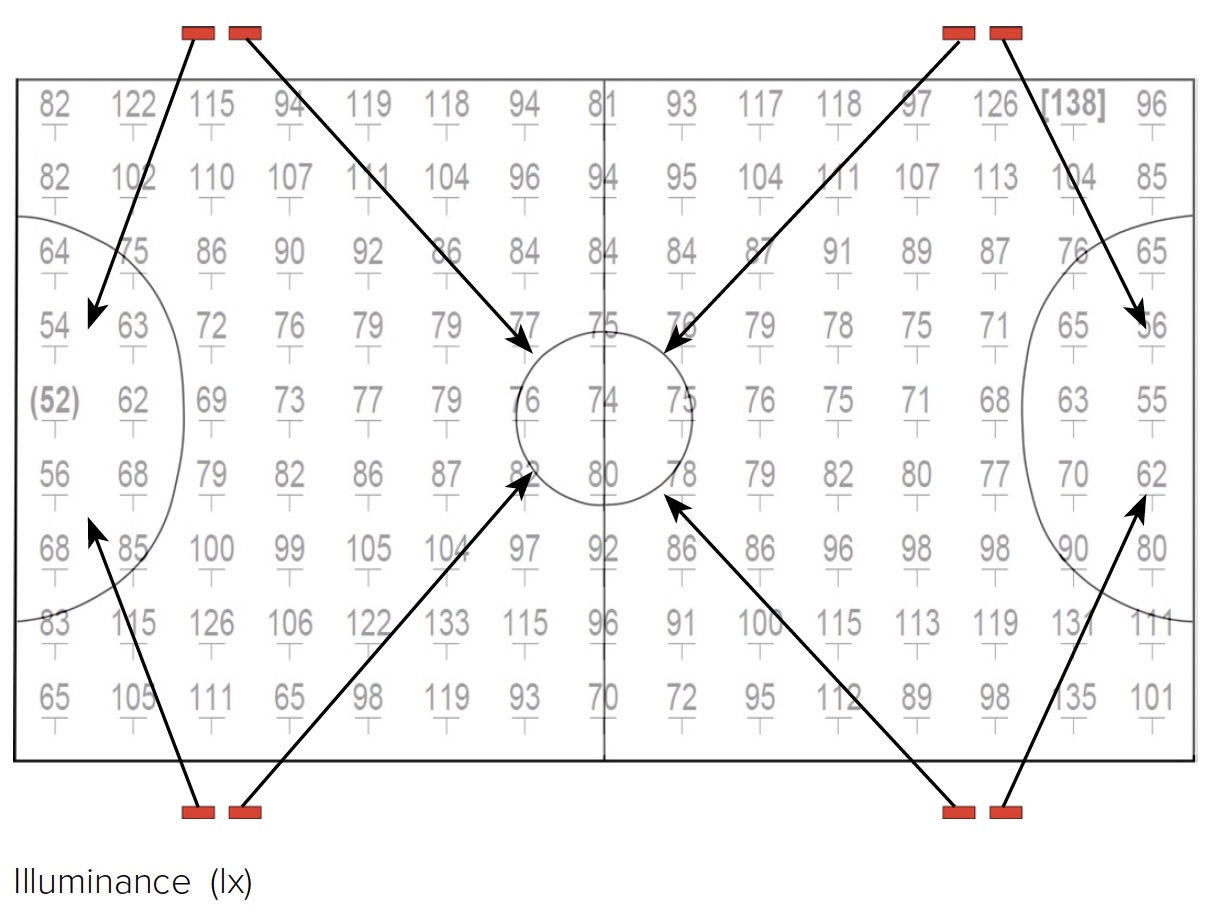

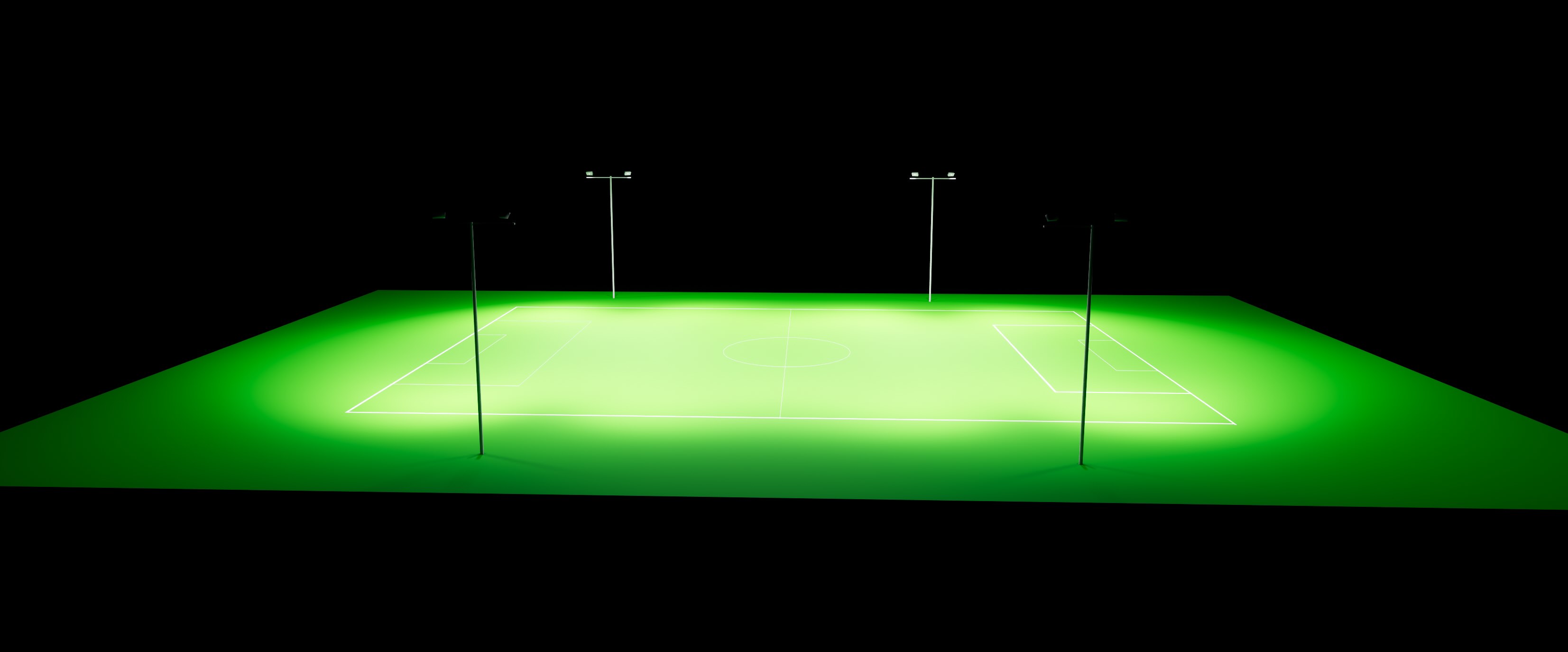

3D Visualization
Illuminance Grid (lx)
SPC-H-750-80-R60
12 floodlights
0.64 kW
Height: 7.0m
- Average Illuminance: 89.9 lx
- Uniformity Emin/Em: 0.58
- RGmax: 40.9
- Maintenance Factor: 80%

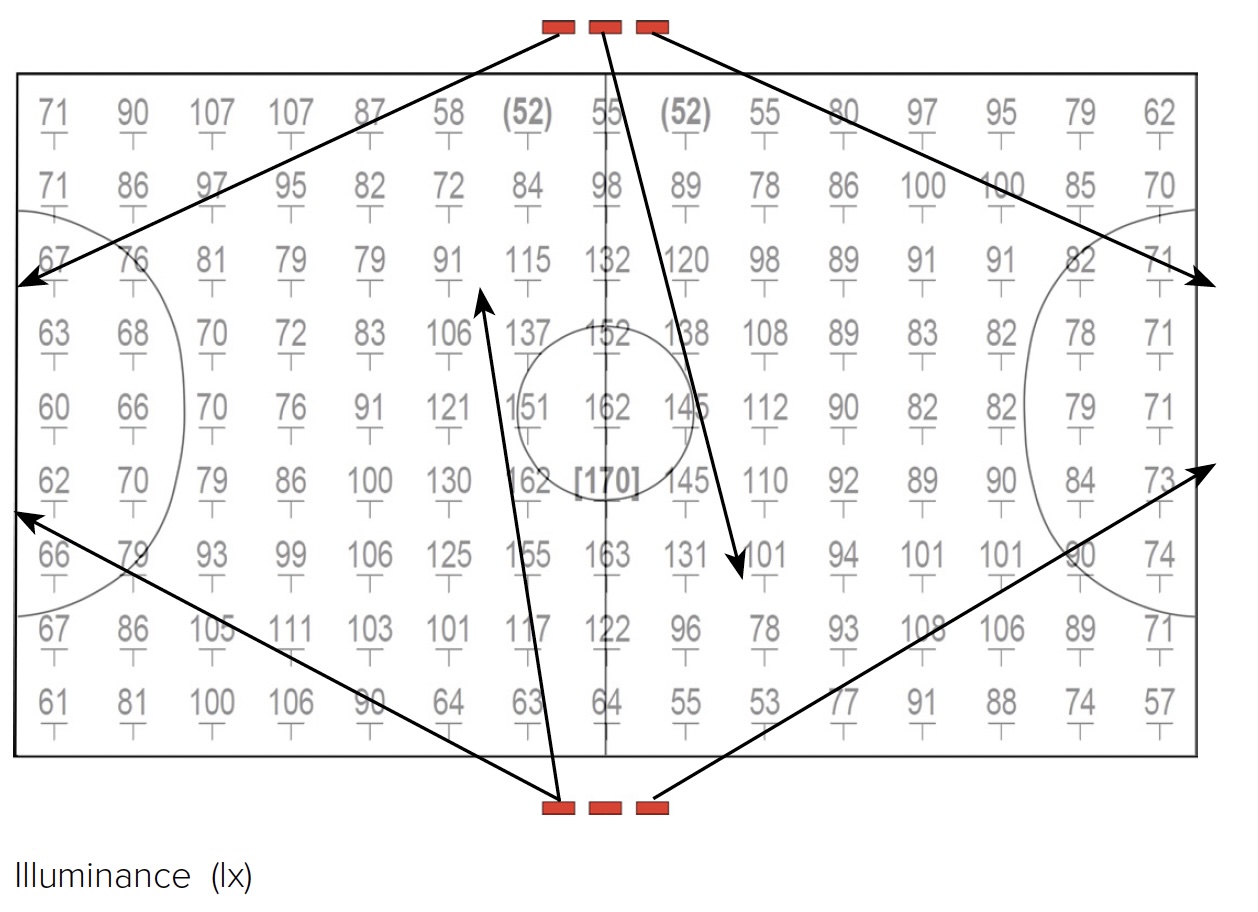

Class III - 2 poles 10m

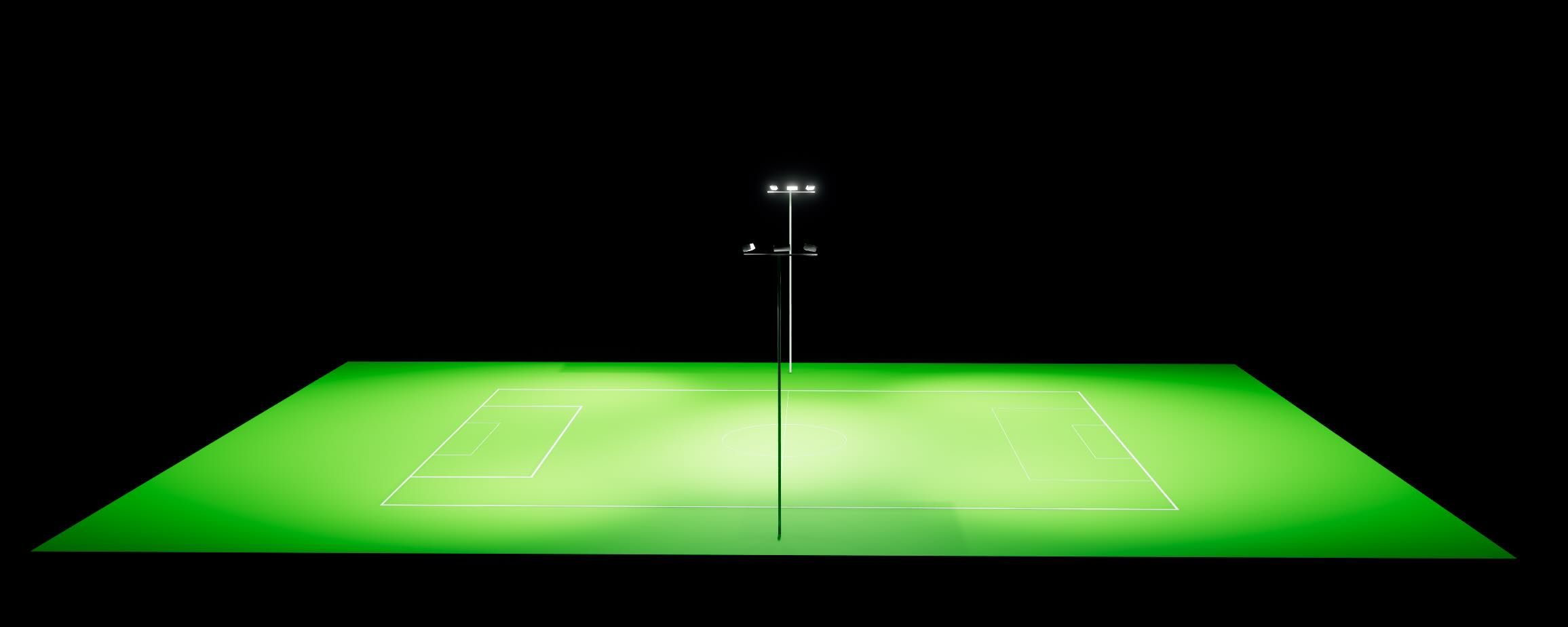

3D Visualization
Illuminance Grid (lx)
FL-I-3-750-168-R62
6 floodlights
1.00 kW
Height: 10.0m
- Average Illuminance: 91.6 lx
- Uniformity Emin/Em: 0.57
- RGmax: 42.2
- Maintenance Factor: 80%
6-a-side
40m x 20m

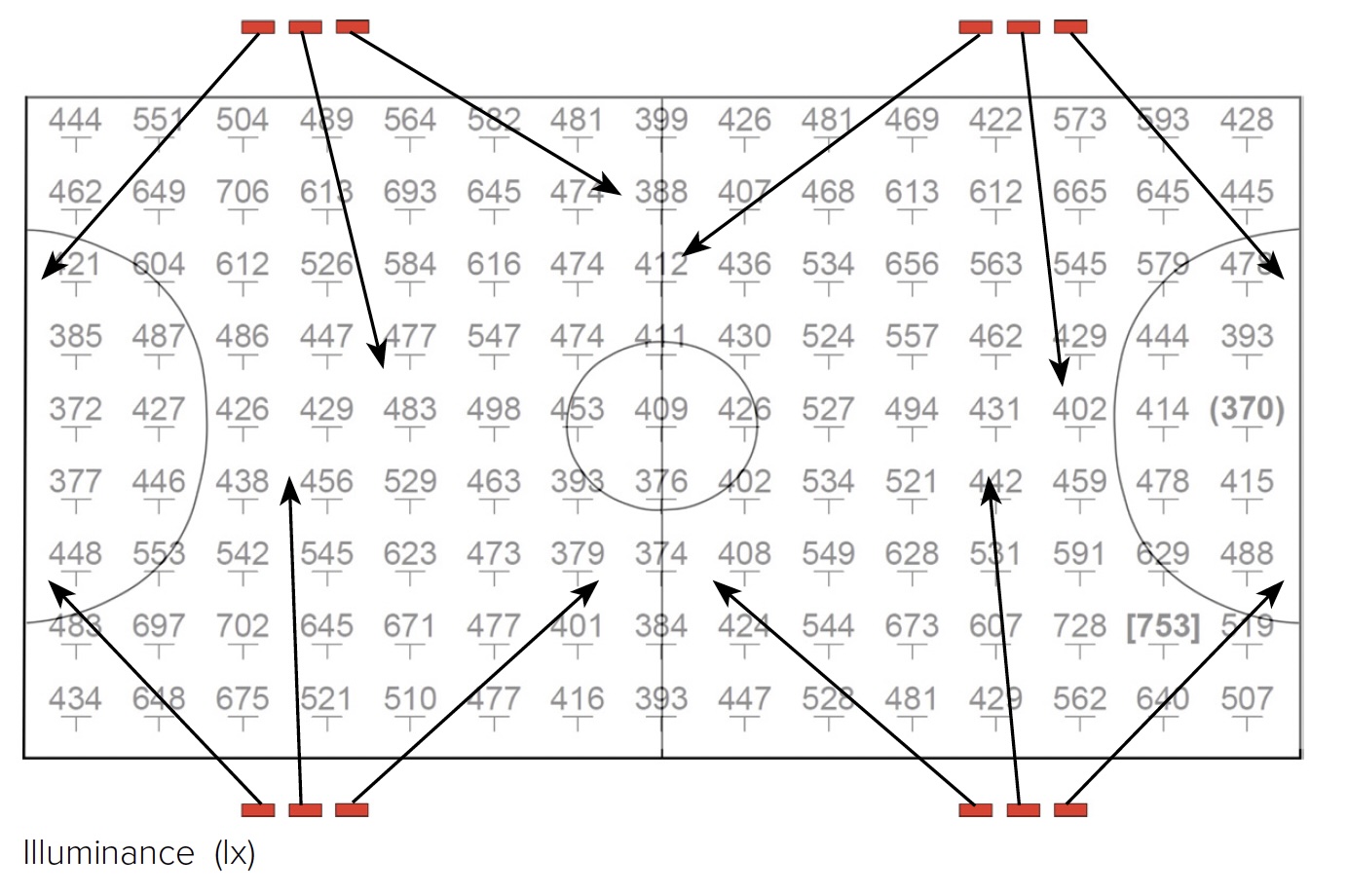

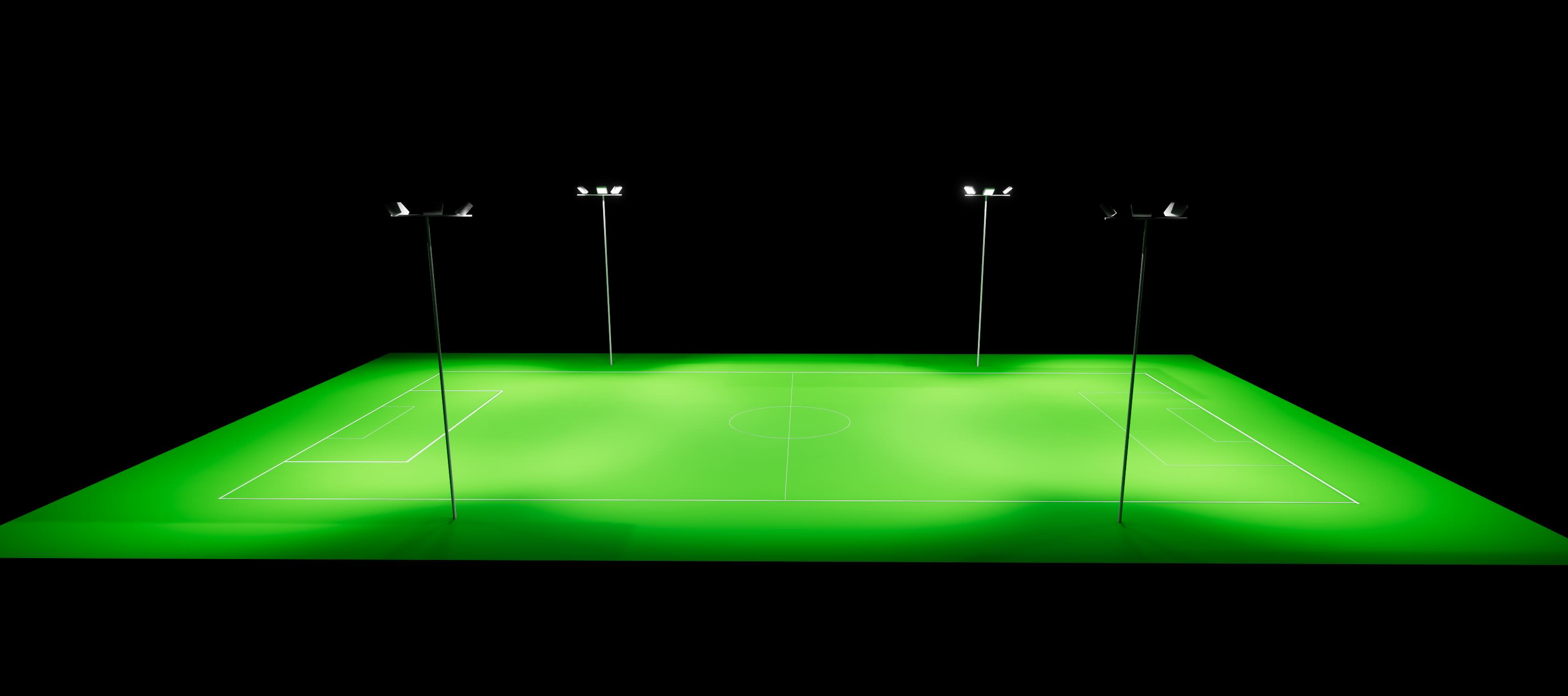

Class I - 4 poles 10m
3D Visualization
Illuminance Grid (lx)
FL-I-8-750-448-R46 x 4
FL-I-8-750-448-R62 x 8
12 floodlights
5.37 kW
Height: 10.0m
- Average Illuminance: 506 lx
- Uniformity Emin/Em: 0.73
- RGmax: 36.8
- Maintenance Factor: 80%

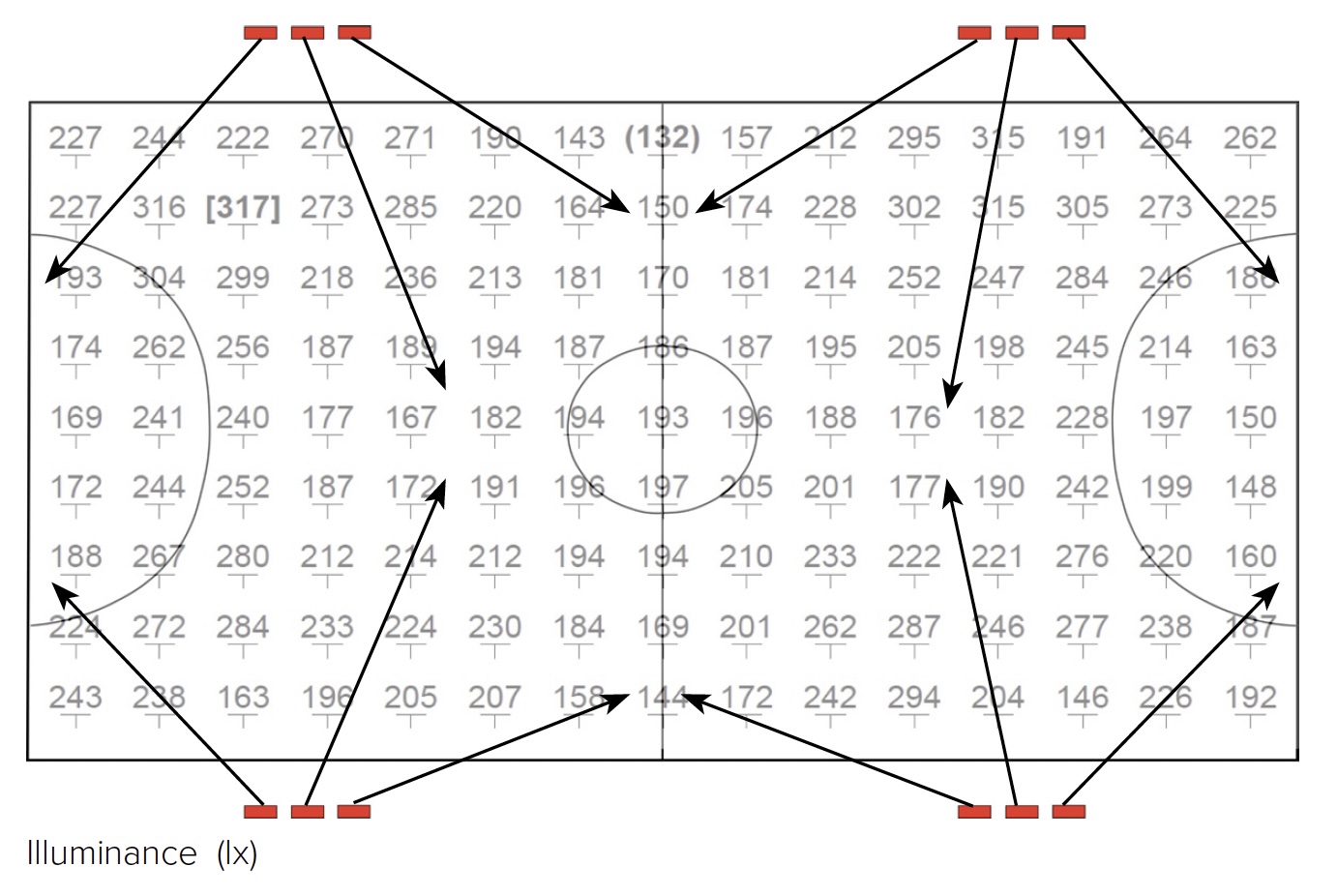

Class II - 4 poles 10m

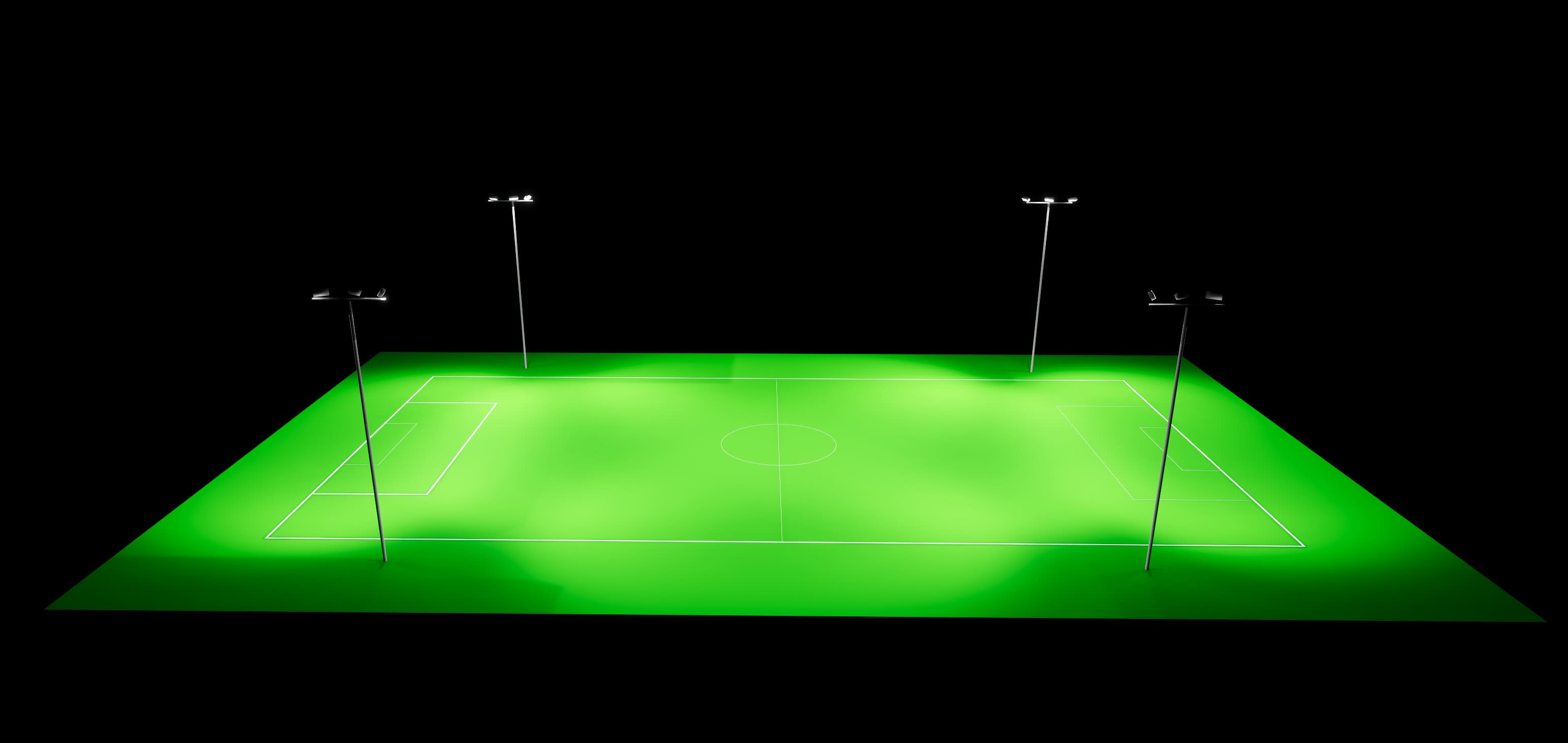

3D Visualization
Illuminance Grid (lx)
FL-I-4-740-200-R62
12 floodlights
2.40 kW
Height: 10.0m
- Average Illuminance: 217 lx
- Uniformity Emin/Em: 0.61
- RGmax: 37.1
- Maintenance Factor: 80%

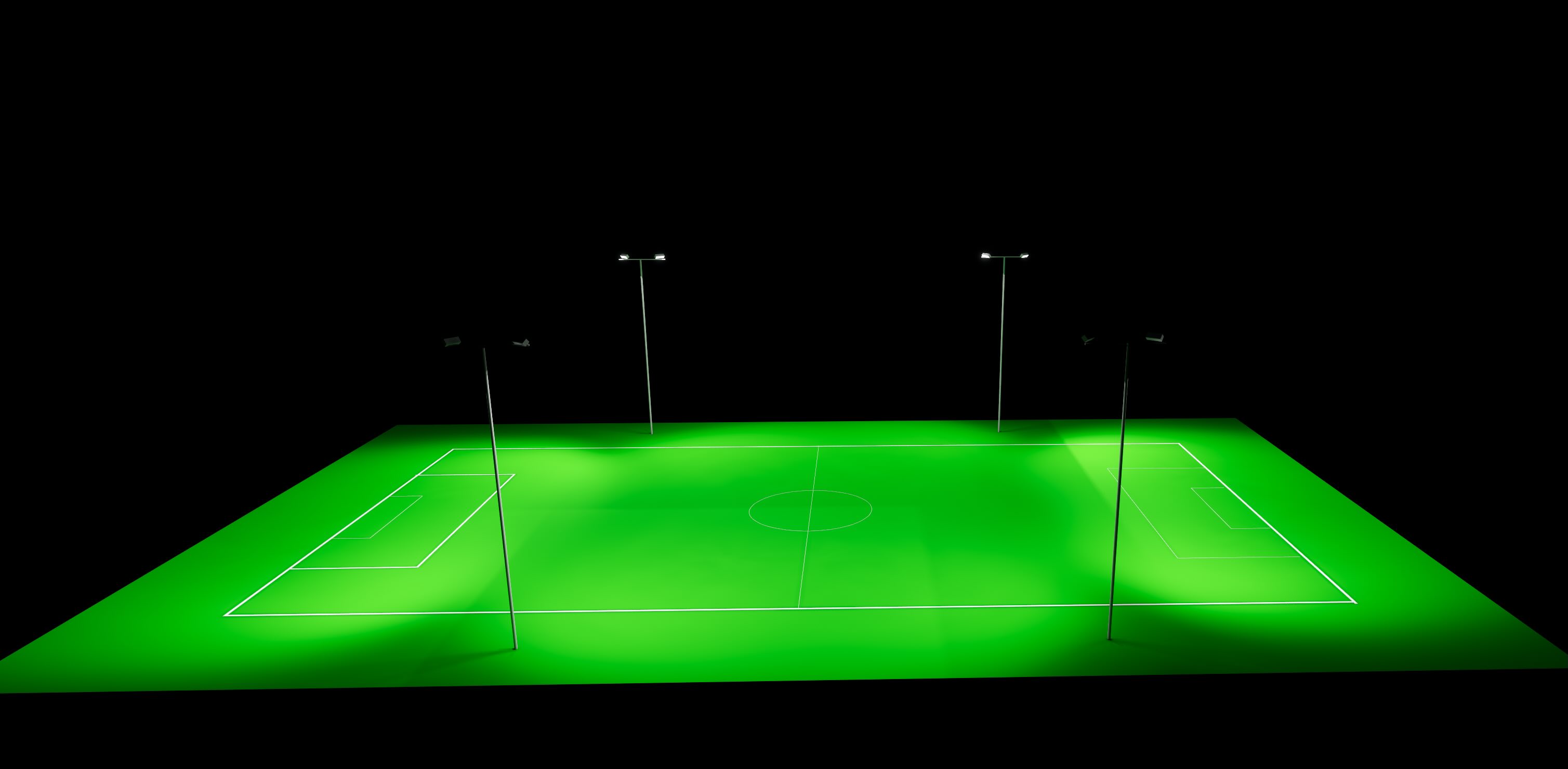

Class III - 4 poles 10m
3D Visualization

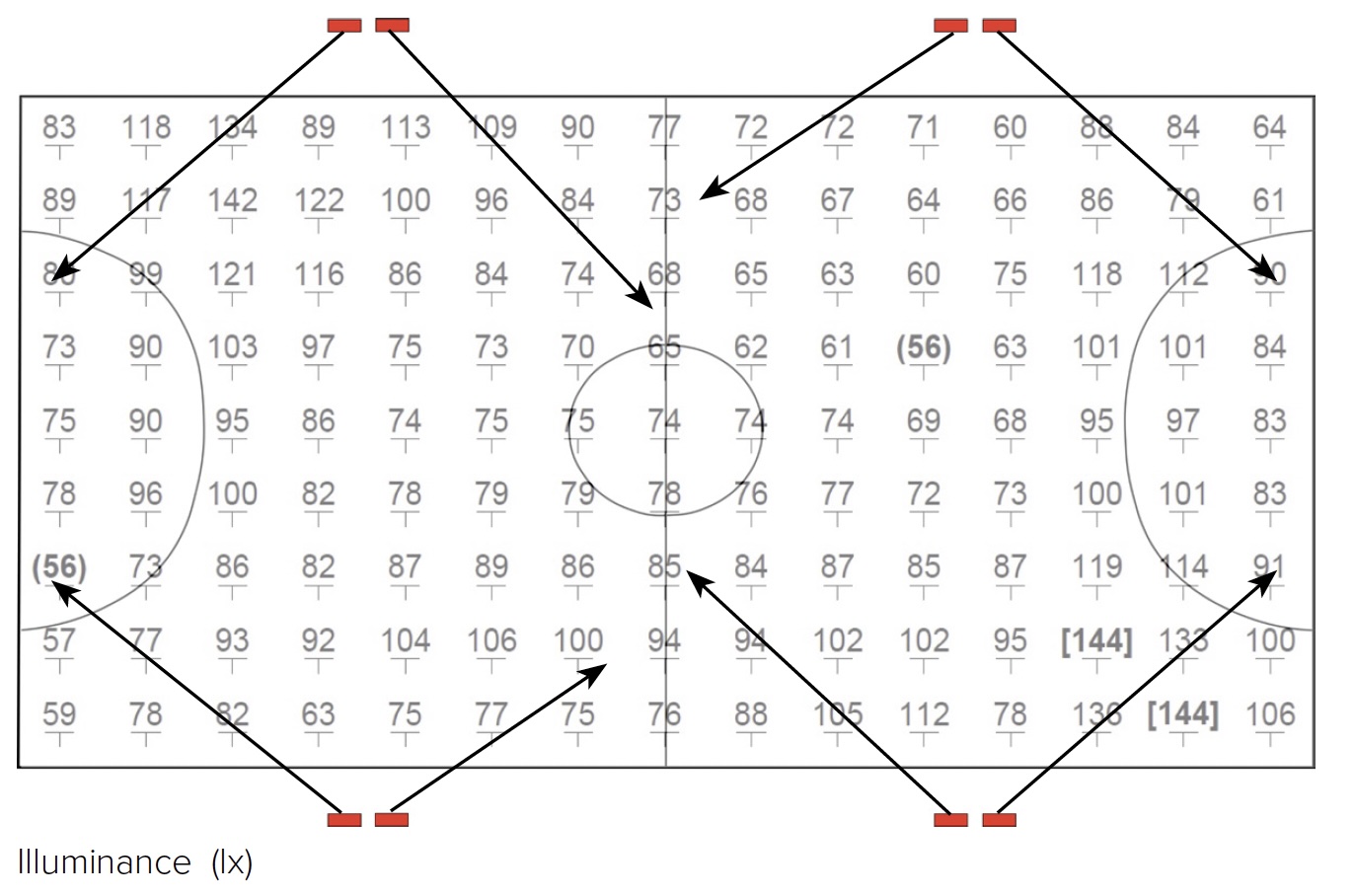

Illuminance Grid (lx)
FL-I-3-750-168-R87 x 4
FL-I-3-750-168-R62 x 4
8 floodlights
1.34 kW
Height: 10.0m
- Average Illuminance: 86.9 lx
- Uniformity Emin/Em: 0.64
- RGmax: 40.9
- Maintenance Factor: 80%
Beach Volleyball
EN 12193:2018 | Court: 26m x 18m
| Class | Em (lx) | Uniformity | RG | Ra |
|---|---|---|---|---|
| Class I | 500 | 0.70 | 55 | 70 |
| Class II | 200 | 0.60 | 55 | 60 |
| Class III | 75 | 0.50 | 55 | 60 |
Class I - 6 poles 8m

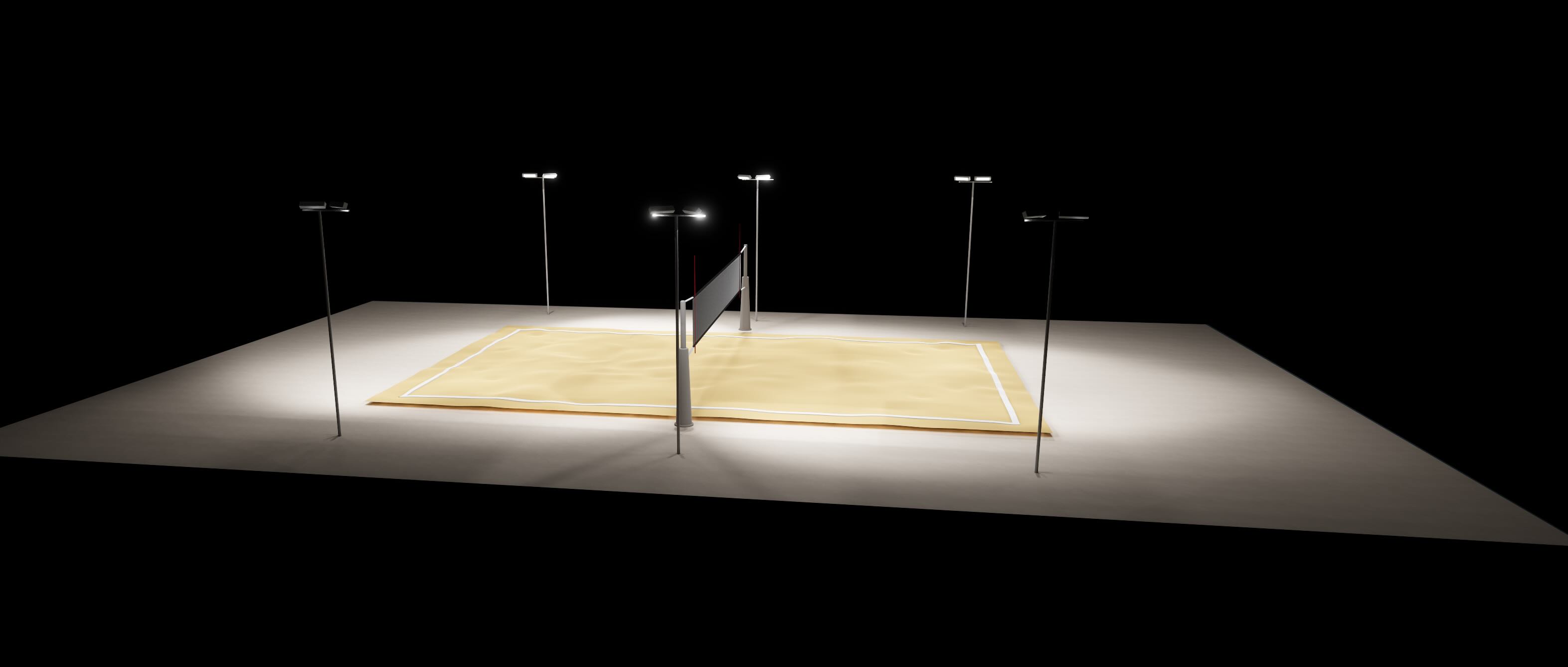

3D Visualization

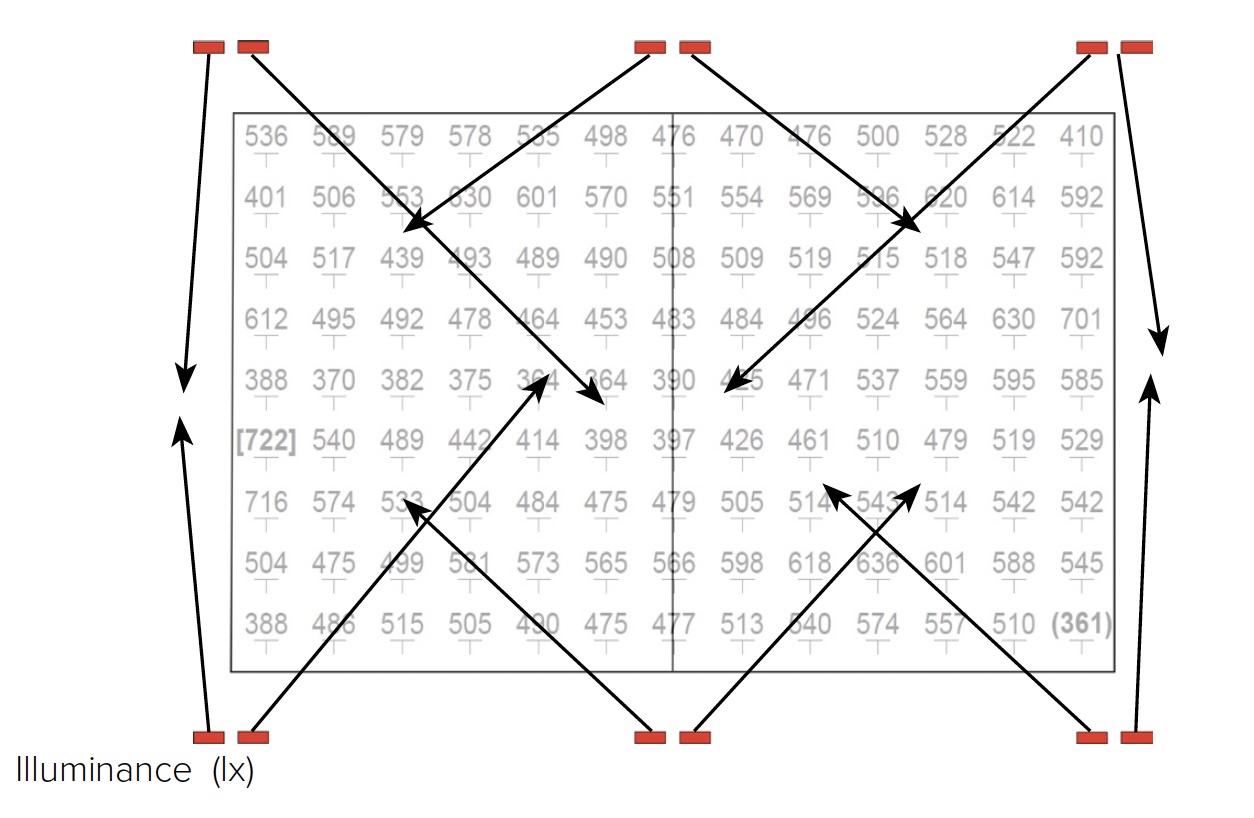

Illuminance Grid (lx)
FL-I-6-750-337-R62
12 floodlights
4.04 kW
Height: 8.0m
- Average Illuminance: 516 lx
- Uniformity Emin/Em: 0.70
- RGmax: 41.7
- Maintenance Factor: 80%

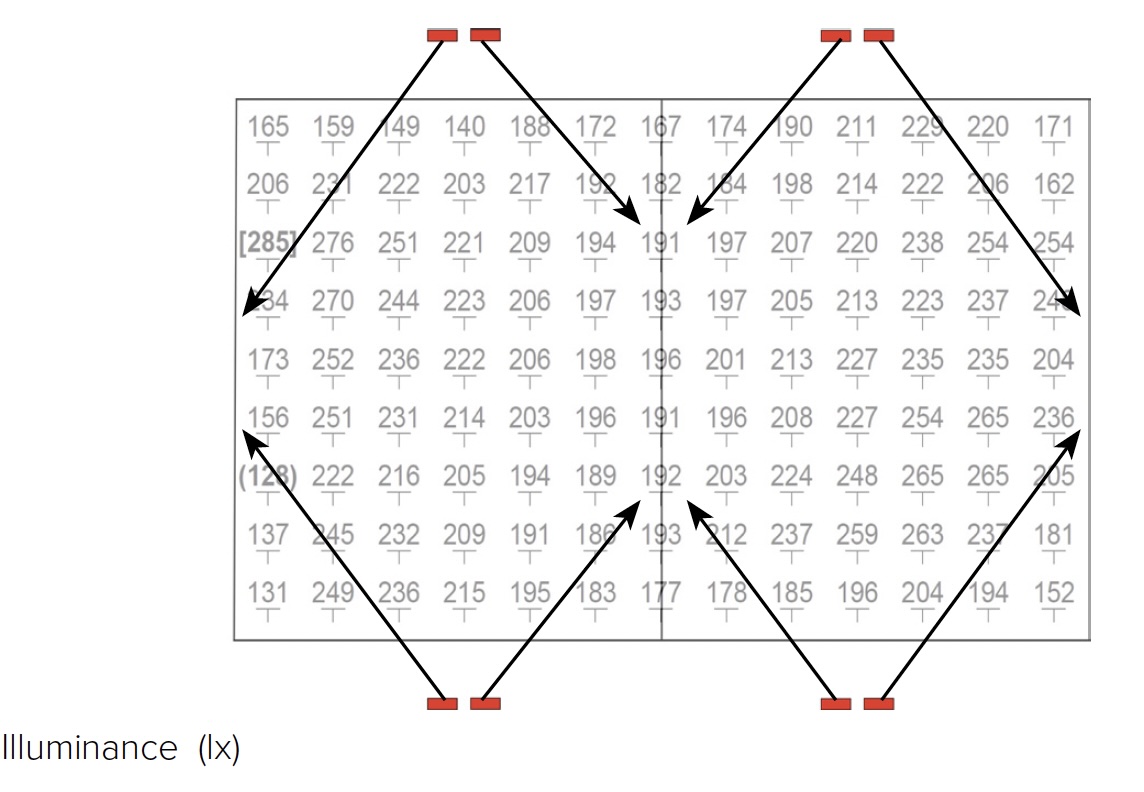

Class II - 4 poles 8m

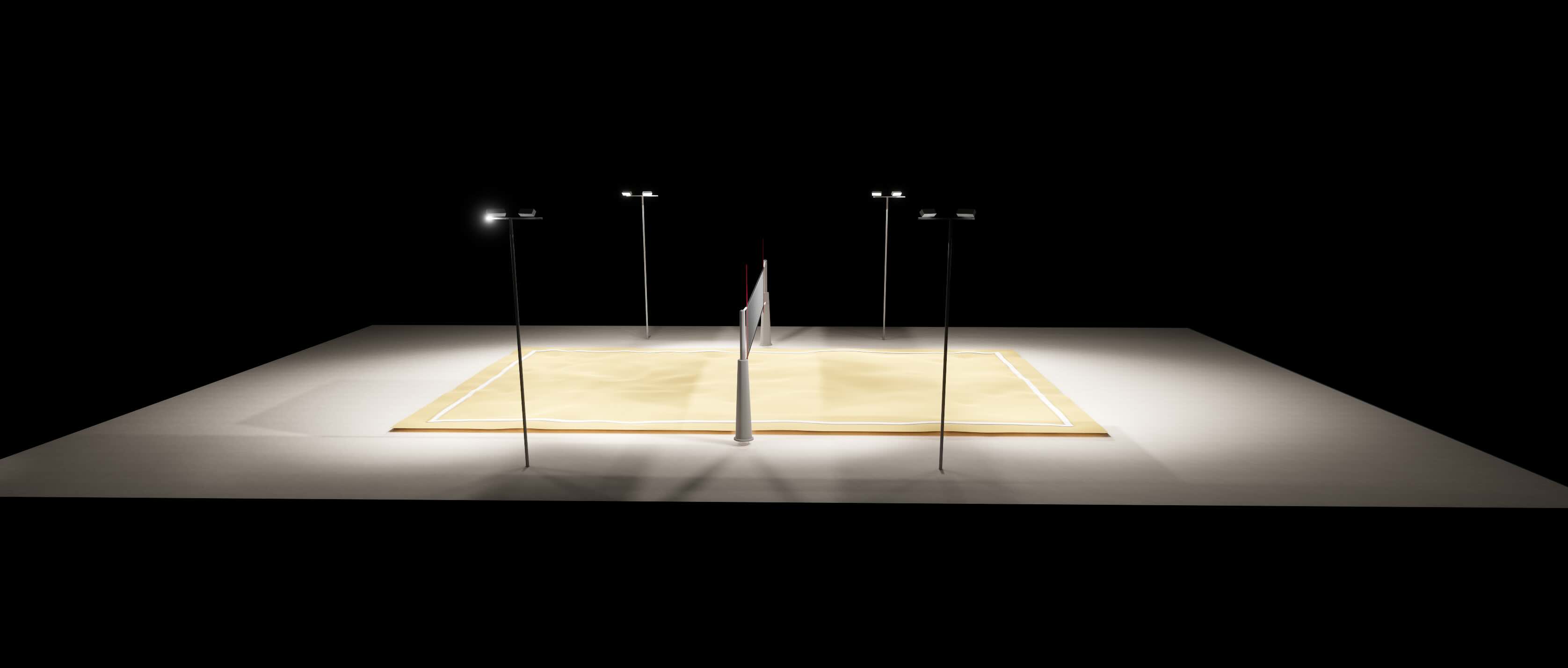

3D Visualization
Illuminance Grid (lx)
FL-I-3-750-168-R47 x 4
FL-I-3-750-168-R62 x 4
8 floodlights
1.34 kW
Height: 8.0m
- Average Illuminance: 210 lx
- Uniformity Emin/Em: 0.61
- RGmax: 40.7
- Maintenance Factor: 80%

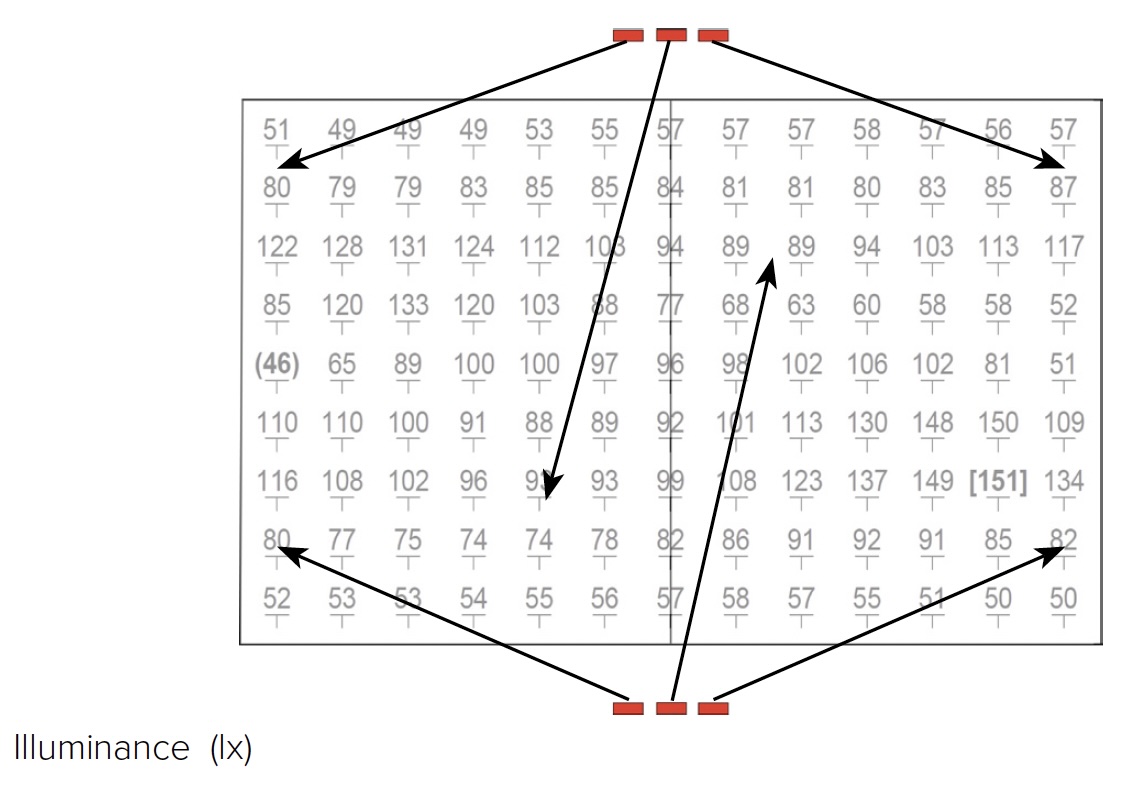

Class III - 2 poles 8m

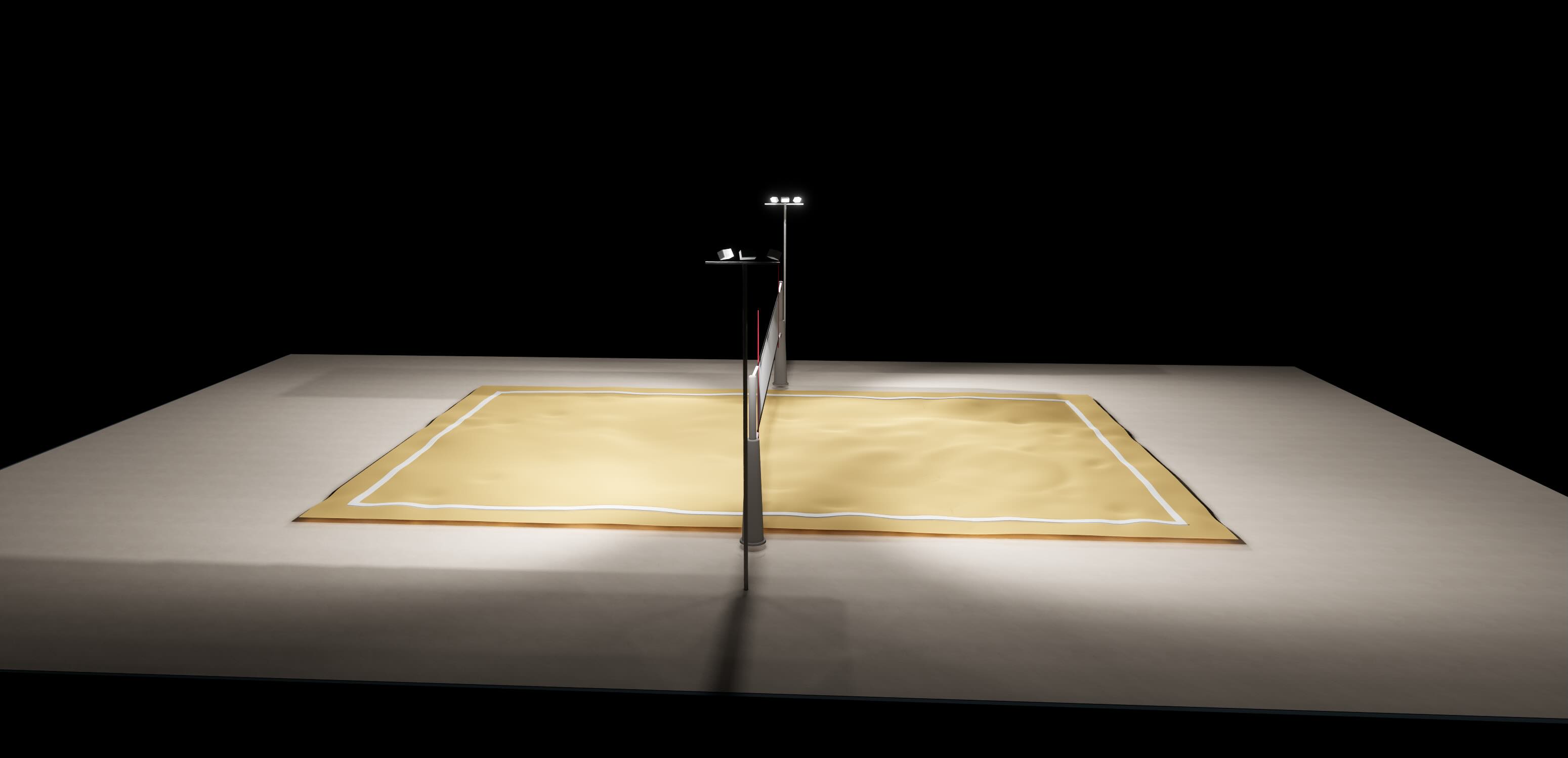

3D Visualization
Illuminance Grid (lx)
FL-I-2-750-118-R62
6 floodlights
0.70 kW
Height: 8.0m
- Average Illuminance: 86.5 lx
- Uniformity Emin/Em: 0.53
- RGmax: 46.1
- Maintenance Factor: 80%
Equestrian - Jumping - Outdoor
EN 12193:2018 | Arena: 110m x 55m
| Class | Em (lx) | Uniformity | RG | Ra |
|---|---|---|---|---|
| Class I | 500 | 0.70 | 50 | 70 |
| Class II | 200 | 0.50 | 50 | 60 |
| Class III | 100 | 0.50 | 55 | 60 |

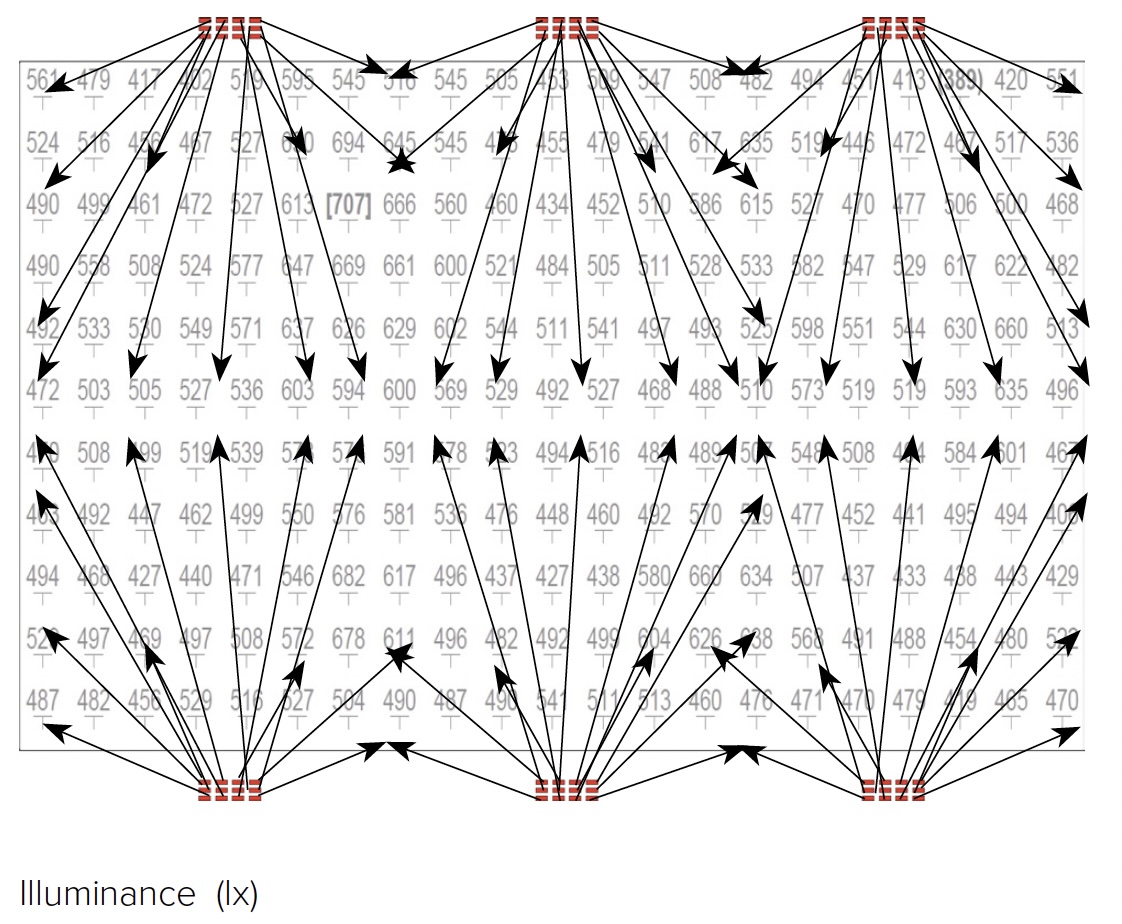

Class I - 6 poles 18m

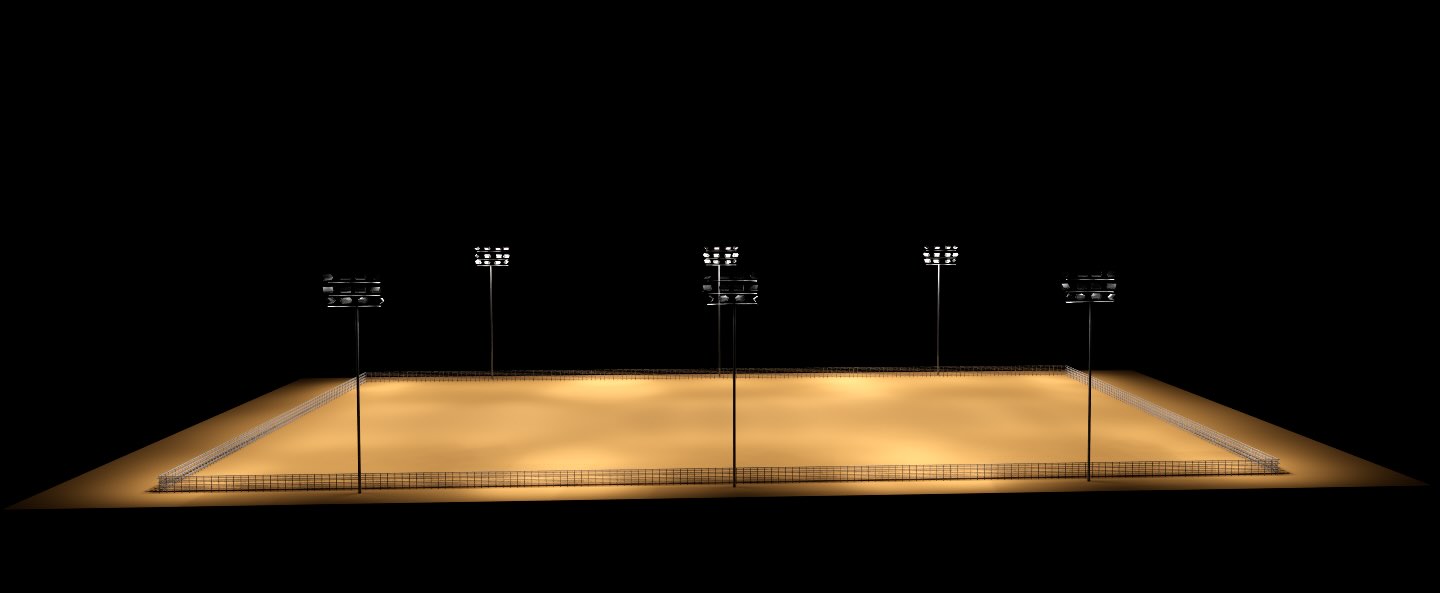

3D Visualization
Illuminance Grid (lx)
FL-I-10-750-560-R14 x 52
FL-I-10-750-560-R46 x 20
72 floodlights
40.32 kW
Height: 18.0m
- Average Illuminance: 522 lx
- Uniformity Emin/Em: 0.75
- RGmax: 41.5
- Maintenance Factor: 80%

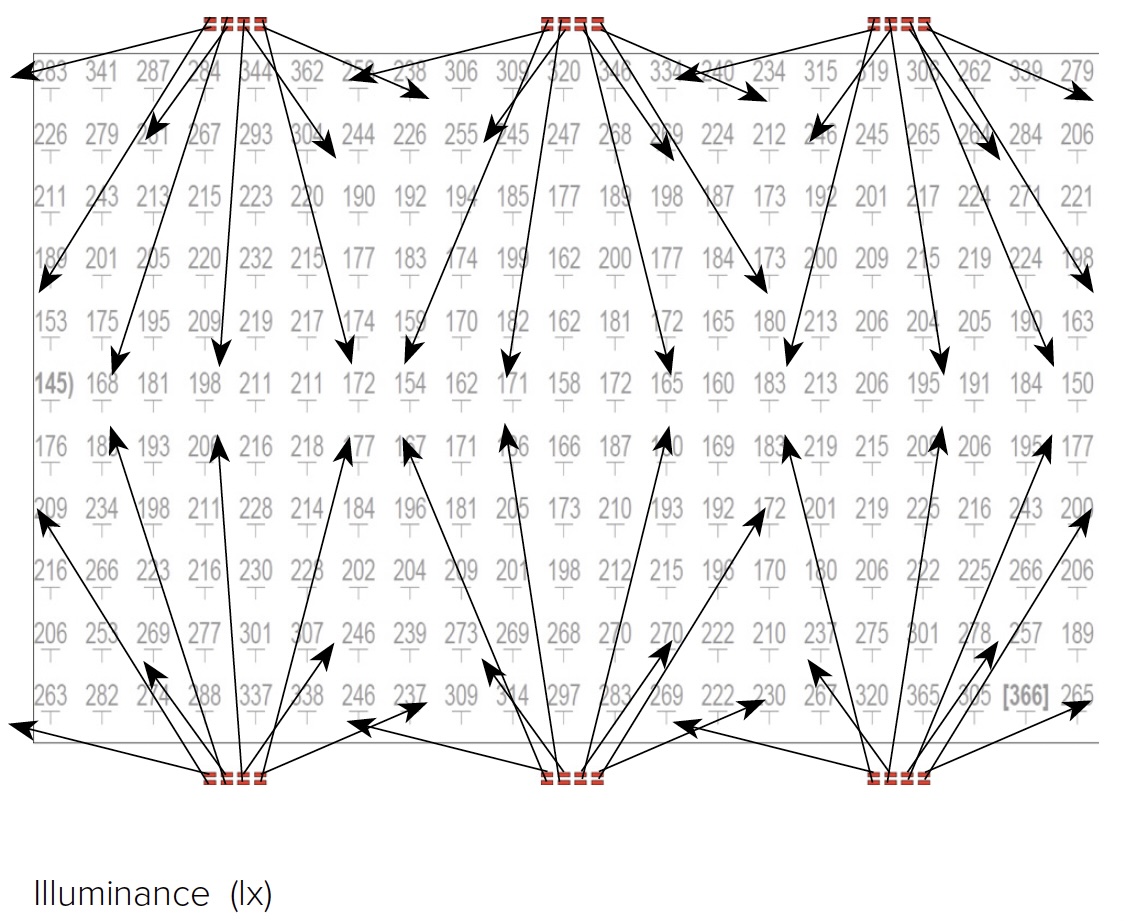

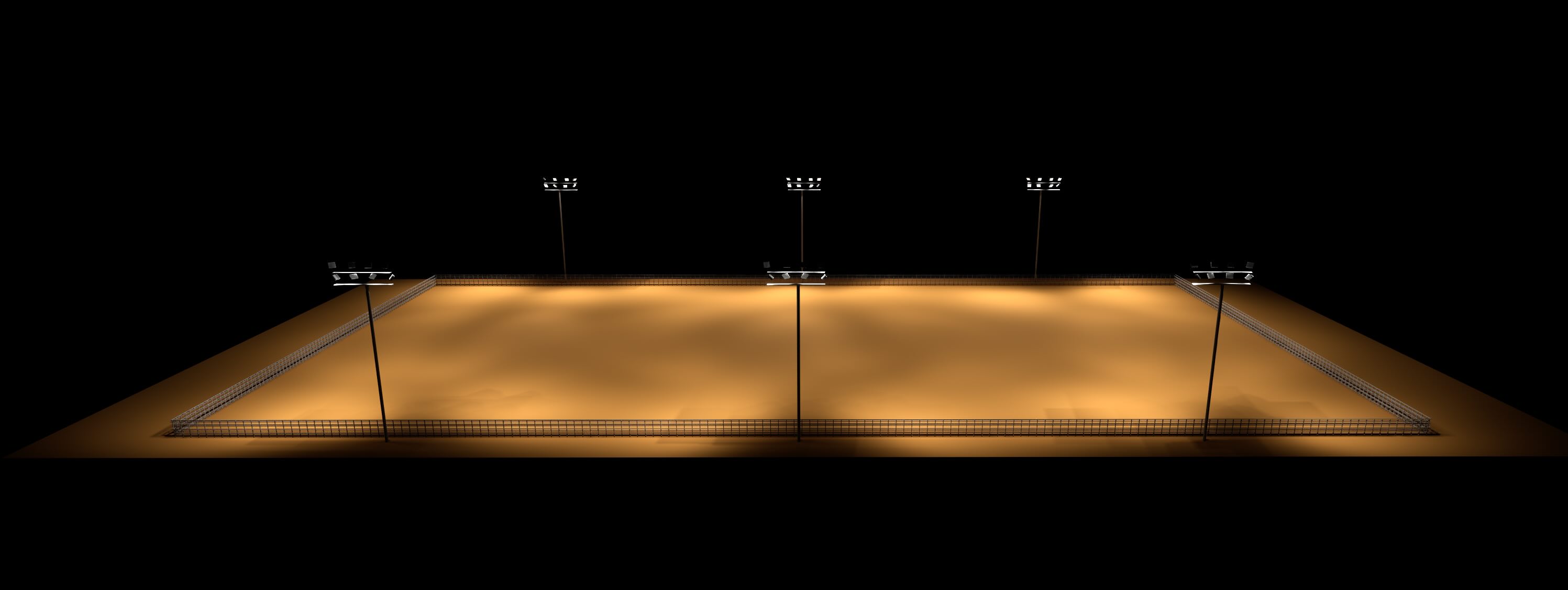

Class II - 6 poles 15m
3D Visualization
Illuminance Grid (lx)
FL-I-6-750-337-R14 x 28
FL-I-6-750-337-R14 x 20
48 floodlights
16.17 kW
Height: 15.0m
- Average Illuminance: 225 lx
- Uniformity Emin/Em: 0.64
- RGmax: 43.1
- Maintenance Factor: 80%

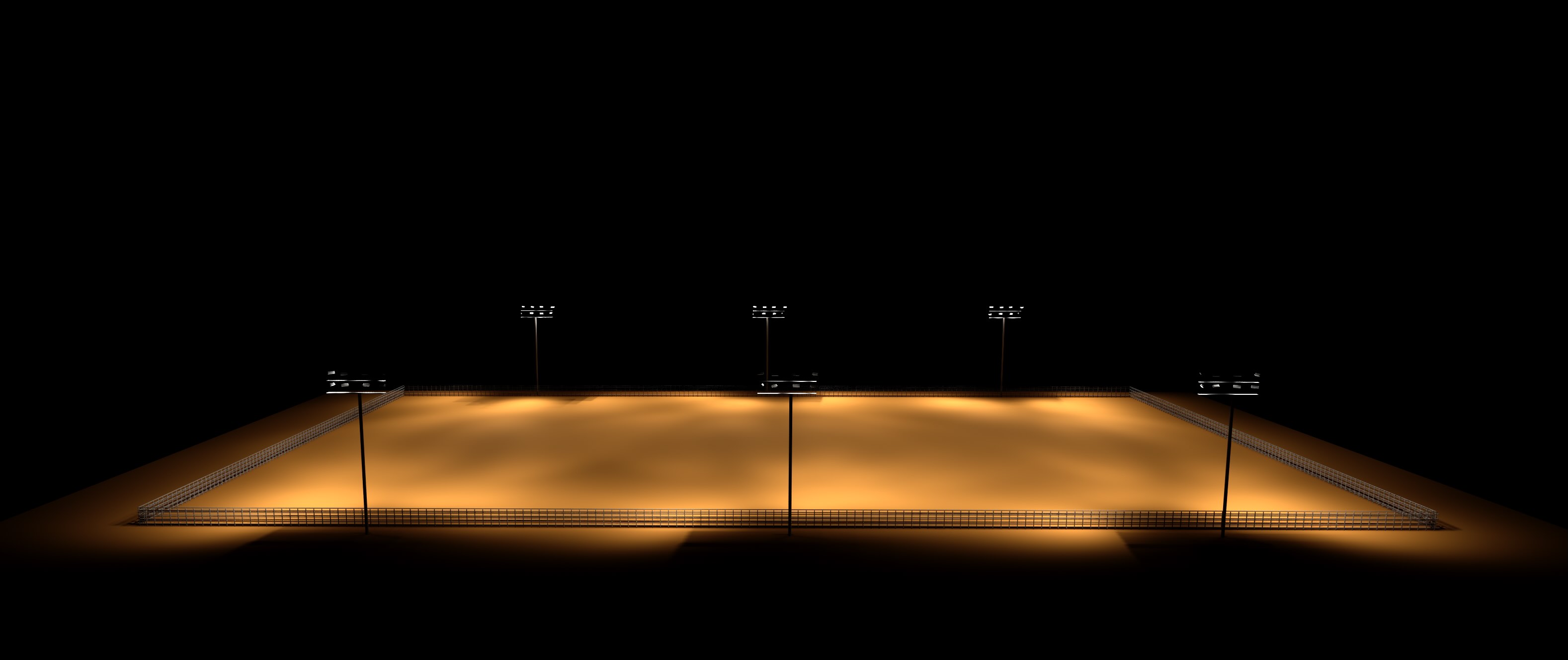

Class III - 6 poles 12m
3D Visualization

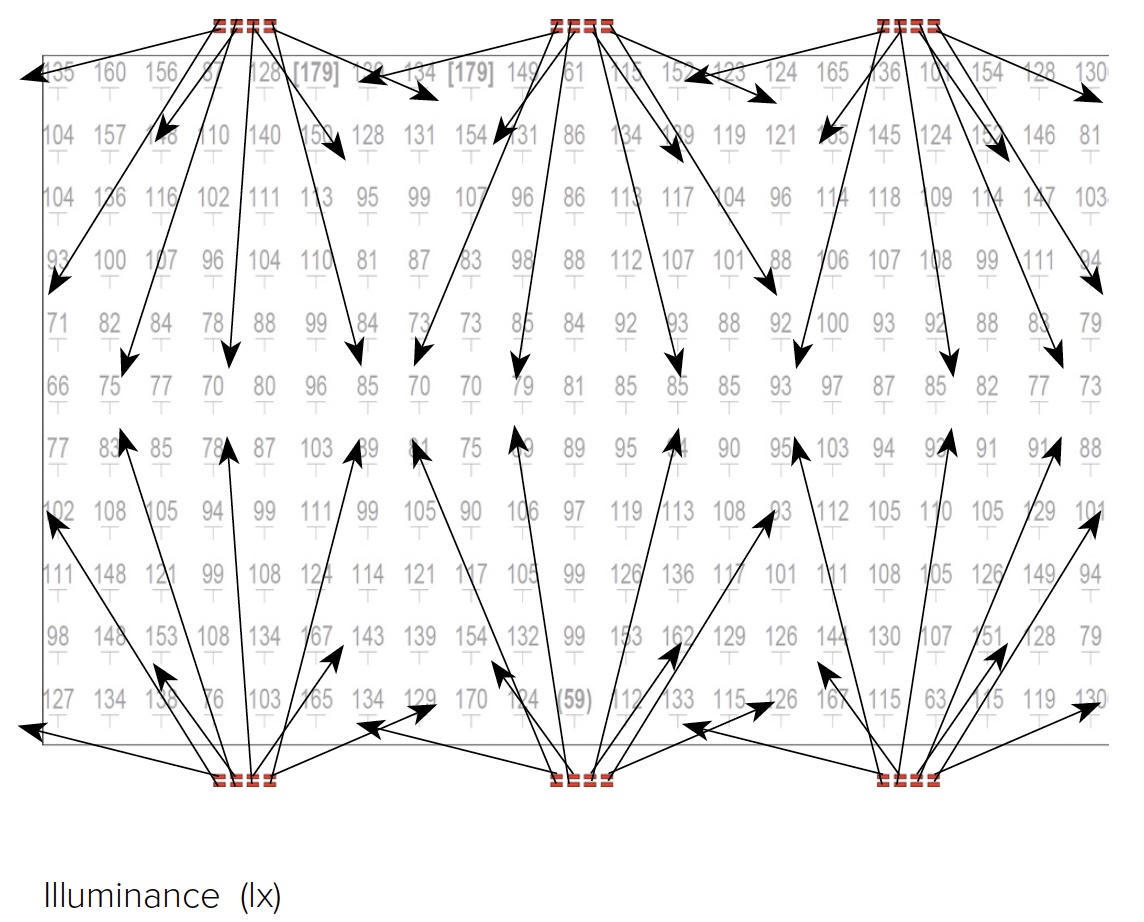

Illuminance Grid (lx)
FL-I-3-750-168-R14 x 28
FL-I-3-750-168-R47 x 20
48 floodlights
8.06 kW
Height: 12.0m
- Average Illuminance: 110 lx
- Uniformity Emin/Em: 0.54
- RGmax: 49
- Maintenance Factor: 80%
