IGR-160 In-ground adjustable LED spot

Efficacy

93-172 lm/W

CRI

IP68

Warranty

5 years

The IGR-160 is designed to redefine outdoor illumination, offering exceptional versatility, performance and durability.

It is produced in 6 W – 19 W versions with a colour temperature (CCT) range of 2000 K – 5000 K.

Its innovative rotatable design allows precise light direction, while the wide range of optics — including ultra-narrow 5° beams — enables highly specific lighting applications.

Made of 316 stainless steel with protection ratings of IP68 and IK10, the IGR-160 provides outstanding resistance to water and impact, ensuring long-term reliability.

Each luminaire comes with a 5-year warranty.

✉️ Request Quote Download PDF

📐

Calculate Required Luminaires

Via Techlumen Lux Calculator

📄

Luminaire Brochure

Detailed specifications

📊

Photometric Files

LDT / IES for lighting design

Technical Specifications

Luminous Flux 690 - 2600 lm

Power 6 - 19W

Efficacy 93 - 172 lm/W

CRI 80

CCT 5000K

IP Rating IP68

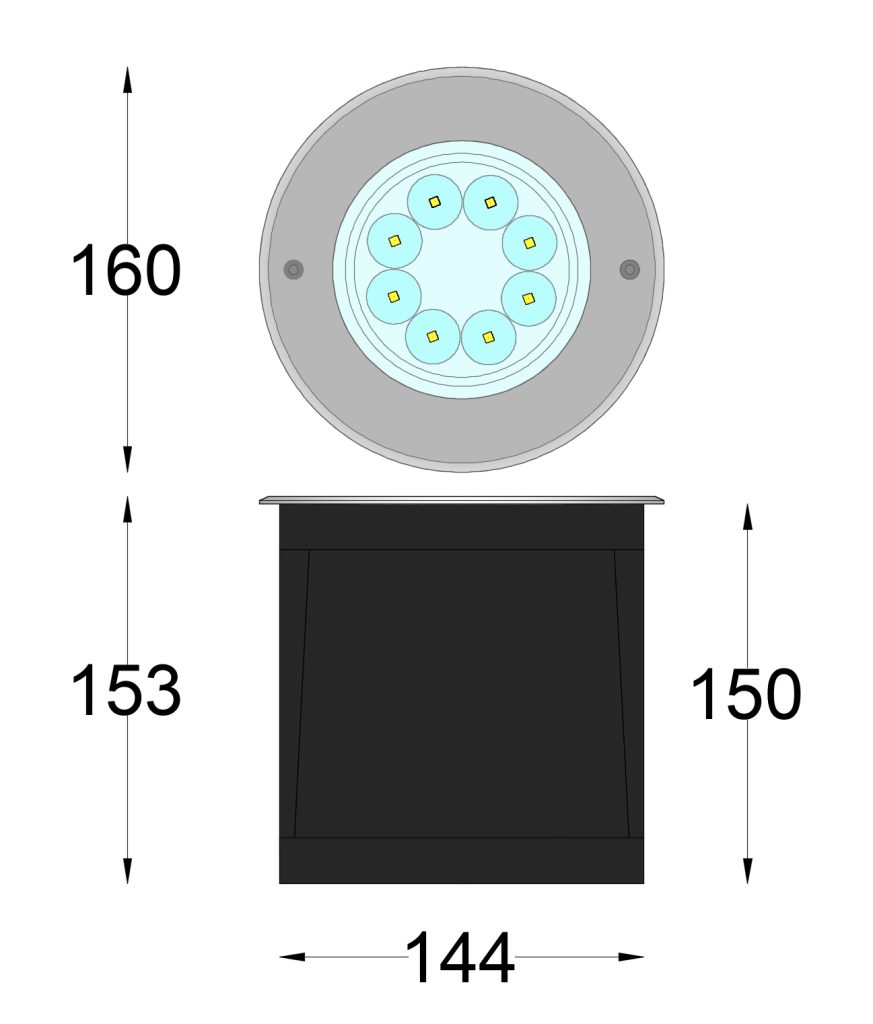

Dimensions Φ160mm x 150mm

Weight 2.2 kg

Warranty 5 years

Certifications & Compliance

CE ROHS EN 60598-1 EN 61000-3 EN 61547 EN 55015 EN 62471 EN 62493 EN 63000

Available Versions

Power	Code	CCT	CRI	Lumen	Efficacy
6W	IGR-160-820-6	2000K	80	690 lm	115 lm/W
6W	IGR-160-827-6	2700K	80	940 lm	157 lm/W
6W	IGR-160-830-6	3000K	80	950 lm	158 lm/W
6W	IGR-160-840-6	4000K	80	1,000 lm	167 lm/W
6W	IGR-160-850-6	5000K	80	1,030 lm	172 lm/W
9W	IGR-160-820-9	2000K	80	950 lm	106 lm/W
9W	IGR-160-827-9	2700K	80	1,300 lm	144 lm/W
9W	IGR-160-830-9	3000K	80	1,350 lm	150 lm/W
9W	IGR-160-840-9	4000K	80	1,380 lm	153 lm/W
9W	IGR-160-850-9	5000K	80	1,400 lm	156 lm/W
12W	IGR-160-820-12	2000K	80	1,190 lm	99 lm/W
12W	IGR-160-827-12	2700K	80	1,620 lm	135 lm/W
12W	IGR-160-830-12	3000K	80	1,670 lm	139 lm/W
12W	IGR-160-840-12	4000K	80	1,720 lm	143 lm/W
12W	IGR-160-850-12	5000K	80	1,770 lm	148 lm/W
13W	IGR-160-820-13	2000K	80	1,320 lm	102 lm/W
13W	IGR-160-827-13	2700K	80	1,810 lm	139 lm/W
13W	IGR-160-830-13	3000K	80	1,840 lm	142 lm/W
13W	IGR-160-840-13	4000K	80	1,930 lm	148 lm/W
13W	IGR-160-850-13	5000K	80	1,960 lm	151 lm/W
19W	IGR-160-820-19	2000K	80	1,760 lm	93 lm/W
19W	IGR-160-827-19	2700K	80	2,400 lm	126 lm/W
19W	IGR-160-830-19	3000K	80	2,450 lm	129 lm/W
19W	IGR-160-840-19	4000K	80	2,560 lm	135 lm/W
19W	IGR-160-850-19	5000K	80	2,600 lm	137 lm/W
