IGN-200 In-ground LED spot

Efficacy

89-156 lm/W

CRI

IP68

Warranty

5 years

The IGN-200 is designed to provide an efficient, versatile and durable lighting solution for outdoor applications.

It is produced in 9W – 38W versions with a colour temperature (CCT) range of 2000K – 5000K.

One of the key features of the IGN-200 series is the wide variety of optics available, including narrow beams of 5°, offering precision and flexibility in light control.

Each IGN-200 luminaire is made of 316 stainless steel with protection ratings of IP68 and IK10, ensuring superior resistance to water and impacts.

The series is backed by a 5-year warranty.

✉️ Request Quote Download PDF

📐

Calculate Required Luminaires

Via Techlumen Lux Calculator

📄

Luminaire Brochure

Detailed specifications

📊

Photometric Files

LDT / IES for lighting design

Technical Specifications

Luminous Flux 950 - 5000 lm

Power 9 - 38W

Efficacy 89 - 156 lm/W

CRI 80

CCT 5000K

IP Rating IP68

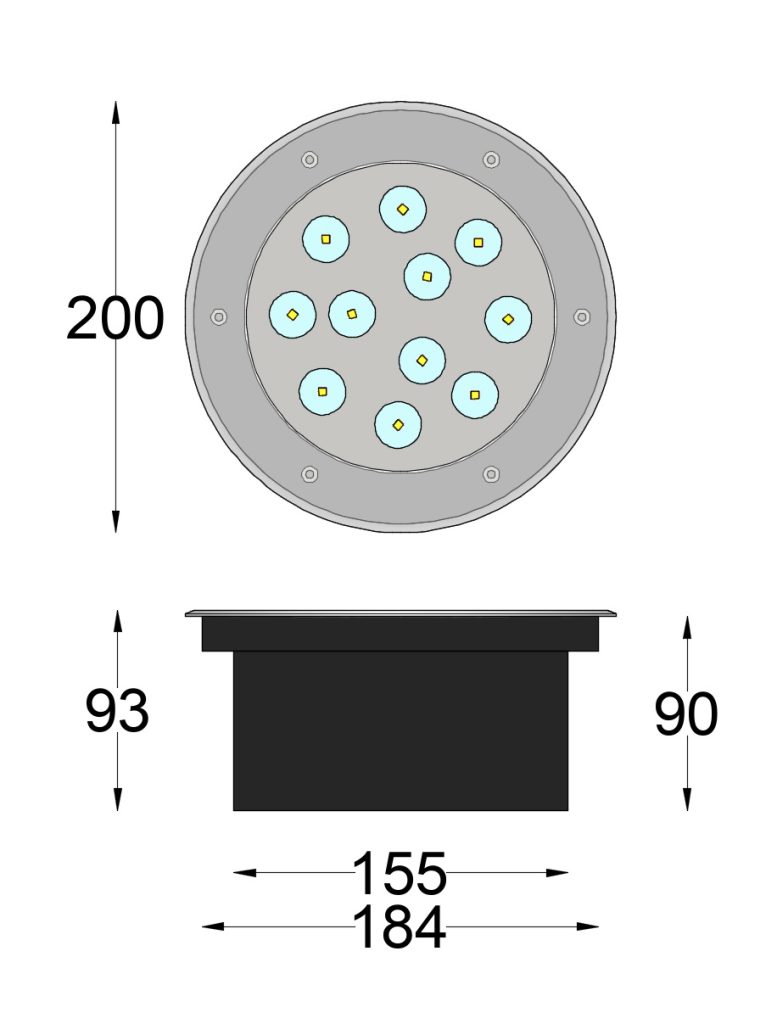

Dimensions Φ200mm x 90mm

Weight 1.75 kg

Warranty 5 years

Certifications & Compliance

CE ROHS EN 60598-1 EN 61000-3 EN 61547 EN 55015 EN 62471 EN 62493 EN 63000

Available Versions

Power	Code	CCT	CRI	Lumen	Efficacy
9W	IGN-200-820-9	2000K	80	950 lm	106 lm/W
9W	IGN-200-827-9	2700K	80	1,290 lm	143 lm/W
9W	IGN-200-830-9	3000K	80	1,310 lm	146 lm/W
9W	IGN-200-840-9	4000K	80	1,380 lm	153 lm/W
9W	IGN-200-850-9	5000K	80	1,400 lm	156 lm/W
13W	IGN-200-820-13	2000K	80	1,310 lm	101 lm/W
13W	IGN-200-827-13	2700K	80	1,780 lm	137 lm/W
13W	IGN-200-830-13	3000K	80	1,800 lm	138 lm/W
13W	IGN-200-840-13	4000K	80	1,910 lm	147 lm/W
13W	IGN-200-850-13	5000K	80	1,950 lm	150 lm/W
18W	IGN-200-820-18	2000K	80	1,820 lm	101 lm/W
18W	IGN-200-827-18	2700K	80	2,500 lm	139 lm/W
18W	IGN-200-830-18	3000K	80	2,550 lm	142 lm/W
18W	IGN-200-840-18	4000K	80	2,650 lm	147 lm/W
18W	IGN-200-850-18	5000K	80	2,700 lm	150 lm/W
26W	IGN-200-820-26	2000K	80	2,420 lm	93 lm/W
26W	IGN-200-827-26	2700K	80	3,300 lm	127 lm/W
26W	IGN-200-830-26	3000K	80	3,350 lm	129 lm/W
26W	IGN-200-840-26	4000K	80	3,520 lm	135 lm/W
26W	IGN-200-850-26	5000K	80	3,580 lm	138 lm/W
33W	IGN-200-820-33	2000K	80	2,970 lm	90 lm/W
33W	IGN-200-827-33	2700K	80	4,060 lm	123 lm/W
33W	IGN-200-830-33	3000K	80	4,125 lm	125 lm/W
33W	IGN-200-840-33	4000K	80	4,300 lm	130 lm/W
33W	IGN-200-850-33	5000K	80	4,380 lm	133 lm/W
38W	IGN-200-820-38	2000K	80	3,390 lm	89 lm/W
38W	IGN-200-827-38	2700K	80	4,620 lm	122 lm/W
38W	IGN-200-830-38	3000K	80	4,700 lm	124 lm/W
38W	IGN-200-840-38	4000K	80	4,900 lm	129 lm/W
38W	IGN-200-850-38	5000K	80	5,000 lm	132 lm/W
