IGN-250 In-ground LED spot

Efficacy

89-156 lm/W

CRI

IP68

Warranty

5 years

The IGN-250 is designed to be an efficient, versatile and durable lighting tool for outdoor environments.

It is produced in 12W – 50W versions with a colour temperature (CCT) range from 2000K – 5000K.

One of the key features of the IGN-250 series is the wide variety of optics available, including narrow beam options of 5°, allowing for precision and flexibility in lighting design.

Each IGN-250 fixture is made of 316 stainless steel, with IP68 ingress protection and IK10 impact resistance, ensuring long-term durability even under harsh conditions.

The luminaires are backed by a 5-year warranty.

✉️ Request Quote Download PDF

📐

Calculate Required Luminaires

Via Techlumen Lux Calculator

📄

Luminaire Brochure

Detailed specifications

📊

Photometric Files

LDT / IES for lighting design

Technical Specifications

Luminous Flux 1300 - 6820 lm

Power 12 - 50W

Efficacy 89 - 156 lm/W

CRI 80

CCT 5000K

IP Rating IP68

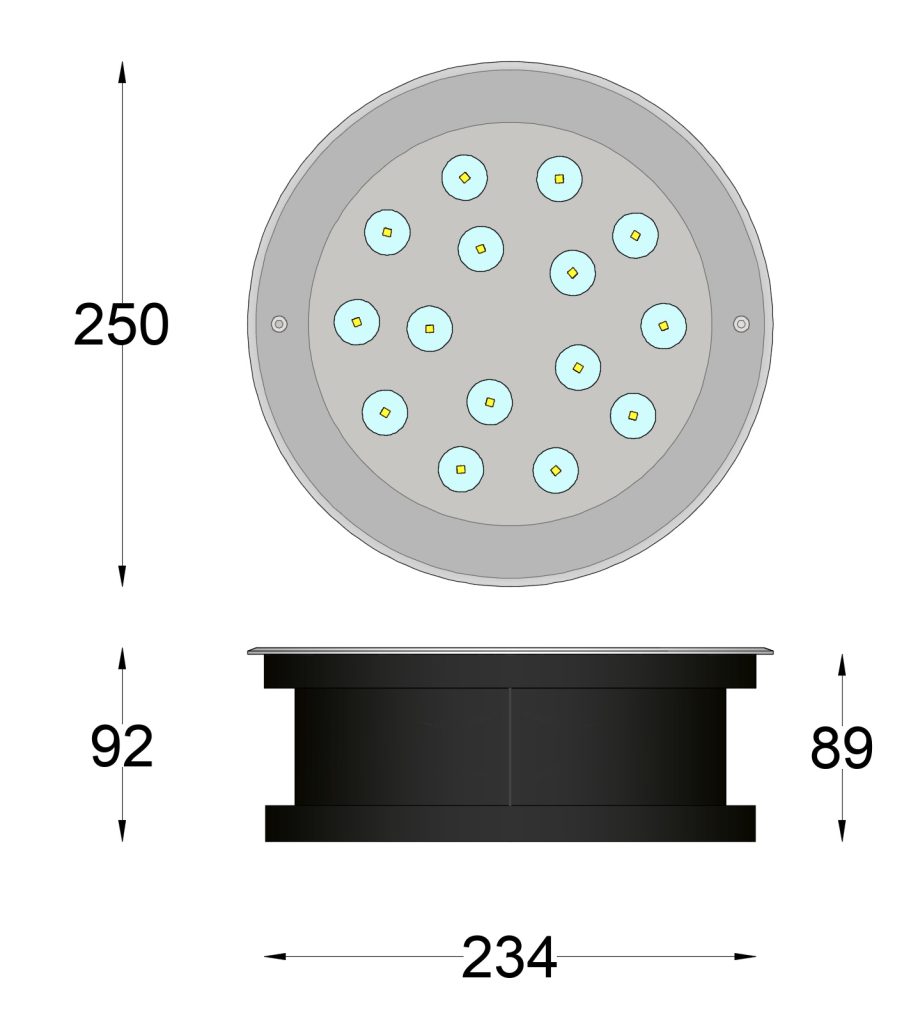

Dimensions Φ250mm x 92mm

Weight 2.2 kg

Warranty 5 years

Certifications & Compliance

CE ROHS EN 60598-1 EN 61000-3 EN 61547 EN 55015 EN 62471 EN 62493 EN 63000

Available Versions

Power	Code	CCT	CRI	Lumen	Efficacy
12W	IGN-250-820-12	2000K	80	1,300 lm	108 lm/W
12W	IGN-250-827-12	2700K	80	1,750 lm	146 lm/W
12W	IGN-250-830-12	3000K	80	1,780 lm	148 lm/W
12W	IGN-250-840-12	4000K	80	1,875 lm	156 lm/W
12W	IGN-250-850-12	5000K	80	1,910 lm	159 lm/W
17W	IGN-250-820-17	2000K	80	1,785 lm	105 lm/W
17W	IGN-250-827-17	2700K	80	2,430 lm	143 lm/W
17W	IGN-250-830-17	3000K	80	2,460 lm	145 lm/W
17W	IGN-250-840-17	4000K	80	2,600 lm	153 lm/W
17W	IGN-250-850-17	5000K	80	2,660 lm	156 lm/W
24W	IGN-250-820-24	2000K	80	2,480 lm	103 lm/W
24W	IGN-250-827-24	2700K	80	3,410 lm	142 lm/W
24W	IGN-250-830-24	3000K	80	3,480 lm	145 lm/W
24W	IGN-250-840-24	4000K	80	3,610 lm	150 lm/W
24W	IGN-250-850-24	5000K	80	3,680 lm	153 lm/W
33W	IGN-250-820-33	2000K	80	3,300 lm	100 lm/W
33W	IGN-250-827-33	2700K	80	4,500 lm	136 lm/W
33W	IGN-250-830-33	3000K	80	4,560 lm	138 lm/W
33W	IGN-250-840-33	4000K	80	4,800 lm	145 lm/W
33W	IGN-250-850-33	5000K	80	4,875 lm	148 lm/W
43W	IGN-250-820-43	2000K	80	4,050 lm	94 lm/W
43W	IGN-250-827-43	2700K	80	5,530 lm	129 lm/W
43W	IGN-250-830-43	3000K	80	5,625 lm	131 lm/W
43W	IGN-250-840-43	4000K	80	5,860 lm	136 lm/W
43W	IGN-250-850-43	5000K	80	5,970 lm	139 lm/W
50W	IGN-250-820-50	2000K	80	4,620 lm	92 lm/W
50W	IGN-250-827-50	2700K	80	6,300 lm	126 lm/W
50W	IGN-250-830-50	3000K	80	6,410 lm	128 lm/W
50W	IGN-250-840-50	4000K	80	6,680 lm	134 lm/W
50W	IGN-250-850-50	5000K	80	6,820 lm	136 lm/W
