RGBW LED Floodlight F-SPECTRA-2

IP66

Warranty

5 years

Techlumen© F-SPECTRA-2 LED floodlights are ideal for architectural and façade lighting.

They feature IP66 protection and excellent durability. Optionally made of anodized aluminium, they are suitable for marine or highly adverse environments.

Lightweight with a thin profile, they are available in multiple lengths, power ratings, and beam angles to cover diverse architectural applications.

Control options: wired via DALI or wireless via CASAMBI, capable of producing over 16 million RGBW colour hues with smooth transitions and precision dimming.

F-SPECTRA-2 luminaires come with a 5-year factory warranty and a lumen maintenance rating of L80 > 80 000 h.

Applications:
Building façades · Monuments · Museums · Parks · Hotels · RGBW colour compositions · Stage and event lighting

✉️ Request Quote Download PDF

📐

Calculate Required Luminaires

Via Techlumen Lux Calculator

📄

Luminaire Brochure

Detailed specifications

📊

Photometric Files

LDT / IES for lighting design

Technical Specifications

Luminous Flux 320 - 16050 lm

Power 51 - 222W

Ambient Temperature -30°C to +50°C

Power Factor 0.95

IP Rating IP66

IK Rating IK09

Body Anodized Aluminium / Powder Coating

Finishing Powder coating / Anodized aluminum

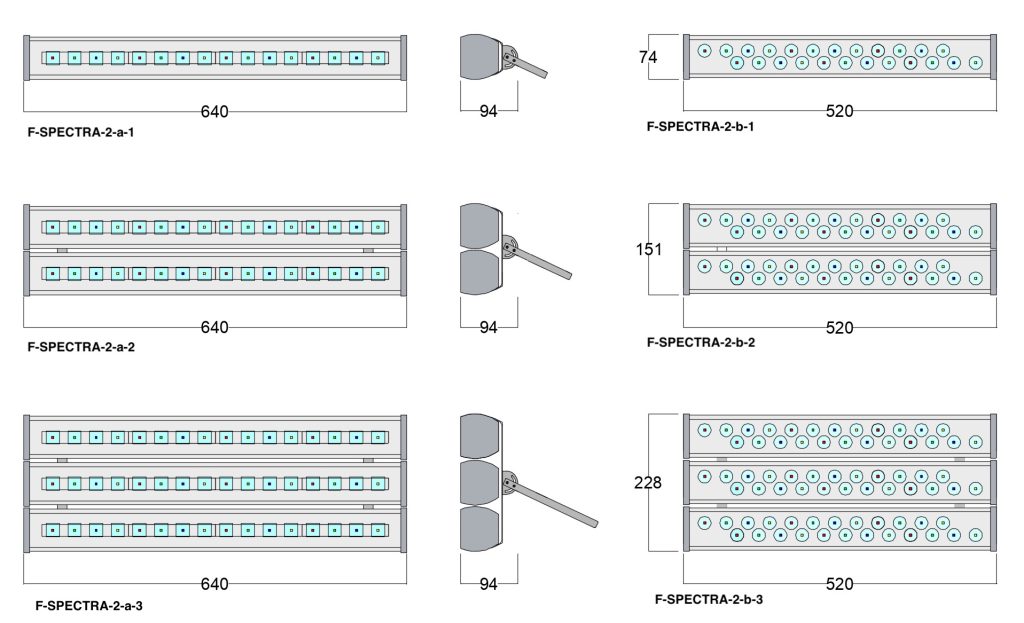

Dimensions 62mm x (74-228)mm x 640mm

Weight 2.2 - 7.4 kg

Warranty 5 years

Certifications & Compliance

CE ROHS EN 60598-1 EN 60598-2 EN 55015 EN 62471 EN 61000-3 EN 61547 EN 62493

Available Versions

Power	Code	CCT	CRI	Lumen	Efficacy
51W	F-SPECTRA-2-a-1	-	90	3,570 lm	70 lm/W
102W	F-SPECTRA-2-a-2	-	90	7,140 lm	70 lm/W
153W	F-SPECTRA-2-a-3	-	90	10,710 lm	70 lm/W
74W	F-SPECTRA-2-b-1	-	90	5,350 lm	70 lm/W
148W	F-SPECTRA-2-b-2	-	90	10,700 lm	70 lm/W
222W	F-SPECTRA-2-b-3	-	90	16,050 lm	70 lm/W
