LED Floodlight FL-I-15

Efficacy

120-162 lm/W

CRI

70-90

IP66

Warranty

5 years

The Techlumen FL-I-15 LED floodlight delivers powerful, high-performance illumination.

Produced in power and beam versions from 660 W to 840 W, it achieves up to 136 440 lm luminous flux.

Constructed from aluminium and finished with electrostatic powder coating in any RAL colour, it is lightweight and robust. Available with beam angles from 14° to 120°.

The CCT options range from 2700 K (warm white) to 5000 K (cool white). Rated IP66 and IK09. The LED chip is protected by a polycarbonate lens of high thermal and mechanical strength (optional anodised aluminium).

It comes with a 5-year warranty (extendable to 8 years), lifetime L80 > 100 000 h, and the Bridgelux LED chip has a 10-year factory warranty.

✉️ Request Quote Download PDF

📐

Calculate Required Luminaires

Via Techlumen Lux Calculator

📄

Luminaire Brochure

Detailed specifications

🔧

Installation Manual

Mounting and wiring instructions

📊

Photometric Files

LDT / IES for lighting design

Technical Specifications

Luminous Flux 81900 - 136440 lm

Power 1660 - 840W

Ambient Temperature -30°C to +50°C

Efficacy 120 - 162 lm/W

Power Factor 0.95

CRI 70-90

CCT 2700K-5000K

IP Rating IP66

IK Rating IK06

Body Aluminium

Finishing Powder Coating - RAL selection

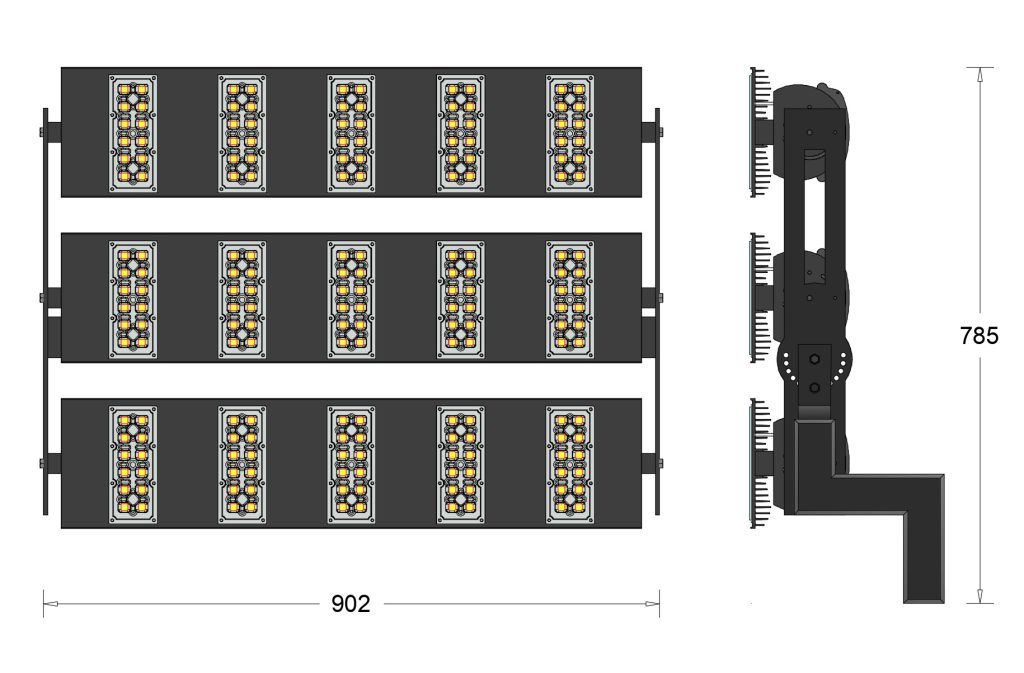

Dimensions 902mm X 715mm X 523mm

Weight 37.5 kg

Warranty 5 years

Certifications & Compliance

CE ROHS EN 60598-1 EN 60598-2 EN 61000-3 EN 61547 EN 55015 EN 62471 EN 62493 EN 60068-2 EN 63000

Available Versions

Power	Code	CCT	CRI	Lumen	Efficacy
660W	FL-I-15-827-660	2700K	80	88,380 lm	134 lm/W
660W	FL-I-15-730-660	3000K	70	100,980 lm	153 lm/W
660W	FL-I-15-830-660	3000K	80	91,080 lm	138 lm/W
660W	FL-I-15-740-660	4000K	70	106,380 lm	161 lm/W
660W	FL-I-15-840-660	4000K	80	95,760 lm	145 lm/W
660W	FL-I-15-750-660	5000K	70	106,380 lm	161 lm/W
660W	FL-I-15-850-660	5000K	80	95,760 lm	145 lm/W
660W	FL-I-15-950-660	5000K	90	81,900 lm	124 lm/W
735W	FL-I-15-827-735	2700K	80	97,200 lm	132 lm/W
735W	FL-I-15-730-735	3000K	70	111,060 lm	151 lm/W
735W	FL-I-15-830-735	3000K	80	100,260 lm	136 lm/W
735W	FL-I-15-740-735	4000K	70	117,000 lm	159 lm/W
735W	FL-I-15-840-735	4000K	80	105,480 lm	144 lm/W
735W	FL-I-15-750-735	5000K	70	117,000 lm	159 lm/W
735W	FL-I-15-850-735	5000K	80	105,480 lm	144 lm/W
735W	FL-I-15-950-735	5000K	90	90,000 lm	122 lm/W
795W	FL-I-15-827-795	2700K	80	103,140 lm	130 lm/W
795W	FL-I-15-730-795	3000K	70	117,900 lm	148 lm/W
795W	FL-I-15-830-795	3000K	80	106,200 lm	134 lm/W
795W	FL-I-15-740-795	4000K	70	124,020 lm	156 lm/W
795W	FL-I-15-840-795	4000K	80	111,780 lm	141 lm/W
795W	FL-I-15-750-795	5000K	70	124,020 lm	156 lm/W
795W	FL-I-15-850-795	5000K	80	111,780 lm	141 lm/W
795W	FL-I-15-950-795	5000K	90	95,400 lm	120 lm/W
840W	FL-I-15-827-840	2700K	80	116,100 lm	138 lm/W
840W	FL-I-15-730-840	3000K	70	128,340 lm	152 lm/W
840W	FL-I-15-830-840	3000K	80	118,620 lm	141 lm/W
840W	FL-I-15-740-840	4000K	70	136,440 lm	162 lm/W
840W	FL-I-15-840-840	4000K	80	126,180 lm	150 lm/W
840W	FL-I-15-750-840	5000K	70	136,440 lm	162 lm/W
840W	FL-I-15-850-840	5000K	80	126,180 lm	150 lm/W
840W	FL-I-15-950-840	5000K	90	105,660 lm	125 lm/W
