LED Floodlight FL-I-10

Efficacy

120-162 lm/W

CRI

70-90

IP66

Warranty

5 years

The Techlumen FL-I-10 LED floodlight delivers powerful, high-performance lighting with luminous flux up to 90 960 lm.

Available in power versions from 440 W to 560 W and beam angles from 14° to 120°, it provides versatile solutions for large-scale illumination.

Constructed from aluminium and coated with electrostatic powder paint in any RAL colour, it offers both durability and visual refinement. CCT options range from 2700 K (warm white) to 5000 K (cool white).

The luminaire is rated IP66 and IK09. Its LED chip is enclosed by a polycarbonate lens (PC) of high thermal and mechanical strength – optionally in anodised aluminium.

It is supplied with a 5-year warranty (extendable to 8 years), lifetime L80 > 100 000 h, and the Bridgelux LED chip carries a 10-year factory warranty.

✉️ Request Quote Download PDF

📐

Calculate Required Luminaires

Via Techlumen Lux Calculator

📄

Luminaire Brochure

Detailed specifications

🔧

Installation Manual

Mounting and wiring instructions

📊

Photometric Files

LDT / IES for lighting design

Technical Specifications

Luminous Flux 54600 - 90960 lm

Power 440 - 560W

Ambient Temperature -30°C to +50°C

Efficacy 120 - 162 lm/W

Power Factor 0.95

CRI 70-90

CCT 2700K-5000K

IP Rating IP66

IK Rating IK06

Body Aluminium

Finishing Powder Coating - RAL selection

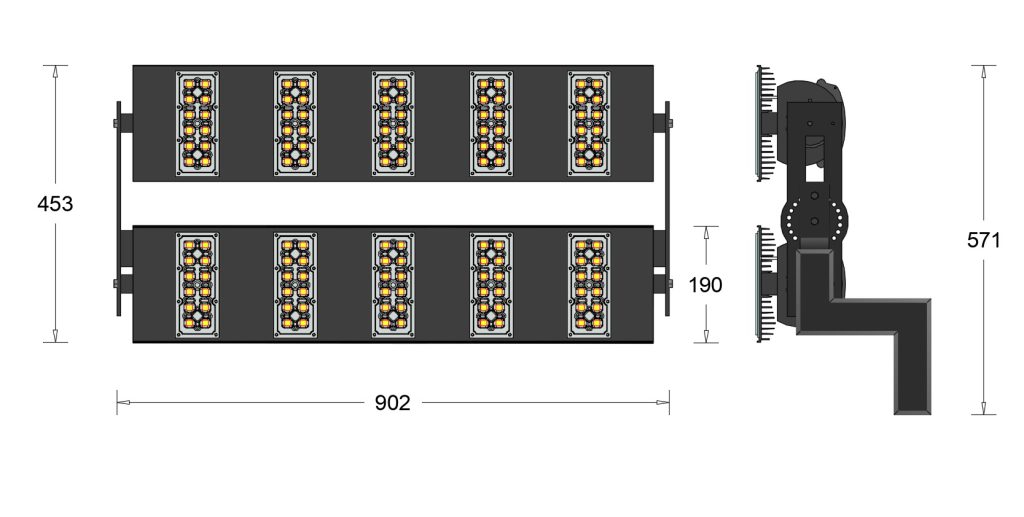

Dimensions 902mm X 453mm X 351mm

Weight 26.3 kg

Warranty 5 years

Certifications & Compliance

CE ROHS EN 60598-1 EN 60598-2 EN 61000-3 EN 61547 EN 55015 EN 62471 EN 62493 EN 60068-2 EN 63000

Available Versions

Power	Code	CCT	CRI	Lumen	Efficacy
440W	FL-I-10-827-440	2700K	80	58,920 lm	134 lm/W
440W	FL-I-10-730-440	3000K	70	67,320 lm	153 lm/W
440W	FL-I-10-830-440	3000K	80	60,720 lm	138 lm/W
440W	FL-I-10-740-440	4000K	70	70,920 lm	161 lm/W
440W	FL-I-10-840-440	4000K	80	63,840 lm	145 lm/W
440W	FL-I-10-750-440	5000K	70	70,920 lm	161 lm/W
440W	FL-I-10-850-440	5000K	80	63,840 lm	145 lm/W
440W	FL-I-10-950-440	5000K	90	54,600 lm	124 lm/W
490W	FL-I-10-827-490	2700K	80	64,800 lm	132 lm/W
490W	FL-I-10-730-490	3000K	70	74,040 lm	151 lm/W
490W	FL-I-10-830-490	3000K	80	66,840 lm	136 lm/W
490W	FL-I-10-740-490	4000K	70	78,000 lm	159 lm/W
490W	FL-I-10-840-490	4000K	80	70,320 lm	144 lm/W
490W	FL-I-10-750-490	5000K	70	78,000 lm	159 lm/W
490W	FL-I-10-850-490	5000K	80	70,320 lm	144 lm/W
490W	FL-I-10-950-490	5000K	90	60,000 lm	122 lm/W
530W	FL-I-10-827-530	2700K	80	68,760 lm	130 lm/W
530W	FL-I-10-730-530	3000K	70	78,600 lm	148 lm/W
530W	FL-I-10-830-530	3000K	80	70,800 lm	134 lm/W
530W	FL-I-10-740-530	4000K	70	82,680 lm	156 lm/W
530W	FL-I-10-840-530	4000K	80	74,520 lm	141 lm/W
530W	FL-I-10-750-530	5000K	70	82,680 lm	156 lm/W
530W	FL-I-10-850-530	5000K	80	74,520 lm	141 lm/W
530W	FL-I-10-950-530	5000K	90	63,600 lm	120 lm/W
560W	FL-I-10-827-560	2700K	80	77,400 lm	138 lm/W
560W	FL-I-10-730-560	3000K	70	85,560 lm	152 lm/W
560W	FL-I-10-830-560	3000K	80	79,080 lm	141 lm/W
560W	FL-I-10-740-560	4000K	70	90,960 lm	162 lm/W
560W	FL-I-10-840-560	4000K	80	84,120 lm	150 lm/W
560W	FL-I-10-750-560	5000K	70	90,960 lm	162 lm/W
560W	FL-I-10-850-560	5000K	80	84,120 lm	150 lm/W
560W	FL-I-10-950-560	5000K	90	70,440 lm	126 lm/W
