Home / Products / LED floodlights / LED Floodlight Techlumen SPC-XR
LED floodlights

LED Floodlight Techlumen SPC-XR

Efficacy
145-182 lm/W
CRI
65-80
IP
IP66
Warranty
5 years

The Techlumen SPC-XR LED floodlight delivers powerful performance up to 87,200 lm.

It features an adjustable mounting bracket for easy installation in demanding positions. The body is aluminium with electrostatic powder-coat in any RAL colour.

Available in 320 W – 500 W, with CCT selectable from 2000 K (warm white) to 6500 K (cool white). Rated IP66. Optics are borosilicate glass for high thermal & mechanical resistance.

Beam angle options from 45° to 120°. Supplied with a 5-year warranty (extendable to 8 years), L80B10 > 100,000 h, and the Bridgelux LED chip carries a 10-year factory warranty.

✉️ Request Quote Download PDF
📐
Calculate Required Luminaires
Via Techlumen Lux Calculator
 📄
Luminaire Brochure
Detailed specifications
 🔧
Installation Manual
Mounting and wiring instructions
 📊
Photometric Files
LDT / IES for lighting design

Technical Specifications

Luminous Flux 48600 - 87200 lm
Power 320 - 500W
Ambient Temperature -30°C to +50°C
Efficacy 145 - 182 lm/W
Power Factor 0.95
CRI 65-80
CCT 2700K-6500K
IP Rating IP66
IK Rating IK10
Body Aluminium
Finishing Powder coating - Any RAL
Dimensions (602-752)mm X 451mm X 176mm
Weight 18.5 - 21 kg
Warranty 5 years

Certifications & Compliance

CE ROHS EN 60598-1 EN 60598-2 EN 61000-3 EN 61547 EN 55015 EN 62471 EN 62493 EN 63000

Available Versions

Power Code CCT CRI Lumen Efficacy
320W SPC-XR-620-320 2000K 65 48,600 lm 152 lm/W
320W SPC-XR-827-320 2700K 80 52,400 lm 164 lm/W
320W SPC-XR-830-320 3000K 80 53,600 lm 168 lm/W
320W SPC-XR-835-320 3500K 80 54,000 lm 169 lm/W
320W SPC-XR-840-320 4000K 80 54,240 lm 170 lm/W
320W SPC-XR-750-320 5000K 70 54,320 lm 170 lm/W
320W SPC-XR-850-320 5000K 80 53,200 lm 166 lm/W
320W SPC-XR-757-320 5700K 70 52,800 lm 165 lm/W
320W SPC-XR-765-320 6500K 70 52,800 lm 165 lm/W
344W SPC-XR-620-344 2700K 80 56,000 lm 151 lm/W
344W SPC-XR-827-344 2700K 80 56,000 lm 163 lm/W
344W SPC-XR-830-344 3000K 80 57,200 lm 166 lm/W
344W SPC-XR-835-344 3500K 80 57,400 lm 167 lm/W
344W SPC-XR-840-344 4000K 80 57,800 lm 168 lm/W
344W SPC-XR-750-344 5000K 70 58,000 lm 169 lm/W
344W SPC-XR-850-344 5000K 80 56,680 lm 165 lm/W
344W SPC-XR-757-344 5700K 70 56,440 lm 164 lm/W
344W SPC-XR-765-344 6500K 70 56,440 lm 164 lm/W
400W SPC-XR-620-400 2000K 65 60,080 lm 150 lm/W
400W SPC-XR-827-400 2700K 80 63,120 lm 158 lm/W
400W SPC-XR-830-400 3000K 80 67,040 lm 168 lm/W
400W SPC-XR-835-400 3500K 80 68,640 lm 172 lm/W
400W SPC-XR-840-400 4000K 80 69,040 lm 173 lm/W
400W SPC-XR-750-400 5000K 70 72,600 lm 182 lm/W
400W SPC-XR-850-400 5000K 80 69,840 lm 175 lm/W
400W SPC-XR-757-400 5700K 70 70,600 lm 177 lm/W
400W SPC-XR-765-400 6500K 70 70,600 lm 177 lm/W
440W SPC-XR-620-440 2000K 65 64,800 lm 147 lm/W
440W SPC-XR-827-440 2700K 80 67,400 lm 153 lm/W
440W SPC-XR-830-440 3000K 80 71,600 lm 163 lm/W
440W SPC-XR-835-440 3500K 80 73,200 lm 166 lm/W
440W SPC-XR-840-440 4000K 80 73,600 lm 167 lm/W
440W SPC-XR-750-440 5000K 70 77,400 lm 176 lm/W
440W SPC-XR-850-440 5000K 80 74,400 lm 169 lm/W
440W SPC-XR-757-440 5700K 70 75,400 lm 171 lm/W
440W SPC-XR-765-440 6500K 70 75,400 lm 171 lm/W
500W SPC-XR-620-500 2000K 65 72,800 lm 145 lm/W
500W SPC-XR-827-500 2700K 80 75,880 lm 152 lm/W
500W SPC-XR-830-500 3000K 80 80,640 lm 161 lm/W
500W SPC-XR-835-500 3500K 80 82,400 lm 165 lm/W
500W SPC-XR-840-500 4000K 80 82,800 lm 166 lm/W
500W SPC-XR-750-500 5000K 70 87,200 lm 174 lm/W
500W SPC-XR-850-500 5000K 80 83,960 lm 168 lm/W
500W SPC-XR-757-500 5700K 70 84,800 lm 170 lm/W
500W SPC-XR-765-500 6500K 70 84,800 lm 170 lm/W

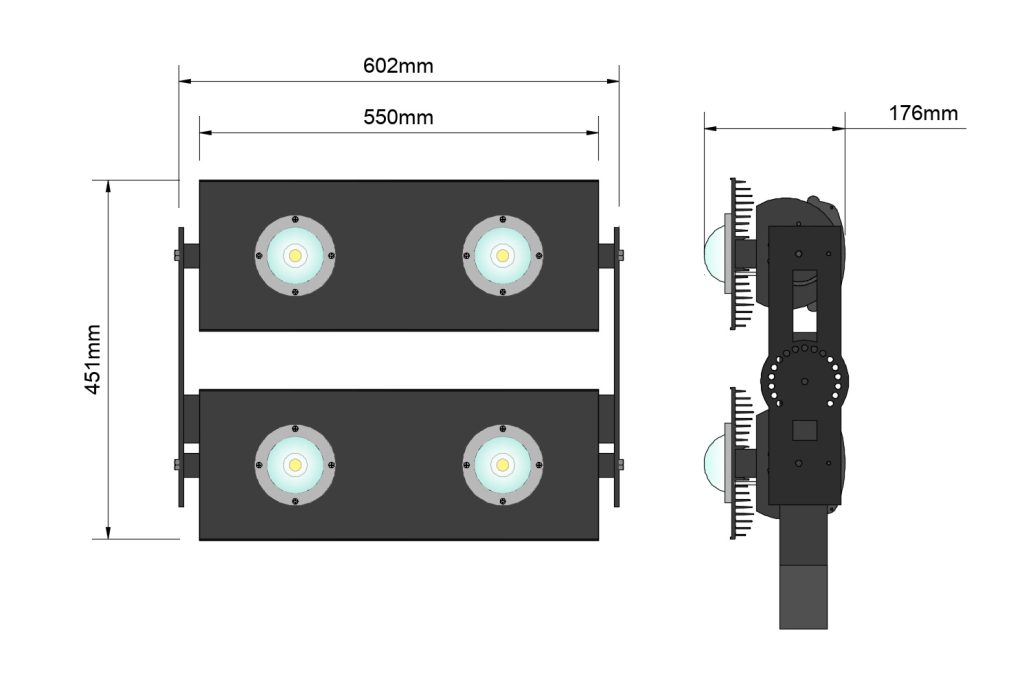

Technical Drawing

Technical Drawing
Download DWG / PDF

Polar Intensity Diagrams
