LED Floodlight Techlumen FL-I-8

Efficacy

121-162 lm/W

CRI

70-90

IP66

Warranty

5 years

The Techlumen FL-I-8 LED floodlight offers powerful, high-performance illumination.

It is produced in various power and beam versions. Narrow-beam 14° / 21° optics make it ideal for sports fields, ports and high-mast lighting structures > 16 m.

Constructed from aluminium and finished in any RAL colour with electrostatic powder coating.

Available from 388 W to 448 W with luminous flux up to 73 000 lm. CCT options: 2700 K – 5000 K.

Rated IP66 / IK09. Optics made of high-resistance polycarbonate. Lifetime: L80 > 70 000 h. Warranty: 5 years.

Applications:
Stadiums · Sports fields · Ports · Parking areas · Industrial zones · Outdoor logistics spaces

✉️ Request Quote Download PDF

📐

Calculate Required Luminaires

Via Techlumen Lux Calculator

📄

Luminaire Brochure

Detailed specifications

🔧

Installation Manual

Mounting and wiring instructions

📊

Photometric Files

LDT / IES for lighting design

Technical Specifications

Luminous Flux 48000 - 72768 lm

Power 388 - 448W

Ambient Temperature -30°C to +50°C

Efficacy 121 - 162 lm/W

Power Factor 0.95

CRI 70-90

CCT 2700K-5000K

IP Rating IP66

Body Aluminium

Finishing Powder Coating - RAL selection

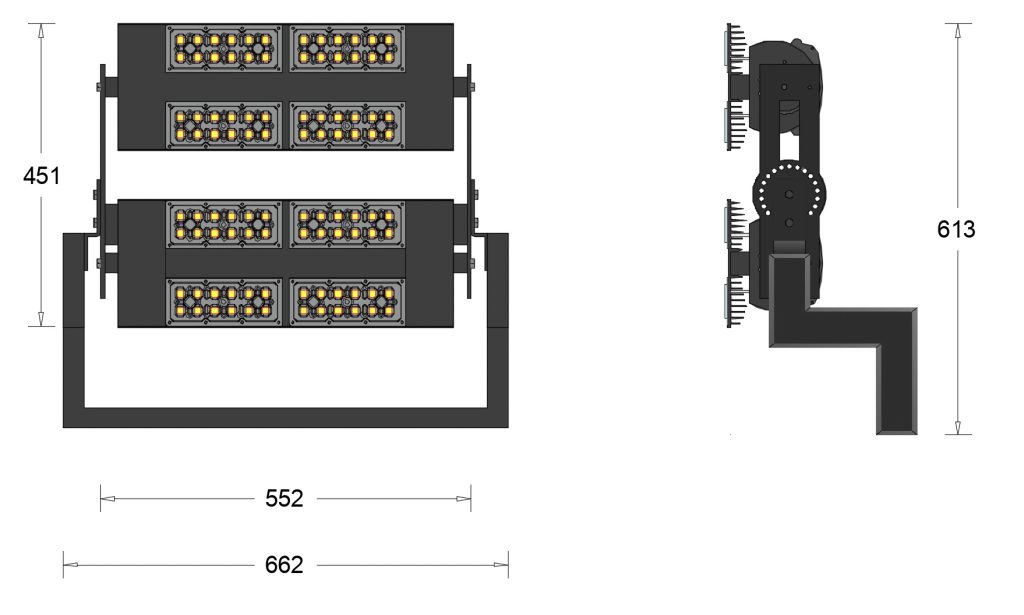

Dimensions 596mm X 451mm X 351mm

Weight 19 kg

Warranty 5 years

Certifications & Compliance

CE ROHS EN 60598-1 EN 60598-2 EN 61000-3 EN 61547 EN 55015 EN 62471 EN 62493 EN 60068-2 EN 63000

Available Versions

Power	Code	CCT	CRI	Lumen	Efficacy
388W	FL-I-8-827-388	2700K	80	51,840 lm	134 lm/W
388W	FL-I-8-730-388	3000K	70	59,232 lm	153 lm/W
388W	FL-I-8-830-388	3000K	80	53,472 lm	138 lm/W
388W	FL-I-8-740-388	4000K	70	62,400 lm	161 lm/W
388W	FL-I-8-840-388	4000K	80	56,256 lm	145 lm/W
388W	FL-I-8-750-388	5000K	70	62,400 lm	161 lm/W
388W	FL-I-8-850-388	5000K	80	56,256 lm	145 lm/W
388W	FL-I-8-950-388	5000K	90	48,000 lm	124 lm/W
400W	FL-I-8-827-400	2700K	80	52,416 lm	131 lm/W
400W	FL-I-8-730-400	3000K	70	59,904 lm	150 lm/W
400W	FL-I-8-830-400	3000K	80	53,952 lm	135 lm/W
400W	FL-I-8-740-400	4000K	70	63,072 lm	158 lm/W
400W	FL-I-8-840-400	4000K	80	56,832 lm	142 lm/W
400W	FL-I-8-750-400	5000K	70	63,072 lm	158 lm/W
400W	FL-I-8-850-400	5000K	80	56,832 lm	142 lm/W
400W	FL-I-8-950-400	5000K	90	48,576 lm	121 lm/W
420W	FL-I-8-827-420	2700K	80	55,008 lm	131 lm/W
420W	FL-I-8-730-420	3000K	70	62,880 lm	157 lm/W
420W	FL-I-8-830-420	3000K	80	56,640 lm	135 lm/W
420W	FL-I-8-740-420	4000K	70	66,144 lm	157 lm/W
420W	FL-I-8-840-420	4000K	80	59,616 lm	142 lm/W
420W	FL-I-8-750-420	5000K	70	66,144 lm	157 lm/W
420W	FL-I-8-850-420	5000K	80	59,616 lm	142 lm/W
420W	FL-I-8-950-420	5000K	90	50,880 lm	121 lm/W
448W	FL-I-8-827-448	2700K	80	61,920 lm	138 lm/W
448W	FL-I-8-730-448	3000K	70	68,448 lm	152 lm/W
448W	FL-I-8-830-448	3000K	80	63,264 lm	141 lm/W
448W	FL-I-8-740-448	4000K	70	72,768 lm	162 lm/W
448W	FL-I-8-840-448	4000K	80	67,296 lm	150 lm/W
448W	FL-I-8-750-448	5000K	70	72,768 lm	162 lm/W
448W	FL-I-8-850-448	5000K	80	67,296 lm	150 lm/W
448W	FL-I-8-950-448	5000K	90	56,352 lm	125 lm/W
