LED Floodlight FL-I-5

Efficacy

120-162 lm/W

CRI

70-90

IP66

Warranty

5 years

The Techlumen FL-I-5 LED floodlight delivers powerful, high-performance lighting with luminous flux up to 45 480 lm.

Produced in power versions from 220 W to 280 W and beam options from 14° to 120°, it meets a wide range of outdoor and industrial lighting demands.

It is constructed from aluminium, lightweight, and powder-coated in any RAL colour. CCT options range from 2700 K (warm white) to 5000 K (cool white).

The luminaire is rated IP66 and IK09. Its LED chip is enclosed by a polycarbonate (PC) lens of high thermal and mechanical resistance — optionally anodised aluminium.

It comes with a 5-year warranty, lifetime L80 > 100 000 h, and the Bridgelux LED chip carries a 10-year factory warranty.

✉️ Request Quote Download PDF

📐

Calculate Required Luminaires

Via Techlumen Lux Calculator

📄

Luminaire Brochure

Detailed specifications

🔧

Installation Manual

Mounting and wiring instructions

📊

Photometric Files

LDT / IES for lighting design

Technical Specifications

Luminous Flux 27300 - 45480 lm

Power 220 - 280W

Ambient Temperature -30°C to +50°C

Efficacy 120 - 162 lm/W

Power Factor 0.95

CRI 70-90

CCT 2700K-5000K

IP Rating IP66

IK Rating IK06

Body Aluminium

Finishing Powder Coating - RAL selection

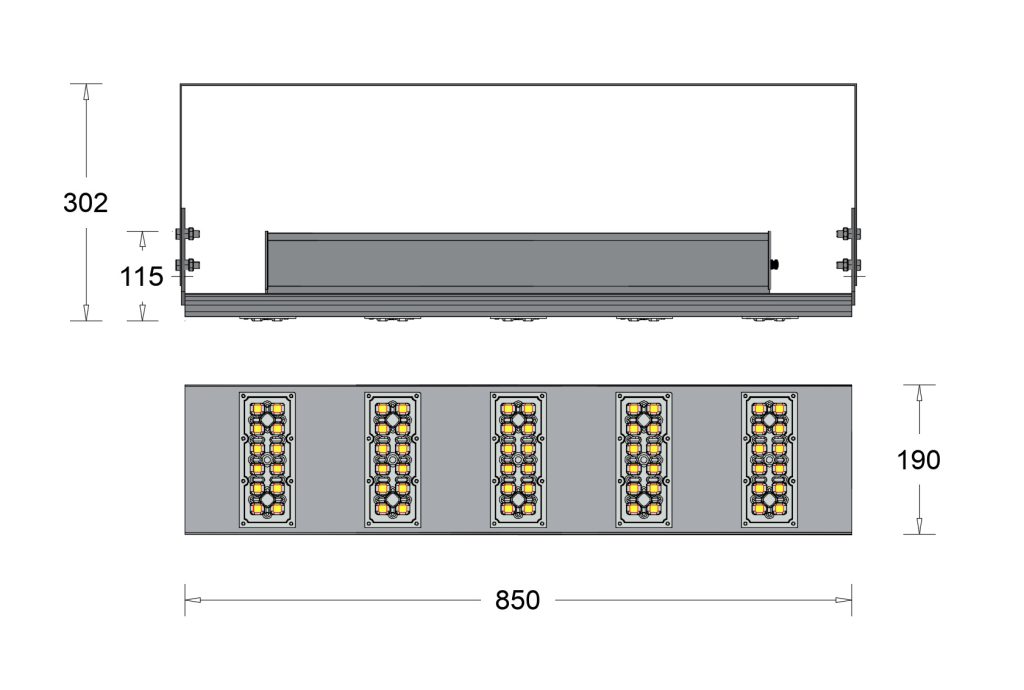

Dimensions 850mm X 190mm X 115mm

Weight 9.8 kg

Warranty 5 years

Certifications & Compliance

CE ROHS EN 60598-1 EN 60598-2 EN 61000-3 EN 61547 EN 55015 EN 62471 EN 62493 EN 60068-2 EN 63000

Available Versions

Power	Code	CCT	CRI	Lumen	Efficacy
220W	FL-I-5-827-220	2700K	80	29,460 lm	134 lm/W
220W	FL-I-5-730-220	3000K	70	33,660 lm	153 lm/W
220W	FL-I-5-830-220	3000K	80	30,360 lm	138 lm/W
220W	FL-I-5-740-220	4000K	70	35,460 lm	160 lm/W
220W	FL-I-5-840-220	4000K	80	31,920 lm	145 lm/W
220W	FL-I-5-750-220	5000K	70	35,460 lm	160 lm/W
220W	FL-I-5-850-220	5000K	80	31,920 lm	145 lm/W
220W	FL-I-5-950-220	5000K	90	27,300 lm	122 lm/W
245W	FL-I-5-827-245	2700K	80	32,400 lm	132 lm/W
245W	FL-I-5-730-245	3000K	70	37,020 lm	151 lm/W
245W	FL-I-5-830-245	3000K	80	33,420 lm	136 lm/W
245W	FL-I-5-740-245	4000K	70	39,000 lm	159 lm/W
245W	FL-I-5-840-245	4000K	80	35,160 lm	144 lm/W
245W	FL-I-5-750-245	5000K	70	39,000 lm	159 lm/W
245W	FL-I-5-850-245	5000K	80	35,160 lm	144 lm/W
245W	FL-I-5-950-245	5000K	90	30,000 lm	122 lm/W
265W	FL-I-5-827-265	2700K	80	34,380 lm	130 lm/W
265W	FL-I-5-730-265	3000K	70	39,300 lm	148 lm/W
265W	FL-I-5-830-265	3000K	80	35,400 lm	134 lm/W
265W	FL-I-5-740-265	4000K	70	41,340 lm	156 lm/W
265W	FL-I-5-840-265	4000K	80	37,260 lm	141 lm/W
265W	FL-I-5-750-265	5000K	70	41,340 lm	156 lm/W
265W	FL-I-5-850-265	5000K	80	37,260 lm	141 lm/W
265W	FL-I-5-950-265	5000K	90	31,800 lm	120 lm/W
280W	FL-I-5-827-280	2700K	80	38,700 lm	138 lm/W
280W	FL-I-5-730-280	3000K	70	42,780 lm	153 lm/W
280W	FL-I-5-830-280	3000K	80	39,540 lm	141 lm/W
280W	FL-I-5-740-280	4000K	70	45,480 lm	162 lm/W
280W	FL-I-5-840-280	4000K	80	42,060 lm	150 lm/W
280W	FL-I-5-750-280	5000K	70	45,480 lm	162 lm/W
280W	FL-I-5-850-280	5000K	80	42,060 lm	150 lm/W
280W	FL-I-5-950-280	5000K	90	35,220 lm	126 lm/W
