LED Floodlight FL-I-3

Efficacy

118-162 lm/W

CRI

70-90

IP66

Warranty

5 years

The Techlumen FL-I-3 LED floodlight delivers powerful, high-performance illumination up to 27,288 lm.

Available in 132 W – 168 W power options with beam angles from 14° to 120°, it serves a wide range of outdoor and industrial applications.

Built from lightweight, durable aluminium and finished with electrostatic powder coating in any RAL colour.

CCT options from 2700 K (warm) to 5000 K (cool). Ingress/impact ratings: IP66 and IK09.

The LED is protected by a high-strength, high-temperature polycarbonate (PC) lens (optional anodised aluminium).

5-year warranty, lifetime L80 > 100,000 h.

✉️ Request Quote Download PDF

Luminous Flux 16380 - 27288 lm

Power 132 - 168W

Ambient Temperature -30°C to +50°C

Efficacy 118 - 162 lm/W

Power Factor 0.95

CRI 70-90

CCT 2700K-5000K

IP Rating IP66

Body Aluminium

Finishing Powder Coating - RAL selection

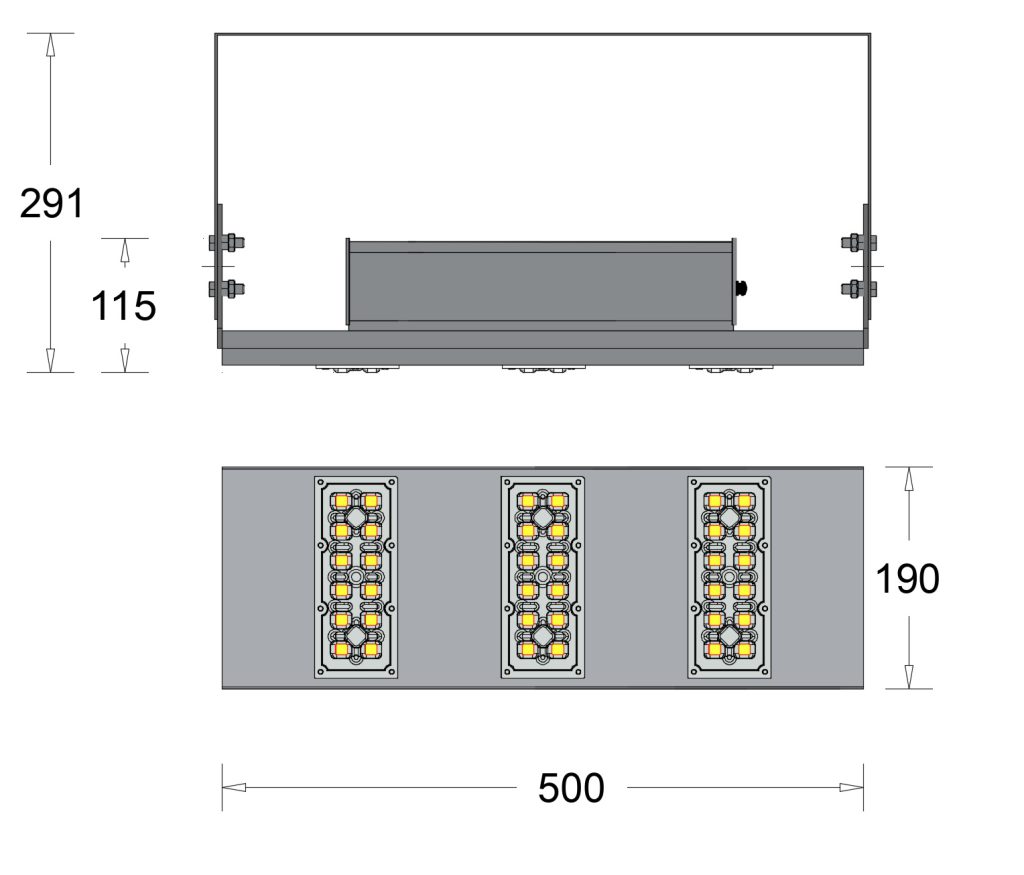

Dimensions 500mm X 190mm X 115mm

Weight 7.6 kg

Warranty 5 years

CE ROHS EN 60598-1 EN 60598-2 EN 61000-3 EN 61547 EN 55015 EN 62471 EN 62493 EN 60068-2 EN 63000

Power	Code	CCT	CRI	Lumen	Efficacy
132W	FL-I-3-827-132	2700K	80	17,676 lm	134 lm/W
132W	FL-I-3-730-132	3000K	70	20,196 lm	153 lm/W
132W	FL-I-3-830-132	3000K	80	18,216 lm	138 lm/W
132W	FL-I-3-740-132	4000K	70	21,276 lm	161 lm/W
132W	FL-I-3-840-132	4000K	80	19,152 lm	145 lm/W
132W	FL-I-3-750-132	5000K	70	21,276 lm	161 lm/W
132W	FL-I-3-850-132	5000K	80	19,152 lm	145 lm/W
132W	FL-I-3-950-132	5000K	90	16,380 lm	124 lm/W
147W	FL-I-3-820-147	2700K	80	19,440 lm	132 lm/W
147W	FL-I-3-730-147	3000K	70	22,212 lm	151 lm/W
147W	FL-I-3-830-147	3000K	80	20,052 lm	136 lm/W
147W	FL-I-3-740-147	4000K	70	23,400 lm	159 lm/W
147W	FL-I-3-840-147	4000K	80	21,096 lm	144 lm/W
147W	FL-I-3-750-147	5000K	70	23,400 lm	159 lm/W
147W	FL-I-3-850-147	5000K	80	21,096 lm	144 lm/W
147W	FL-I-3-950-147	5000K	90	18,000 lm	122 lm/W
159W	FL-I-3-827-159	2700K	80	20,628 lm	130 lm/W
159W	FL-I-3-730-159	3000K	70	23,580 lm	148 lm/W
159W	FL-I-3-830-159	3000K	80	21,240 lm	134 lm/W
159W	FL-I-3-740-159	4000K	70	24,804 lm	156 lm/W
159W	FL-I-3-840-159	4000K	80	22,356 lm	141 lm/W
159W	FL-I-3-750-159	5000K	70	24,804 lm	156 lm/W
159W	FL-I-3-850-159	5000K	80	22,356 lm	141 lm/W
159W	FL-I-3-950-159	5000K	90	19,080 lm	120 lm/W
168W	FL-I-3-827-168	2700K	80	23,220 lm	138 lm/W
168W	FL-I-3-730-168	3000K	70	25,668 lm	153 lm/W
168W	FL-I-3-830-168	3000K	80	23,724 lm	141 lm/W
168W	FL-I-3-740-168	4000K	70	27,288 lm	162 lm/W
168W	FL-I-3-840-168	4000K	80	25,236 lm	150 lm/W
168W	FL-I-3-750-168	5000K	70	27,288 lm	162 lm/W
168W	FL-I-3-850-168	5000K	80	25,236 lm	150 lm/W
168W	FL-I-3-950-168	5000K	90	21,132 lm	125 lm/W
