Home / Products / LED floodlights / FL-I-6 High Power LED Floodlight
LED floodlights

FL-I-6 High Power LED Floodlight

Efficacy
119-162 lm/W
CRI
70-90
IP
IP66
Warranty
5 years

The Techlumen FL-I-6 LED floodlight provides powerful, high-performance illumination in a lightweight, robust aluminium housing.

Produced in 264 W – 337 W versions with multiple beams (e.g., 14° / 30°) for high-mast (> 16 m) sports and port-area lighting.

Luminous flux up to 54,576 lm. CCT range 2700 K – 5000 K. Electrostatic powder-coat in any RAL colour (optional anodised aluminium).

Rated IP66 / IK09. High-strength PC optics. Lifetime L80 > 100,000 h. Warranty 5 years.

Applications:
Stadiums · Port facilities · Parking areas · Industrial yards · Logistics hubs
✉️ Request Quote Download PDF
📐
Calculate Required Luminaires
Via Techlumen Lux Calculator
 📄
Luminaire Brochure
Detailed specifications
 🔧
Installation Manual
Mounting and wiring instructions
 📊
Photometric Files
LDT / IES for lighting design

Technical Specifications

Luminous Flux 32760 - 54576 lm
Power 264 - 337W
Ambient Temperature -30°C to +50°C
Efficacy 119 - 162 lm/W
Power Factor 0.95
CRI 70-90
CCT 2700K-5000K
IP Rating IP66
Body Aluminium
Finishing Powder Coating - RAL selection
Dimensions 850mm X 190mm X 115mm
Weight 9.8 kg
Warranty 5 years

Certifications & Compliance

CE ROHS EN 60598-1 EN 60598-2 EN 61000-3 EN 61547 EN 55015 EN 62471 EN 62493 EN 60068-2 EN 63000

Available Versions

Power Code CCT CRI Lumen Efficacy
264W FL-I-6-827-264 2700K 80 35,352 lm 134 lm/W
264W FL-I-6-730-264 3000K 70 40,392 lm 153 lm/W
264W FL-I-6-830-264 3000K 80 36,432 lm 138 lm/W
264W FL-I-6-740-264 4000K 70 42,552 lm 161 lm/W
264W FL-I-6-840-264 4000K 80 38,304 lm 145 lm/W
264W FL-I-6-750-264 5000K 70 42,552 lm 161 lm/W
264W FL-I-6-850-264 5000K 80 38,304 lm 145 lm/W
264W FL-I-6-950-264 5000K 90 32,760 lm 124 lm/W
295W FL-I-6-827-295 2700K 80 38,880 lm 132 lm/W
295W FL-I-6-730-295 3000K 70 44,424 lm 151 lm/W
295W FL-I-6-830-295 3000K 80 40,104 lm 136 lm/W
295W FL-I-6-740-295 4000K 70 46,800 lm 159 lm/W
295W FL-I-6-840-295 4000K 80 42,192 lm 143 lm/W
295W FL-I-6-750-295 5000K 70 46,800 lm 159 lm/W
295W FL-I-6-850-295 5000K 80 42,192 lm 143 lm/W
295W FL-I-6-950-295 5000K 90 36,000 lm 122 lm/W
305W FL-I-6-827-305 2700K 80 40,408 lm 132 lm/W
305W FL-I-6-730-305 3000K 70 46,170 lm 151 lm/W
305W FL-I-6-830-305 3000K 80 41,681 lm 137 lm/W
305W FL-I-6-740-305 4000K 70 48,640 lm 159 lm/W
305W FL-I-6-840-305 4000K 80 43,850 lm 144 lm/W
305W FL-I-6-750-305 5000K 70 48,640 lm 159 lm/W
305W FL-I-6-850-305 5000K 80 43,850 lm 144 lm/W
305W FL-I-6-950-305 5000K 90 37,415 lm 123 lm/W
315W FL-I-6-827-315 2700K 80 41,256 lm 131 lm/W
315W FL-I-6-730-315 3000K 70 47,160 lm 150 lm/W
315W FL-I-6-830-315 3000K 80 42,480 lm 135 lm/W
315W FL-I-6-740-315 4000K 70 49,608 lm 157 lm/W
315W FL-I-6-840-315 4000K 80 44,712 lm 142 lm/W
315W FL-I-6-750-315 5000K 70 49,608 lm 157 lm/W
315W FL-I-6-850-315 5000K 80 44,712 lm 142 lm/W
315W FL-I-6-950-315 5000K 90 38,160 lm 121 lm/W
337W FL-I-6-827-337 2700K 80 46,440 lm 137 lm/W
337W FL-I-6-730-337 3000K 70 51,336 lm 152 lm/W
337W FL-I-6-830-337 3000K 80 47,448 lm 140 lm/W
337W FL-I-6-740-337 4000K 70 54,576 lm 162 lm/W
337W FL-I-6-840-337 4000K 80 50,472 lm 149 lm/W
337W FL-I-6-750-337 5000K 70 54,576 lm 162 lm/W
337W FL-I-6-850-337 5000K 80 50,472 lm 149 lm/W
337W FL-I-6-950-337 5000K 90 42,264 lm 125 lm/W

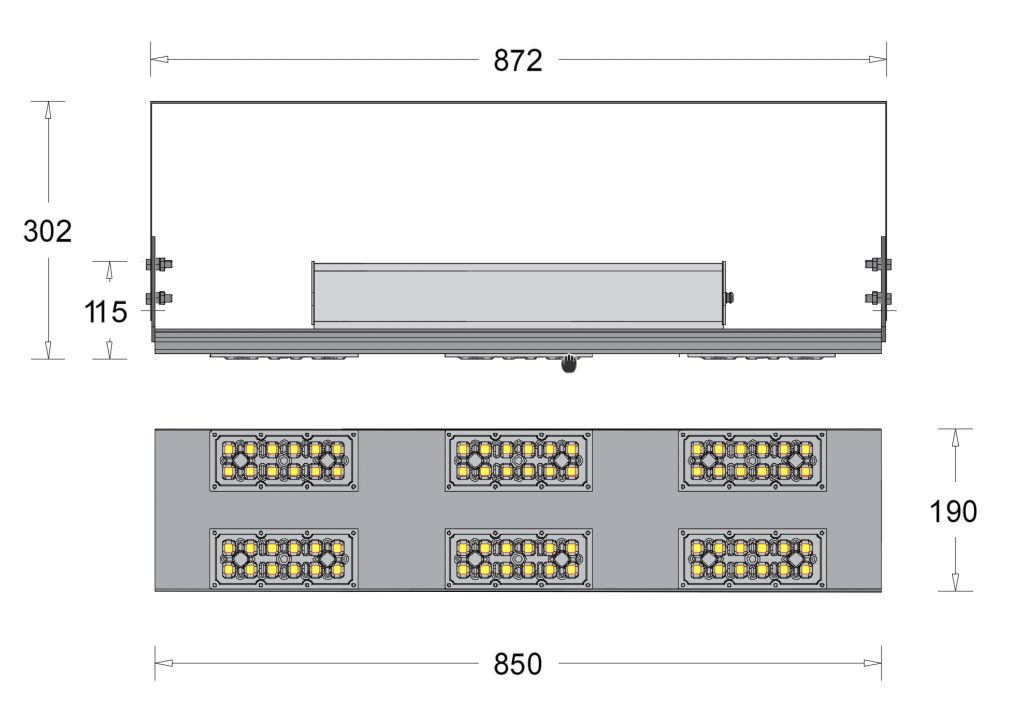

Technical Drawing

Technical Drawing
Download DWG / PDF

Polar Intensity Diagrams
