FL-I-18 High Power LED Floodlight

Efficacy

118-162 lm/W

CRI

IP66

Warranty

5 years

The Techlumen FL-I-18 LED floodlight delivers powerful, high-performance illumination in a robust yet lightweight aluminium housing.

Available in 735 W – 1010 W versions and multiple beam options (e.g., 14° / 30°), ideal for stadiums, ports, and large area high-mast lighting installations (> 16 m).

Luminous flux up to 155 952 lm. CCT range 2700 K – 5000 K.
Powder-coated in any RAL colour (optional anodised aluminium).

Rated IP66 / IK09. High-strength PC optics ensure thermal and mechanical resilience.
Lifetime L80 > 100 000 h. Warranty 5 years.

Applications:
Stadiums · Port facilities · Parking lots · Industrial yards · Airports · Outdoor logistics areas

✉️ Request Quote Download PDF

📐

Calculate Required Luminaires

Via Techlumen Lux Calculator

📄

Luminaire Brochure

Detailed specifications

🔧

Installation Manual

Mounting and wiring instructions

📊

Photometric Files

LDT / IES for lighting design

Technical Specifications

Luminous Flux 86832 - 155952 lm

Power 735 - 1100W

Efficacy 118 - 162 lm/W

CRI 80

CCT 2700K-5000K

IP Rating IP66

IK Rating IK06

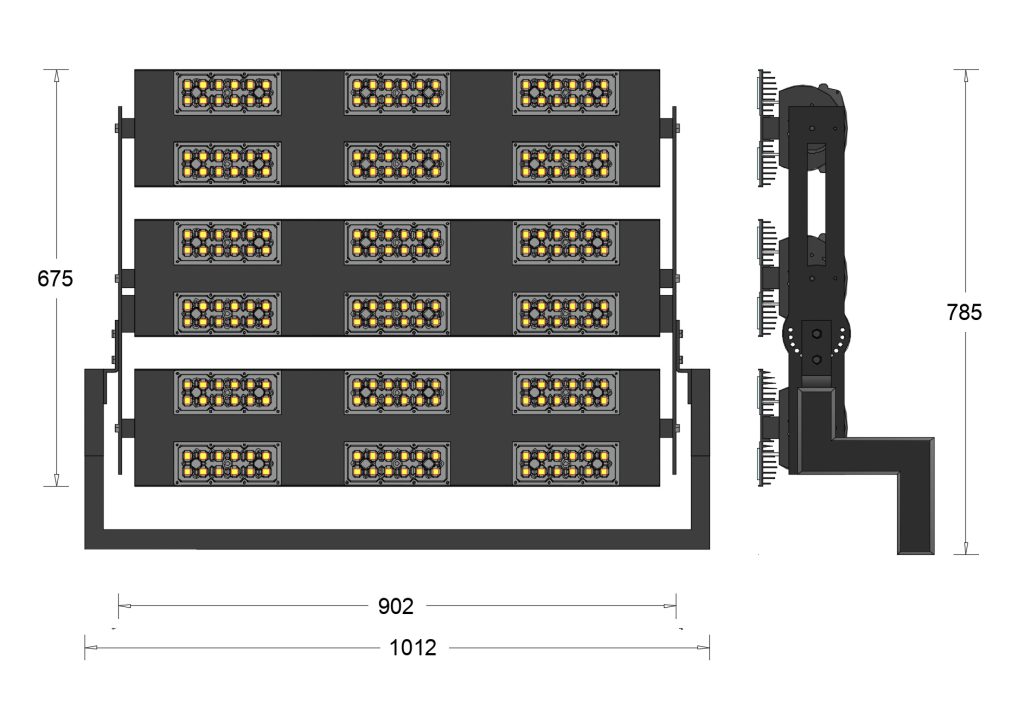

Dimensions 902mm X 715mm X 523mm

Weight 37.5 kg

Warranty 5 years

Certifications & Compliance

CE ROHS EN 60598-1 EN 60598-2 EN 61000-3 EN 61547 EN 55015 EN 62471 EN 62493 EN 60068-2 EN 63000

Available Versions

Power	Code	CCT	CRI	Lumen	Efficacy
735W	FL-I-18-827-735	2700K	80	93,744 lm	128 lm/W
735W		FL-I-18-730-735K	3000	70 lm	107352 lm/W
735W		FL-I-18-830-735K	3000	80 lm	96768 lm/W
735W		FL-I-18-740-735K	4000	70 lm	112968 lm/W
735W		FL-I-18-840-735K	4000	80 lm	101736 lm/W
735W		FL-I-18-750-735K	5000	70 lm	112968 lm/W
735W		FL-I-18-850-735K	5000	80 lm	101736 lm/W
735W		FL-I-18-950-735K	5000	90 lm	86832 lm/W
790W	FL-I-18-827-790	2700K	80	106,056 lm	134 lm/W
790W		FL-I-18-730-790K	3000	70 lm	121176 lm/W
790W		FL-I-18-830-790K	3000	80 lm	109296 lm/W
790W		FL-I-18-740-790K	4000	70 lm	127656 lm/W
790W		FL-I-18-840-790K	4000	80 lm	114912 lm/W
790W		FL-I-18-750-790K	5000	70 lm	127656 lm/W
790W		FL-I-18-850-790K	5000	80 lm	114912 lm/W
790W		FL-I-18-950-790K	5000	90 lm	98280 lm/W
890W	FL-I-18-827-890	2700K	80	116,640 lm	131 lm/W
890W		FL-I-18-730-890K	3000	70 lm	133272 lm/W
890W		FL-I-18-830-890K	3000	80 lm	120312 lm/W
890W		FL-I-18-740-890K	4000	70 lm	140400 lm/W
890W		FL-I-18-840-890K	4000	80 lm	126576 lm/W
890W		FL-I-18-750-890K	5000	70 lm	140400 lm/W
890W		FL-I-18-850-890K	5000	80 lm	126576 lm/W
890W		FL-I-18-950-890K	5000	90 lm	108000 lm/W
900W	FL-I-18-827-900	2700K	80	117,936 lm	131 lm/W
900W		FL-I-18-730-900K	3000	70 lm	134784 lm/W
900W		FL-I-18-830-900K	3000	80 lm	121392 lm/W
900W		FL-I-18-740-900K	4000	70 lm	141912 lm/W
900W		FL-I-18-840-900K	4000	80 lm	127872 lm/W
900W		FL-I-18-750-900K	5000	70 lm	141912 lm/W
900W		FL-I-18-850-900K	5000	80 lm	127872 lm/W
900W		FL-I-18-950-900K	5000	90 lm	109296 lm/W
950W	FL-I-18-827-950	2700K	80	123,768 lm	130 lm/W
950W		FL-I-18-730-950K	3000	70 lm	141480 lm/W
950W		FL-I-18-830-950K	3000	80 lm	127440 lm/W
950W		FL-I-18-740-950K	4000	70 lm	148824 lm/W
950W		FL-I-18-840-950K	4000	80 lm	134136 lm/W
950W		FL-I-18-750-950K	5000	70 lm	148824 lm/W
950W		FL-I-18-850-950K	5000	80 lm	134136 lm/W
950W		FL-I-18-950-950K	5000	90 lm	114480 lm/W
1010W	FL-I-18-827-1010	2700K	80	129,384 lm	128 lm/W
1010W		FL-I-18-730-1010K	3000	70 lm	147960 lm/W
1010W		FL-I-18-830-1010K	3000	80 lm	133488 lm/W
1010W		FL-I-18-740-1010K	4000	70 lm	155952 lm/W
1010W		FL-I-18-840-1010K	4000	80 lm	140400 lm/W
1010W		FL-I-18-750-1010K	5000	70 lm	155952 lm/W
1010W		FL-I-18-850-1010K	5000	80 lm	140400 lm/W
1010W		FL-I-18-950-1010K	5000	90 lm	120096 lm/W
