SPC-XSE High Power LED Floodlight

Efficacy

137-182 lm/W

CRI

65-80

IP66

Warranty

5 years

Techlumen LED floodlight SPC-XSE has extremely strong performance, reaching 223200 lm.

It is equiped with bracket that can be mounted easily adapt in difficult mounting positions. It is made of aluminum and painted with electrostatic powder paint in a wide RAL color selection.

The CCT can be selected between 2000K (warm white), as and 5000K (cool white). The projector is IP66 rated. The optics are made from glass borosilicate glass of high thermal and mechanical resistance.
There is a selection of beam angles from 45^o to 120^o.
It has 5 years warranty upgradable to 8y, L80B10 index > 70000h, while the LED chip has 10-year factory warranty

✉️ Request Quote Download PDF

📐

Calculate Required Luminaires

Via Techlumen Lux Calculator

📄

Luminaire Brochure

Detailed specifications

🔧

Installation Manual

Mounting and wiring instructions

📊

Photometric Files

LDT / IES for lighting design

Technical Specifications

Luminous Flux 109350 - 223200 lm

Power 720 - 1350W

Ambient Temperature -30°C to +50°C

Efficacy 137 - 182 lm/W

Power Factor 0.95

CRI 65-80

CCT 2700K-6500K

IP Rating IP66

IK Rating IK10

Body Aluminium

Finishing Powder coating - Any RAL

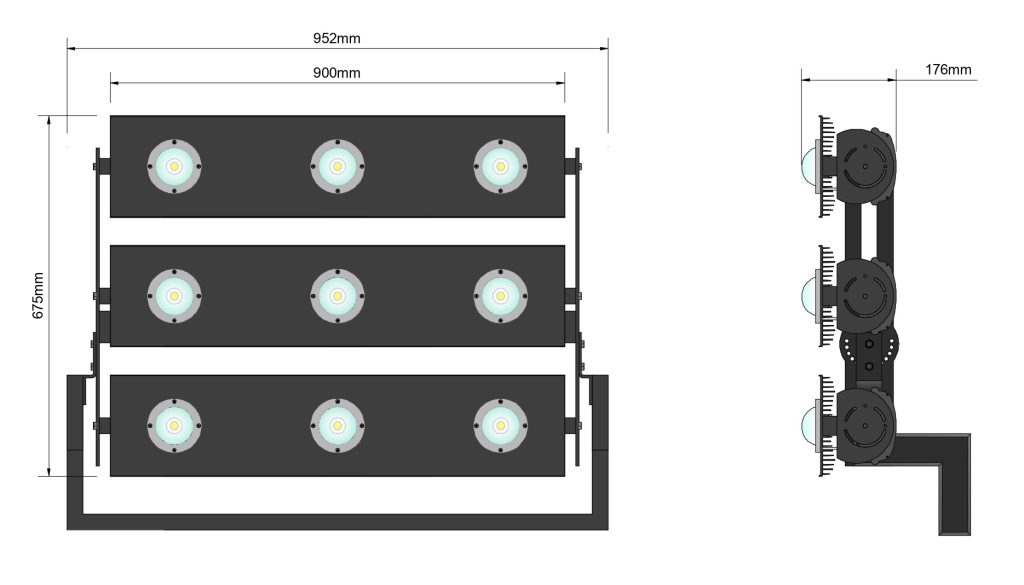

Dimensions 952mm X 675mm X 176mm

Weight 33 kg

Warranty 5 years

Certifications & Compliance

CE ROHS EN 60598-1 EN 60598-2 EN 61000-3 EN 61547 EN 55015 EN 62471 EN 62493 EN 63000

Available Versions

Power	Code	CCT	CRI	Lumen	Efficacy
720W	SPC-XSE-620-720	2000K	65	109,350 lm	152 lm/W
720W	SPC-XSE-827-720	2700K	80	117,900 lm	164 lm/W
720W	SPC-XSE-830-720	3000K	80	120,600 lm	168 lm/W
720W	SPC-XSE-835-720	3500K	80	121,500 lm	169 lm/W
720W	SPC-XSE-840-720	4000K	80	122,040 lm	170 lm/W
720W	SPC-XSE-750-720	5000K	70	122,220 lm	170 lm/W
720W	SPC-XSE-850-720	5000K	80	119,700 lm	166 lm/W
720W	SPC-XSE-757-720	5700K	70	118,800 lm	165 lm/W
720W	SPC-XSE-765-720	6500K	70	118,800 lm	165 lm/W
774W	SPC-XSE-620-774	2000K	65	116,550 lm	151 lm/W
774W	SPC-XSE-827-774	2700K	80	126,000 lm	163 lm/W
774W	SPC-XSE-830-774	3000K	80	128,700 lm	166 lm/W
774W	SPC-XSE-835-774	3500K	80	129,150 lm	167 lm/W
774W	SPC-XSE-840-774	4000K	80	130,050 lm	168 lm/W
774W	SPC-XSE-750-774	5000K	70	130,500 lm	169 lm/W
774W	SPC-XSE-850-774	5000K	80	127,530 lm	165 lm/W
774W	SPC-XSE-757-774	5700K	70	126,990 lm	164 lm/W
774W	SPC-XSE-765-774	6500K	70	126,990 lm	164 lm/W
900W	SPC-XSE-620-900	2000K	65	135,180 lm	150 lm/W
900W	SPC-XSE-827-900	2700K	80	142,020 lm	158 lm/W
900W	SPC-XSE-830-900	3000K	80	150,840 lm	168 lm/W
900W	SPC-XSE-835-900	3500K	80	154,440 lm	172 lm/W
900W	SPC-XSE-840-900	4000K	80	155,340 lm	173 lm/W
900W	SPC-XSE-750-900	5000K	70	163,350 lm	182 lm/W
900W	SPC-XSE-850-900	5000K	80	157,140 lm	175 lm/W
900W	SPC-XSE-757-900	5700K	70	158,850 lm	177 lm/W
900W	SPC-XSE-765-900	6500K	70	158,850 lm	177 lm/W
990W	SPC-XSE-620-990	2000K	65	145,800 lm	147 lm/W
990W	SPC-XSE-827-990	2700K	80	151,650 lm	147 lm/W
990W	SPC-XSE-830-990	3000K	80	161,100 lm	163 lm/W
990W	SPC-XSE-835-990	3500K	80	164,700 lm	166 lm/W
990W	SPC-XSE-840-990	4000K	80	165,600 lm	167 lm/W
990W	SPC-XSE-750-990	5000K	70	174,150 lm	176 lm/W
990W	SPC-XSE-850-990	5000K	80	167,400 lm	169 lm/W
990W	SPC-XSE-757-990	5700K	70	169,650 lm	171 lm/W
990W	SPC-XSE-765-990	6500K	70	169,650 lm	171 lm/W
1125W	SPC-XSE-620-1125	2000K	65	163,800 lm	145 lm/W
1125W	SPC-XSE-827-1125	2700K	80	170,730 lm	152 lm/W
1125W	SPC-XSE-830-1125	3000K	80	181,440 lm	161 lm/W
1125W	SPC-XSE-835-1125	3500K	80	185,400 lm	165 lm/W
1125W	SPC-XSE-840-1125	4000K	80	186,300 lm	166 lm/W
1125W	SPC-XSE-750-1125	5000K	70	196,200 lm	174 lm/W
1125W	SPC-XSE-850-1125	5000K	80	188,910 lm	168 lm/W
1125W	SPC-XSE-757-1125	5700K	70	190,800 lm	170 lm/W
1125W	SPC-XSE-765-1125	6500K	70	190,800 lm	170 lm/W
1350W	SPC-XSE-620-1350	2000K	65	184,500 lm	137 lm/W
1350W	SPC-XSE-827-1350	2700K	80	194,220 lm	144 lm/W
1350W	SPC-XSE-830-1350	3000K	80	206,370 lm	153 lm/W
1350W	SPC-XSE-835-1350	3500K	80	210,600 lm	156 lm/W
1350W	SPC-XSE-840-1350	4000K	80	212,400 lm	157 lm/W
1350W	SPC-XSE-750-1350	5000K	70	223,200 lm	165 lm/W
1350W	SPC-XSE-850-1350	5000K	80	214,200 lm	159 lm/W
1350W	SPC-XSE-757-1350	5700K	70	216,900 lm	161 lm/W
1350W	SPC-XSE-765-1350	6500K	70	216,900 lm	161 lm/W
