RGBW Linear LED SPECTRA-2

Efficacy

103 lm/W

IP66

Warranty

5 years

Techlumen© SPECTRA-2 linear LED fixtures are ideal for architectural and RGBW façade lighting.

They feature IP66 protection and excellent durability. Optionally made of anodized aluminium, they are suitable for use in demanding or marine environments.

Lightweight with a thin profile, SPECTRA-2 luminaires are produced in multiple lengths, wattages and beam distributions to adapt to any architectural requirement.

They support DALI wired control and CASAMBI wireless operation, providing over 16 million colour hues (RGBW) and full dynamic scene control.

SPECTRA-2 fixtures come with a 5-year warranty and L80 > 80 000 h lifetime rating.

Applications:
Building façades · Monuments · Museums · Hotels · Exhibition halls · RGBW lighting installations

✉️ Request Quote Download PDF

📐

Calculate Required Luminaires

Via Techlumen Lux Calculator

📄

Luminaire Brochure

Detailed specifications

📊

Photometric Files

LDT / IES for lighting design

Technical Specifications

Luminous Flux 3430 - 10270 lm

Power 33 - 98W

Efficacy 103 lm/W

IP Rating IP66

IK Rating IK09

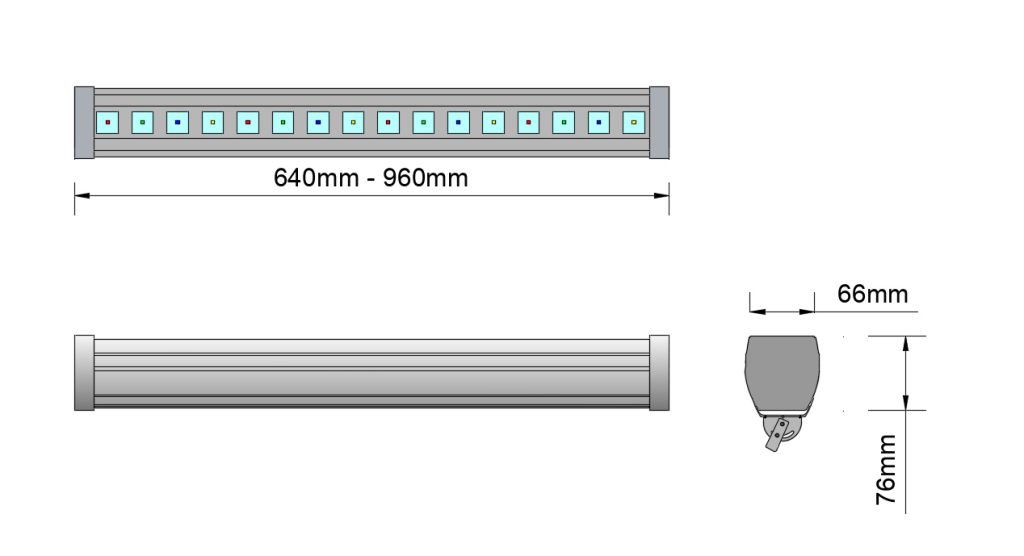

Dimensions 76mm x 76mm x (520 - 960)mm

Weight 5.3 kg

Warranty 5 years

Certifications & Compliance

CE ROHS EN 60598-1 EN 60598-2 EN 61000-3 EN 61547 EN 55015 EN 62471 EN 62493

Available Versions

Power	Code	CCT	CRI	Lumen	Efficacy
33W	SPECTRA-2-a-640	-	90	5,130 lm	103 lm/W
42W	SPECTRA-2-a-780	-	90	3,430 lm	103 lm/W
50W	SPECTRA-2-a-920	-	90	6,850 lm	103 lm/W
50W	SPECTRA-2-b-520	-	90	4,280 lm	103 lm/W
65W	SPECTRA-2-b-670	-	90	5,130 lm	103 lm/W
98W	SPECTRA-2-b-960	-	90	10,270 lm	103 lm/W
