Architectural lighting

RECTO-S LED floodlight

Efficacy
85-163 lm/W
CRI
80
IP
IP66
Warranty
5 years

The Techlumen© RECTO-S LED floodlight is an excellent choice for outdoor architectural lighting, combining performance, durability, and energy efficiency.

It delivers efficacy up to 163 lm/W, with power up to 42 W and luminous flux up to 5240 lm.

Available in a wide range of colour temperatures2000K, 2700K, 3000K, 4000K, and 5000K — allowing you to create a warm, welcoming ambience or a brighter, more vivid effect.

The RECTO-S features multiple optics options, with beam angles from 5° to 44°, providing flexibility for different illumination requirements.

Constructed from high-grade aluminium, it can be mounted on the ground, on walls, or on grass and trees using the available accessories.

RECTO-S is energy-efficient, durable, and versatile — a smart solution for all outdoor lighting projects.

Applications:
Gardens · Paths · Building facades · Trees & landscape · Parking areas · Outdoor architectural lighting

Technical Specifications

Luminous Flux 1980 - 5240 lm
Power 18 - 42W
Ambient Temperature -30°C to +50°C
Efficacy 85 - 163 lm/W
Power Factor 0.95
CRI 80
CCT 2700K-5000K
IP Rating IP66
Body Aluminium
Finishing Powder Coating - RAL selection
Dimensions 150mm x 120mm x 200mm
Weight 2.1 kg
Warranty 5 years

Certifications & Compliance

CE ROHS EN 60598-1 EN 60598-2 EN 55015 EN 62471 EN 61000-3 EN 61547 EN 62493

Available Versions

Power Code CCT CRI Lumen Efficacy
18W RECTO-S-820-18 2000K 80 1,980 lm 110 lm/W
18W RECTO-S-827-18 2700K 80 2,520 lm 140 lm/W
18W RECTO-S-830-18 3000K 80 2,700 lm 150 lm/W
18W RECTO-S-840-18 4000K 80 2,880 lm 160 lm/W
18W RECTO-S-850-18 5000K 80 2,925 lm 163 lm/W
26W RECTO-S-820-26 2000K 80 2,640 lm 101 lm/W
26W RECTO-S-827-26 2700K 80 3,360 lm 130 lm/W
26W RECTO-S-830-26 3000K 80 3,600 lm 138 lm/W
26W RECTO-S-840-26 4000K 80 3,840 lm 148 lm/W
26W RECTO-S-850-26 5000K 80 3,897 lm 150 lm/W
35W RECTO-S-820-35 2000K 80 3,168 lm 91 lm/W
35W RECTO-S-827-35 2700K 80 4,030 lm 115 lm/W
35W RECTO-S-830-35 3000K 80 4,320 lm 123 lm/W
35W RECTO-S-840-35 4000K 80 4,608 lm 132 lm/W
35W RECTO-S-850-35 5000K 80 4,680 lm 134 lm/W
42W RECTO-S-820-42 2000K 80 3,550 lm 85 lm/W
42W RECTO-S-827-42 2700K 80 4,515 lm 108 lm/W
42W RECTO-S-830-42 3000K 80 4,840 lm 115 lm/W
42W RECTO-S-840-42 4000K 80 5,160 lm 123 lm/W
42W RECTO-S-850-42 5000K 80 5,240 lm 125 lm/W

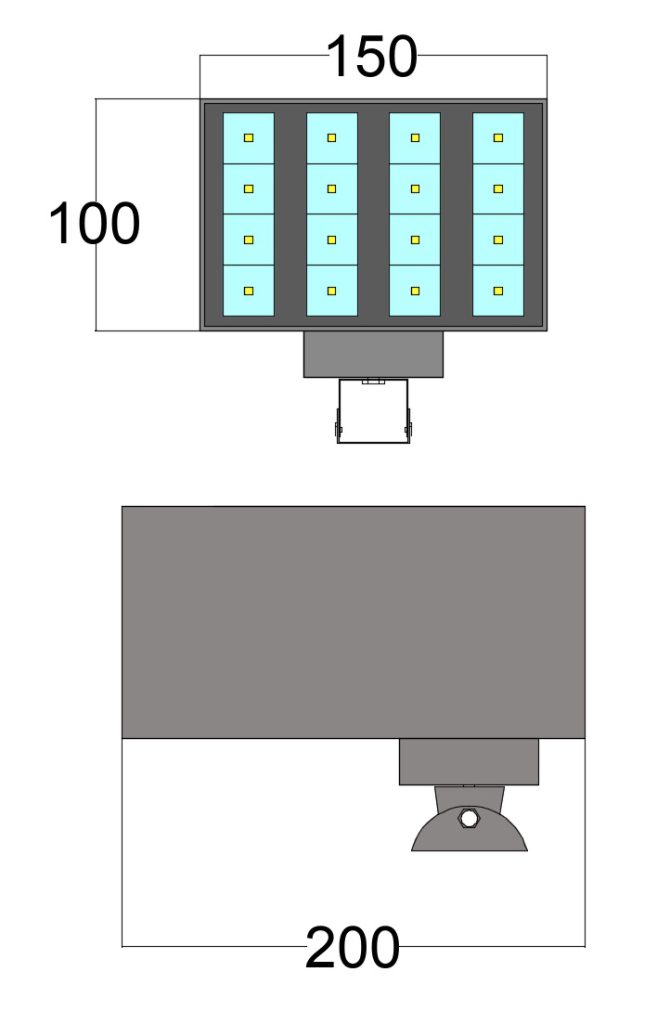

Technical Drawing

Polar Intensity Diagrams
