QUADRO

Efficacy

95-182 lm/W

CRI

70-90

IP66

Warranty

5 years

QUADRO LED projector provides powerful lighting with low power consumption and performance up to 182 lm/W.
It is produced in versions with light beam from 12^o to 86^o, and can adapt to different scenarios of architectural lighting.
QUADRO is made of aluminium.
It can be installed on the ground, on walls, or even grass and on trees with the optional mounting accessories.

It is produced also with Techlumen RGBW modules and can be controlled with DALI, DMX or bluetooth.

QUADRO is produced with 5 years warranty.

Datasheet

Installation manual

Installation Manual RGBW version

Photometric files

✉️ Request Quote Download PDF

📐

Calculate Required Luminaires

Via Techlumen Lux Calculator

📄

Luminaire Brochure

Detailed specifications

🔧

Installation Manual

Mounting and wiring instructions

📊

Photometric Files

LDT / IES for lighting design

Technical Specifications

Power 6 - 27W

Ambient Temperature -30°C to +50°C

Efficacy 95 - 182 lm/W

Power Factor 0.95

CRI 70-90

CCT 2700K-5000K

IP Rating IP66

IK Rating IK06

Body Aluminium

Finishing Powder Coating - RAL selection

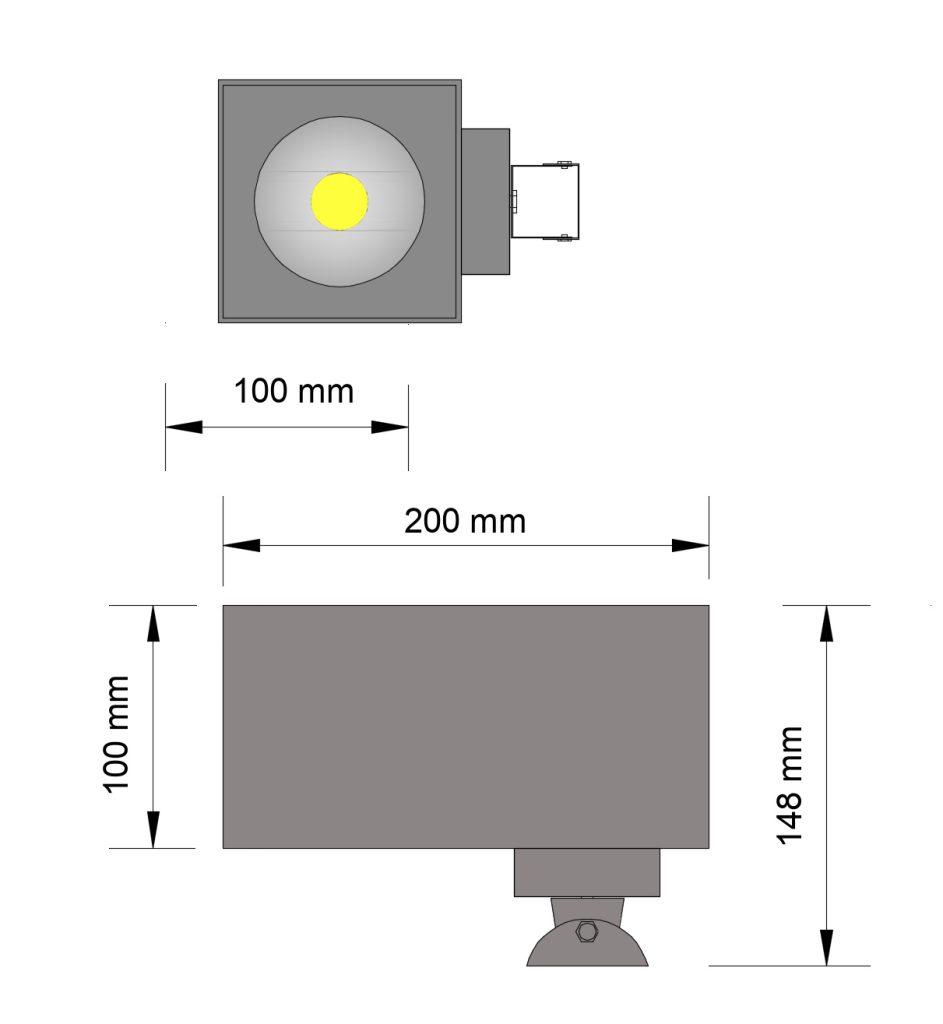

Dimensions 100mm X 110mm X 200mm

Weight 1.5 kg

Warranty 5 years

Certifications & Compliance

CE ROHS EN 60598-1 EN 60598-2 EN 55015 EN 62471 EN 61000-3 EN 61547 EN 62493

Available Versions

Power	Code	CCT	CRI	Lumen	Efficacy
6W	QUADRO-927-6	2700K	90	590 lm	95 lm/W
6W	QUADRO-827-6	2700K	80	740 lm	119 lm/W
6W	QUADRO-930-6	3000K	90	625 lm	100 lm/W
6W	QUADRO-830-6	3000K	80	785 lm	126 lm/W
6W	QUADRO-940-6	4000K	90	670 lm	108 lm/W
6W	QUADRO-840-6	4000K	80	820 lm	132 lm/W
6W	QUADRO-850-6	5000K	80	820 lm	132 lm/W
6W	QUADRO-750-6	5000K	70	865 lm	139 lm/W
9W	QUADRO-827-9	2700K	80	1,332 lm	146 lm/W
9W	QUADRO-927-9	2700K	90	1,111 lm	122 lm/W
9W	QUADRO-830-9	3000K	80	1,388 lm	153 lm/W
9W	QUADRO-930-9	3000K	90	1,152 lm	127 lm/W
9W	QUADRO-835-9	3500K	80	1,430 lm	157 lm/W
9W	QUADRO-935-9	3500K	90	1,194 lm	131 lm/W
9W	QUADRO-840-9	4000K	80	1,444 lm	159 lm/W
9W	QUADRO-940-9	4000K	90	1,236 lm	136 lm/W
9W	QUADRO-750-9	5000K	70	1,580 lm	174 lm/W
9W	QUADRO-850-9	5000K	80	1,486 lm	163 lm/W
9W	QUADRO-950-9	5000K	90	1,264 lm	139 lm/W
9W	QUADRO-757-9	5700K	70	1,525 lm	168 lm/W
9W	QUADRO-857-9	5700K	80	1,511 lm	166 lm/W
9W	QUADRO-765-9	6500K	70	1,553 lm	171 lm/W
9W	QUADRO-865-9	6500K	80	1,538 lm	169 lm/W
12W	QUADRO-827-12	2700K	80	1,768 lm	145 lm/W
12W	QUADRO-927-12	2700K	90	1,473 lm	121 lm/W
12W	QUADRO-830-12	3000K	80	1,841 lm	151 lm/W
12W	QUADRO-930-12	3000K	90	1,529 lm	125 lm/W
12W	QUADRO-835-12	3500K	80	1,896 lm	156 lm/W
12W	QUADRO-935-12	3500K	90	1,584 lm	130 lm/W
12W	QUADRO-840-12	4000K	80	1,915 lm	157 lm/W
12W	QUADRO-940-12	4000K	90	1,639 lm	134 lm/W
12W	QUADRO-750-12	5000K	70	2,096 lm	172 lm/W
12W	QUADRO-850-12	5000K	80	1,970 lm	162 lm/W
12W	QUADRO-950-12	5000K	90	1,676 lm	137 lm/W
12W	QUADRO-757-12	5700K	70	2,022 lm	166 lm/W
12W	QUADRO-857-12	5700K	80	2,003 lm	164 lm/W
12W	QUADRO-765-12	6500K	70	2,059 lm	169 lm/W
12W	QUADRO-865-12	6500K	80	2,041 lm	167 lm/W
17W	QUADRO-827-17	2700K	80	2,620 lm	154 lm/W
17W	QUADRO-927-17	2700K	90	2,183 lm	128 lm/W
17W	QUADRO-830-17	3000K	80	2,729 lm	160 lm/W
17W	QUADRO-930-17	3000K	90	2,265 lm	133 lm/W
17W	QUADRO-835-17	3500K	80	2,811 lm	165 lm/W
17W	QUADRO-935-17	3500K	90	2,347 lm	138 lm/W
17W	QUADRO-840-17	4000K	80	2,838 lm	166 lm/W
17W	QUADRO-940-17	4000K	90	2,429 lm	142 lm/W
17W	QUADRO-750-17	5000K	70	3,106 lm	182 lm/W
17W	QUADRO-850-17	5000K	80	2,920 lm	171 lm/W
17W	QUADRO-950-17	5000K	90	2,485 lm	146 lm/W
17W	QUADRO-757-17	5700K	70	2,997 lm	176 lm/W
