QUADRO-S

Efficacy

86-170 lm/W

CRI

IP66

Warranty

5 years

The Techlumen© QUADRO-S LED projector delivers powerful and efficient lighting with efficacy up to 170 lm/W.

It is available in beam angles from 5° to 44°, making it ideal for architectural and landscape lighting. It can be installed on the ground, walls, grass or trees using the appropriate mounting accessories.

The housing is made of aluminium and finished with electrostatic powder coating in any RAL colour. QUADRO-S is also available in RGBW versions controlled via DALI, DMX, or Bluetooth (CASAMBI).

QUADRO-S has IP66 protection, IK09 impact resistance and a 5-year factory warranty.

Applications:
Façades · Gardens · Parks · Hotels · Museums · Landscape & RGBW lighting

✉️ Request Quote Download PDF

📐

Calculate Required Luminaires

Via Techlumen Lux Calculator

📄

Luminaire Brochure

Detailed specifications

🔧

Installation Manual

Mounting and wiring instructions

📊

Photometric Files

LDT / IES for lighting design

Technical Specifications

Luminous Flux 380 - 2240 lm

Power 4 - 16W

Ambient Temperature -30°C to +50°C

Efficacy 86 - 170 lm/W

Power Factor 0.95

CRI 80

CCT 2700K-5000K

IP Rating IP66

Body Aluminium

Finishing Powder Coating - RAL selection

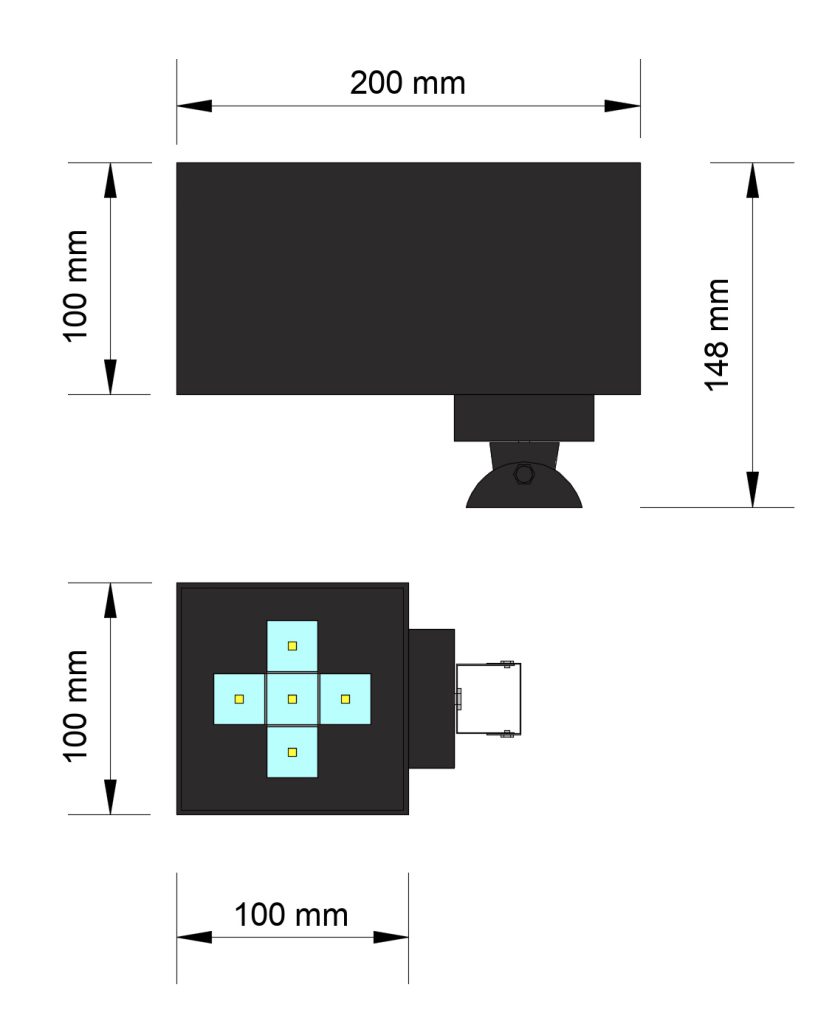

Dimensions 100mm X 110mm X 200mm

Weight 1.5 kg

Warranty 5 years

Certifications & Compliance

CE ROHS EN 60598-1 EN 60598-2 EN 55015 EN 62471 EN 61000-3 EN 61547 EN 62493

Available Versions

Power	Code	CCT	CRI	Lumen	Efficacy
4W	QUADRO-S-820-4	2000K	80	420 lm	105 lm/W
4W	QUADRO-S-827-4	2700K	80	540 lm	135 lm/W
4W	QUADRO-S-830-4	3000K	80	600 lm	150 lm/W
4W	QUADRO-S-840-4	4000K	80	650 lm	163 lm/W
4W	QUADRO-S-850-4	5000K	80	680 lm	170 lm/W
7W	QUADRO-S-820-7	2000K	80	720 lm	103 lm/W
7W	QUADRO-S-827-7	2700K	80	912 lm	130 lm/W
7W	QUADRO-S-830-7	3000K	80	1,020 lm	146 lm/W
7W	QUADRO-S-840-7	4000K	80	1,120 lm	160 lm/W
7W	QUADRO-S-850-7	5000K	80	1,170 lm	167 lm/W
10W	QUADRO-S-820-10	2000K	80	990 lm	99 lm/W
10W	QUADRO-S-827-10	2700K	80	1,250 lm	125 lm/W
10W	QUADRO-S-830-10	3000K	80	1,428 lm	143 lm/W
10W	QUADRO-S-840-10	4000K	80	1,540 lm	154 lm/W
10W	QUADRO-S-850-10	5000K	80	1,600 lm	160 lm/W
16W	QUADRO-S-820-16	2000K	80	1,380 lm	86 lm/W
16W	QUADRO-S-827-16	2700K	80	1,745 lm	109 lm/W
16W	QUADRO-S-830-16	3000K	80	1,950 lm	122 lm/W
16W	QUADRO-S-840-16	4000K	80	2,170 lm	135 lm/W
16W	QUADRO-S-850-16	5000K	80	2,240 lm	140 lm/W
