QUADRO-W-S2 LED up/down wall Light

Efficacy

109-167 lm/W

CRI

70-80

IP66

Warranty

5 years

Techlumen© QUADRO-W-S2 wall-mounted LED fixtures deliver powerful, efficient lighting with an efficacy up to 167 lm/W.

They are available in beam angles from ultra-narrow 5° to wide 44°, making them a versatile tool for architectural and decorative lighting scenarios.

QUADRO-W-S2 luminaires are IP66 and IK09 rated, built from durable aluminium with electrostatic powder coating in any RAL colour. They are also available in RGBW versions with DALI, DMX, or Bluetooth wireless control, offering smooth dynamic colour transitions.

They come with a 5-year factory warranty.

Applications:
Building façades · Hotels · Museums · Commercial spaces · Residences · RGBW architectural lighting

✉️ Request Quote Download PDF

📐

Calculate Required Luminaires

Via Techlumen Lux Calculator

📄

Luminaire Brochure

Detailed specifications

📊

Photometric Files

LDT / IES for lighting design

Technical Specifications

Luminous Flux 960 - 4480 lm

Power 8 - 32W

Ambient Temperature -30°C to +50°C

Efficacy 109 - 167 lm/W

Power Factor 0.95

CRI 70-80

CCT 2700K-5000K

IP Rating IP66

IK Rating IK06

Body Alluminium

Finishing Powder Coating - RAL selection

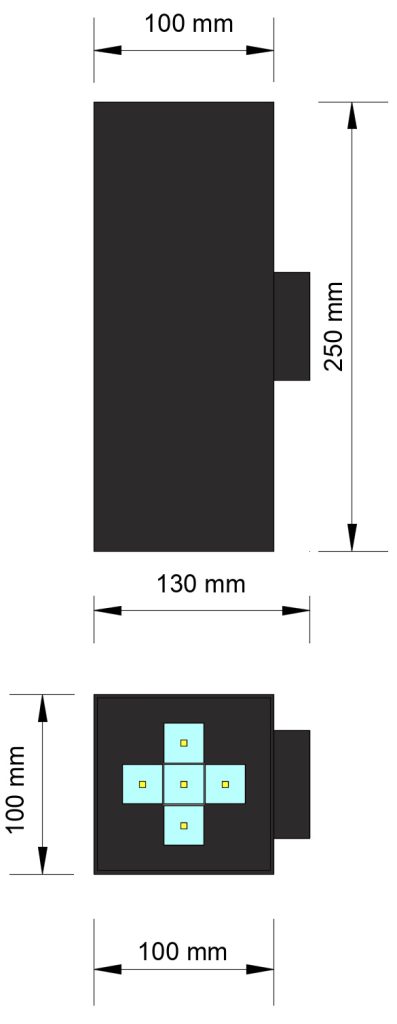

Dimensions 100mm X 100mm X 250mm

Weight 2.4 kg

Warranty 5 years

Certifications & Compliance

CE EN 60598-1:2008 +A11:2009 ROHS EN 60598-1 EN 60598-2 EN 50581 EN 61000-3 EN 61547 EN 55015 EN 62471 EN 62493

Available Versions

Power	Code	CCT	CRI	Lumen	Efficacy
8W	QUADRO-W-S2-827-4	2700K	80	960 lm	120 lm/W
8W	QUADRO-W-S2-830-4	3000K	80	1,080 lm	135 lm/W
8W	QUADRO-W-S2-840-4	4000K	70	1,180 lm	147 lm/W
8W	QUADRO-W-S2-850-4	4000K	80	1,220 lm	125 lm/W
14W	QUADRO-W-S2-827-7	5000K	70	1,824 lm	130 lm/W
14W	QUADRO-W-S2-830-7	2700K	80	2,040 lm	145 lm/W
14W	QUADRO-W-S2-840-7	3000K	80	2,240 lm	160 lm/W
14W	QUADRO-W-S2-850-7	4000K	70	2,340 lm	167 lm/W
20W	QUADRO-W-S2-827-10	4000K	80	2,500 lm	125 lm/W
20W	QUADRO-W-S2-830-10	5000K	70	2,856 lm	142 lm/W
20W	QUADRO-W-S2-840-10	2700K	80	3,080 lm	154 lm/W
20W	QUADRO-W-S2-850-10	3000K	80	3,200 lm	160 lm/W
32W	QUADRO-W-S2-827-16	2700K	70	3,490 lm	109 lm/W
32W	QUADRO-W-S2-830-16	3000K	70	3,900 lm	122 lm/W
32W	QUADRO-W-S2-840-16	4000K	80	4,340 lm	135 lm/W
32W	QUADRO-W-S2-850-16	5000K	80	4,480 lm	140 lm/W
