CYCLOP-2

Efficacy

118-204 lm/W

CRI

70-90

IP66

Warranty

5 years

The Techlumen CYCLOP-2 LED urban luminaire features a clean and modern design.

It is produced in 12 W – 118 W versions with a maximum luminous flux of 18 072 lm.

Constructed from aluminium and finished with electrostatic powder coating in any RAL colour, it combines light weight with durability.

The luminaires provide surge protection up to 6 kV (optionally 20 kV) and have a lumen maintenance rating L70B10 > 100 000 h.

They offer a wide range of optics for different urban lighting scenarios and come with a 5-year warranty.

✉️ Request Quote Download PDF

📐

Calculate Required Luminaires

Via Techlumen Lux Calculator

📄

Luminaire Brochure

Detailed specifications

📊

Photometric Files

LDT / IES for lighting design

Technical Specifications

Luminous Flux 2028 - 18072 lm

Power 12 - 118W

Ambient Temperature -40°C to +50°C

Efficacy 118 - 204 lm/W

Power Factor 0.95

CRI 70-90

CCT 2700K-5000K

IP Rating IP66

Body Aluminium

Finishing Powder Coating - RAL selection

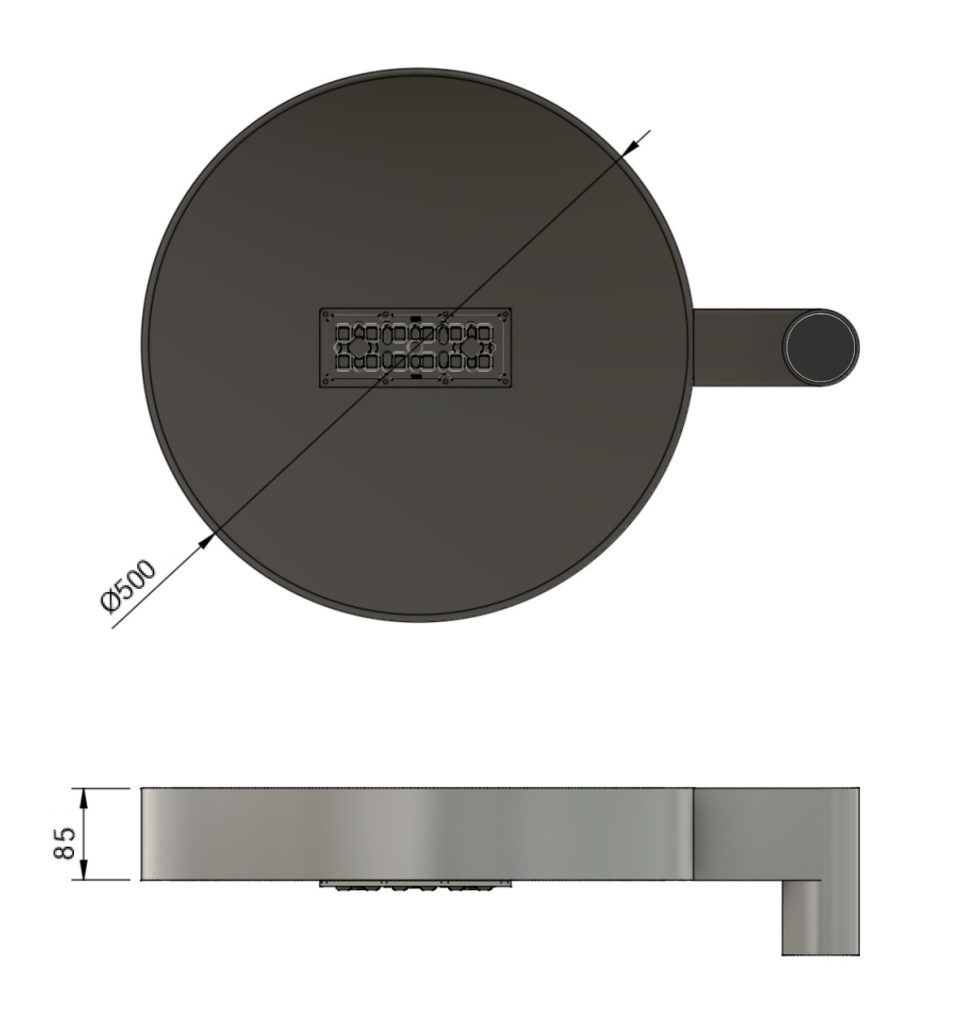

Dimensions Φ500mm X 85mm

Weight 6 kg

Warranty 5 years

Certifications & Compliance

CE ROHS EN 60598-1 EN 60598-2 EN 61000-3 EN 61547 EN 55015 EN 62471 EN 62493 EN 63000

Available Versions

Power	Code	CCT	CRI	Lumen	Efficacy
12W	CYCLOP-2-827-12	2700K	80	2,028 lm	169 lm/W
12W	CYCLOP-2-730-12	3000K	70	2,328 lm	194 lm/W
12W	CYCLOP-2-830-12	3000K	80	2,100 lm	175 lm/W
12W	CYCLOP-2-740-12	4000K	70	2,448 lm	204 lm/W
12W	CYCLOP-2-840-12	4000K	80	2,208 lm	184 lm/W
12W	CYCLOP-2-750-12	5000K	70	2,448 lm	204 lm/W
12W	CYCLOP-2-850-12	5000K	80	2,225 lm	185 lm/W
12W	CYCLOP-2-950-12	5000K	90	2,030 lm	169 lm/W
20W	CYCLOP-2-827-20	2700K	80	3,084 lm	154 lm/W
20W	CYCLOP-2-730-20	3000K	70	3,528 lm	176 lm/W
20W	CYCLOP-2-830-20	3000K	80	3,180 lm	159 lm/W
20W	CYCLOP-2-740-20	4000K	70	3,708 lm	185 lm/W
20W	CYCLOP-2-840-20	4000K	80	3,348 lm	167 lm/W
20W	CYCLOP-2-750-20	5000K	70	3,708 lm	185 lm/W
20W	CYCLOP-2-850-20	5000K	80	3,348 lm	167 lm/W
20W	CYCLOP-2-950-20	5000K	90	2,856 lm	143 lm/W
26W	CYCLOP-2-827-26	2700K	80	3,816 lm	147 lm/W
26W	CYCLOP-2-730-26	3000K	70	4,356 lm	168 lm/W
26W	CYCLOP-2-830-26	3000K	80	3,924 lm	151 lm/W
26W	CYCLOP-2-740-26	4000K	70	4,596 lm	177 lm/W
26W	CYCLOP-2-840-26	4000K	80	4,140 lm	159 lm/W
26W	CYCLOP-2-750-26	5000K	70	4,596 lm	177 lm/W
26W	CYCLOP-2-850-26	5000K	80	4,140 lm	159 lm/W
26W	CYCLOP-2-950-26	5000K	90	3,540 lm	136 lm/W
32W	CYCLOP-2-827-32	2700K	80	4,524 lm	141 lm/W
32W	CYCLOP-2-730-32	3000K	70	5,172 lm	162 lm/W
32W	CYCLOP-2-830-32	3000K	80	4,656 lm	146 lm/W
32W	CYCLOP-2-740-32	4000K	70	5,448 lm	170 lm/W
32W	CYCLOP-2-840-32	4000K	80	4,908 lm	153 lm/W
32W	CYCLOP-2-750-32	5000K	70	5,448 lm	170 lm/W
32W	CYCLOP-2-850-32	5000K	80	4,908 lm	153 lm/W
32W	CYCLOP-2-950-32	5000K	90	4,200 lm	131 lm/W
38W	CYCLOP-2-827-38	2700K	80	5,208 lm	137 lm/W
38W	CYCLOP-2-730-38	3000K	70	5,964 lm	157 lm/W
38W	CYCLOP-2-830-38	3000K	80	5,376 lm	141 lm/W
38W	CYCLOP-2-740-38	4000K	70	6,276 lm	165 lm/W
38W	CYCLOP-2-840-38	4000K	80	5,652 lm	149 lm/W
38W	CYCLOP-2-750-38	5000K	70	6,276 lm	165 lm/W
38W	CYCLOP-2-850-38	5000K	80	5,652 lm	149 lm/W
38W	CYCLOP-2-950-38	5000K	90	4,824 lm	127 lm/W
44W	CYCLOP-2-827-44	2700K	80	5,892 lm	134 lm/W
44W	CYCLOP-2-730-44	3000K	70	6,732 lm	153 lm/W
44W	CYCLOP-2-830-44	3000K	80	6,072 lm	138 lm/W
44W	CYCLOP-2-740-44	4000K	70	7,092 lm	161 lm/W
44W	CYCLOP-2-840-44	4000K	80	6,384 lm	145 lm/W
44W	CYCLOP-2-750-44	5000K	70	7,092 lm	161 lm/W
44W	CYCLOP-2-850-44	5000K	80	6,384 lm	145 lm/W
44W	CYCLOP-2-950-44	5000K	90	5,460 lm	124 lm/W
49W	CYCLOP-2-827-49	2700K	80	6,480 lm	132 lm/W
49W	CYCLOP-2-730-49	3000K	70	7,404 lm	151 lm/W
49W	CYCLOP-2-830-49	3000K	80	6,684 lm	136 lm/W
49W	CYCLOP-2-740-49	4000K	70	7,800 lm	159 lm/W
49W	CYCLOP-2-840-49	4000K	80	7,032 lm	144 lm/W
49W	CYCLOP-2-750-49	5000K	70	7,800 lm	159 lm/W
49W	CYCLOP-2-850-49	5000K	80	7,032 lm	144 lm/W
49W	CYCLOP-2-950-49	5000K	90	6,000 lm	122 lm/W
53W	CYCLOP-2-827-53	2700K	80	6,876 lm	130 lm/W
53W	CYCLOP-2-730-53	3000K	70	7,860 lm	148 lm/W
53W	CYCLOP-2-830-53	3000K	80	7,080 lm	134 lm/W
53W	CYCLOP-2-740-53	4000K	70	8,268 lm	156 lm/W
53W	CYCLOP-2-840-53	4000K	80	7,452 lm	141 lm/W
53W	CYCLOP-2-750-53	5000K	70	8,268 lm	156 lm/W
53W	CYCLOP-2-850-53	5000K	80	7,452 lm	141 lm/W
53W	CYCLOP-2-950-53	5000K	90	6,360 lm	120 lm/W
56W	CYCLOP-2-827-56	2700K	80	7,740 lm	138 lm/W
56W	CYCLOP-2-730-56	3000K	70	8,556 lm	153 lm/W
56W	CYCLOP-2-830-56	3000K	80	7,908 lm	141 lm/W
56W	CYCLOP-2-740-56	4000K	70	9,096 lm	162 lm/W
56W	CYCLOP-2-840-56	4000K	80	8,412 lm	150 lm/W
56W	CYCLOP-2-750-56	5000K	70	9,096 lm	162 lm/W
56W	CYCLOP-2-850-56	5000K	80	8,412 lm	150 lm/W
56W	CYCLOP-2-950-56	5000K	90	7,044 lm	125 lm/W
64W	CYCLOP-2-827-64	2700K	80	9,048 lm	141 lm/W
64W	CYCLOP-2-730-64	3000K	70	10,344 lm	162 lm/W
64W	CYCLOP-2-830-64	3000K	80	9,312 lm	146 lm/W
64W	CYCLOP-2-740-64	4000K	70	10,896 lm	170 lm/W
64W	CYCLOP-2-840-64	4000K	80	9,816 lm	153 lm/W
64W	CYCLOP-2-750-64	5000K	70	10,896 lm	170 lm/W
64W	CYCLOP-2-850-64	5000K	80	9,816 lm	153 lm/W
64W	CYCLOP-2-950-64	5000K	90	8,400 lm	131 lm/W
76W	CYCLOP-2-827-76	2700K	80	10,416 lm	137 lm/W
76W	CYCLOP-2-730-76	3000K	70	11,928 lm	157 lm/W
76W	CYCLOP-2-830-76	3000K	80	10,752 lm	141 lm/W
76W	CYCLOP-2-740-76	4000K	70	12,552 lm	165 lm/W
76W	CYCLOP-2-840-76	4000K	80	11,304 lm	149 lm/W
76W	CYCLOP-2-750-76	5000K	70	12,552 lm	165 lm/W
76W	CYCLOP-2-850-76	5000K	80	11,304 lm	149 lm/W
76W	CYCLOP-2-950-76	5000K	90	9,648 lm	127 lm/W
88W	CYCLOP-2-827-88	2700K	80	11,784 lm	134 lm/W
88W	CYCLOP-2-730-88	3000K	70	13,464 lm	153 lm/W
88W	CYCLOP-2-830-88	3000K	80	12,144 lm	138 lm/W
88W	CYCLOP-2-740-88	4000K	70	14,184 lm	161 lm/W
88W	CYCLOP-2-840-88	4000K	80	12,768 lm	145 lm/W
88W	CYCLOP-2-750-88	5000K	70	14,184 lm	161 lm/W
88W	CYCLOP-2-850-88	5000K	80	12,768 lm	145 lm/W
88W	CYCLOP-2-950-88	5000K	90	10,920 lm	124 lm/W
97W	CYCLOP-2-827-97	2700K	80	12,960 lm	134 lm/W
97W	CYCLOP-2-730-97	3000K	70	14,808 lm	153 lm/W
97W	CYCLOP-2-830-97	3000K	80	13,368 lm	138 lm/W
97W	CYCLOP-2-740-97	4000K	70	15,600 lm	161 lm/W
97W	CYCLOP-2-840-97	4000K	80	14,064 lm	145 lm/W
97W	CYCLOP-2-750-97	5000K	70	15,600 lm	161 lm/W
97W	CYCLOP-2-850-97	5000K	80	14,064 lm	145 lm/W
97W	CYCLOP-2-950-97	5000K	90	12,000 lm	124 lm/W
100W	CYCLOP-2-827-100	2700K	80	13,104 lm	131 lm/W
100W	CYCLOP-2-730-100	3000K	70	14,976 lm	150 lm/W
100W	CYCLOP-2-830-100	3000K	80	13,488 lm	135 lm/W
100W	CYCLOP-2-740-100	4000K	70	15,768 lm	158 lm/W
100W	CYCLOP-2-840-100	4000K	80	14,208 lm	142 lm/W
100W	CYCLOP-2-750-100	5000K	70	15,768 lm	158 lm/W
100W	CYCLOP-2-850-100	5000K	80	14,208 lm	142 lm/W
100W	CYCLOP-2-950-100	5000K	90	12,144 lm	121 lm/W
106W	CYCLOP-2-827-106	2700K	80	13,752 lm	130 lm/W
106W	CYCLOP-2-730-106	3000K	70	15,720 lm	148 lm/W
106W	CYCLOP-2-830-106	3000K	80	14,160 lm	134 lm/W
106W	CYCLOP-2-740-106	4000K	70	16,536 lm	156 lm/W
106W	CYCLOP-2-840-106	4000K	80	14,904 lm	141 lm/W
106W	CYCLOP-2-750-106	5000K	70	16,536 lm	156 lm/W
106W	CYCLOP-2-850-106	5000K	80	14,904 lm	141 lm/W
106W	CYCLOP-2-950-106	5000K	90	12,720 lm	120 lm/W
112W	CYCLOP-2-827-112	2700K	80	14,376 lm	128 lm/W
112W	CYCLOP-2-730-112	3000K	70	16,440 lm	147 lm/W
112W	CYCLOP-2-830-112	3000K	80	14,832 lm	132 lm/W
112W	CYCLOP-2-740-112	4000K	70	17,328 lm	155 lm/W
112W	CYCLOP-2-840-112	4000K	80	15,600 lm	139 lm/W
112W	CYCLOP-2-750-112	5000K	70	17,328 lm	155 lm/W
112W	CYCLOP-2-850-112	5000K	80	15,600 lm	139 lm/W
112W	CYCLOP-2-950-112	5000K	90	13,344 lm	119 lm/W
118W	CYCLOP-2-827-118	2700K	80	15,768 lm	134 lm/W
118W	CYCLOP-2-730-118	3000K	70	17,160 lm	145 lm/W
118W	CYCLOP-2-830-118	3000K	80	15,480 lm	131 lm/W
118W	CYCLOP-2-740-118	4000K	70	18,072 lm	153 lm/W
118W	CYCLOP-2-840-118	4000K	80	16,296 lm	138 lm/W
118W	CYCLOP-2-750-118	5000K	70	18,072 lm	153 lm/W
118W	CYCLOP-2-850-118	5000K	80	16,296 lm	138 lm/W
118W	CYCLOP-2-950-118	5000K	90	13,920 lm	118 lm/W
