GAMMA-K LED pole light

Efficacy

118-204 lm/W

CRI

IP66

Warranty

5 years

The Techlumen© GAMMA-K urban luminaire features a clean, modern design.

Available with 1 / 2 / 3 / 4 masts (same or staggered levels). Each LED module ranges from 12 W to 118 W with up to 18,072 lm per mast.

Lightweight aluminium body with electrostatic powder-coat in any RAL colour. Surge protection 6 kV standard (optional 20 kV). L80B10 > 100,000 h.

A wide optics portfolio addresses diverse urban-lighting scenarios. 5-year warranty, extendable to 8 years.

Datasheet
Full technical specifications • GAMMA-K

Applications:
Squares · Pedestrian zones · Parks · Local streets · Parking areas · Campuses

✉️ Request Quote Download PDF

📐

Calculate Required Luminaires

Via Techlumen Lux Calculator

📄

Luminaire Brochure

Detailed specifications

🔧

Installation Manual

Mounting and wiring instructions

📊

Photometric Files

LDT / IES for lighting design

Technical Specifications

Luminous Flux 2028 - 18072 lm

Power 12 - 118W

Ambient Temperature -30°C to +50°C

Efficacy 118 - 204 lm/W

Power Factor 0.95

CRI 90

CCT 2700K-5000K

IP Rating IP66

IK Rating IK06

Body Aluminium

Finishing Powder Coating - RAL selection

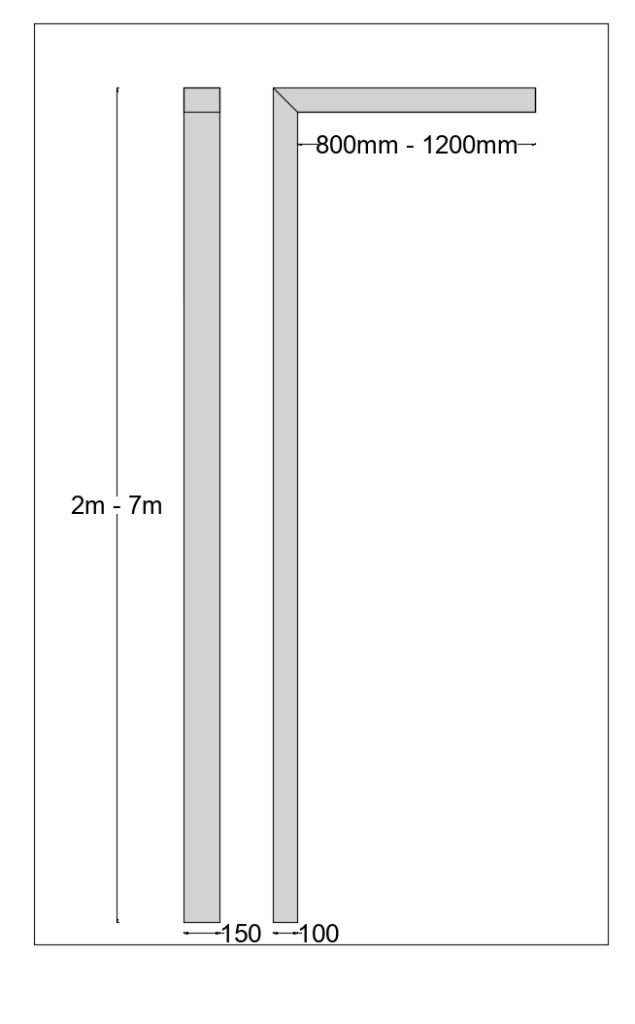

Dimensions 150x100x(2000 - 7000)

Weight 2 kg

Warranty 5 years

Certifications & Compliance

CE ROHS EN 60598-1 EN 60598-2 EN 61000-3 EN 61547 EN 55015 EN 62471 EN 62493 EN 63000

Available Versions

Power	Code	CCT	CRI	Lumen	Efficacy
12W	GAMMA-K-827-12	1K	2700	80 lm	2028 lm/W
12W	GAMMA-K-730-12	1K	3000	70 lm	2328 lm/W
12W	GAMMA-K-830-12	1K	3000	80 lm	2100 lm/W
12W	GAMMA-K-740-12	1K	4000	70 lm	2448 lm/W
12W	GAMMA-K-840-12	1K	4000	80 lm	2208 lm/W
12W	GAMMA-K-750-12	1K	5000	70 lm	2448 lm/W
12W	GAMMA-K-850-12	1K	5000	80 lm	2225 lm/W
12W	GAMMA-K-950-12	1K	5000	90 lm	2030 lm/W
20W	GAMMA-K-827-20	1K	2700	80 lm	3084 lm/W
20W	GAMMA-K-730-20	1K	3000	70 lm	3528 lm/W
20W	GAMMA-K-830-20	1K	3000	80 lm	3180 lm/W
20W	GAMMA-K-740-20	1K	4000	70 lm	3708 lm/W
20W	GAMMA-K-840-20	1K	4000	80 lm	3348 lm/W
20W	GAMMA-K-750-20	1K	5000	70 lm	3708 lm/W
20W	GAMMA-K-850-20	1K	5000	80 lm	3348 lm/W
20W	GAMMA-K-950-20	1K	5000	90 lm	2856 lm/W
26W	GAMMA-K-827-26	1K	2700	80 lm	3816 lm/W
26W	GAMMA-K-730-26	1K	3000	70 lm	4356 lm/W
26W	GAMMA-K-830-26	1K	3000	80 lm	3924 lm/W
26W	GAMMA-K-740-26	1K	4000	70 lm	4596 lm/W
26W	GAMMA-K-840-26	1K	4000	80 lm	4140 lm/W
26W	GAMMA-K-750-26	1K	5000	70 lm	4596 lm/W
26W	GAMMA-K-850-26	1K	5000	80 lm	4140 lm/W
26W	GAMMA-K-950-26	1K	5000	90 lm	3540 lm/W
32W	GAMMA-K-827-32	1K	2700	80 lm	4524 lm/W
32W	GAMMA-K-730-32	1K	3000	70 lm	5172 lm/W
32W	GAMMA-K-830-32	1K	3000	80 lm	4656 lm/W
32W	GAMMA-K-740-32	1K	4000	70 lm	5448 lm/W
32W	GAMMA-K-840-32	1K	4000	80 lm	4908 lm/W
32W	GAMMA-K-750-32	1K	5000	70 lm	5448 lm/W
32W	GAMMA-K-850-32	1K	5000	80 lm	4908 lm/W
32W	GAMMA-K-950-32	1K	5000	90 lm	4200 lm/W
38W	GAMMA-K-827-38	1K	2700	80 lm	5208 lm/W
38W	GAMMA-K-730-38	1K	3000	70 lm	5964 lm/W
38W	GAMMA-K-830-38	1K	3000	80 lm	5376 lm/W
38W	GAMMA-K-740-38	1K	4000	70 lm	6276 lm/W
38W	GAMMA-K-840-38	1K	4000	80 lm	5652 lm/W
38W	GAMMA-K-750-38	1K	5000	70 lm	6276 lm/W
38W	GAMMA-K-850-38	1K	5000	80 lm	5652 lm/W
38W	GAMMA-K-950-38	1K	5000	90 lm	4824 lm/W
44W	GAMMA-K-827-44	1K	2700	80 lm	5892 lm/W
44W	GAMMA-K-730-44	1K	3000	70 lm	6732 lm/W
44W	GAMMA-K-830-44	1K	3000	80 lm	6072 lm/W
44W	GAMMA-K-740-44	1K	4000	70 lm	7092 lm/W
44W	GAMMA-K-840-44	1K	4000	80 lm	6384 lm/W
44W	GAMMA-K-750-44	1K	5000	70 lm	7092 lm/W
44W	GAMMA-K-850-44	1K	5000	80 lm	6384 lm/W
44W	GAMMA-K-950-44	1K	5000	90 lm	5460 lm/W
49W	GAMMA-K-827-49	1K	2700	80 lm	6480 lm/W
49W	GAMMA-K-730-49	1K	3000	70 lm	7404 lm/W
