CYCLOP-2-P Pole Top Light

Efficacy

118-204 lm/W

CRI

70-90

IP66

Warranty

5 years

The Techlumen CYCLOP-2-P LED luminaire features an austere and modern design.

It is produced in versions from 12W to 118W with a maximum luminous flux of 18,072 lm.

Lightweight and durable, it is made of aluminium and painted with electrostatic powder coating in any RAL colour.

The luminaires have surge protection up to 6kV or optional up to 20kV, and a lumen maintenance rating of L70B10 >100,000h.

They are available with a wide range of optics to provide solutions for various urban lighting applications.

CYCLOP-2-P comes with a 5-year warranty.

✉️ Request Quote Download PDF

📐

Calculate Required Luminaires

Via Techlumen Lux Calculator

📄

Luminaire Brochure

Detailed specifications

📊

Photometric Files

LDT / IES for lighting design

Technical Specifications

Luminous Flux 2028 - 18072 lm

Power 12 - 118W

Ambient Temperature -40°C to +50°C

Efficacy 118 - 204 lm/W

Power Factor 0.95

CRI 70-90

CCT 2700K-5000K

IP Rating IP66

IK Rating IK06

Body Aluminium

Finishing Powder Coating - RAL selection

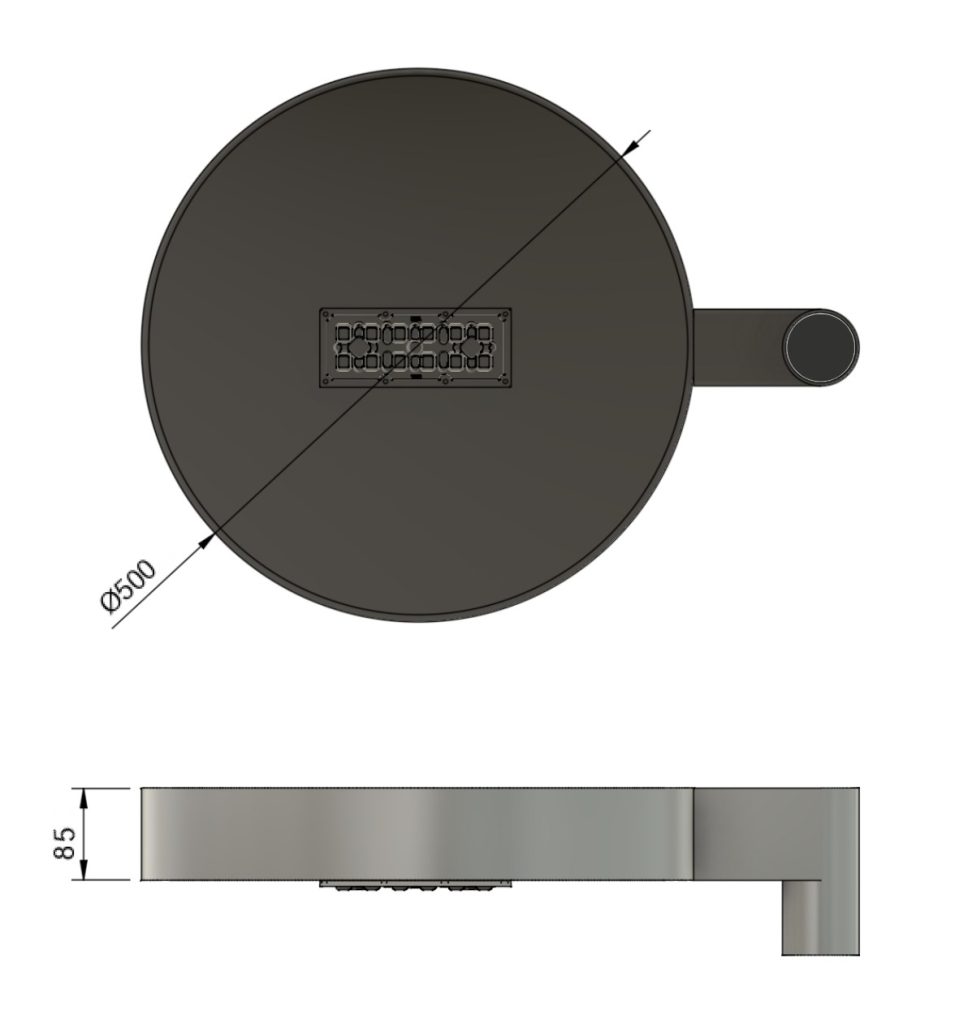

Dimensions Φ500mm X 83mm X 883mm

Weight 6.3 kg

Warranty 5 years

Certifications & Compliance

CE ROHS EN 60598-1 EN 60598-2 EN 61000-3 EN 61547 EN 55015 EN 62471 EN 62493 EN 63000

Available Versions

Power	Code	CCT	CRI	Lumen	Efficacy
12W	CYCLOP-2-P-827-12	2700K	80	2,028 lm	169 lm/W
12W	CYCLOP-2-P-730-12	3000K	70	2,328 lm	194 lm/W
12W	CYCLOP-2-P-830-12	3000K	80	2,100 lm	175 lm/W
12W	CYCLOP-2-P-740-12	4000K	70	2,448 lm	204 lm/W
12W	CYCLOP-2-P-840-12	4000K	80	2,208 lm	184 lm/W
12W	CYCLOP-2-P-750-12	5000K	70	2,448 lm	204 lm/W
12W	CYCLOP-2-P-850-12	5000K	80	2,225 lm	185 lm/W
12W	CYCLOP-2-P-950-12	5000K	90	2,030 lm	169 lm/W
20W	CYCLOP-2-P-827-20	2700K	80	3,084 lm	154 lm/W
20W	CYCLOP-2-P-730-20	3000K	70	3,528 lm	176 lm/W
20W	CYCLOP-2-P-830-20	3000K	80	3,180 lm	159 lm/W
20W	CYCLOP-2-P-740-20	4000K	70	3,708 lm	185 lm/W
20W	CYCLOP-2-P-840-20	4000K	80	3,348 lm	167 lm/W
20W	CYCLOP-2-P-750-20	5000K	70	3,708 lm	185 lm/W
20W	CYCLOP-2-P-850-20	5000K	80	3,348 lm	167 lm/W
20W	CYCLOP-2-P-950-20	5000K	90	2,856 lm	143 lm/W
26W	CYCLOP-2-P-827-26	2700K	80	3,816 lm	147 lm/W
26W	CYCLOP-2-P-730-26	3000K	70	4,356 lm	168 lm/W
26W	CYCLOP-2-P-830-26	3000K	80	3,924 lm	151 lm/W
26W	CYCLOP-2-P-740-26	4000K	70	4,596 lm	177 lm/W
26W	CYCLOP-2-P-840-26	4000K	80	4,140 lm	159 lm/W
26W	CYCLOP-2-P-750-26	5000K	70	4,596 lm	177 lm/W
26W	CYCLOP-2-P-850-26	5000K	80	4,140 lm	159 lm/W
26W	CYCLOP-2-P-950-26	5000K	90	3,540 lm	136 lm/W
32W	CYCLOP-2-P-827-32	2700K	80	4,524 lm	141 lm/W
32W	CYCLOP-2-P-730-32	3000K	70	5,172 lm	162 lm/W
32W	CYCLOP-2-P-830-32	3000K	80	4,656 lm	146 lm/W
32W	CYCLOP-2-P-740-32	4000K	70	5,448 lm	170 lm/W
32W	CYCLOP-2-P-840-32	4000K	80	4,908 lm	153 lm/W
32W	CYCLOP-2-P-750-32	5000K	70	5,448 lm	170 lm/W
32W	CYCLOP-2-P-850-32	5000K	80	4,908 lm	153 lm/W
32W	CYCLOP-2-P-950-32	5000K	90	4,200 lm	131 lm/W
38W	CYCLOP-2-P-827-38	2700K	80	5,208 lm	137 lm/W
38W	CYCLOP-2-P-730-38	3000K	70	5,964 lm	157 lm/W
38W	CYCLOP-2-P-830-38	3000K	80	5,376 lm	141 lm/W
38W	CYCLOP-2-P-740-38	4000K	70	6,276 lm	165 lm/W
38W	CYCLOP-2-P-840-38	4000K	80	5,652 lm	149 lm/W
38W	CYCLOP-2-P-750-38	5000K	70	6,276 lm	165 lm/W
38W	CYCLOP-2-P-850-38	5000K	80	5,652 lm	149 lm/W
38W	CYCLOP-2-P-950-38	5000K	90	4,824 lm	127 lm/W
44W	CYCLOP-2-P-827-44	2700K	80	5,892 lm	134 lm/W
44W	CYCLOP-2-P-730-44	3000K	70	6,732 lm	153 lm/W
44W	CYCLOP-2-P-830-44	3000K	80	6,072 lm	138 lm/W
44W	CYCLOP-2-P-740-44	4000K	70	7,092 lm	161 lm/W
44W	CYCLOP-2-P-840-44	4000K	80	6,384 lm	145 lm/W
44W	CYCLOP-2-P-750-44	5000K	70	7,092 lm	161 lm/W
44W	CYCLOP-2-P-850-44	5000K	80	6,384 lm	145 lm/W
44W	CYCLOP-2-P-950-44	5000K	90	5,460 lm	124 lm/W
49W	CYCLOP-2-P-827-49	2700K	80	6,480 lm	132 lm/W
49W	CYCLOP-2-P-730-49	3000K	70	7,404 lm	151 lm/W
