IGN-100 In-ground LED spot

Efficacy

112-179 lm/W

CRI

80-90

IP68

Warranty

5 years

The IGN-100 inground LED spots provide high-quality, energy-efficient lighting.

They are produced in 3 W – 9 W versions with a CCT range of 2700 K – 5000 K. Optional 12 V DC versions (6 W, 9 W and 13 W – 3000 K) are available upon request.

Made of stainless steel 316, the fixtures are rated IP68 for ingress protection and IK10 for impact resistance.

The IGN-100 luminaires come with a 5-year warranty, ensuring long-term performance and reliability.

✉️ Request Quote Download PDF

📐

Calculate Required Luminaires

Via Techlumen Lux Calculator

📄

Luminaire Brochure

Detailed specifications

🔧

Installation Manual

Mounting and wiring instructions

📊

Photometric Files

LDT / IES for lighting design

Technical Specifications

Luminous Flux 320 - 1610 lm

Power 3 - 9W

Efficacy 112 - 179 lm/W

CRI 80-90

CCT 2700K-5000K

IP Rating IP68

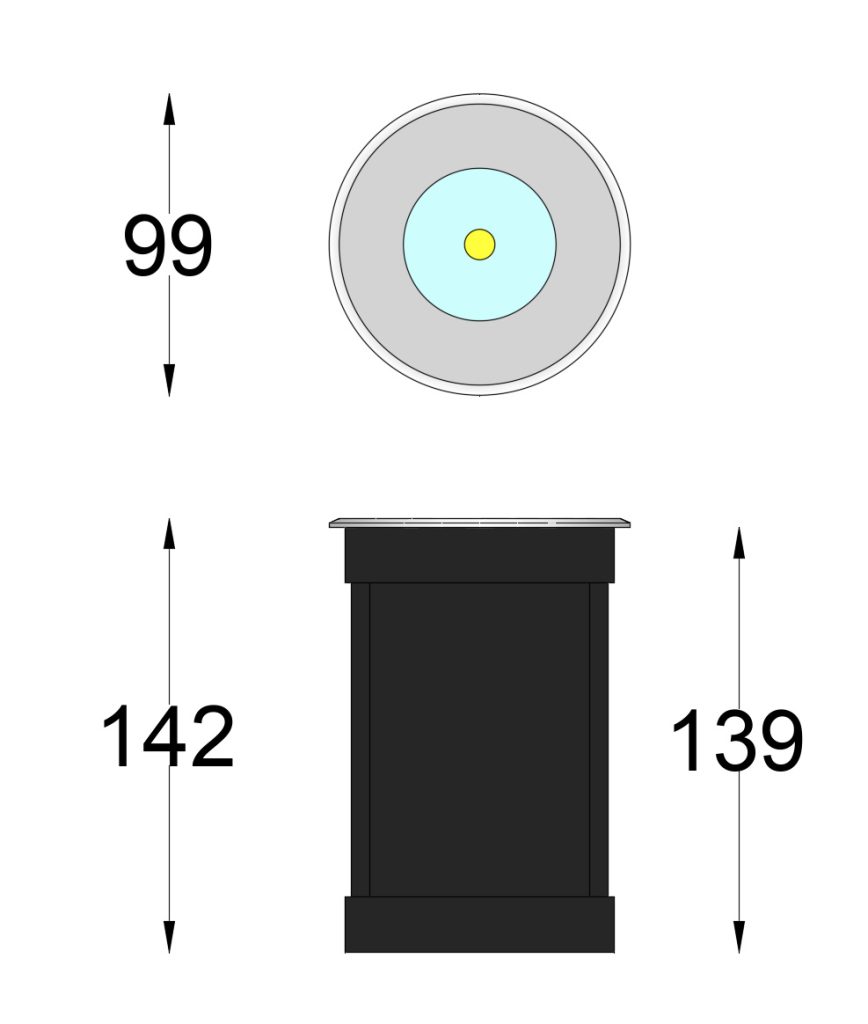

Dimensions Φ99mm x 142mm

Weight 1.2 kg

Warranty 5 years

Certifications & Compliance

CE ROHS EN 60598-1 EN 61000-3 EN 61547 EN 55015 EN 62471 EN 62493 EN 63000

Available Versions

Power	Code	CCT	CRI	Lumen	Efficacy
3W	IGN-100-827-3	2700K	80	455 lm	152 lm/W
3W	IGN-100-830-3	3000K	80	465 lm	155 lm/W
3W	IGN-100-835-3	3500K	80	470 lm	157 lm/W
3W	IGN-100-840-3	4000K	80	475 lm	158 lm/W
3W	IGN-100-850-3	5000K	80	460 lm	153 lm/W
3W	IGN-100-927-3	2700K	90	320 lm	107 lm/W
3W	IGN-100-930-3	3000K	90	335 lm	112 lm/W
3W	IGN-100-935-3	3500K	90	350 lm	117 lm/W
3W	IGN-100-940-3	4000K	90	360 lm	120 lm/W
3W	IGN-100-950-3	5000K	90	375 lm	125 lm/W
6W	IGN-100-827-6	2700K	80	951 lm	159 lm/W
6W	IGN-100-830-6	3000K	80	970 lm	162 lm/W
6W	IGN-100-835-6	3500K	80	975 lm	163 lm/W
6W	IGN-100-840-6	4000K	80	980 lm	163 lm/W
6W	IGN-100-850-6	5000K	80	960 lm	160 lm/W
6W	IGN-100-927-6	2700K	90	860 lm	143 lm/W
6W	IGN-100-930-6	3000K	90	875 lm	146 lm/W
6W	IGN-100-935-6	3500K	90	880 lm	147 lm/W
6W	IGN-100-940-6	4000K	90	890 lm	148 lm/W
6W	IGN-100-950-6	5000K	90	870 lm	145 lm/W
9W	IGN-100-827-9	2700K	80	1,560 lm	173 lm/W
9W	IGN-100-830-9	3000K	80	1,590 lm	177 lm/W
9W	IGN-100-835-9	3500K	80	1,600 lm	178 lm/W
9W	IGN-100-840-9	4000K	80	1,610 lm	179 lm/W
9W	IGN-100-850-9	5000K	80	1,580 lm	176 lm/W
9W	IGN-100-927-9	2700K	90	1,440 lm	160 lm/W
9W	IGN-100-930-9	3000K	90	1,470 lm	163 lm/W
9W	IGN-100-935-9	3500K	90	1,490 lm	166 lm/W
9W	IGN-100-940-9	4000K	90	1,510 lm	168 lm/W
9W	IGN-100-950-9	5000K	90	1,460 lm	162 lm/W
