GLIM Wallwasher

Efficacy

133-180 lm/W

CRI

IP66

Warranty

5 years

GLIM linear wallwashers are ideal for architectural lighting.
They are IP66 rated and have excellent durability. They are made of anodized aluminium and are suitable for extreme adverse environments.
They are lightweight with a thin profile. They are produced in various versions of length and performance and have 5 versions of light beam 11^ο, 17^ο and 22^ο, asymmetric and wallwashing
Their performance reaches up to 180 lm/W and have a luminous flux of up to 13600 lm.
They are easily installed with a snap-fit into their special support brackets.
Optionally, they can be dimmed or equipped with an emergency lighting function for up to 3 hours.
They have a lumen maintenance factor of L80B10> 80000 hours of operation.
The GLIM series LED fixtures have a factory warranty of 5 years.

Luminaire Brochure

Installation Manual

✉️ Request Quote Download PDF

📐

Calculate Required Luminaires

Via Techlumen Lux Calculator

📄

Luminaire Brochure

Detailed specifications

🔧

Installation Manual

Mounting and wiring instructions

📊

Photometric Files

LDT / IES for lighting design

Technical Specifications

Luminous Flux 1272 - 13600 lm

Power 4 - 84W

Efficacy 133 - 180 lm/W

Power Factor 0.95

CRI 80

CCT 2700KK-5000KK

IP Rating IP66

IK Rating IK09

Body Anodized Alluminium

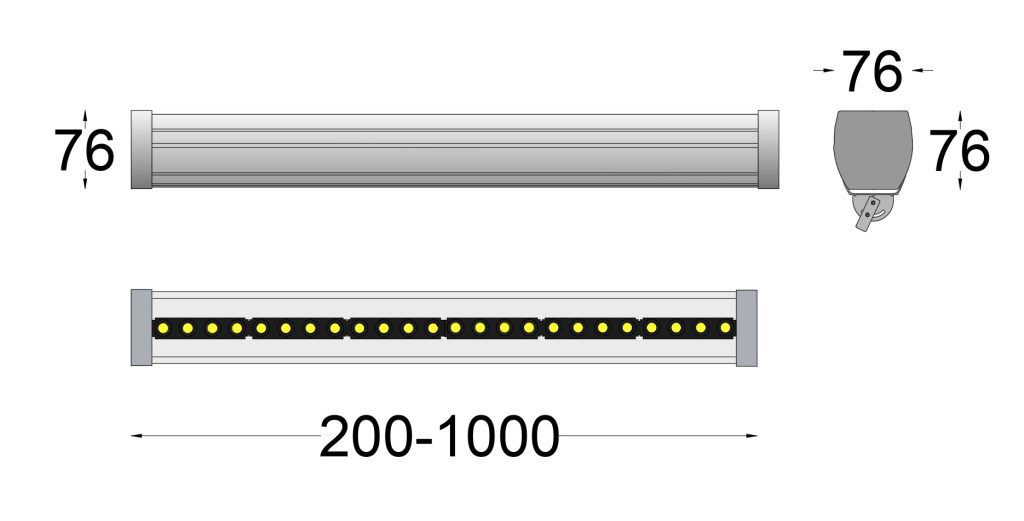

Dimensions 76mm x 76mm x (200 - 1000)mm

Weight 0.6 - 2.7 kg

Warranty 5 years

Certifications & Compliance

EN 60598-1:2021 EN 60598-2-1: 2021 EN 60598-2-2: 2023 EN 61000-3-2:2019 EN 61000-3-3:2013 + AMD1:2017 + AMD2:2021 EN 61547:2020 EN 55015:2019 EN 62471:2008 EN 62493:2015 EN 50581:2012 Directive (LVD) -2014/35/EU Directive (EMC) -2014/30/EU Directive (RoHS) -2011/65/EC Directive (REACH) -2006/1907/EC Directive (EuP) -2009/125/EC Directive (GPS) -2001/95/EU

Available Versions

Power	Code	CCT	CRI	Lumen	Efficacy
8W	GLIM-20-827-8	2700K	80	1,272 lm	159 lm/W
8W	GLIM-20-830-8	3000K	80	1,272 lm	159 lm/W
8W	GLIM-20-840-8	4000K	80	1,357 lm	170 lm/W
8W	GLIM-20-850-8	5000K	80	1,442 lm	180 lm/W
17W	GLIM-20-827-17	2700K	80	2,400 lm	133 lm/W
17W	GLIM-20-830-17	3000K	80	2,400 lm	133 lm/W
17W	GLIM-20-840-17	4000K	80	2,560 lm	142 lm/W
17W	GLIM-20-850-17	5000K	80	2,720 lm	151 lm/W
13W	GLIM-30-827-13	2700K	80	1,908 lm	159 lm/W
13W	GLIM-30-830-13	3000K	80	1,908 lm	159 lm/W
13W	GLIM-30-840-13	4000K	80	2,035 lm	170 lm/W
13W	GLIM-30-850-13	5000K	80	2,162 lm	180 lm/W
25W	GLIM-30-827-25	2700K	80	3,600 lm	133 lm/W
25W	GLIM-30-830-25	3000K	80	3,600 lm	133 lm/W
25W	GLIM-30-840-25	4000K	80	3,840 lm	142 lm/W
25W	GLIM-30-850-25	5000K	80	4,080 lm	151 lm/W
17W	GLIM-40-827-17	2700K	80	2,544 lm	159 lm/W
17W	GLIM-40-830-17	3000K	80	2,544 lm	159 lm/W
17W	GLIM-40-840-17	4000K	80	2,713 lm	170 lm/W
17W	GLIM-40-850-17	5000K	80	2,883 lm	180 lm/W
34W	GLIM-40-827-34	2700K	80	4,800 lm	133 lm/W
34W	GLIM-40-830-34	3000K	80	4,800 lm	133 lm/W
34W	GLIM-40-840-34	4000K	80	5,120 lm	142 lm/W
34W	GLIM-40-850-34	5000K	80	5,440 lm	151 lm/W
21W	GLIM-50-827-21	2700K	80	3,180 lm	159 lm/W
21W	GLIM-50-830-21	3000K	80	3,180 lm	159 lm/W
21W	GLIM-50-840-21	4000K	80	3,392 lm	170 lm/W
21W	GLIM-50-850-21	5000K	80	3,604 lm	180 lm/W
42W	GLIM-50-827-42	2700K	80	6,000 lm	133 lm/W
42W	GLIM-50-830-42	3000K	80	6,000 lm	133 lm/W
42W	GLIM-50-840-42	4000K	80	6,400 lm	142 lm/W
42W	GLIM-50-850-42	5000K	80	6,800 lm	151 lm/W
25W	GLIM-60-827-25	2700K	80	3,816 lm	159 lm/W
25W	GLIM-60-830-25	3000K	80	3,816 lm	159 lm/W
25W	GLIM-60-840-25	4000K	80	4,070 lm	170 lm/W
25W	GLIM-60-850-25	5000K	80	4,325 lm	180 lm/W
50W	GLIM-60-827-50	2700K	80	7,200 lm	133 lm/W
50W	GLIM-60-830-50	3000K	80	7,200 lm	133 lm/W
50W	GLIM-60-840-50	4000K	80	7,680 lm	142 lm/W
50W	GLIM-60-850-50	5000K	80	8,160 lm	151 lm/W
29W	GLIM-70-827-29	2700K	80	4,452 lm	159 lm/W
29W	GLIM-70-830-29	3000K	80	4,452 lm	159 lm/W
29W	GLIM-70-840-29	4000K	80	4,749 lm	170 lm/W
29W	GLIM-70-850-29	5000K	80	5,046 lm	180 lm/W
59W	GLIM-70-827-59	2700K	80	8,400 lm	133 lm/W
59W	GLIM-70-830-59	3000K	80	8,400 lm	133 lm/W
59W	GLIM-70-840-59	4000K	80	8,960 lm	142 lm/W
59W	GLIM-70-850-59	5000K	80	9,520 lm	151 lm/W
34W	GLIM-80-827-34	2700K	80	5,088 lm	159 lm/W
34W	GLIM-80-830-34	3000K	80	5,088 lm	159 lm/W
34W	GLIM-80-840-34	4000K	80	5,427 lm	170 lm/W
34W	GLIM-80-850-34	5000K	80	5,766 lm	180 lm/W
67W	GLIM-80-827-67	2700K	80	9,600 lm	133 lm/W
67W	GLIM-80-830-67	3000K	80	9,600 lm	133 lm/W
67W	GLIM-80-840-67	4000K	80	10,240 lm	142 lm/W
67W	GLIM-80-850-67	5000K	80	10,880 lm	151 lm/W
38W	GLIM-90-827-38	2700K	80	5,724 lm	159 lm/W
38W	GLIM-90-830-38	3000K	80	5,724 lm	159 lm/W
38W	GLIM-90-840-38	4000K	80	6,106 lm	170 lm/W
38W	GLIM-90-850-38	5000K	80	6,487 lm	180 lm/W
76W	GLIM-90-827-76	2700K	80	10,800 lm	133 lm/W
76W	GLIM-90-830-76	3000K	80	10,800 lm	133 lm/W
76W	GLIM-90-840-76	4000K	80	11,520 lm	142 lm/W
76W	GLIM-90-850-76	5000K	80	12,240 lm	151 lm/W
42W	GLIM-100-827-42	2700K	80	6,360 lm	159 lm/W
42W	GLIM-100-830-42	3000K	80	6,360 lm	159 lm/W
42W	GLIM-100-840-42	4000K	80	6,784 lm	170 lm/W
42W	GLIM-100-850-42	5000K	80	7,208 lm	180 lm/W
84W	GLIM-100-827-84	2700K	80	12,000 lm	133 lm/W
84W	GLIM-100-830-84	3000K	80	12,000 lm	133 lm/W
84W	GLIM-100-840-84	4000K	80	12,800 lm	142 lm/W
84W	GLIM-100-850-84	5000K	80	13,600 lm	151 lm/W
