GLIM-e Wallwasher

Efficacy

138-172 lm/W

CRI

IP66

Warranty

5 years

GLIM-e linear wallwashers are ideal for architectural lighting.
They are IP66 rated and have excellent durability. They are made of anodised aluminium and are suitable for use in highly adverse environments.
They are lightweight with a thin profile. They are produced in various versions of length and performance and have two versions of a light beam, a narrow oval beam 10o+80o for wall-grazing, and an asymmetric beam for wall-washing.
Their performance reaches up to 172 lm/W and have a luminous flux of up to 6940 lm.
They are easily installed with a snap-fit into their special support brackets.
Optionally, they can be dimming and emergency lighting for up to 3 hours.
The GLIM series LED fixtures have a factory warranty of 5 years.

Luminaire Brochure

Installation Manual

✉️ Request Quote Download PDF

📐

Calculate Required Luminaires

Via Techlumen Lux Calculator

📄

Luminaire Brochure

Detailed specifications

🔧

Installation Manual

Mounting and wiring instructions

📊

Photometric Files

LDT / IES for lighting design

Technical Specifications

Luminous Flux 1213 - 6940 lm

Power 8 - 84W

Ambient Temperature -30°C to +50°C

Efficacy 138 - 172 lm/W

Power Factor 0.95

CRI 80

CCT 3000K-6500K

IP Rating IP66

IK Rating IK09

Body Anodized Alluminium

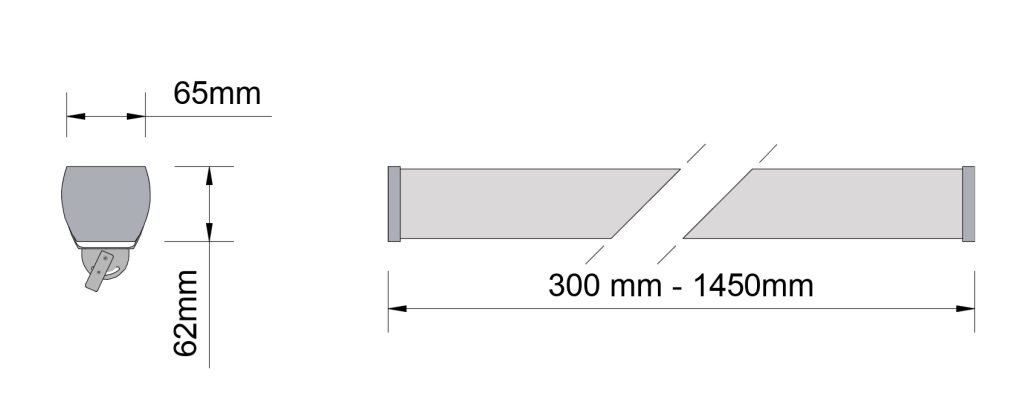

Dimensions 62mm x 65mm x (600 - 1450)mm

Weight 0.7 - 2.5 kg

Warranty 5 years

Certifications & Compliance

EN 60598-1:2008 +A11:2009 ROHS EN 60598-1 EN 60598-2 EN 50581 EN 61000-3 EN 61547 EN 55015 EN 62471 EN 62493

Available Versions

Power	Code	CCT	CRI	Lumen	Efficacy
30W	GLIM-30-e-830-9	9K	3000	80 lm	1213 lm/W
30W	GLIM-30-e-840-9	4000K	80	1,279 lm	145 lm/W
30W	GLIM-30-e-865--9	6500K	80	1,279 lm	145 lm/W
60W	GLIM-60-e-830-12	12K	3000	80 lm	1980 lm/W
60W	GLIM-60-e-840-12	4000K	80	2,060 lm	172 lm/W
60W	GLIM-60-e-865-12	6500K	80	2,060 lm	172 lm/W
60W	GLIM-60-e-830-18	18K	3000	80 lm	2670 lm/W
60W	GLIM-60-e-840-18	4000K	80	2,770 lm	154 lm/W
60W	GLIM-60-e-865-18	6500K	80	2,770 lm	154 lm/W
115W	GLIM-115-e-830-25	25K	3000	80 lm	3960 lm/W
115W	GLIM-115-e-840-25	4000K	80	4,120 lm	165 lm/W
115W	GLIM-115-e-865-25	6500K	80	4,120 lm	165 lm/W
115W	GLIM-115-e-830-37	37K	3000	80 lm	5340 lm/W
115W	GLIM-115-e-840-37	4000K	80	5,550 lm	150 lm/W
115W	GLIM-115-e-865-37	6500K	80	5,550 lm	150 lm/W
145W	GLIM-145-e-830-31	31K	3000	80 lm	4950 lm/W
145W	GLIM-145-e-840-31	4000K	80	5,150 lm	166 lm/W
145W	GLIM-145-e-865-31	6500K	80	5,150 lm	166 lm/W
145W	GLIM-145-e-830-46	46K	3000	80 lm	6775 lm/W
145W	GLIM-145-e-840-46	4000K	80	6,940 lm	151 lm/W
145W	GLIM-145-e-865-46	6500K	80	6,940 lm	151 lm/W
