CORDYS series

Efficacy

127-182 lm/W

CRI

70-80

IP66

Warranty

5 years

Techlumen LED luminaire CORDYS, offer powerful, reliable and low maintenance lighting
They are IP66 and IK09 rated.
CORDYS series has a wide variety of optics and it they are suitable for mounting at even great heights.
• L70B10 > 100000h
• Constant lumen output (optional)
• DALI dimming as standard
• 5 years warranty

Datasheet

✉️ Request Quote Download PDF

📐

Calculate Required Luminaires

Via Techlumen Lux Calculator

📄

Luminaire Brochure

Detailed specifications

📊

Photometric Files

LDT / IES for lighting design

Technical Specifications

Luminous Flux 1965 - 5110 lm

Power 12 - 32W

Efficacy 127 - 182 lm/W

CRI 70-80

CCT 3000K-5000K

IP Rating IP66

IK Rating IK09

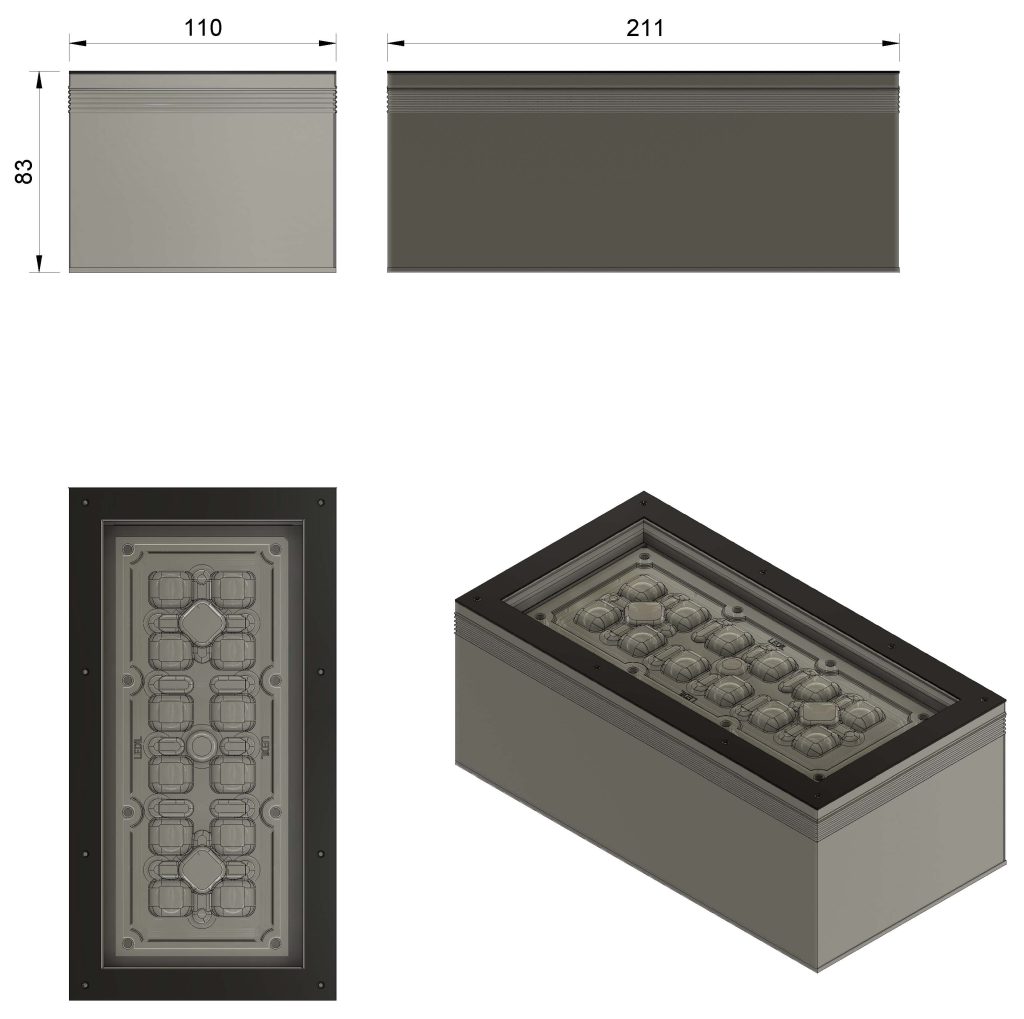

Dimensions 211mm X 110mm X 83mm

Weight 1.7 kg

Warranty 5 years

Certifications & Compliance

CE EN 60598-1:2008 +A11:2009 ROHS EN 60598-1 EN 60598-2 EN 50581 EN 61000-3 EN 61547 EN 55015 EN 62471 EN 62493

Available Versions

Power	Code	CCT	CRI	Lumen	Efficacy
12W	CORDYS-830-12	3000K	80	1,965 lm	163 lm/W
12W	CORDYS-740-12	4000K	70	2,194 lm	182 lm/W
12W	CORDYS-840-12	4000K	80	1,965 lm	163 lm/W
12W	CORDYS-750-12	5000K	70	2,194 lm	182 lm/W
21W	CORDYS-830-21	3000K	80	3,100 lm	147 lm/W
21W	CORDYS-740-21	4000K	70	3,456 lm	164 lm/W
21W	CORDYS-840-21	4000K	80	3,100 lm	147 lm/W
21W	CORDYS-750-21	5000K	70	3,456 lm	164 lm/W
26W	CORDYS-830-26	3000K	80	3,845 lm	148 lm/W
26W	CORDYS-740-26	4000K	70	4,290 lm	165 lm/W
26W	CORDYS-840-26	4000K	80	3,845 lm	148 lm/W
26W	CORDYS-750-26	5000K	70	4,290 lm	165 lm/W
32W	CORDYS-830-32	3000K	80	4,575 lm	143 lm/W
32W	CORDYS-740-32	4000K	70	5,110 lm	160 lm/W
32W	CORDYS-840-32	4000K	80	4,575 lm	143 lm/W
32W	CORDYS-750-32	5000K	70	5,110 lm	160 lm/W
