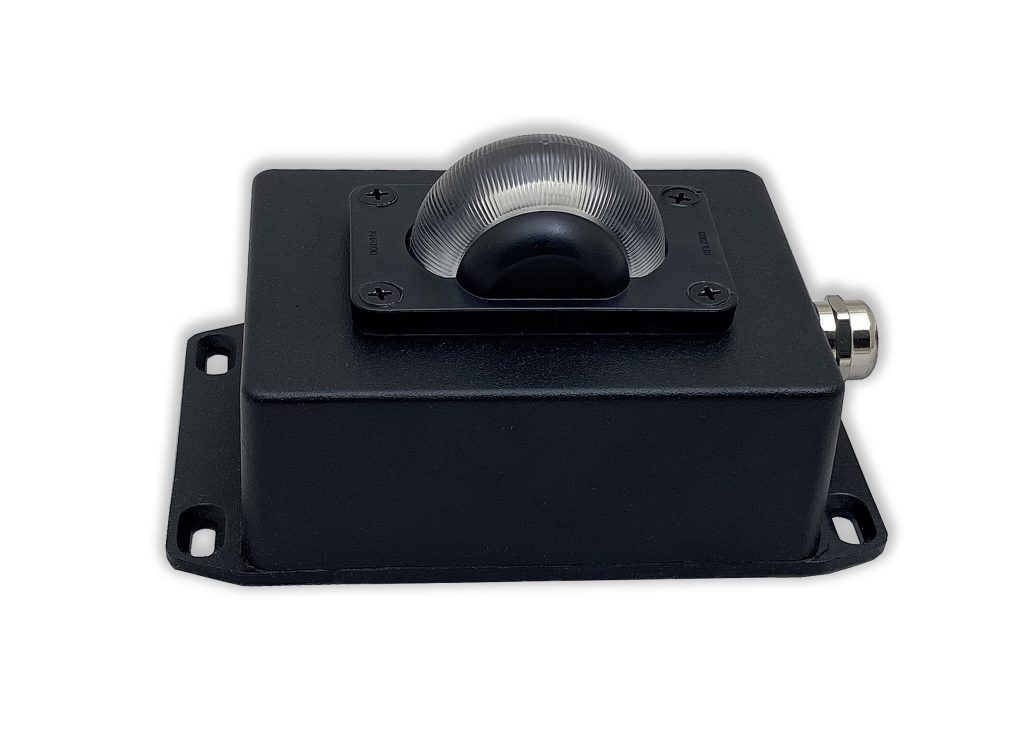

DOMoS-2 Architectural Lighting LED luminaire

Efficacy

107-179 lm/W

CRI

80-90

IP66

Warranty

5 years

LED luminaire Techlumen DOMoS-2 illuminates uniformly frames and openings on building facades.

It creates a very interesting optical effect, highlights the recesses and creates a sense of embossed during night observation.

It is designed to illuminate only the frame in which is installed, thanks to the precision optics, and becomes an excellent tool for architectural lighting designer. It has high efficiency.

Even the 3W version provides adequate lighting for frames 2.0m X 1,5m. It is produced in 3W, 6W and 10W versions, the CCT ranges from 2700K (warm white) to 5000K (cool white).

DOMoS is made of alluminium and painted with electrostatic paint in any RAL color.

Luminaire Brochure

Installation Manual

✉️ Request Quote Download PDF

📐

Calculate Required Luminaires

Via Techlumen Lux Calculator

📄

Luminaire Brochure

Detailed specifications

🔧

Installation Manual

Mounting and wiring instructions

📊

Photometric Files

LDT / IES for lighting design

Technical Specifications

Luminous Flux 320 - 1610 lm

Power 3 - 9W

Ambient Temperature -30°C to +40°C

Efficacy 107 - 179 lm/W

CRI 80-90

CCT 2700K-5000K

IP Rating IP66

IK Rating IK09

Body Aluminium

Finishing Powder Coating

Dimensions 136mm x 82mm x 67mm / 178mm x 82mm x 73mm (DALI)

Weight 0.7 kg

Warranty 5 years

Certifications & Compliance

EN 60598-1:2021+A11:2022 ROHS EN 60598-1 EN 61000-3 EN 61547 EN 55015 EN 62471 EN 62493 EN 63000

Available Versions

Power	Code	CCT	CRI	Lumen	Efficacy
3W	DOMoS-2-827-3	2700K	80	455 lm	152 lm/W
3W	DOMoS-2-830-3	3000K	80	465 lm	155 lm/W
3W	DOMoS-2-835-3	3500K	80	470 lm	157 lm/W
3W	DOMoS-2-840-3	4000K	80	475 lm	158 lm/W
3W	DOMoS-2-850-3	5000K	80	460 lm	153 lm/W
3W	DOMoS-2-927-3	2700K	90	320 lm	107 lm/W
3W	DOMoS-2-930-3	3000K	90	335 lm	112 lm/W
3W	DOMoS-2-935-3	3500K	90	350 lm	117 lm/W
3W	DOMoS-2-940-3	4000K	90	360 lm	120 lm/W
3W	DOMoS-2-950-3	5000K	90	375 lm	125 lm/W
6W	DOMoS-2-827-6	2700K	80	951 lm	159 lm/W
6W	DOMoS-2-830-6	3000K	80	970 lm	162 lm/W
6W	DOMoS-2-835-6	3500K	80	975 lm	163 lm/W
6W	DOMoS-2-840-6	4000K	80	980 lm	163 lm/W
6W	DOMoS-2-850-6	5000K	80	960 lm	160 lm/W
6W	DOMoS-2-927-6	2700K	90	860 lm	143 lm/W
6W	DOMoS-2-930-6	3000K	90	875 lm	146 lm/W
6W	DOMoS-2-935-6	3500K	90	880 lm	147 lm/W
6W	DOMoS-2-940-6	4000K	90	890 lm	148 lm/W
6W	DOMoS-2-950-6	5000K	90	870 lm	145 lm/W
9W	DOMoS-2-827-9	2700K	80	1,560 lm	173 lm/W
9W	DOMoS-2-830-9	3000K	80	1,590 lm	177 lm/W
9W	DOMoS-2-835-9	3500K	80	1,600 lm	178 lm/W
9W	DOMoS-2-840-9	4000K	80	1,610 lm	179 lm/W
9W	DOMoS-2-850-9	5000K	80	1,580 lm	176 lm/W
9W	DOMoS-2-927-9	2700K	90	1,440 lm	160 lm/W
9W	DOMoS-2-930-9	3000K	90	1,470 lm	163 lm/W
9W	DOMoS-2-935-9	3500K	90	1,490 lm	166 lm/W
9W	DOMoS-2-940-9	4000K	90	1,510 lm	168 lm/W
9W	DOMoS-2-950-9	5000K	90	1,460 lm	162 lm/W
