Architectural lighting

DOMoS-2-RGBW

Efficacy
90 lm/W
IP
IP66
Warranty
5 years

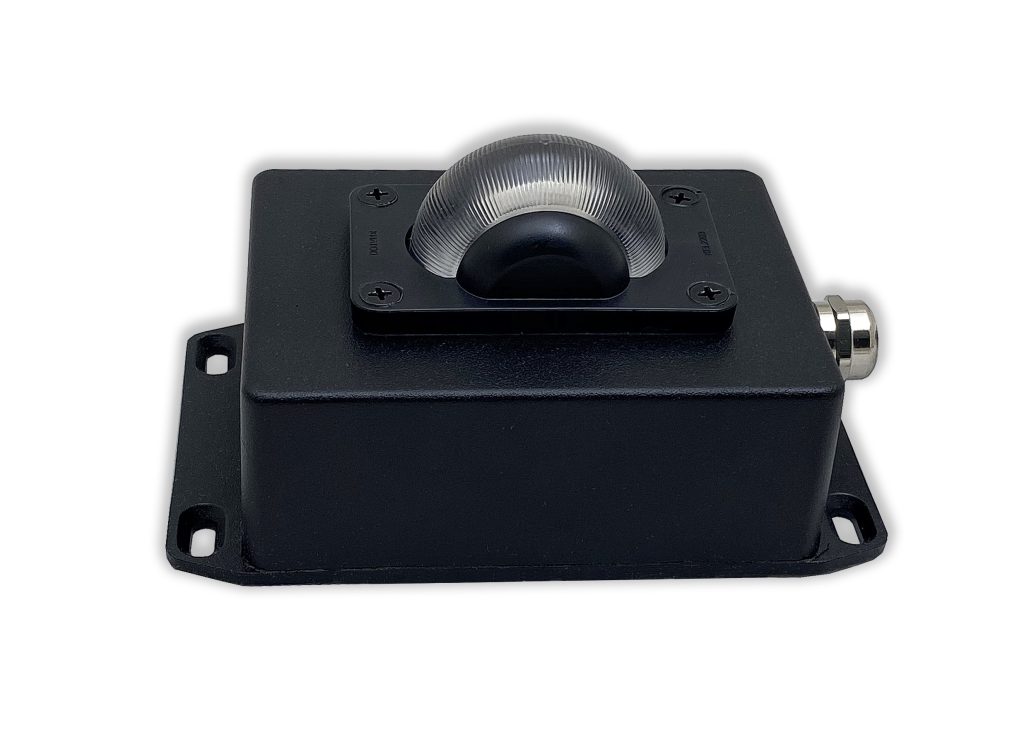

Techlumen© DOMoS-2-RGBW LED luminaire is designed to uniformly illuminate architectural frames and recesses on building facades.

It creates a striking visual effect, highlighting structure depth and embossed surfaces during nighttime observation.

Thanks to its precision optics, DOMoS-2-RGBW illuminates only the frame section where it is installed, becoming a powerful tool for the architectural lighting designer.

It operates with RGBW LED technology, controlled via DALI or wirelessly through CASAMBI, in groups of 3 to 7 luminaires.

The fixture is made of aluminium, compact in size, and finished with electrostatic powder coating in any RAL colour. It combines low energy consumption with high efficiency.

Applications:
Façade lighting · Architectural recesses · Frame outlines · Public buildings · Hotels · Museums · Urban highlights

Technical Specifications

Luminous Flux 1182 lm
Power 13W
Ambient Temperature -30°C to +50°C
Efficacy 90 lm/W
Power Factor 0.95
CCT 3000K-5000K
IP Rating IP66
Body Aluminium
Finishing Powder coating - RAL selection
Dimensions 136mm x 82mm x 67mm
Weight 1 kg
Warranty 5 years

Certifications & Compliance

CE ROHS EN 60598-1 EN 60598-2 EN 50581 EN 61000-3 EN 61547 EN 55015 EN 62471 EN 62493

No versions available for this product.

Technical Drawing

Polar Intensity Diagrams
