FL-I-12 High Power LED Floodlight

Efficacy

120-164 lm/W

CRI

70-90

IP66

Warranty

5 years

The Techlumen FL-I-12 LED floodlight delivers powerful, high-performance illumination in a robust aluminium enclosure.

Produced in 460 W – 675 W power versions with multiple beam options (e.g., 14° / 30°) — ideal for high-mast sports and port-area lighting.

Luminous flux up to 109,152 lm. CCT: 2700 K – 5000 K. Electrostatic powder-coated in any RAL colour (optional anodised aluminium).

Rated IP66 / IK09. High-strength PC optics for thermal & mechanical resistance. Lifetime L80 > 100,000 h. Warranty 5 years.

Applications:
Stadiums · Port facilities · Parking areas · Industrial outdoor sites · Logistics yards

✉️ Request Quote Download PDF

📐

Calculate Required Luminaires

Via Techlumen Lux Calculator

📄

Luminaire Brochure

Detailed specifications

🔧

Installation Manual

Mounting and wiring instructions

📊

Photometric Files

LDT / IES for lighting design

Technical Specifications

Luminous Flux 57888 - 109152 lm

Power 460 - 675W

Ambient Temperature -30°C to +50°C

Efficacy 120 - 164 lm/W

Power Factor 0.95

CRI 70-90

CCT 2700K-5000K

IP Rating IP66

IK Rating IK06

Body Aluminium

Finishing Powder Coating - RAL selection

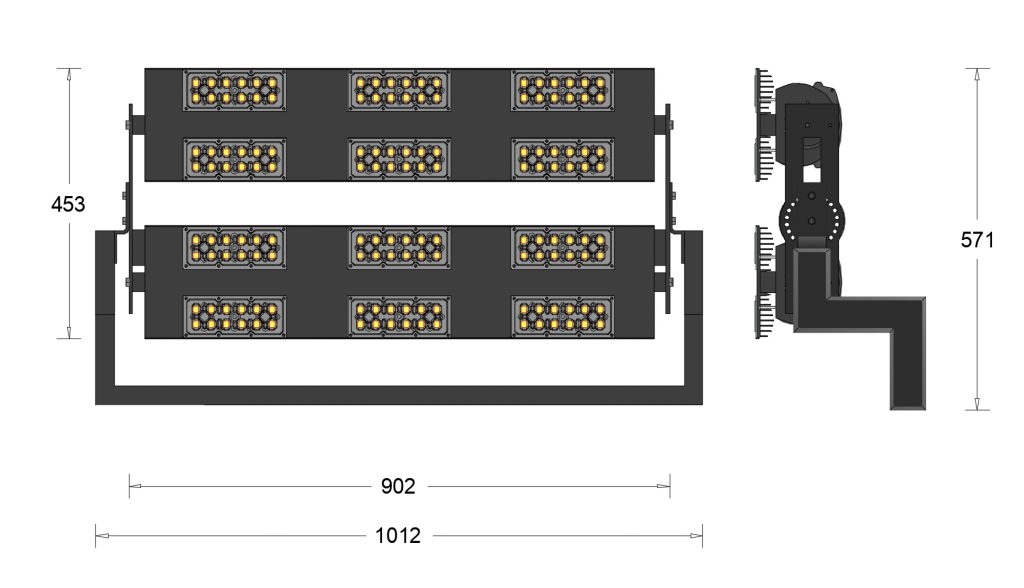

Dimensions 902mm X 453mm X 351mm

Weight 26.3 kg

Warranty 5 years

Certifications & Compliance

CE ROHS EN 60598-1 EN 60598-2 EN 61000-3 EN 61547 EN 55015 EN 62471 EN 62493 EN 60068-2 EN 63000

Available Versions

Power	Code	CCT	CRI	Lumen	Efficacy
460W	FL-I-12-827-460	2700K	80	62,496 lm	136 lm/W
460W	FL-I-12-730-460	3000K	70	71,568 lm	156 lm/W
460W	FL-I-12-830-460	3000K	80	64,512 lm	140 lm/W
460W	FL-I-12-740-460	4000K	70	75,312 lm	164 lm/W
460W	FL-I-12-840-460	4000K	80	67,824 lm	147 lm/W
460W	FL-I-12-750-460	5000K	70	75,312 lm	164 lm/W
460W	FL-I-12-850-460	5000K	80	67,824 lm	147 lm/W
460W	FL-I-12-950-460	5000K	90	57,888 lm	126 lm/W
525W	FL-I-12-827-525	2700K	80	70,704 lm	135 lm/W
525W	FL-I-12-730-525	3000K	70	80,784 lm	154 lm/W
525W	FL-I-12-830-525	3000K	80	72,864 lm	139 lm/W
525W	FL-I-12-740-525	4000K	70	85,104 lm	162 lm/W
525W	FL-I-12-840-525	4000K	80	76,608 lm	146 lm/W
525W	FL-I-12-750-525	5000K	70	85,104 lm	162 lm/W
525W	FL-I-12-850-525	5000K	80	76,608 lm	146 lm/W
525W	FL-I-12-950-525	5000K	90	65,520 lm	125 lm/W
595W	FL-I-12-827-595	2700K	80	77,760 lm	131 lm/W
595W	FL-I-12-730-595	3000K	70	88,848 lm	149 lm/W
595W	FL-I-12-830-595	3000K	80	80,208 lm	135 lm/W
595W	FL-I-12-740-595	4000K	70	93,600 lm	157 lm/W
595W	FL-I-12-840-595	4000K	80	84,384 lm	142 lm/W
595W	FL-I-12-750-595	5000K	70	93,600 lm	157 lm/W
595W	FL-I-12-850-595	5000K	80	84,384 lm	142 lm/W
595W	FL-I-12-950-595	5000K	90	72,000 lm	121 lm/W
600W	FL-I-12-827-600	2700K	80	78,624 lm	131 lm/W
600W	FL-I-12-730-600	3000K	70	89,856 lm	150 lm/W
600W	FL-I-12-830-600	3000K	80	80,928 lm	135 lm/W
600W	FL-I-12-740-600	4000K	70	94,608 lm	158 lm/W
600W	FL-I-12-840-600	4000K	80	85,248 lm	142 lm/W
600W	FL-I-12-750-600	5000K	70	94,608 lm	158 lm/W
600W	FL-I-12-850-600	5000K	80	85,248 lm	142 lm/W
600W	FL-I-12-950-600	5000K	90	72,864 lm	121 lm/W
635W	FL-I-12-827-635	2700K	80	82,512 lm	130 lm/W
635W	FL-I-12-730-635	3000K	70	94,320 lm	149 lm/W
635W	FL-I-12-830-635	3000K	80	84,960 lm	134 lm/W
635W	FL-I-12-740-635	4000K	70	99,216 lm	156 lm/W
635W	FL-I-12-840-635	4000K	80	89,424 lm	141 lm/W
635W	FL-I-12-750-635	5000K	70	99,216 lm	156 lm/W
635W	FL-I-12-850-635	5000K	80	89,424 lm	141 lm/W
635W	FL-I-12-950-635	5000K	90	76,320 lm	120 lm/W
675W	FL-I-12-827-675	2700K	80	92,880 lm	137 lm/W
675W	FL-I-12-730-675	3000K	70	102,672 lm	152 lm/W
675W	FL-I-12-830-675	3000K	80	94,896 lm	140 lm/W
675W	FL-I-12-740-675	4000K	70	109,152 lm	161 lm/W
675W	FL-I-12-840-675	4000K	80	100,944 lm	149 lm/W
675W	FL-I-12-750-675	5000K	70	109,152 lm	161 lm/W
675W	FL-I-12-850-675	5000K	80	100,944 lm	149 lm/W
675W	FL-I-12-950-675	5000K	90	84,528 lm	125 lm/W
