SPC-XS High Power LED Floodlight

Efficacy

145-182 lm/W

CRI

65-80

IP66

Warranty

5 years

Techlumen LED floodlight SPC-XS has powerful performance, reaching 130800lm.
It is equipped with a bracket that can be easily mounted in difficult mounting positions. It is made of aluminium and painted with electrostatic powder paint in a wide range of RAL colours.
The CCT can be selected between 2000K (warm white) and 5000K (cool white). The projector is IP66 rated. The optics are made from borosilicate glass, which is highly thermal and mechanically resistant.
There is a selection of beam angles from 45^o to 120^o.
It has a 5-year warranty, upgradable to 8y, L80B10 index > 100000h, while the LED chip has a 10-year factory warranty.

Brochure

✉️ Request Quote Download PDF

📐

Calculate Required Luminaires

Via Techlumen Lux Calculator

📄

Luminaire Brochure

Detailed specifications

📊

Photometric Files

LDT / IES for lighting design

Technical Specifications

Luminous Flux 72900 - 130800 lm

Power 480 - 750W

Ambient Temperature -30°C to +50°C

Efficacy 145 - 182 lm/W

Power Factor 0.95

CRI 65-80

CCT 2700K-6500K

IP Rating IP66

IK Rating IK10

Body Aluminium

Finishing Powder coating - Any RAL

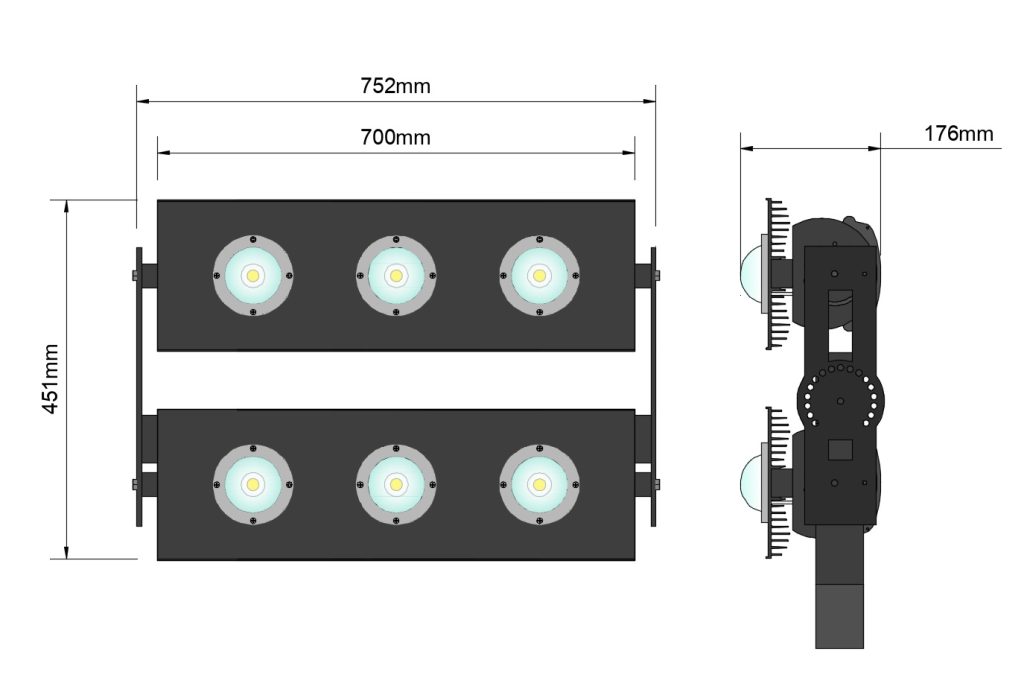

Dimensions (752-902)mm X 451mm X 176mm

Weight 20 - 22.5 kg

Warranty 5 years

Certifications & Compliance

CE ROHS EN 60598-1 EN 60598-2 EN 61000-3 EN 61547 EN 55015 EN 62471 EN 62493 EN 63000

Available Versions

Power	Code	CCT	CRI	Lumen	Efficacy
480W	SPC-XS-620-480	2000K	65	72,900 lm	152 lm/W
480W	SPC-XS-827-480	2700K	80	78,600 lm	164 lm/W
480W	SPC-XS-830-480	3000K	80	80,400 lm	168 lm/W
480W	SPC-XS-835-480	3500K	80	81,000 lm	169 lm/W
480W	SPC-XS-840-480	4000K	80	81,360 lm	170 lm/W
480W	SPC-XS-750-480	5000K	70	81,480 lm	170 lm/W
480W	SPC-XS-850-480	5000K	80	79,800 lm	166 lm/W
480W	SPC-XS-757-480	5700K	70	79,200 lm	165 lm/W
480W	SPC-XS-765-480	6500K	70	79,200 lm	165 lm/W
516W	SPC-XS-620-516	2700K	80	77,700 lm	151 lm/W
516W	SPC-XS-827-516	2700K	80	84,000 lm	163 lm/W
516W	SPC-XS-830-516	3000K	80	85,800 lm	166 lm/W
516W	SPC-XS-835-516	3500K	80	86,100 lm	167 lm/W
516W	SPC-XS-840-516	4000K	80	86,700 lm	168 lm/W
516W	SPC-XS-750-516	5000K	70	87,000 lm	169 lm/W
516W	SPC-XS-850-516	5000K	80	85,020 lm	165 lm/W
516W	SPC-XS-757-516	5700K	70	84,660 lm	164 lm/W
516W	SPC-XS-765-516	6500K	70	84,660 lm	164 lm/W
600W	SPC-XS-620-600	2000K	65	90,120 lm	150 lm/W
600W	SPC-XS-827-600	2700K	80	94,680 lm	158 lm/W
600W	SPC-XS-830-600	3000K	80	100,560 lm	168 lm/W
600W	SPC-XS-835-600	3500K	80	102,960 lm	172 lm/W
600W	SPC-XS-840-600	4000K	80	103,560 lm	173 lm/W
600W	SPC-XS-750-600	5000K	70	108,900 lm	182 lm/W
600W	SPC-XS-850-600	5000K	80	104,760 lm	175 lm/W
600W	SPC-XS-757-600	5700K	70	105,900 lm	177 lm/W
600W	SPC-XS-765-600	6500K	70	105,900 lm	177 lm/W
660W	SPC-XS-620-660	2000K	65	97,200 lm	147 lm/W
660W	SPC-XS-827-660	2700K	80	101,100 lm	147 lm/W
660W	SPC-XS-830-660	3000K	80	107,400 lm	163 lm/W
660W	SPC-XS-835-660	3500K	80	109,800 lm	166 lm/W
660W	SPC-XS-840-660	4000K	80	110,400 lm	167 lm/W
660W	SPC-XS-750-660	5000K	70	116,100 lm	176 lm/W
660W	SPC-XS-850-660	5000K	80	111,600 lm	169 lm/W
660W	SPC-XS-757-660	5700K	70	113,100 lm	171 lm/W
660W	SPC-XS-765-660	6500K	70	113,100 lm	171 lm/W
750W	SPC-XS-620-750	2000K	65	109,200 lm	145 lm/W
750W	SPC-XS-827-750	2700K	80	113,820 lm	152 lm/W
750W	SPC-XS-830-750	3000K	80	120,960 lm	161 lm/W
750W	SPC-XS-835-750	3500K	80	123,600 lm	165 lm/W
750W	SPC-XS-840-750	4000K	80	124,200 lm	166 lm/W
750W	SPC-XS-750-750	5000K	70	130,800 lm	174 lm/W
750W	SPC-XS-850-750	5000K	80	125,940 lm	168 lm/W
750W	SPC-XS-757-750	5700K	70	127,200 lm	170 lm/W
750W	SPC-XS-765-750	6500K	70	127,200 lm	170 lm/W
