UP wall light
Efficacy
132-145 lm/W
CRI
80
IP
IP20
Warranty
5 years
UP wall LED fixtures provide discreet and comfortable lighting.
They are made of aluminium and painted in any RAL color.
UP are produced in 9W, 12W and 16W versions, with CCT of 2700K, 3000K or 4000K.
UP luminaires have 5 year warranty.
Technical Specifications
Luminous Flux
1208 - 2328 lm
Power
9 - 16W
Efficacy
132 - 145 lm/W
Power Factor
0.95
CRI
80
CCT
2700K-4000K
IP Rating
IP20
IK Rating
IK06

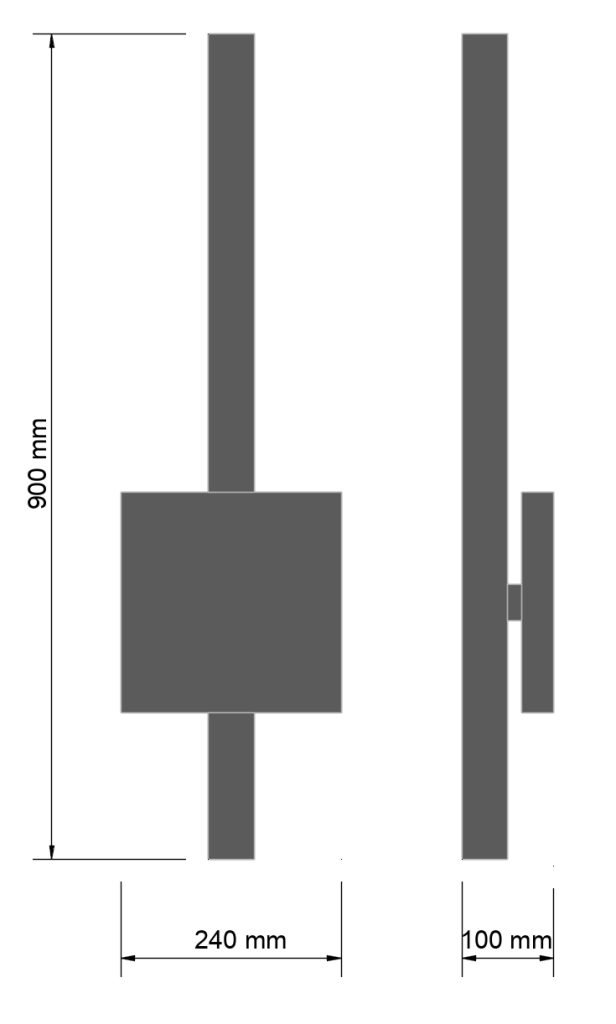

Dimensions
900mm x 240mm x 100mm
Weight
1.5 kg
Warranty
5 years
Certifications & Compliance
CE
ROHS
EN 60598-1
EN 60598-2
EN 61000-3
EN 61547
EN 55015
EN 62471
EN 62493
Available Versions
| Power | Code | CCT | CRI | Lumen | Efficacy |
|---|---|---|---|---|---|
| 9W | UP-827-9 | 2700K | 80 | 1,208 lm | 134 lm/W |
| 9W | UP-830-9 | 3000K | 80 | 1,225 lm | 136 lm/W |
| 9W | UP-840-9 | 4000K | 80 | 1,288 lm | 143 lm/W |
| 12W | UP-827-12 | 2700K | 80 | 1,562 lm | 130 lm/W |
| 12W | UP-830-12 | 3000K | 80 | 1,621 lm | 135 lm/W |
| 12W | UP-840-12 | 4000K | 80 | 1,746 lm | 145 lm/W |
| 16W | UP-827-16 | 2700K | 80 | 2,116 lm | 132 lm/W |
| 16W | UP-830-16 | 3000K | 80 | 2,214 lm | 138 lm/W |
| 16W | UP-840-16 | 4000K | 80 | 2,328 lm | 145 lm/W |
Polar Intensity Diagrams
Log in or register to download photometric files.
