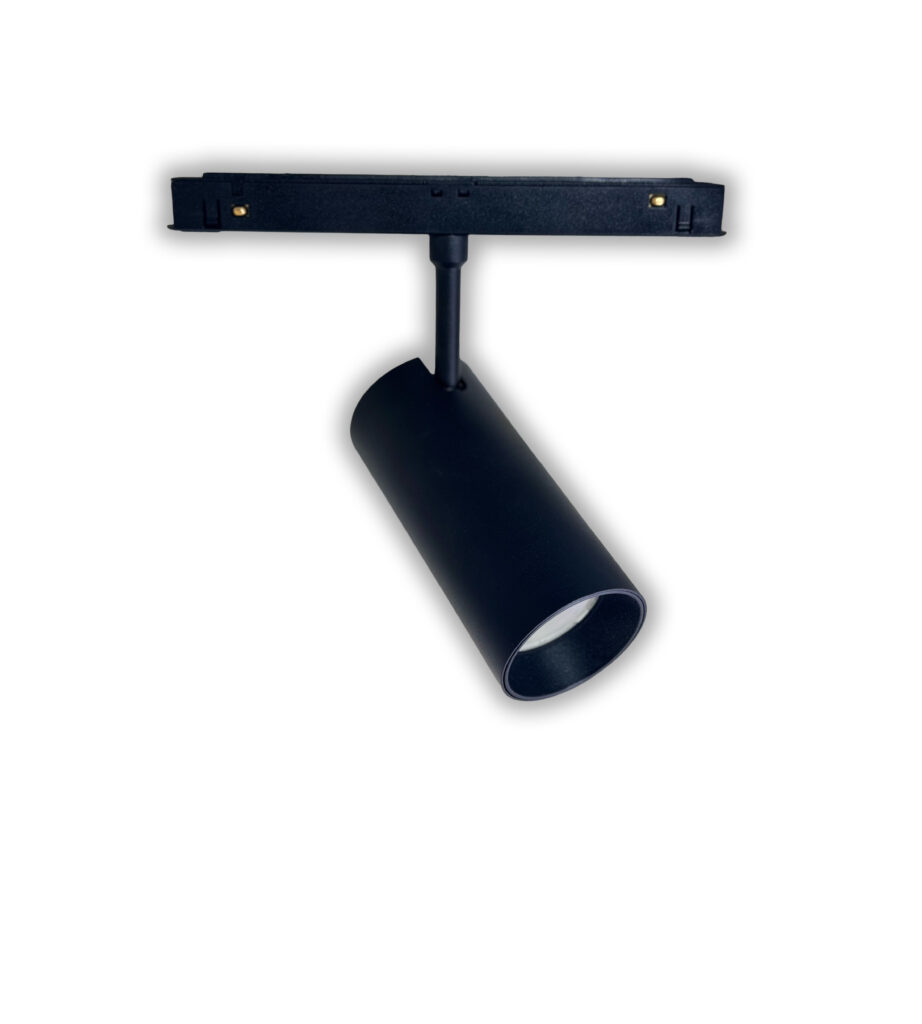

MG-RAY-55 Low voltage LED spot

Efficacy

151-181 lm/W

CRI

80-90

IP20

Warranty

5 years

The MG-RAY-55 is a compact LED fixture (Ø55 × 120 mm) engineered for precise, high-quality illumination in demanding architectural applications.

A wide range of optics — symmetrical beams from 15° to 50° — allows the fixture to be tailored to accent, wall-washing or directional lighting tasks.

Available in correlated colour temperatures from 2700 K to 5000 K with CRI up to 97 and luminous output up to 3,250 lm, the MG-RAY-55 reproduces materials and finishes with exceptional fidelity.

An L80 rating exceeding 105,000 hours ensures stable performance and minimal maintenance over its service life, backed by a 5-year warranty. Suitable for commercial, hospitality, retail and high-end residential environments.

Applications:
Retail · Exhibition spaces · Offices · Restaurants · Residences · Hotels

✉️ Request Quote Download PDF

📐

Calculate Required Luminaires

Via Techlumen Lux Calculator

📄

Luminaire Brochure

Detailed specifications

📊

Photometric Files

LDT / IES for lighting design

Technical Specifications

Luminous Flux 1440 - 3250 lm

Power 9 - 18W

Ambient Temperature -30°C to +50°C

Efficacy 151 - 181 lm/W

CRI 80-90

CCT 2700K-5000K

IP Rating IP20

IK Rating IK06

Body Aluminium

Finishing Black / White

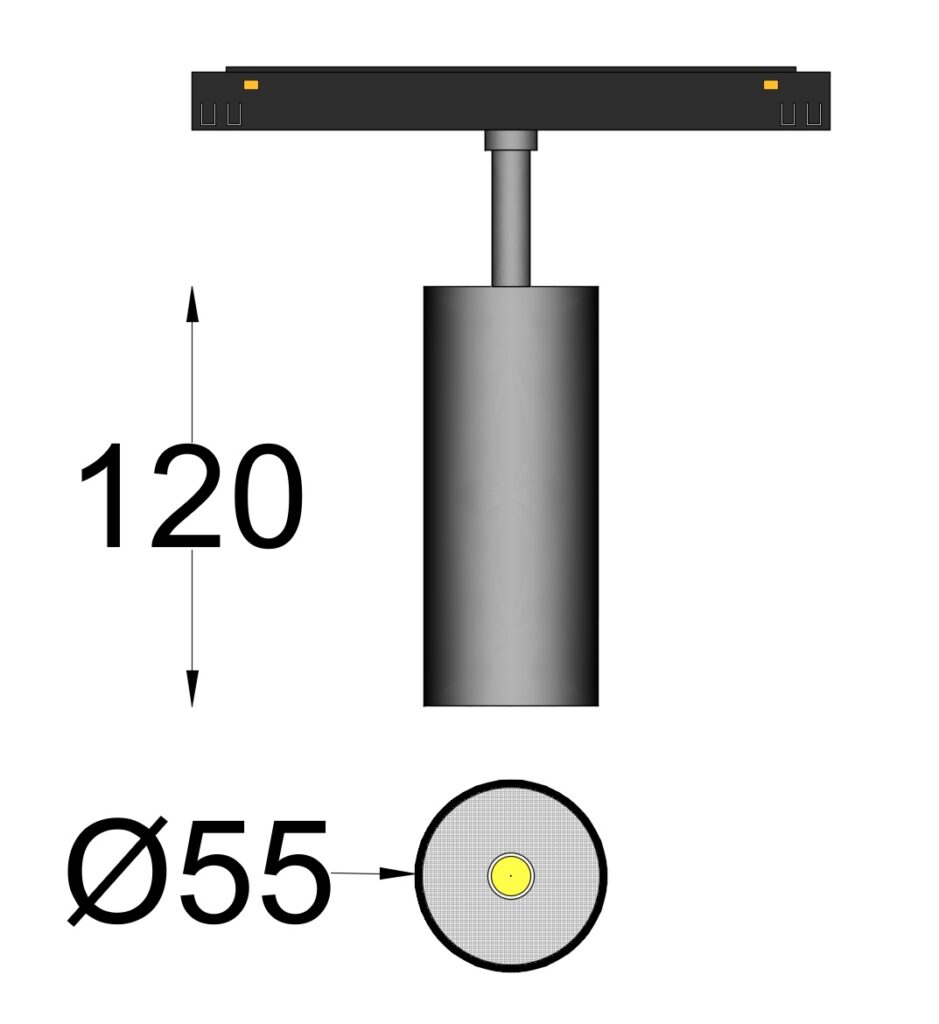

Dimensions Φ55 - H120

Weight 0.6 kg

Warranty 5 years

Certifications & Compliance

EN IEC 60598-1:2021+A11:2022 EN IEC 60598-2-1:2021 EN 60570:2003+A1:2018+A2:2020 EN IEC 61347-1:2024 EN IEC 61347-2-13:2024 EN IEC 62384:2020 EN IEC 55015:2019+A11:2020 EN IEC 61547:2023 EN 62471:2008 IEC/TR 62778:2014 EN 62493:2015+A1:2022 EN IEC 63000:2018 Directive 2014/30/EU Directive 2011/65/EU Regulation (EC) No 1907/2006 Regulation (EU) 2023/988 Regulation (EU) 2019/2020 Regulation (EU) 2019/2015

Available Versions

Power	Code	CCT	CRI	Lumen	Efficacy
9W	MG-RAY-55-827-9	2700	80	1,560 lm	173 lm/W
9W	MG-RAY-55-830-9	3000	80	1,590 lm	177 lm/W
9W	MG-RAY-55-835-9	3500	80	1,600 lm	178 lm/W
9W	MG-RAY-55-840-9	4000	80	1,610 lm	179 lm/W
9W	MG-RAY-55-850-9	5000	80	1,580 lm	176 lm/W
9W	MG-RAY-55-927-9	2700	90	1,440 lm	160 lm/W
9W	MG-RAY-55-930-9	3000	90	1,470 lm	163 lm/W
9W	MG-RAY-55-935-9	3500	90	1,490 lm	166 lm/W
9W	MG-RAY-55-940-9	4000	90	1,510 lm	168 lm/W
9W	MG-RAY-55-950-9	5000	90	1,460 lm	162 lm/W
13W	MG-RAY-55-827-13	2700	80	2,145 lm	165 lm/W
13W	MG-RAY-55-830-13	3000	80	2,190 lm	168 lm/W
13W	MG-RAY-55-835-13	3500	80	2,200 lm	169 lm/W
13W	MG-RAY-55-840-13	4000	80	2,210 lm	170 lm/W
13W	MG-RAY-55-850-13	5000	80	2,170 lm	167 lm/W
13W	MG-RAY-55-927-13	2700	90	1,960 lm	151 lm/W
13W	MG-RAY-55-930-13	3000	90	2,000 lm	154 lm/W
13W	MG-RAY-55-935-13	3500	90	2,020 lm	155 lm/W
13W	MG-RAY-55-940-13	4000	90	2,040 lm	157 lm/W
13W	MG-RAY-55-950-13	5000	90	1,980 lm	152 lm/W
18W	MG-RAY-55-827-18	2700	80	3,150 lm	175 lm/W
18W	MG-RAY-55-830-18	3000	80	3,220 lm	179 lm/W
18W	MG-RAY-55-835-18	3500	80	3,230 lm	179 lm/W
18W	MG-RAY-55-840-18	4000	80	3,250 lm	181 lm/W
18W	MG-RAY-55-850-18	5000	80	3,190 lm	177 lm/W
18W	MG-RAY-55-927-18	2700	90	2,950 lm	164 lm/W
18W	MG-RAY-55-930-18	3000	90	3,000 lm	167 lm/W
18W	MG-RAY-55-935-18	3500	90	3,030 lm	168 lm/W
18W	MG-RAY-55-940-18	4000	90	3,060 lm	170 lm/W
18W	MG-RAY-55-950-18	5000	90	2,980 lm	166 lm/W
