PI wall light

Efficacy

176-189 lm/W

CRI

IP20

Warranty

5 years

UP wall LED fixtures provide discreet and comfortable lighting.
They are made of aluminium and painted in any RAL color.
PI are produced in various lengths from 400mm to 2100mm or even more under request.
They are easy to install.
PI luminaires have 5 year warranty.

Datasheet

✉️ Request Quote Download PDF

📐

Calculate Required Luminaires

Via Techlumen Lux Calculator

📄

Luminaire Brochure

Detailed specifications

📊

Photometric Files

LDT / IES for lighting design

Technical Specifications

Luminous Flux 1760 - 8316 lm

Power 10 - 44W

Ambient Temperature -30°C to +50°C

Efficacy 176 - 189 lm/W

Power Factor 0.95

CRI 80

CCT 2700K-6500K

IP Rating IP20

Body Aluminium

Finishing Powder coating - RAL selection

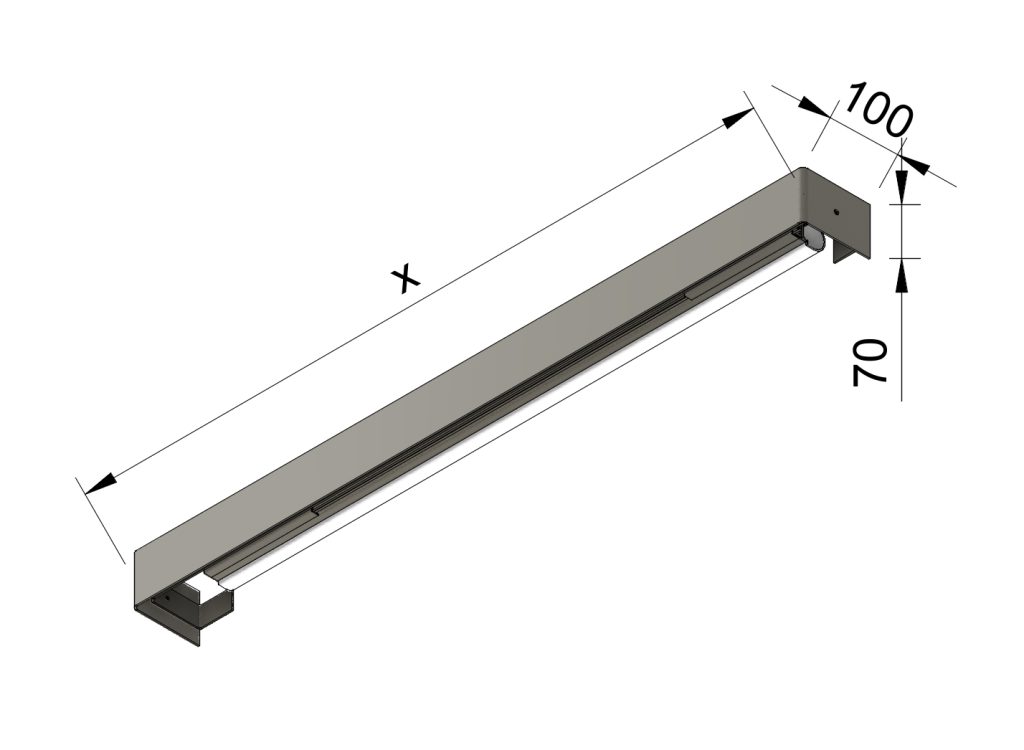

Dimensions (400mm - 2100mm) X 100mm X 100mm

Weight 0.6 - 2.5 kg

Warranty 5 years

Certifications & Compliance

CE ROHS EN 60598-1 EN 61000-3 EN 61547 EN 55015 EN 62471 EN 62493 EN 63000

Available Versions

Power	Code	CCT	CRI	Lumen	Efficacy
40W	PI-30-827-10	10WK	2700	80 lm	1760 lm/W
40W	PI-30-830-10	10WK	3000	80 lm	1820 lm/W
40W	PI-30-840-10	10WK	4000	80 lm	1890 lm/W
40W	PI-30-850-10	10WK	5000	80 lm	1890 lm/W
40W	PI-30-865-10	10WK	6500	80 lm	1890 lm/W
55W	PI-55-827-14	14WK	2700	80 lm	2464 lm/W
55W	PI-55-830-14	14WK	3000	80 lm	2548 lm/W
55W	PI-55-840-14	14WK	4000	80 lm	2646 lm/W
55W	PI-55-850-14	14WK	5000	80 lm	2646 lm/W
55W	PI-55-865-14	14WK	6500	80 lm	2646 lm/W
70W	PI-70-827-20	20WK	2700	80 lm	3520 lm/W
70W	PI-70-830-20	20WK	3000	80 lm	3640 lm/W
70W	PI-70-840-20	20WK	4000	80 lm	3780 lm/W
70W	PI-70-850-20	20WK	5000	80 lm	3780 lm/W
70W	PI-70-865-20	20WK	6500	80 lm	3780 lm/W
100W	PI-100-827-26	26WK	2700	80 lm	4576 lm/W
100W	PI-100-830-26	26WK	3000	80 lm	4732 lm/W
100W	PI-100-840-26	26WK	4000	80 lm	4914 lm/W
100W	PI-100-850-26	26WK	5000	80 lm	4914 lm/W
100W	PI-100-865-26	26WK	6500	80 lm	4914 lm/W
150W	PI-150-827-34	34WK	2700	80 lm	5984 lm/W
150W	PI-150-830-34	34WK	3000	80 lm	6188 lm/W
150W	PI-150-840-34	34WK	4000	80 lm	6426 lm/W
150W	PI-150-850-34	34WK	5000	80 lm	6426 lm/W
150W	PI-150-865-34	34WK	6500	80 lm	6426 lm/W
180W	PI-180-827-38	38WK	2700	80 lm	6688 lm/W
180W	PI-180-830-38	38WK	3000	80 lm	6916 lm/W
180W	PI-180-840-38	38WK	4000	80 lm	7182 lm/W
180W	PI-180-850-38	38WK	5000	80 lm	7182 lm/W
180W	PI-180-865-38	38WK	6500	80 lm	7182 lm/W
210W	PI-210-827-44	44WK	2700	80 lm	7744 lm/W
210W	PI-210-830-44	44WK	3000	80 lm	8008 lm/W
210W	PI-210-840-44	44WK	4000	80 lm	8316 lm/W
210W	PI-210-850-44	44WK	5000	80 lm	8316 lm/W
210W	PI-210-865-44	44WK	6500	80 lm	8316 lm/W
