TESSA-B LED bollard

Efficacy

148-181 lm/W

CRI

80-90

IP66

Warranty

5 years

Techlumen© TESSA-B LED fixtures are ideal for outdoor lighting, combining durability with modern design.

They are made of die-cast aluminium and coated with electrostatic powder paint offering a 10-year corrosion warranty.

Produced in 80 cm or 120 cm height, TESSA-B delivers consistent and uniform light suitable for paths, gardens, and walkways.

It can be mounted on tile or concrete or anchored into the ground using an optional mounting accessory.

Applications:
Gardens · Pathways · Pedestrian routes · Residential entrances · Hotel landscapes · Outdoor corridors

✉️ Request Quote Download PDF

📐

Calculate Required Luminaires

Via Techlumen Lux Calculator

📄

Luminaire Brochure

Detailed specifications

🔧

Installation Manual

Mounting and wiring instructions

📊

Photometric Files

LDT / IES for lighting design

Technical Specifications

Luminous Flux 1440 - 4550 lm

Power 9 - 27W

Ambient Temperature -30°C to +50°C

Efficacy 148 - 181 lm/W

Power Factor 0.95

CRI 80-90

CCT 2700K-5000K

IP Rating IP66

IK Rating IK08

Body Aluminium

Finishing Powder Coating - RAL selection

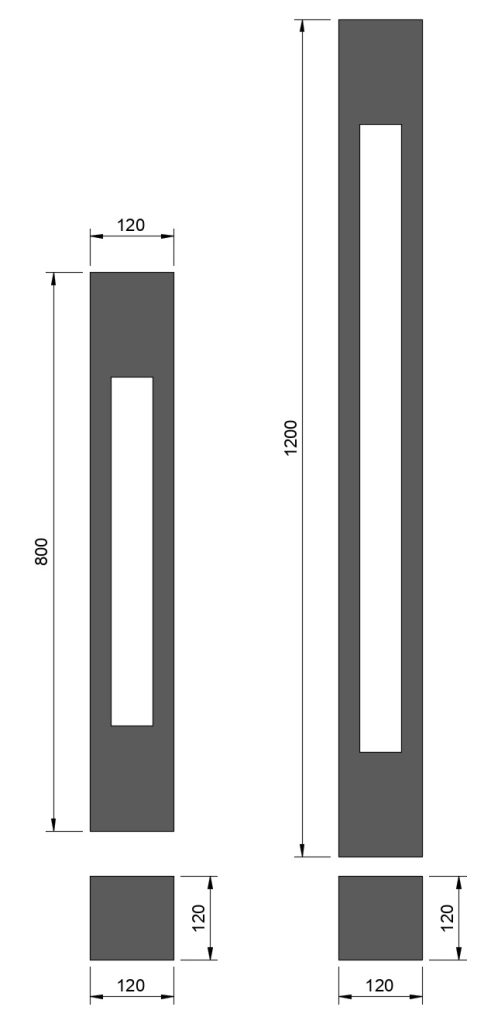

Dimensions 120 X 120 X (800/1200)mm

Weight 5.3 kg

Warranty 5 years

Certifications & Compliance

CE EN 60598-1 EN 60598-2 EN 61000-3 EN 61547 EN 55015 EN 62471 EN 62493 EN 63000

Available Versions

Power	Code	CCT	CRI	Lumen	Efficacy
9W	TESSA-B-827-9	2700K	80	1,560 lm	173 lm/W
9W	TESSA-B-830-9	3000K	80	1,590 lm	177 lm/W
9W	TESSA-B-835-9	3500K	80	1,600 lm	178 lm/W
9W	TESSA-B-840-9	4000K	80	1,610 lm	179 lm/W
9W	TESSA-B-850-9	5000K	80	1,580 lm	176 lm/W
9W	TESSA-B-927-9	2700K	90	1,440 lm	160 lm/W
9W	TESSA-B-930-9	3000K	90	1,470 lm	163 lm/W
9W	TESSA-B-935-9	3500K	90	1,490 lm	166 lm/W
9W	TESSA-B-940-9	4000K	90	1,510 lm	168 lm/W
9W	TESSA-B-950-9	5000K	90	1,460 lm	162 lm/W
13W	TESSA-B-827-13	2700K	80	2,145 lm	165 lm/W
13W	TESSA-B-830-13	3000K	80	2,190 lm	168 lm/W
13W	TESSA-B-835-13	3500K	80	2,200 lm	169 lm/W
13W	TESSA-B-840-13	4000K	80	2,210 lm	170 lm/W
13W	TESSA-B-850-13	5000K	80	2,170 lm	167 lm/W
13W	TESSA-B-927-13	2700K	90	1,960 lm	151 lm/W
13W	TESSA-B-930-13	3000K	90	2,000 lm	154 lm/W
13W	TESSA-B-935-13	3500K	90	2,020 lm	155 lm/W
13W	TESSA-B-940-13	4000K	90	2,040 lm	157 lm/W
13W	TESSA-B-950-13	5000K	90	1,980 lm	152 lm/W
18W	TESSA-B-827-18	2700K	80	3,150 lm	175 lm/W
18W	TESSA-B-830-18	3000K	80	3,220 lm	179 lm/W
18W	TESSA-B-835-18	3500K	80	3,230 lm	179 lm/W
18W	TESSA-B-840-18	4000K	80	3,250 lm	181 lm/W
18W	TESSA-B-850-18	5000K	80	3,190 lm	177 lm/W
18W	TESSA-B-927-18	2700K	90	2,950 lm	164 lm/W
18W	TESSA-B-930-18	3000K	90	3,000 lm	167 lm/W
18W	TESSA-B-935-18	3500K	90	3,030 lm	168 lm/W
18W	TESSA-B-940-18	4000K	90	3,060 lm	170 lm/W
18W	TESSA-B-950-18	5000K	90	2,980 lm	166 lm/W
27W	TESSA-B-827-27	2700K	80	4,410 lm	163 lm/W
27W	TESSA-B-830-27	3000K	80	4,510 lm	167 lm/W
27W	TESSA-B-835-27	3500K	80	4,520 lm	167 lm/W
27W	TESSA-B-840-27	4000K	80	4,550 lm	169 lm/W
27W	TESSA-B-850-27	5000K	80	4,465 lm	165 lm/W
27W	TESSA-B-927-27	2700K	90	3,990 lm	148 lm/W
27W	TESSA-B-930-27	3000K	90	4,070 lm	151 lm/W
27W	TESSA-B-935-27	3500K	90	4,110 lm	152 lm/W
27W	TESSA-B-940-27	4000K	90	4,150 lm	154 lm/W
27W	TESSA-B-950-27	5000K	90	4,030 lm	149 lm/W
