VOLA-30 Garden LED
The Techlumen VOLA-30 is a minimal outdoor luminaire that provides soft, indirect and glare-free illumination. Its internal angled surface guides the light downward, creating smooth light patterns and a refined architectural ambience along pathways and garden areas.
The body is made of aluminium and finished with a high-durability electrostatic powder coating, available in any RAL colour. Its robust construction ensures long-term weather resistance and reliability.
The VOLA-30 is available in 6W, 9W and 13W versions, with colour temperatures ranging from 2700K to 5000K, high CRI and luminous efficacy up to 170 lm/W. It is ideal for pathway lighting, landscaped areas and modern architectural outdoor applications.
Technical Specifications
| Luminous Flux | 860 lm – 2210 lm |
| Power | 6W – 13W |
| Ambient Temperature | -30°C – +50°C |
| Efficacy | 143 – 179 lm/W |
| Power Factor | 0.95 |
| CRI | 80 – 90 |
| CCT | 2700K – 5000K |
| IP Rating | IP66 |
| IK Rating | IK09 |
| Body | Aluminium |
| Finishing | Powder Coating – RAL selection |

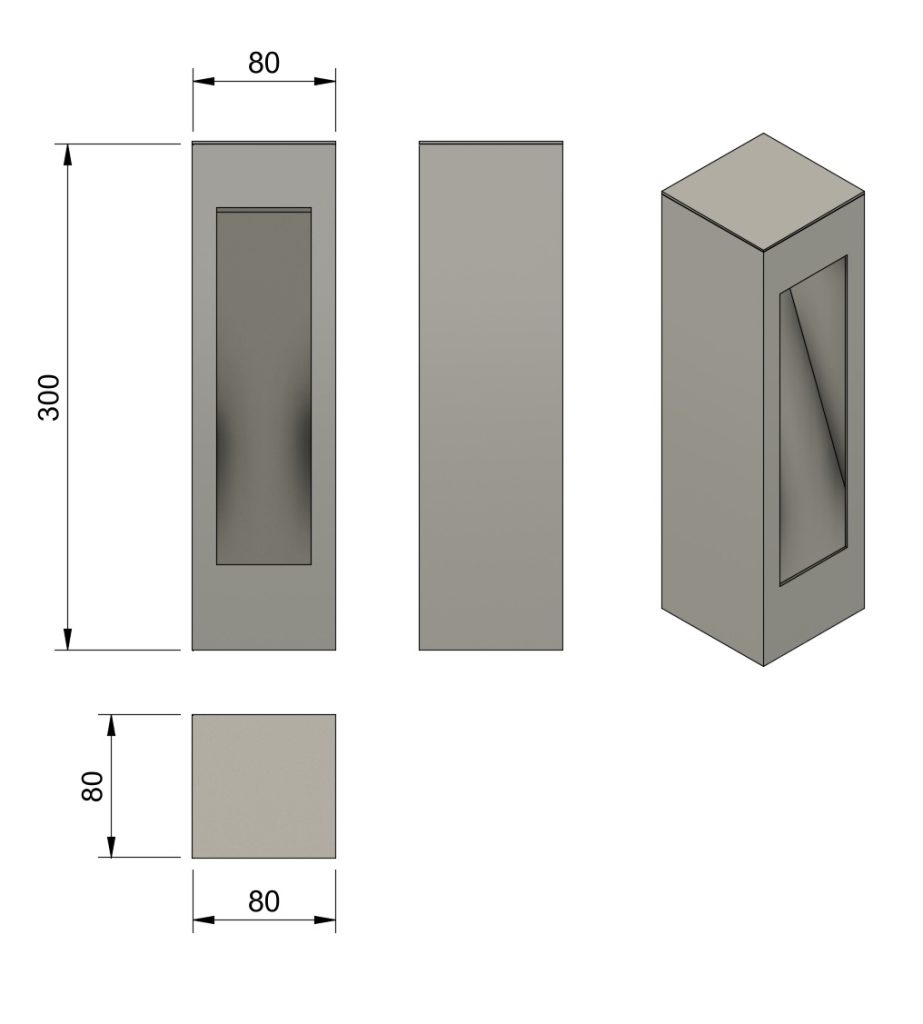

| Dimensions | 300mm x 80mm x 80mm |
| Weight | 1.6 Kg |
| Warranty | 5 years |
Available Versions
| Power | Code | CCT | CRI | Lumen | Efficacy |
|---|---|---|---|---|---|
| 6W | VOLA-30-827-6 | 2700K | 80 | 951 lm | — |
| 6W | VOLA-30-830-6 | 3000K | 80 | 970 lm | — |
| 6W | VOLA-30-835-6 | 3500K | 80 | 975 lm | — |
| 6W | VOLA-30-840-6 | 4000K | 80 | 980 lm | — |
| 6W | VOLA-30-850-6 | 5000K | 80 | 960 lm | — |
| 6W | VOLA-30-927-6 | 2700K | 90 | 860 lm | — |
| 6W | VOLA-30-930-6 | 3000K | 90 | 875 lm | — |
| 6W | VOLA-30-935-6 | 3500K | 90 | 880 lm | — |
| 6W | VOLA-30-940-6 | 4000K | 90 | 885 lm | — |
| 6W | VOLA-30-950-6 | 5000K | 90 | 870 lm | — |
| 9W | VOLA-30-827-9 | 2700K | 80 | 1,430 lm | — |
| 9W | VOLA-30-830-9 | 3000K | 80 | 1,458 lm | — |
| 9W | VOLA-30-835-9 | 3500K | 80 | 1,467 lm | — |
| 9W | VOLA-30-840-9 | 4000K | 80 | 1,467 lm | — |
| 9W | VOLA-30-850-9 | 5000K | 80 | 1,440 lm | — |
| 9W | VOLA-30-927-9 | 2700K | 90 | 1,287 lm | — |
| 9W | VOLA-30-930-9 | 3000K | 90 | 1,314 lm | — |
| 9W | VOLA-30-935-9 | 3500K | 90 | 1,323 lm | — |
| 9W | VOLA-30-940-9 | 4000K | 90 | 1,332 lm | — |
| 9W | VOLA-30-950-9 | 5000K | 90 | 1,305 lm | — |
| 13W | VOLA-30-827-13 | 2700K | 80 | 2,067 lm | — |
| 13W | VOLA-30-830-13 | 3000K | 80 | 2,106 lm | — |
| 13W | VOLA-30-835-13 | 3500K | 80 | 2,119 lm | — |
| 13W | VOLA-30-840-13 | 4000K | 80 | 2,210 lm | — |
| 13W | VOLA-30-850-13 | 5000K | 80 | 2,080 lm | — |
| 13W | VOLA-30-927-13 | 2700K | 90 | 1,859 lm | — |
| 13W | VOLA-30-930-13 | 3000K | 90 | 1,898 lm | — |
| 13W | VOLA-30-935-13 | 3500K | 90 | 1,911 lm | — |
| 13W | VOLA-30-940-13 | 4000K | 90 | 1,924 lm | — |
| 13W | VOLA-30-950-13 | 5000K | 90 | 1,885 lm | — |
