TESSA LED bollard

Efficacy

122-135 lm/W

CRI

IP66

Warranty

5 years

Techlumen © TESSA LED luminaires are ideal for outdoor lighting applications, combining elegance with durability.

They are made of die-cast aluminium and coated with electrostatic powder paint offering a 10-year corrosion warranty.

Produced in 80 cm or 120 cm height, with 2-way or 4-way beam distribution, ensuring balanced illumination with minimal glare.

TESSA can be mounted on tile or concrete or anchored into the ground using an optional foundation accessory.

It is available either with integrated LED chips or, optionally, with a replaceable LED lamp (GU10 type).

Applications:
Gardens · Pathways · Hotel landscapes · Building entrances · Pedestrian zones · Courtyards & Plazas

✉️ Request Quote Download PDF

📊

Luminous Flux 1960 - 6540 lm

Power 16 - 38W

Ambient Temperature -30°C to +50°C

Efficacy 122 - 135 lm/W

Power Factor 0.95

CRI 80

CCT 2700K-5000K

IP Rating IP66

IK Rating IK08

Body Aluminium

Finishing Powder Coating - RAL selection

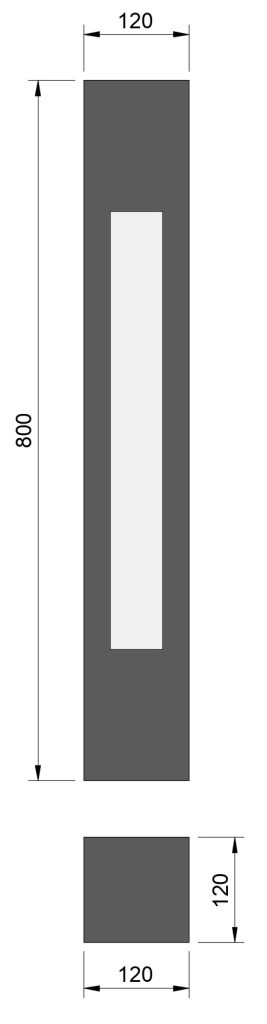

Dimensions 120 X 120 X (800/1200)mm

Weight 5.3 kg

Warranty 5 years

EN 60598-1:2015 +A1:2018 ROHS EN 60598-1 EN 60598-2 EN 55015 EN 61547 EN 61000-3

Power	Code	CCT	CRI	Lumen	Efficacy
18W	TESSA-2-827-18	2700K	80	2,200 lm	122 lm/W
18W	TESSA-2-830-18	3000K	80	2,560 lm	125 lm/W
18W	TESSA-2-840-18	4000K	80	2,375 lm	132 lm/W
18W	TESSA-2-850-18	5000K	80	2,430 lm	135 lm/W
36W	TESSA-4-827-36	2700K	80	4,395 lm	122 lm/W
36W	TESSA-4-830-36	3000K	80	4,520 lm	125 lm/W
36W	TESSA-4-840-36	4000K	80	4,750 lm	132 lm/W
36W	TESSA-4-850-36	5000K	80	4,860 lm	135 lm/W
