SPC-XTE series High Power LED floodlight

Efficacy

137-182 lm/W

CRI

65-80

IP66

Warranty

5 years

Techlumen LED floodlight SPC-XTE is lightweight, with a small profile and extremely strong performance.

It is equipped with a bracket that can be easily mounted in difficult mounting positions. It is made of aluminium and painted with electrostatic powder paint in a wide range of RAL colours.

It is produced in versions of 240W – 375W.

It is highly efficient, up to 182 lm / W and 63600 lm.

The CCT can be selected between 2000 (warm white) and 6500K (cool white). The projector is IP66-rated. The optics are made from borosilicate glass, which is highly thermal and mechanically resistant.
There is a selection of beam angles from 45^o to 120^o.
It has a 5-year warranty and a durability index of L80> 70000h, while the LED chip has a 10-year factory warranty.

Luminaire brochure

Installation Manual

✉️ Request Quote Download PDF

📐

Calculate Required Luminaires

Via Techlumen Lux Calculator

📄

Luminaire Brochure

Detailed specifications

🔧

Installation Manual

Mounting and wiring instructions

📊

Photometric Files

LDT / IES for lighting design

Technical Specifications

Luminous Flux 36450 - 63600 lm

Power 240 - 375W

Ambient Temperature -30°C to +50°C

Efficacy 137 - 182 lm/W

Power Factor 0.95

CRI 65-80

CCT 2700K-6500K

IP Rating IP66

IK Rating IK10

Body Aluminium

Finishing Powder coating - Any RAL

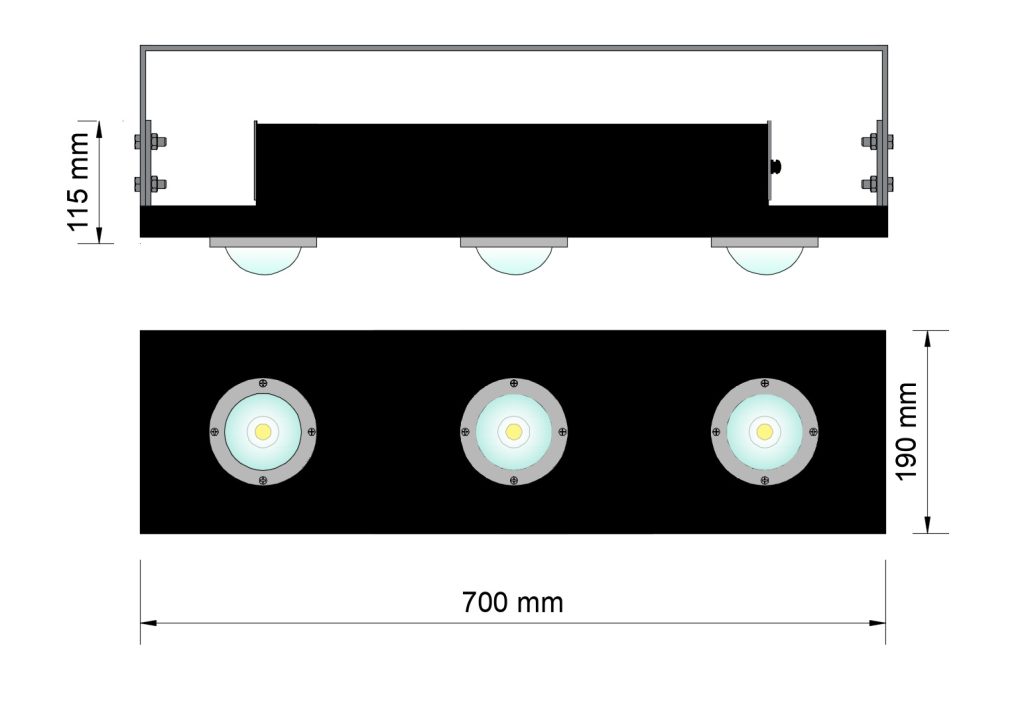

Dimensions (700mm - 850mm) X 190mm X 77mm

Weight 9.6 - 10.8 kg

Warranty 5 years

Certifications & Compliance

CE ROHS EN 60598-1 EN 60598-2 EN 61000-3 EN 61547 EN 55015 EN 62471 EN 62493 EN 63000

Available Versions

Power	Code	CCT	CRI	Lumen	Efficacy
240W	SPC-XTE-620-240	2000K	65	36,450 lm	152 lm/W
240W	SPC-XTE-827-240	2700K	80	39,300 lm	164 lm/W
240W	SPC-XTE-830-240	3000K	80	40,200 lm	168 lm/W
240W	SPC-XTE-835-240	3500K	80	40,500 lm	169 lm/W
240W	SPC-XTE-840-240	4000K	80	40,680 lm	170 lm/W
240W	SPC-XTE-750-240	5000K	70	40,740 lm	170 lm/W
240W	SPC-XTE-850-240	5000K	80	39,900 lm	166 lm/W
240W	SPC-XTE-757-240	5700K	70	39,600 lm	165 lm/W
240W	SPC-XTE-765-240	6500K	70	39,600 lm	165 lm/W
258W	SPC-XTE-620-258	2700K	80	38,850 lm	151 lm/W
258W	SPC-XTE-827-258	2700K	80	42,000 lm	163 lm/W
258W	SPC-XTE-830-258	3000K	80	42,900 lm	166 lm/W
258W	SPC-XTE-835-258	3500K	80	43,050 lm	167 lm/W
258W	SPC-XTE-840-258	4000K	80	43,350 lm	168 lm/W
258W	SPC-XTE-750-258	5000K	70	43,500 lm	169 lm/W
258W	SPC-XTE-850-258	5000K	80	42,510 lm	165 lm/W
258W	SPC-XTE-757-258	5700K	70	42,330 lm	164 lm/W
258W	SPC-XTE-765-258	6500K	70	42,330 lm	164 lm/W
300W	SPC-XTE-620-300	2000K	65	45,060 lm	150 lm/W
300W	SPC-XTE-827-300	2700K	80	47,340 lm	158 lm/W
300W	SPC-XTE-830-300	3000K	80	50,280 lm	168 lm/W
300W	SPC-XTE-835-300	3500K	80	51,480 lm	172 lm/W
300W	SPC-XTE-840-300	4000K	80	51,780 lm	173 lm/W
300W	SPC-XTE-750-300	5000K	70	54,450 lm	182 lm/W
300W	SPC-XTE-850-300	5000K	80	52,380 lm	175 lm/W
300W	SPC-XTE-757-300	5700K	70	52,950 lm	177 lm/W
300W	SPC-XTE-765-300	6500K	70	52,950 lm	177 lm/W
330W	SPC-XTE-620-330	2000K	65	48,600 lm	153 lm/W
330W	SPC-XTE-827-330	2700K	80	50,550 lm	147 lm/W
330W	SPC-XTE-830-330	3000K	80	53,700 lm	163 lm/W
330W	SPC-XTE-835-330	3500K	80	54,900 lm	166 lm/W
330W	SPC-XTE-840-330	4000K	80	55,200 lm	167 lm/W
330W	SPC-XTE-750-330	5000K	70	58,050 lm	176 lm/W
330W	SPC-XTE-850-330	5000K	80	55,800 lm	169 lm/W
330W	SPC-XTE-757-330	5700K	70	56,550 lm	171 lm/W
330W	SPC-XTE-765-330	6500K	70	56,550 lm	171 lm/W
375W	SPC-XTE-620-375	2000K	65	54,600 lm	145 lm/W
375W	SPC-XTE-827-375	2700K	80	56,910 lm	152 lm/W
375W	SPC-XTE-830-375	3000K	80	60,480 lm	161 lm/W
375W	SPC-XTE-835-375	3500K	80	61,800 lm	165 lm/W
375W	SPC-XTE-840-375	4000K	80	62,100 lm	166 lm/W
375W	SPC-XTE-750-375	5000K	70	65,400 lm	174 lm/W
375W	SPC-XTE-850-375	5000K	80	62,970 lm	168 lm/W
375W	SPC-XTE-757-375	5700K	70	63,600 lm	170 lm/W
375W	SPC-XTE-765-375	6500K	70	63,600 lm	170 lm/W
