LED DUPLO-XTS

Efficacy

131-138 lm/W

CRI

IP43

Warranty

5 years

The DUPLO-XTS LED luminaires are designed to provide uniform illumination across work surfaces, ensuring visual comfort and precision.

They deliver powerful lighting over large areas, even when mounted at low heights, while minimising shadows more effectively than conventional fixtures.

Ideal for offices, workbenches, laboratories and printing facilities where accurate colour reproduction is essential (CRI > 90).

Constructed from aluminium and finished with electrostatic powder coating in any RAL colour. Can be installed surface-mounted or suspended.

Available in 3000 K – 4000 K versions, with luminous flux up to 46 062 lm. Supplied with a 5-year warranty and lifetime rating L80 > 100 000 h.

✉️ Request Quote Download PDF

📐

Calculate Required Luminaires

Via Techlumen Lux Calculator

📄

Luminaire Brochure

Detailed specifications

📊

Photometric Files

LDT / IES for lighting design

Technical Specifications

Luminous Flux 4924 - 46062 lm

Power 36 - 334W

Ambient Temperature -30°C to +50°C

Efficacy 131 - 138 lm/W

Power Factor 0.95

CRI 90

CCT 3000K-4000K

IP Rating IP43

IK Rating IK08

Body Aluminium

Finishing Powder coating - RAL color selection

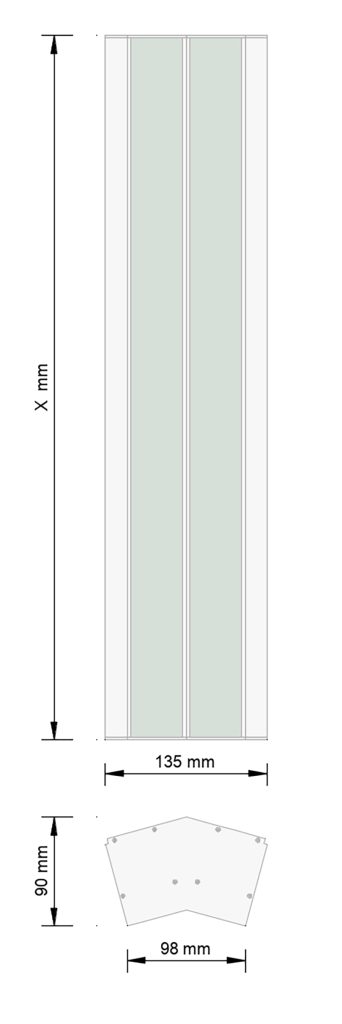

Dimensions 135mm x 90mm x (300 - 2550)mm

Weight 1.8 - 9.2 kg

Warranty 5 years

Certifications & Compliance

CE ROHS EN 60598-1 EN 61000-3 EN 61547 EN 55015 EN 62471 EN 62493 EN 63000

Available Versions

Power	Code	CCT	CRI	Lumen	Efficacy
3630W	DUPLO-XTS-30-930-36	3000K	90	4,924 lm	137 lm/W
3630W	DUPLO-XTS-30-940-36	4000K	90	5,118 lm	142 lm/W
7460W	DUPLO-XTS-60-930-74	3000K	90	9,848 lm	133 lm/W
7460W	DUPLO-XTS-60-940-74	4000K	90	10,236 lm	138 lm/W
11285W	DUPLO-XTS-85-930-112	3000K	90	14,772 lm	132 lm/W
11285W	DUPLO-XTS-85-940-112	4000K	90	15,354 lm	137 lm/W
150115W	DUPLO-XTS-115-930-150	3000K	90	19,696 lm	131 lm/W
150115W	DUPLO-XTS-115-940-150	4000K	90	20,472 lm	136 lm/W
186142W	DUPLO-XTS-142-930-186	3000K	90	24,620 lm	132 lm/W
186142W	DUPLO-XTS-142-940-186	4000K	90	25,590 lm	138 lm/W
222170W	DUPLO-XTS-170-930-222	3000K	90	29,544 lm	133 lm/W
222170W	DUPLO-XTS-170-940-222	4000K	90	30,708 lm	138 lm/W
260200W	DUPLO-XTS-200-930-260	3000K	90	34,468 lm	133 lm/W
260200W	DUPLO-XTS-200-940-260	4000K	90	35,826 lm	138 lm/W
296225W	DUPLO-XTS-225-930-296	3000K	90	39,392 lm	133 lm/W
296225W	DUPLO-XTS-225-940-296	4000K	90	40,944 lm	138 lm/W
334255W	DUPLO-XTS-255-930-334	3000K	90	44,316 lm	133 lm/W
334255W	DUPLO-XTS-255-940-334	4000K	90	46,062 lm	138 lm/W
