RAY-W-50 wall-mounted LED spot

Efficacy

95-182 lm/W

CRI

70-97

IP20

Warranty

5 years

The Techlumen© RAY-W-50 LED wall-mounted fixtures combine compact dimensions with refined design, featuring a diameter of only 50 mm.

They are available in beam angles from 12° to 86°, allowing precise lighting control for architectural or accent applications.

Available in 6 W – 9 W versions, with CCT 2700 K – 5000 K and CRI > 97, ensuring vivid and true-to-life colour rendering.

The body is made of aluminium and finished with electrostatic powder coating in any RAL colour. They have a maintenance index LM80 > 70 000 h and come with a 5-year warranty.

Applications:
Residential spaces · Hotels · Retail stores · Museums · Restaurants · Architectural wall lighting

✉️ Request Quote Download PDF

📐

Calculate Required Luminaires

Via Techlumen Lux Calculator

📄

Luminaire Brochure

Detailed specifications

Technical Specifications

Luminous Flux 561 - 1575 lm

Power 6 - 9W

Ambient Temperature -30°C to +50°C

Efficacy 95 - 182 lm/W

Power Factor 0.95

CRI 70-97

CCT 2700K-5000K

IP Rating IP20

IK Rating IK06

Body Alluminium

Finishing Any RAL

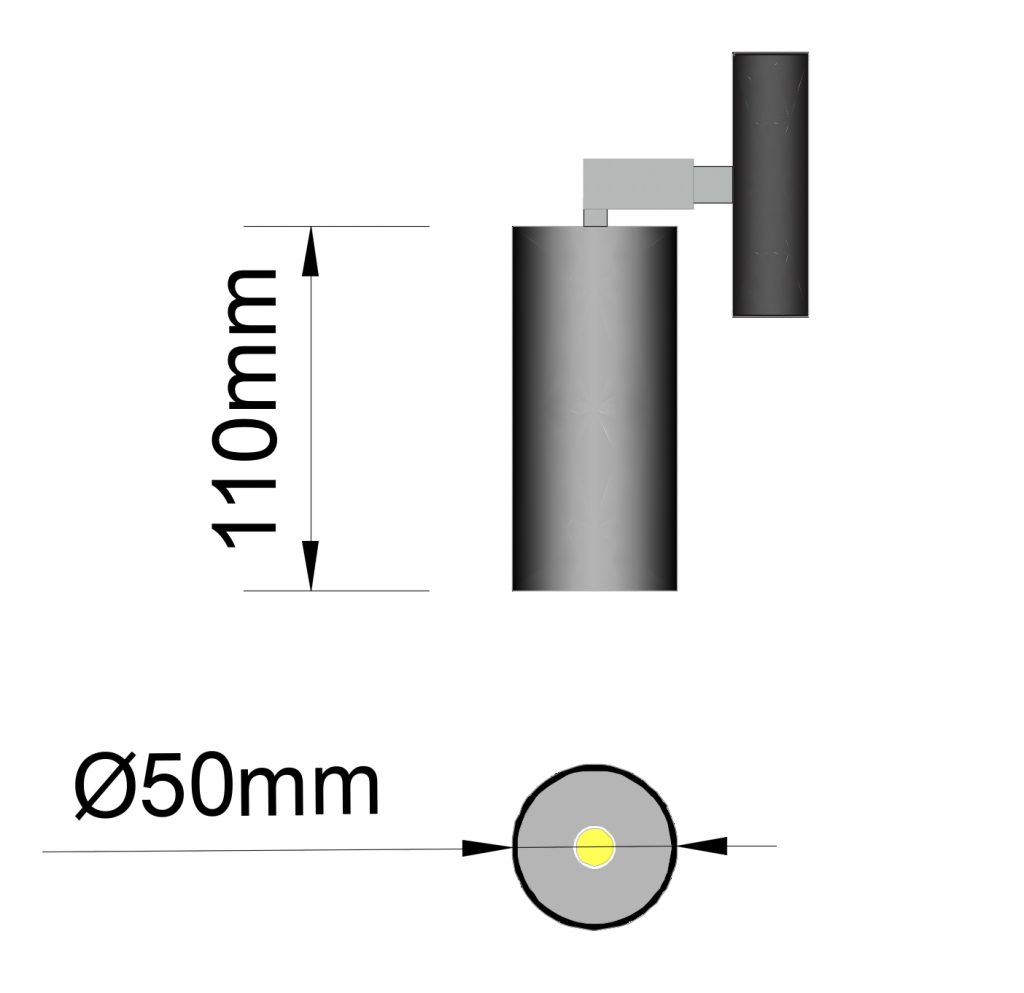

Dimensions Φ50 - H110

Weight 0.7 kg

Warranty 5 years

Certifications & Compliance

ROHS EN 60598-1 EN 60598-2 EN 50581 EN 61000-3 EN 61547 EN 55015 EN 62471 EN 62493

Available Versions

Power	Code	CCT	CRI	Lumen	Efficacy
6W	RAY-W-50-927H-6	2700K	97	561 lm	93 lm/W
6W	RAY-W-50-927-6	2700K	90	590 lm	95 lm/W
6W	RAY-W-50-827-6	2700K	80	740 lm	119 lm/W
6W	RAY-W-50-930H-6	3000K	90	724 lm	120 lm/W
6W	RAY-W-50-930-6	3000K	90	799 lm	133 lm/W
6W	RAY-W-50-830-6	3000K	80	985 lm	164 lm/W
6W	RAY-W-50-935-6	3500K	90	724 lm	120 lm/W
6W	RAY-W-50-835-6	3500K	80	985 lm	164 lm/W
6W	RAY-W-50-940-6	4000K	90	841 lm	140 lm/W
6W	RAY-W-50-840-6	4000K	80	1,008 lm	138 lm/W
6W	RAY-W-50-950-6	5000K	90	856 lm	142 lm/W
6W	RAY-W-50-850-6	5000K	80	990 lm	165 lm/W
6W	RAY-W-50-750-6	5000K	70	1,029 lm	171 lm/W
9W	RAY-W-50-927H-9	2700K	97	926 lm	103 lm/W
9W	RAY-W-50-927-9	2700K	90	994 lm	110 lm/W
9W	RAY-W-50-827-9	2700K	80	1,370 lm	152 lm/W
9W	RAY-W-50-930Η-9	3000K	97	989 lm	110 lm/W
9W	RAY-W-50-930-9	3000K	90	1,181 lm	131 lm/W
9W	RAY-W-50-830-9	3000K	80	1,455 lm	162 lm/W
9W	RAY-W-50-935-9	3500K	90	1,194 lm	131 lm/W
9W	RAY-W-50-835-9	3500K	80	1,490 lm	165 lm/W
9W	RAY-W-50-940-9	4000K	90	1,250 lm	139 lm/W
9W	RAY-W-50-840-9	4000K	80	1,498 lm	166 lm/W
9W	RAY-W-50-950-9	5000K	80	1,310 lm	145 lm/W
9W	RAY-W-50-850-9	5000K	90	1,515 lm	168 lm/W
9W	RAY-W-50-750-9	5000K	80	1,575 lm	175 lm/W
