ZANZIBAR Pendant

Efficacy

101-135 lm/W

CRI

80-90

IP33

Warranty

5 years

ZANZIBAR luminaires have a cylindrical shape.

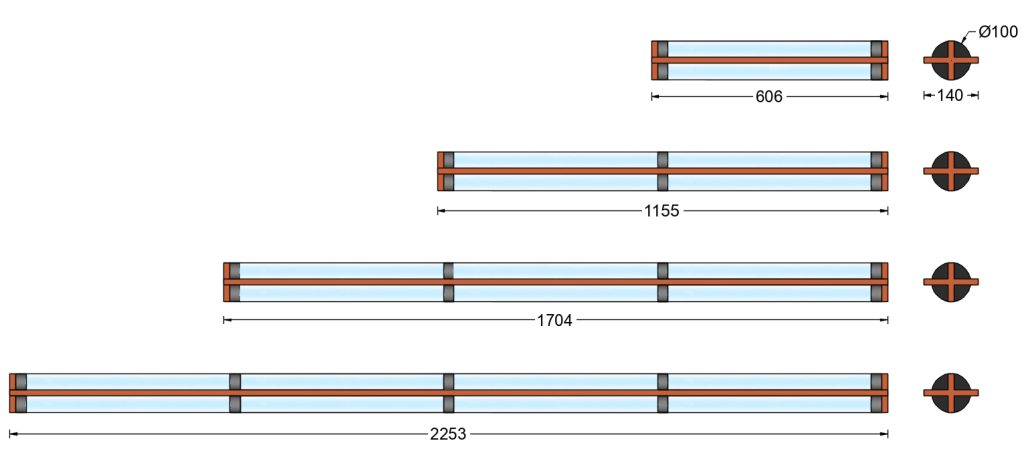

They consist of a Φ100 cylinder, divided by an aluminum frame.
They have 2 independent light sources with 3 operating modes, direct, indirect or simultaneous 360^o lighting.
They are produced in 4 length versions with CCT from 2700K to 6500K with CRI 80 or 90.
The aluminum frame is painted with powder coating in any color from our collection.

They have fabric cables and adjustable suspensions.

Under request there is the option of wireless or wired DALI dimming.

Datasheet

✉️ Request Quote Download PDF

📐

Calculate Required Luminaires

Via Techlumen Lux Calculator

📄

Luminaire Brochure

Detailed specifications

📊

Photometric Files

LDT / IES for lighting design

Technical Specifications

Luminous Flux 3450 - 18324 lm

Power 34 - 136W

Ambient Temperature -30°C to +50°C

Efficacy 101 - 135 lm/W

Power Factor 0.95

CRI 80-90

CCT 2700K-6500K

IP Rating IP33

Body Aluminium

Dimensions 1.2 - 3.5 Kg

Warranty 5 years

Certifications & Compliance

ROHS EN 60598-1 EN 61000-3 EN 61547 EN 55015 EN 62471 EN 62493 EN 63000

Available Versions

Power	Code	CCT	CRI	Lumen	Efficacy
34W	ZANZIBAR-1-827	2700K	80	4,046 lm	119 lm/W
34W	ZANZIBAR-1-927	2700K	90	3,450 lm	101 lm/W
34W	ZANZIBAR-1-830	3000K	80	4,224 lm	124 lm/W
34W	ZANZIBAR-1-930	3000K	90	3,628 lm	106 lm/W
34W	ZANZIBAR-1-835	3500K	80	4,284 lm	126 lm/W
34W	ZANZIBAR-1-935	3500K	90	3,688 lm	108 lm/W
34W	ZANZIBAR-1-840	4000K	80	4,581 lm	135 lm/W
34W	ZANZIBAR-1-940	4000K	90	3,866 lm	114 lm/W
34W	ZANZIBAR-1-850	5000K	80	4,581 lm	135 lm/W
34W	ZANZIBAR-1-950	5000K	90	3,866 lm	114 lm/W
34W	ZANZIBAR-1-857	5700K	80	4,581 lm	135 lm/W
34W	ZANZIBAR-1-957	5700K	90	3,866 lm	114 lm/W
34W	ZANZIBAR-1-865	6500K	80	4,521 lm	133 lm/W
34W	ZANZIBAR-1-965	6500K	90	3,866 lm	114 lm/W
68W	ZANZIBAR-2-827	2700K	80	8,092 lm	119 lm/W
68W	ZANZIBAR-2-927	2700K	90	6,900 lm	101 lm/W
68W	ZANZIBAR-2-830	3000K	80	8,448 lm	124 lm/W
68W	ZANZIBAR-2-930	3000K	90	7,256 lm	106 lm/W
68W	ZANZIBAR-2-835	3500K	80	8,568 lm	126 lm/W
68W	ZANZIBAR-2-935	3500K	90	7,376 lm	108 lm/W
68W	ZANZIBAR-2-840	4000K	80	9,162 lm	135 lm/W
68W	ZANZIBAR-2-940	4000K	90	7,732 lm	114 lm/W
68W	ZANZIBAR-2-850	5000K	80	9,162 lm	135 lm/W
68W	ZANZIBAR-2-950	5000K	90	7,732 lm	114 lm/W
68W	ZANZIBAR-2-857	5700K	80	9,162 lm	135 lm/W
68W	ZANZIBAR-2-957	5700K	90	7,732 lm	114 lm/W
68W	ZANZIBAR-2-865	6500K	80	9,042 lm	133 lm/W
68W	ZANZIBAR-2-965	6500K	90	7,732 lm	114 lm/W
102W	ZANZIBAR-3-827	2700K	80	12,138 lm	119 lm/W
102W	ZANZIBAR-3-927	2700K	90	10,350 lm	101 lm/W
102W	ZANZIBAR-3-830	3000K	80	12,672 lm	124 lm/W
102W	ZANZIBAR-3-930	3000K	90	10,884 lm	106 lm/W
102W	ZANZIBAR-3-835	3500K	80	12,852 lm	126 lm/W
102W	ZANZIBAR-3-935	3500K	90	11,064 lm	108 lm/W
102W	ZANZIBAR-3-840	4000K	80	13,743 lm	135 lm/W
102W	ZANZIBAR-3-940	4000K	90	11,598 lm	114 lm/W
102W	ZANZIBAR-3-850	5000K	80	13,743 lm	135 lm/W
102W	ZANZIBAR-3-950	5000K	90	11,598 lm	114 lm/W
102W	ZANZIBAR-3-857	5700K	80	13,743 lm	135 lm/W
102W	ZANZIBAR-3-957	5700K	90	11,598 lm	114 lm/W
102W	ZANZIBAR-3-865	6500K	80	13,563 lm	133 lm/W
102W	ZANZIBAR-3-965	6500K	90	11,598 lm	114 lm/W
138W	ZANZIBAR-4-827	2700K	80	16,184 lm	119 lm/W
138W	ZANZIBAR-4-927	2700K	90	13,800 lm	101 lm/W
138W	ZANZIBAR-4-830	3000K	80	16,896 lm	124 lm/W
138W	ZANZIBAR-4-930	3000K	90	14,512 lm	106 lm/W
138W	ZANZIBAR-4-835	3500K	80	17,136 lm	126 lm/W
138W	ZANZIBAR-4-935	3500K	90	14,752 lm	108 lm/W
138W	ZANZIBAR-4-840	4000K	80	18,324 lm	135 lm/W
138W	ZANZIBAR-4-940	4000K	90	15,464 lm	114 lm/W
138W	ZANZIBAR-4-850	5000K	80	18,324 lm	135 lm/W
138W	ZANZIBAR-4-950	5000K	90	15,464 lm	114 lm/W
138W	ZANZIBAR-4-857	5700K	80	18,324 lm	135 lm/W
138W	ZANZIBAR-4-957	5700K	90	15,464 lm	114 lm/W
138W	ZANZIBAR-4-865	6500K	80	18,084 lm	133 lm/W
138W	ZANZIBAR-4-965	6500K	90	15,464 lm	114 lm/W
