DUPLO-SPX Pendant LED

Efficacy

155-164 lm/W

CRI

IP43

Warranty

5 years

The DUPLO-SPX series is engineered to deliver consistent, uniform illumination across work surfaces — ideal where visual precision and comfort are paramount. It projects powerful light over large areas even from low mounting heights, effectively minimising shadows.

Built from durable aluminium and finished with electrostatic powder coating in any RAL colour, DUPLO-SPX integrates seamlessly into diverse interiors. Available 3000 K – 6500 K, with luminous flux up to 54 936 lm. Supplied with a 5-year warranty.

✉️ Request Quote Download PDF

📐

Calculate Required Luminaires

Via Techlumen Lux Calculator

📄

Luminaire Brochure

Detailed specifications

📊

Photometric Files

LDT / IES for lighting design

Technical Specifications

Luminous Flux 5754 - 54936 lm

Power 36 - 334W

Ambient Temperature -30°C to +50°C

Efficacy 155 - 164 lm/W

Power Factor 0.95

CRI 80

CCT 3000K-6500K

IP Rating IP43

IK Rating IK08

Body Aluminium

Finishing Powder coating - RAL color selection

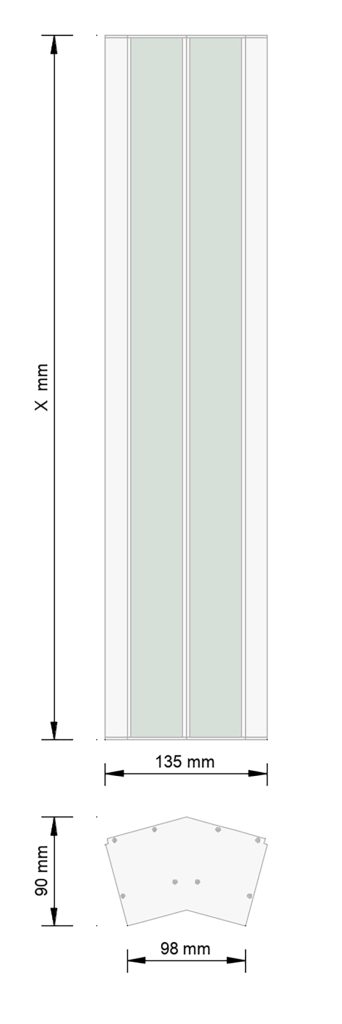

Dimensions 135mm x 90mm x (300 - 2550)mm

Weight 1.8 - 9.2 kg

Warranty 5 years

Certifications & Compliance

CE ROHS EN 60598-1 EN 61000-3 EN 61547 EN 55015 EN 62471 EN 62493 EN 63000

Available Versions

Power	Code	CCT	CRI	Lumen	Efficacy
3630W	DUPLO-SPX-30-830-36	3000K	80	5,754 lm	160 lm/W
3630W	DUPLO-SPX-30-840-36	4000K	80	6,104 lm	170 lm/W
3630W	DUPLO-SPX-30-850-36	5000K	80	6,064 lm	168 lm/W
3630W	DUPLO-SPX-30-865-36	6500K	80	5,984 lm	166 lm/W
7460W	DUPLO-SPX-60-830-74	3000K	80	11,508 lm	156 lm/W
7460W	DUPLO-SPX-60-840-74	4000K	80	12,208 lm	165 lm/W
7460W	DUPLO-SPX-60-850-74	5000K	80	12,128 lm	164 lm/W
7460W	DUPLO-SPX-60-865-74	6500K	80	11,968 lm	162 lm/W
11285W	DUPLO-SPX-85-830-112	3000K	80	17,262 lm	154 lm/W
11285W	DUPLO-SPX-85-840-112	4000K	80	18,312 lm	164 lm/W
11285W	DUPLO-SPX-85-850-112	5000K	80	18,192 lm	162 lm/W
11285W	DUPLO-SPX-85-865-112	6500K	80	17,952 lm	160 lm/W
150115W	DUPLO-SPX-115-830-150	3000K	80	23,016 lm	153 lm/W
150115W	DUPLO-SPX-115-840-150	4000K	80	24,416 lm	163 lm/W
150115W	DUPLO-SPX-115-850-150	5000K	80	24,256 lm	162 lm/W
150115W	DUPLO-SPX-115-865-150	6500K	80	23,936 lm	160 lm/W
186142W	DUPLO-SPX-142-830-186	3000K	80	28,770 lm	155 lm/W
186142W	DUPLO-SPX-142-840-186	4000K	80	30,520 lm	164 lm/W
186142W	DUPLO-SPX-142-850-186	5000K	80	30,320 lm	163 lm/W
186142W	DUPLO-SPX-142-865-186	6500K	80	29,920 lm	161 lm/W
222170W	DUPLO-SPX-170-830-222	3000K	80	34,524 lm	156 lm/W
222170W	DUPLO-SPX-170-840-222	4000K	80	36,624 lm	165 lm/W
222170W	DUPLO-SPX-170-850-222	5000K	80	36,384 lm	164 lm/W
222170W	DUPLO-SPX-170-865-222	6500K	80	35,904 lm	162 lm/W
260200W	DUPLO-SPX-200-830-260	3000K	80	40,278 lm	155 lm/W
260200W	DUPLO-SPX-200-840-260	4000K	80	42,728 lm	164 lm/W
260200W	DUPLO-SPX-200-850-260	5000K	80	42,448 lm	163 lm/W
260200W	DUPLO-SPX-200-865-260	6500K	80	41,888 lm	161 lm/W
296225W	DUPLO-SPX-225-830-296	3000K	80	46,032 lm	156 lm/W
296225W	DUPLO-SPX-225-840-296	4000K	80	48,832 lm	165 lm/W
296225W	DUPLO-SPX-225-850-296	5000K	80	48,512 lm	164 lm/W
296225W	DUPLO-SPX-225-865-296	6500K	80	47,872 lm	162 lm/W
334255W	DUPLO-SPX-255-830-334	3000K	80	51,786 lm	155 lm/W
334255W	DUPLO-SPX-255-840-334	4000K	80	54,936 lm	164 lm/W
334255W	DUPLO-SPX-255-850-334	5000K	80	54,576 lm	163 lm/W
334255W	DUPLO-SPX-255-865-334	6500K	80	53,856 lm	161 lm/W
