DUPLO-SP Pendant LED

Efficacy

159-169 lm/W

CRI

IP43

Warranty

5 years

The DUPLO-SP series LED luminaires are designed to deliver uniform illumination across work surfaces, where visual precision and comfort are essential.

They provide powerful, shadow-free lighting over large areas, even from low mounting heights, ensuring excellent visual clarity in demanding environments.

Constructed from aluminium and finished with electrostatic powder coating in any RAL colour, they can be installed suspended or surface-mounted.

Available in colour temperatures from 3000 K to 6500 K, with luminous flux up to 39 564 lm. Each luminaire comes with a 5-year warranty, ensuring long-term performance and reliability.

✉️ Request Quote Download PDF

📐

Calculate Required Luminaires

Via Techlumen Lux Calculator

📄

Luminaire Brochure

Detailed specifications

📊

Photometric Files

LDT / IES for lighting design

Technical Specifications

Luminous Flux 4144 - 39564 lm

Power 28 - 230W

Ambient Temperature -30°C to +50°C

Efficacy 159 - 169 lm/W

Power Factor 0.95

CRI 80

CCT 3000K-6500K

IP Rating IP43

IK Rating IK08

Body Aluminium

Finishing Powder coating - RAL color selection

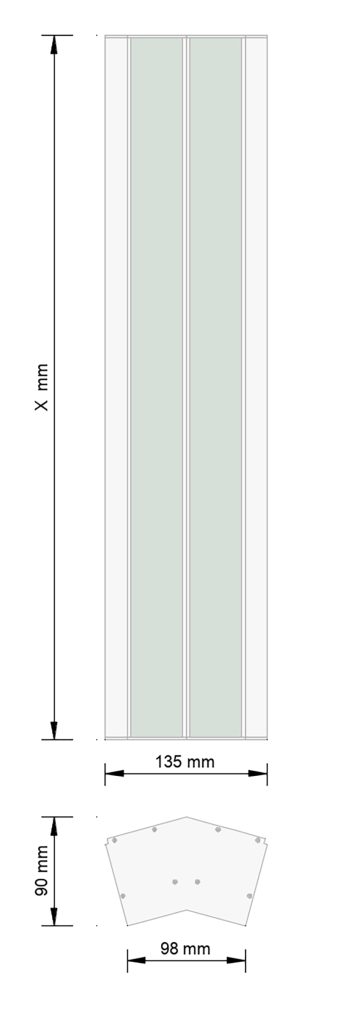

Dimensions 135mm x 90mm x (300 - 2550)mm

Weight 1.8 - 9.2 kg

Warranty 5 years

Certifications & Compliance

CE ROHS EN 60598-1 EN 61000-3 EN 61547 EN 55015 EN 62471 EN 62493 EN 63000

Available Versions

Power	Code	CCT	CRI	Lumen	Efficacy
2830W	DUPLO-SP-30-830-28	3000K	80	4,144 lm	159 lm/W
2830W	DUPLO-SP-30-840-28	4000K	80	4,396 lm	169 lm/W
2830W	DUPLO-SP-30-850-28	5000K	80	4,368 lm	168 lm/W
2830W	DUPLO-SP-30-865-28	6500K	80	4,310 lm	166 lm/W
5260W	DUPLO-SP-60-830-52	3000K	80	8,288 lm	159 lm/W
5260W	DUPLO-SP-60-840-52	4000K	80	8,792 lm	169 lm/W
5260W	DUPLO-SP-60-850-52	5000K	80	8,736 lm	168 lm/W
5260W	DUPLO-SP-60-865-52	6500K	80	8,620 lm	166 lm/W
7885W	DUPLO-SP-85-830-78	3000K	80	12,432 lm	159 lm/W
7885W	DUPLO-SP-85-840-78	4000K	80	13,188 lm	169 lm/W
7885W	DUPLO-SP-85-850-78	5000K	80	13,104 lm	168 lm/W
7885W	DUPLO-SP-85-865-78	6500K	80	12,930 lm	166 lm/W
102115W	DUPLO-SP-115-830-102	3000K	80	16,576 lm	163 lm/W
102115W	DUPLO-SP-115-840-102	4000K	80	17,584 lm	172 lm/W
102115W	DUPLO-SP-115-850-102	5000K	80	17,472 lm	171 lm/W
102115W	DUPLO-SP-115-865-102	6500K	80	17,240 lm	169 lm/W
128142W	DUPLO-SP-142-830-128	3000K	80	20,720 lm	162 lm/W
128142W	DUPLO-SP-142-840-128	4000K	80	21,980 lm	172 lm/W
128142W	DUPLO-SP-142-850-128	5000K	80	21,840 lm	171 lm/W
128142W	DUPLO-SP-142-865-128	6500K	80	21,550 lm	168 lm/W
154170W	DUPLO-SP-170-830-154	3000K	80	24,864 lm	161 lm/W
154170W	DUPLO-SP-170-840-154	4000K	80	26,376 lm	171 lm/W
154170W	DUPLO-SP-170-850-154	5000K	80	26,208 lm	170 lm/W
154170W	DUPLO-SP-170-865-154	6500K	80	25,860 lm	168 lm/W
178200W	DUPLO-SP-200-830-178	3000K	80	29,008 lm	163 lm/W
178200W	DUPLO-SP-200-840-178	4000K	80	30,772 lm	173 lm/W
178200W	DUPLO-SP-200-850-178	5000K	80	30,576 lm	172 lm/W
178200W	DUPLO-SP-200-865-178	6500K	80	30,170 lm	169 lm/W
204225W	DUPLO-SP-225-830-204	3000K	80	33,152 lm	163 lm/W
204225W	DUPLO-SP-225-840-204	4000K	80	35,168 lm	172 lm/W
204225W	DUPLO-SP-225-850-204	5000K	80	34,944 lm	171 lm/W
204225W	DUPLO-SP-225-865-204	6500K	80	34,480 lm	169 lm/W
230255W	DUPLO-SP-255-830-230	3000K	80	37,296 lm	162 lm/W
230255W	DUPLO-SP-255-840-230	4000K	80	39,564 lm	172 lm/W
230255W	DUPLO-SP-255-850-230	5000K	80	39,312 lm	171 lm/W
230255W	DUPLO-SP-255-865-230	6500K	80	38,790 lm	169 lm/W
