Bar - Restaurants

NODO- wall light

CRI
80
IP
IP44
Warranty
5 years

The NODO light fixture combines modern minimalism with rustic inspiration. Its circular base elegantly supports a looped, fabric-covered LED light source that mimics the natural form of a rope.

It casts a soft, diffused glow, creating a warm and welcoming atmosphere.

Customisable in any RAL colour, NODO seamlessly fits into a variety of interior styles — from contemporary to traditional. It features energy-efficient LED technology and comes with a 5-year warranty.

NODO adds a touch of elegance and warmth to any space, balancing design and illumination with unique character.

Technical Specifications

Luminous Flux 620 - 2770 lm
Power 10 - 32W
Ambient Temperature -30°C to +40°C
Power Factor 0.95
CRI 80
CCT 2700K-4000K
IP Rating IP44
IK Rating IK06
Body Aluminium
Finishing Powder coating  - RAL color selection
Dimensions Φ155 (base)
Weight 0.5 kg
Warranty 5 years

Certifications & Compliance

CE ROHS EN 60598-1 EN 61000-3 EN 61547 EN 55015 EN 62471 EN 62493 EN 63000

Available Versions

Power Code CCT CRI Lumen Efficacy
10W NODO-L1-827-10 2700K 80 620 lm 0 lm/W
10W NODO-L1-830-10 3000K 80 655 lm 0 lm/W
10W NODO-L1-840-10 4000K 80 690 lm 0 lm/W
21W NODO-L2-827-21 2700K 80 1,240 lm 0 lm/W
21W NODO-L2-830-21 3000K 80 1,315 lm 0 lm/W
21W NODO-L2-840-21 4000K 80 1,390 lm 0 lm/W
32W NODO-L3-827-32 2700K 80 2,485 lm 0 lm/W
32W NODO-L3-830-32 3000K 80 2,630 lm 0 lm/W
32W NODO-L3-840-32 4000K 80 2,770 lm 0 lm/W

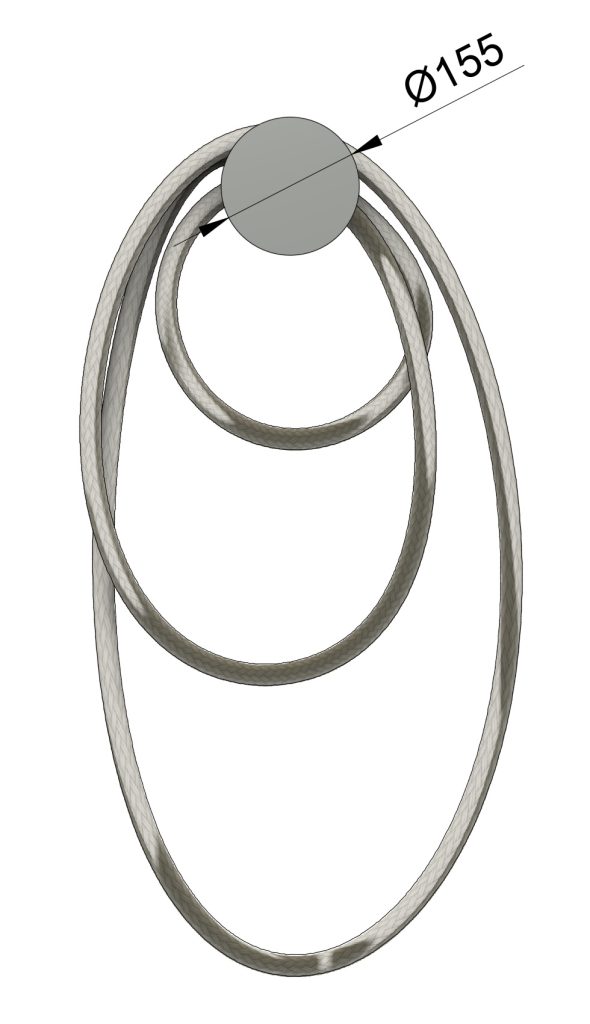

Technical Drawing

Polar Intensity Diagrams

Polar Diagram
Polar Diagram
