MG-LINE

Efficacy

100-149 lm/W

CRI

80-90

IP33

Warranty

5 years

MG-LINE linear fixtures are purpose-built for MG-20 48 V magnetic tracks, delivering a sleek, architectural lighting solution.

They offer 2700 K – 6500 K CCT options with CRI up to 90 for vivid, accurate colour rendering, and luminous flux up to 4,866 lm for uniform coverage of larger areas.

Consistent performance with L80 > 70,000 h and a 5-year warranty.

Applications:
Retail · Exhibition halls · Open-plan offices · Meeting rooms · Lobbies · Residential interiors

✉️ Request Quote Download PDF

📐

Calculate Required Luminaires

Via Techlumen Lux Calculator

📄

Luminaire Brochure

Detailed specifications

📊

Photometric Files

LDT / IES for lighting design

Technical Specifications

Luminous Flux 667 - 4866 lm

Power 6 - 36W

Ambient Temperature -30°C to +50°C

Efficacy 100 - 149 lm/W

CRI 80-90

CCT 2700K-6500K

IP Rating IP33

Body Aluminium

Finishing Black / White / Other RAL optional

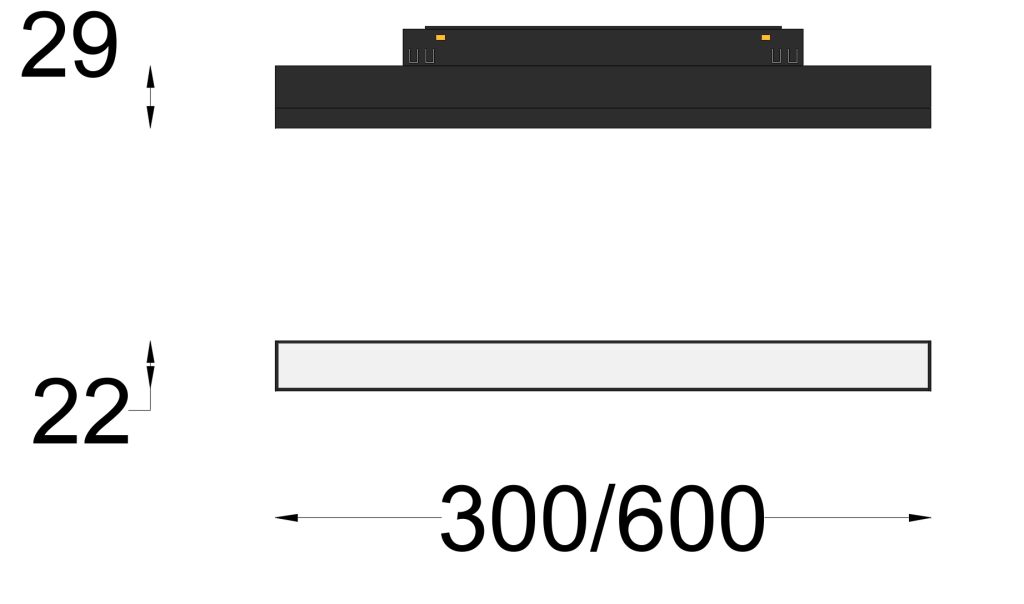

Dimensions 22x29x (300-600)mm

Weight 0.4 - 0.7 kg

Warranty 5 years

Certifications & Compliance

ROHS EN 60598-1 EN 61000-3 EN 61547 EN 55015 EN 62471 EN 62493 EN 63000

Available Versions

Power	Code	CCT	CRI	Lumen	Efficacy
30W	MG-LINE-30-827-6	6K	2700	80 lm	843 lm/W
30W	MG-LINE-30-830-6	3000K	80	830 lm	138 lm/W
30W	MG-LINE-30-840-6	4000K	80	873 lm	146 lm/W
30W	MG-LINE-30-850-6	5000K	80	894 lm	149 lm/W
30W	MG-LINE-30-865-6	6500K	80	885 lm	148 lm/W
30W	MG-LINE-30-827-8	8K	2700	80 lm	1058 lm/W
30W	MG-LINE-30-830-8	3000K	80	1,107 lm	138 lm/W
30W	MG-LINE-30-840-8	4000K	80	1,164 lm	146 lm/W
30W	MG-LINE-30-850-8	5000K	80	1,142 lm	143 lm/W
30W	MG-LINE-30-865-8	6500K	80	1,131 lm	141 lm/W
30W	MG-LINE-30-827-12	12K	2700	80 lm	1474 lm/W
30W	MG-LINE-30-830-12	3000K	80	1,661 lm	138 lm/W
30W	MG-LINE-30-840-12	4000K	80	1,746 lm	146 lm/W
30W	MG-LINE-30-830-18	18K	2700	80 lm	2313 lm/W
30W	MG-LINE-30-840-18	3000K	80	2,433 lm	135 lm/W
60W	MG-LINE-60-827-12	12K	2700	80 lm	1686 lm/W
60W	MG-LINE-60-830-12	3000K	80	1,660 lm	138 lm/W
60W	MG-LINE-60-840-12	4000K	80	1,746 lm	146 lm/W
60W	MG-LINE-60-850-12	5000K	80	1,788 lm	149 lm/W
60W	MG-LINE-60-865-12	6500K	80	1,770 lm	148 lm/W
60W	MG-LINE-60-827-16	16K	2700	80 lm	2116 lm/W
60W	MG-LINE-60-830-16	3000K	80	2,214 lm	138 lm/W
60W	MG-LINE-60-840-16	4000K	80	2,328 lm	146 lm/W
60W	MG-LINE-60-850-16	5000K	80	2,284 lm	143 lm/W
60W	MG-LINE-60-865-16	6500K	80	2,262 lm	141 lm/W
60W	MG-LINE-60-827-24	24K	2700	80 lm	2948 lm/W
60W	MG-LINE-60-830-24	3000K	80	3,322 lm	138 lm/W
60W	MG-LINE-60-840-24	4000K	80	3,492 lm	146 lm/W
60W	MG-LINE-60-830-36	36K	2700	80 lm	4626 lm/W
60W	MG-LINE-60-840-36	3000K	80	4,866 lm	135 lm/W
60W	Length (cm)	CodeK	0	0 lm	0 lm/W
30W	MG-LINE-30-927-6	6K	2700	90 lm	667 lm/W
30W	MG-LINE-30-930-6	3000K	90	689 lm	115 lm/W
30W	MG-LINE-30-935-6	3500K	90	696 lm	116 lm/W
30W	MG-LINE-30-940-6	4000K	90	735 lm	123 lm/W
30W	MG-LINE-30-927-8	8K	2700	90 lm	857 lm/W
30W	MG-LINE-30-930-8	3000K	90	918 lm	115 lm/W
30W	MG-LINE-30-935-8	3500K	90	970 lm	121 lm/W
30W	MG-LINE-30-940-8	4000K	90	959 lm	120 lm/W
30W	MG-LINE-30-927-12	12K	2700	90 lm	1194 lm/W
30W	MG-LINE-30-930-12	3000K	90	1,278 lm	107 lm/W
30W	MG-LINE-30-940-12	4000K	90	1,335 lm	111 lm/W
60W	MG-LINE-60-927-12	12K	2700	90 lm	1334 lm/W
60W	MG-LINE-60-930-12	3000K	90	1,378 lm	115 lm/W
60W	MG-LINE-60-935-12	3500K	90	1,392 lm	116 lm/W
60W	MG-LINE-60-940-12	4000K	90	1,470 lm	123 lm/W
60W	MG-LINE-60-927-16	16K	2700	90 lm	1714 lm/W
60W	MG-LINE-60-930-16	3000K	90	1,836 lm	115 lm/W
60W	MG-LINE-60-935-16	3500K	90	1,940 lm	121 lm/W
60W	MG-LINE-60-940-16	4000K	90	1,918 lm	120 lm/W
60W	MG-LINE-60-927-24	24K	2700	90 lm	2388 lm/W
60W	MG-LINE-60-930-24	3000K	90	2,556 lm	107 lm/W
60W	MG-LINE-60-940-24	4000K	90	2,670 lm	111 lm/W
