MG-RAY-80

Efficacy

148-181 lm/W

CRI

80-90

IP20

Warranty

5 years

The MG-RAY-80 LED fixtures are a powerful architectural lighting solution, featuring a Ø80 mm × 120 mm compact body that delivers presence with style.

Compatible with the MG-20 48 V magnetic track, they come with multiple optics: 11°–55° beam angles or an oval asymmetric distribution for precise accent or wider coverage.

Available in 2700 K – 5000 K CCT with CRI up to 97 and luminous flux up to 4,550 lm. Long-term consistency L80 > 70,000 h and a 5-year warranty ensure reliability and low maintenance.

MG-20 48 V Magnetic Track System
Compatible low-voltage magnetic track

Applications:
Retail · Exhibition spaces · Museums · Offices · Hotels · Restaurants · Residences

✉️ Request Quote Download PDF

📐

Calculate Required Luminaires

Via Techlumen Lux Calculator

📄

Luminaire Brochure

Detailed specifications

📊

Photometric Files

LDT / IES for lighting design

Technical Specifications

Luminous Flux 1960 - 4550 lm

Power 13 - 27W

Ambient Temperature -30°C to +50°C

Efficacy 148 - 181 lm/W

CRI 80-90

CCT 2700K-5000K

IP Rating IP20

Body Aluminium

Finishing Black / White / Other RAL optional

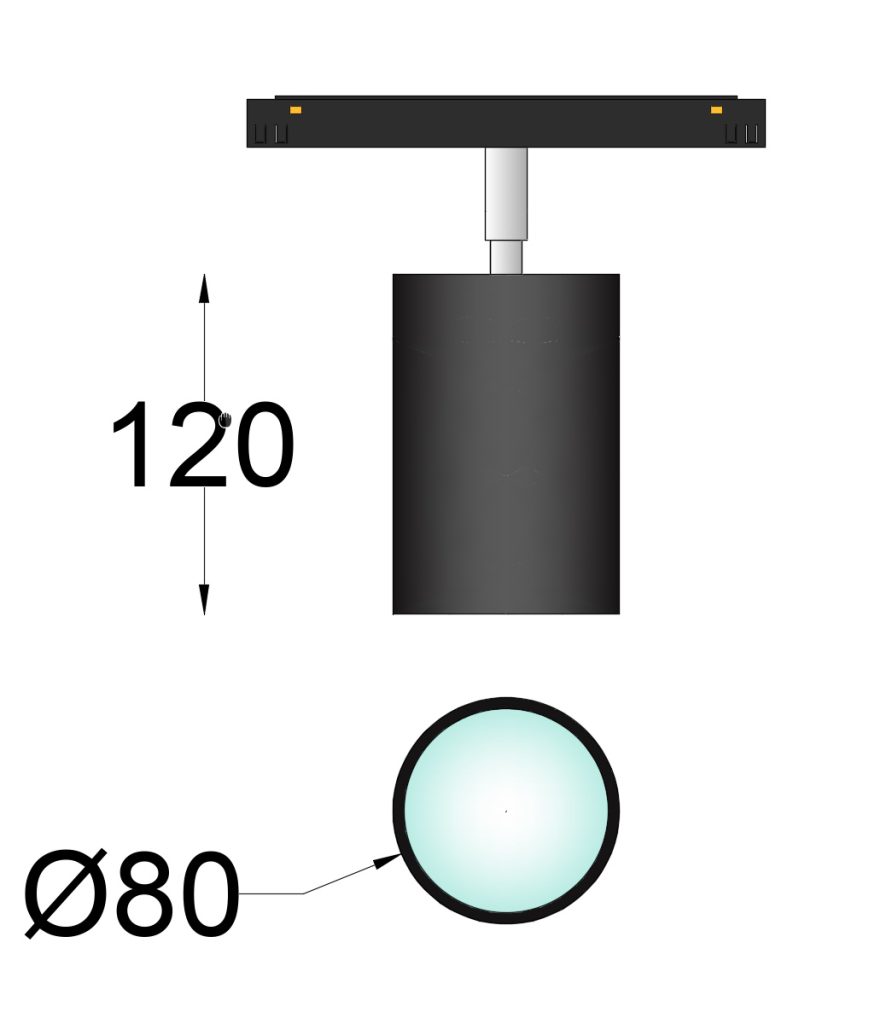

Dimensions Φ80 - H120

Weight 1 kg

Warranty 5 years

Certifications & Compliance

ROHS EN 60598-1 EN 61000-3 EN 61547 EN 55015 EN 62471 EN 62493 EN 63000

Available Versions

Power	Code	CCT	CRI	Lumen	Efficacy
13W	MG-RAY-80-827-13	2700K	80	2,145 lm	165 lm/W
13W	MG-RAY-80-830-13	3000K	80	2,190 lm	168 lm/W
13W	MG-RAY-80-835-13	3500K	80	2,200 lm	169 lm/W
13W	MG-RAY-80-840-13	4000K	80	2,210 lm	170 lm/W
13W	MG-RAY-80-850-13	5000K	80	2,170 lm	167 lm/W
13W	MG-RAY-80-927-13	2700K	90	1,960 lm	151 lm/W
13W	MG-RAY-80-930-13	3000K	90	2,000 lm	154 lm/W
13W	MG-RAY-80-935-13	3500K	90	2,020 lm	155 lm/W
13W	MG-RAY-80-940-13	4000K	90	2,040 lm	157 lm/W
13W	MG-RAY-80-950-13	5000K	90	1,980 lm	152 lm/W
18W	MG-RAY-80-827-18	2700K	80	3,150 lm	175 lm/W
18W	MG-RAY-80-830-18	3000K	80	3,220 lm	179 lm/W
18W	MG-RAY-80-835-18	3500K	80	3,230 lm	179 lm/W
18W	MG-RAY-80-840-18	4000K	80	3,250 lm	181 lm/W
18W	MG-RAY-80-850-18	5000K	80	3,190 lm	177 lm/W
18W	MG-RAY-80-927-18	2700K	90	2,950 lm	164 lm/W
18W	MG-RAY-80-930-18	3000K	90	3,000 lm	167 lm/W
18W	MG-RAY-80-935-18	3500K	90	3,030 lm	168 lm/W
18W	MG-RAY-80-940-18	4000K	90	3,060 lm	170 lm/W
18W	MG-RAY-80-950-18	5000K	90	2,980 lm	166 lm/W
27W	MG-RAY-80-827-27	2700K	80	4,410 lm	163 lm/W
27W	MG-RAY-80-830-27	3000K	80	4,510 lm	167 lm/W
27W	MG-RAY-80-835-27	3500K	80	4,520 lm	167 lm/W
27W	MG-RAY-80-840-27	4000K	80	4,550 lm	169 lm/W
27W	MG-RAY-80-850-27	5000K	80	4,465 lm	165 lm/W
27W	MG-RAY-80-927-27	2700K	90	3,990 lm	148 lm/W
27W	MG-RAY-80-930-27	3000K	90	4,070 lm	151 lm/W
27W	MG-RAY-80-935-27	3500K	90	4,110 lm	152 lm/W
27W	MG-RAY-80-940-27	4000K	90	4,150 lm	154 lm/W
27W	MG-RAY-80-950-27	5000K	90	4,030 lm	149 lm/W
