MG-RAY-38

Efficacy

107-179 lm/W

CRI

80-90

IP20

Warranty

5 years

The MG-RAY-38 LED fixtures are engineered with precision and elegance, featuring a compact Ø38 mm × 85 mm body — ideal when discreet, small-form luminaires are required. Compatible with the MG-20 48 V magnetic track.

They offer multiple optics with beam angles 12°–55°, CCT options 2700 K – 5000 K and CRI up to 97, delivering up to 1600 lm with excellent colour fidelity.

Long-term consistency L80 > 70,000 h and a 5-year warranty ensure reliability. The slim, minimalist design adds a refined touch to any interior.

Applications:
Retail · Exhibition spaces · Offices · Restaurants · Residences · Hotels

✉️ Request Quote Download PDF

📐

Calculate Required Luminaires

Via Techlumen Lux Calculator

📄

Luminaire Brochure

Detailed specifications

📊

Photometric Files

LDT / IES for lighting design

Technical Specifications

Luminous Flux 320 - 1610 lm

Power 3 - 9W

Ambient Temperature -30°C to +50°C

Efficacy 107 - 179 lm/W

CRI 80-90

CCT 2700KK-5000KK

IP Rating IP20

IK Rating IK06

Body Aluminium

Finishing Black / White / Other RAL optional

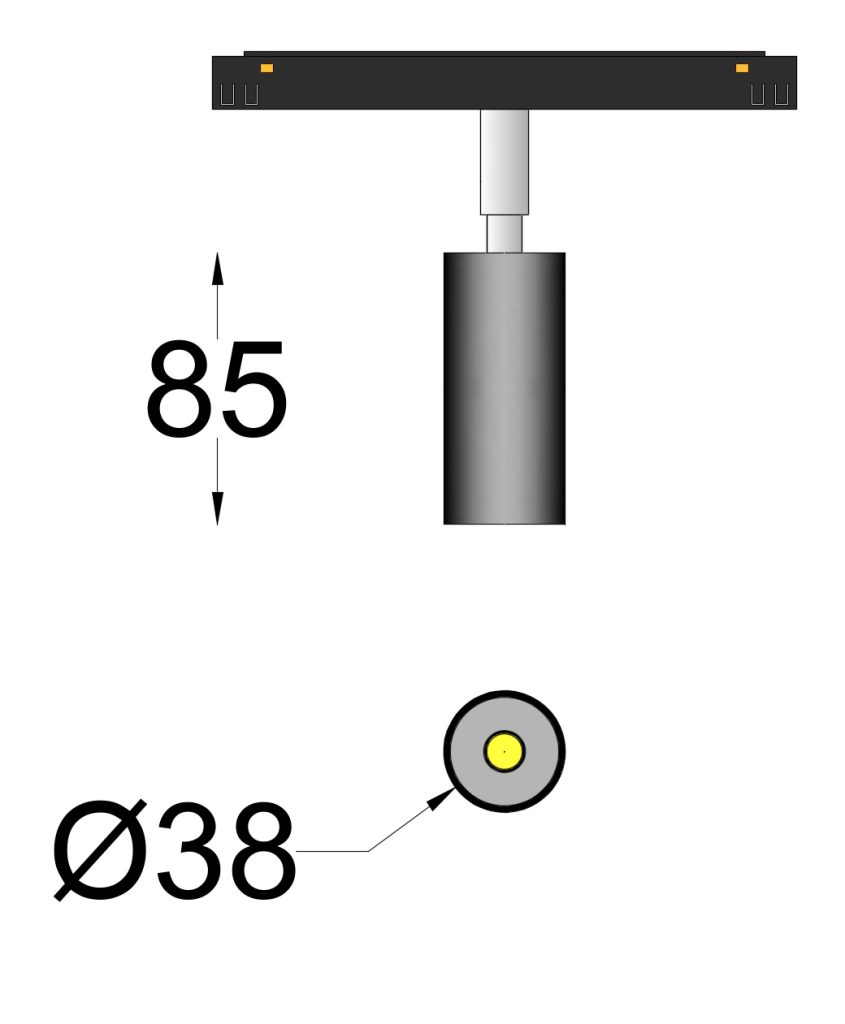

Dimensions Φ38 - H85

Weight 0.4 kg

Warranty 5 years

Certifications & Compliance

ROHS EN 60598-1 EN 61000-3 EN 61547 EN 55015 EN 62471 EN 62493 EN 63000

Available Versions

Power	Code	CCT	CRI	Lumen	Efficacy
3W	MG-RAY-38-827-3	2700	80	455 lm	152 lm/W
3W	MG-RAY-38-830-3	3000	80	465 lm	155 lm/W
3W	MG-RAY-38-835-3	3500	80	470 lm	157 lm/W
3W	MG-RAY-38-840-3	4000	80	475 lm	158 lm/W
3W	MG-RAY-38-850-3	5000	80	460 lm	153 lm/W
3W	MG-RAY-38-927-3	2700	90	320 lm	107 lm/W
3W	MG-RAY-38-930-3	3000	90	335 lm	112 lm/W
3W	MG-RAY-38-935-3	3500	90	350 lm	117 lm/W
3W	MG-RAY-38-940-3	4000	90	360 lm	120 lm/W
3W	MG-RAY-38-950-3	5000	90	375 lm	125 lm/W
6W	MG-RAY-38-827-6	2700	80	951 lm	159 lm/W
6W	MG-RAY-38-830-6	3000	80	970 lm	162 lm/W
6W	MG-RAY-38-835-6	3500	80	975 lm	163 lm/W
6W	MG-RAY-38-840-6	4000	80	980 lm	163 lm/W
6W	MG-RAY-38-850-6	5000	80	960 lm	160 lm/W
6W	MG-RAY-38-927-6	2700	90	860 lm	143 lm/W
6W	MG-RAY-38-930-6	3000	90	875 lm	146 lm/W
6W	MG-RAY-38-935-6	3500	90	880 lm	147 lm/W
6W	MG-RAY-38-940-6	4000	90	890 lm	148 lm/W
6W	MG-RAY-38-950-6	5000	90	870 lm	145 lm/W
9W	MG-RAY-38-827-9	2700	80	1,560 lm	173 lm/W
9W	MG-RAY-38-830-9	3000	80	1,590 lm	177 lm/W
9W	MG-RAY-38-835-9	3500	80	1,600 lm	178 lm/W
9W	MG-RAY-38-840-9	4000	80	1,610 lm	179 lm/W
9W	MG-RAY-38-850-9	5000	80	1,580 lm	176 lm/W
9W	MG-RAY-38-927-9	2700	90	1,440 lm	160 lm/W
9W	MG-RAY-38-930-9	3000	90	1,470 lm	163 lm/W
9W	MG-RAY-38-935-9	3500	90	1,490 lm	166 lm/W
9W	MG-RAY-38-940-9	4000	90	1,510 lm	168 lm/W
9W	MG-RAY-38-950-9	5000	90	1,460 lm	162 lm/W
