MG-RAY-25 Magnetic track LED spot

Efficacy

93-171 lm/W

CRI

80-90

IP20

Warranty

5 years

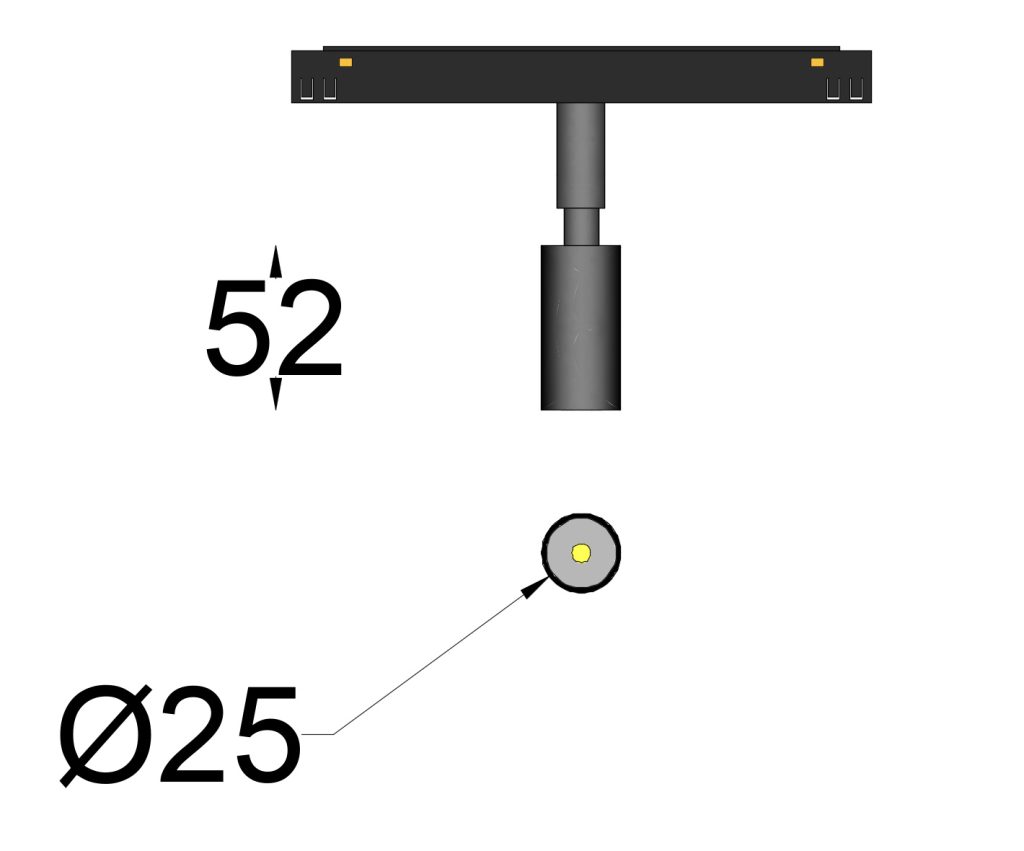

The MG-RAY-25 LED fixtures feature a compact 25 mm diameter and 52 mm height, making them perfect for applications requiring small, discreet luminaires.

Compatible with the MG-20 48 V magnetic track system, they offer multiple optics options with beam angles from 24° to 70°, providing flexibility for accent or general lighting.

With colour temperatures from 2700 K to 6500 K and a high CRI up to 97, the MG-RAY-25 ensures vivid and accurate colour rendering. It delivers up to 1029 lm with stable performance (L80 > 70 000 h) and comes with a 5-year warranty.

Its slender profile and minimalist design make the MG-RAY-25 an elegant choice for modern interiors seeking refined, architectural lighting.

Applications:
Retail · Exhibition spaces · Offices · Residences · Hotels · Museums

✉️ Request Quote Download PDF

📐

Calculate Required Luminaires

Via Techlumen Lux Calculator

📄

Luminaire Brochure

Detailed specifications

📊

Photometric Files

LDT / IES for lighting design

Technical Specifications

Luminous Flux 320 - 980 lm

Power 3 - 6W

Ambient Temperature -30°C to +50°C

Efficacy 93 - 171 lm/W

CRI 80-90

CCT 2700K-5000K

IP Rating IP20

Body Aluminium

Finishing Black / White / Other RAL optional

Dimensions Φ25 - H52

Weight 0.3 kg

Warranty 5 years

Certifications & Compliance

ROHS EN 60598-1 EN 61000-3 EN 61547 EN 55015 EN 62471 EN 62493 EN 63000

Available Versions

Power	Code	CCT	CRI	Lumen	Efficacy
3W	MG-RAY-25-827-3	2700K	80	455 lm	152 lm/W
3W	MG-RAY-25-830-3	3000K	80	465 lm	155 lm/W
3W	MG-RAY-25-835-3	3500K	80	470 lm	157 lm/W
3W	MG-RAY-25-840-3	4000K	80	475 lm	158 lm/W
3W	MG-RAY-25-850-3	5000K	80	460 lm	153 lm/W
3W	MG-RAY-25-927-3	2700K	90	320 lm	107 lm/W
3W	MG-RAY-25-930-3	3000K	90	335 lm	112 lm/W
3W	MG-RAY-25-935-3	3500K	90	350 lm	117 lm/W
3W	MG-RAY-25-940-3	4000K	90	360 lm	120 lm/W
3W	MG-RAY-25-950-3	5000K	90	375 lm	125 lm/W
6W	MG-RAY-25-827-6	2700K	80	951 lm	159 lm/W
6W	MG-RAY-25-830-6	3000K	80	970 lm	162 lm/W
6W	MG-RAY-25-835-6	3500K	80	975 lm	163 lm/W
6W	MG-RAY-25-840-6	4000K	80	980 lm	163 lm/W
6W	MG-RAY-25-850-6	5000K	80	960 lm	160 lm/W
6W	MG-RAY-25-927-6	2700K	90	860 lm	143 lm/W
6W	MG-RAY-25-930-6	3000K	90	875 lm	146 lm/W
6W	MG-RAY-25-935-6	3500K	90	880 lm	147 lm/W
6W	MG-RAY-25-940-6	4000K	90	890 lm	148 lm/W
6W	MG-RAY-25-950-6	5000K	90	870 lm	145 lm/W
