STIK Linear LED fixture

Efficacy

134-181 lm/W

CRI

80-90

IP33

Warranty

5 years

LED Techlumen STIK series have a slim profile offering uniform lighting
They are made of aluminum and are extremely lightweight.
They are produced in a great range of CCT, 2700K – 6500K and with CRI up to 90.
They are DALI controlled. On-body button dimming is optional.
They are produced in various lenghts and in 7 versions of light distribution.
All STIK series luminaires have 5 year warranty.

Luminaire brochure

✉️ Request Quote Download PDF

📐

Calculate Required Luminaires

Via Techlumen Lux Calculator

📄

Luminaire Brochure

Detailed specifications

📊

Photometric Files

LDT / IES for lighting design

Technical Specifications

Luminous Flux 310 - 1250 lm

Power 6 - 75W

Ambient Temperature -30°C to +40°C

Efficacy 134 - 181 lm/W

CRI 80-90

CCT 3000K-6500K

IP Rating IP33

Body Aluminium

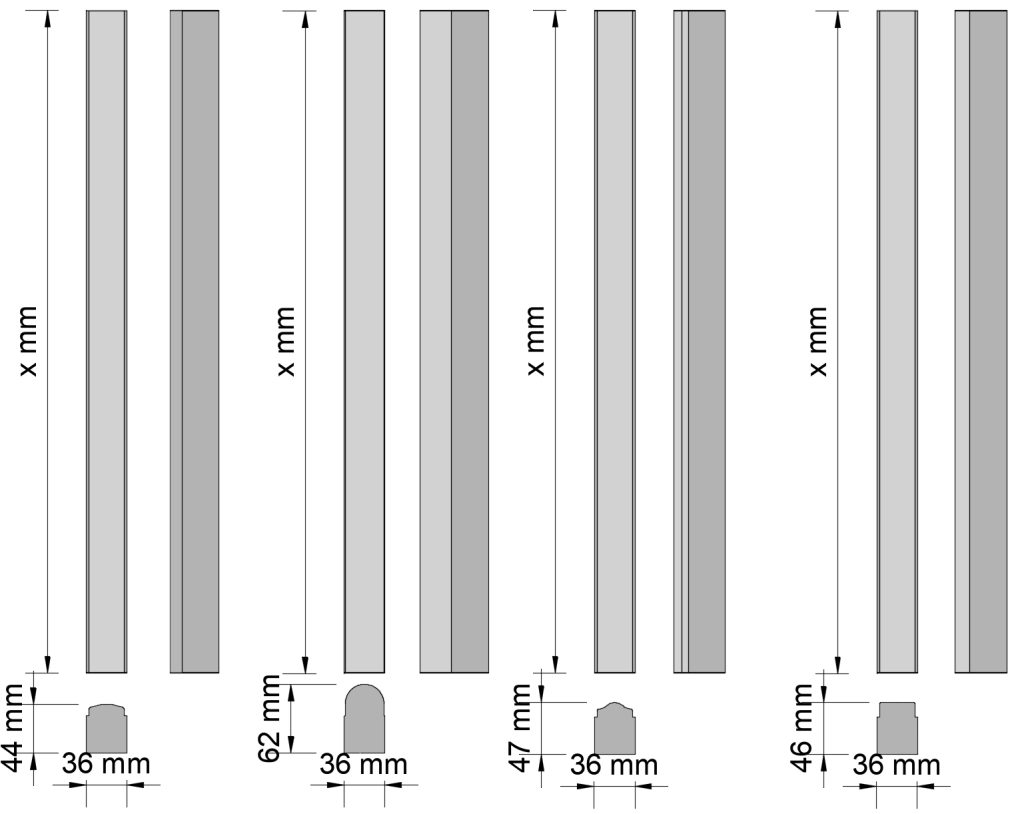

Dimensions 34mm x 62mm x (400- 700)

Weight 1 - 1.5 kg

Warranty 5 years

Certifications & Compliance

CE ROHS EN 60598-1 EN 61000-3 EN 61547 EN 55015 EN 62471 EN 62493 EN 63000

Available Versions

Power	Code	CCT	CRI	Lumen	Efficacy
306W	STIK-30-827-6	2700K	80	1,002 lm	167 lm/W
306W	STIK-30-927-6	2700K	90	805 lm	134 lm/W
306W	STIK-30-830-6	3000K	80	1,025 lm	171 lm/W
306W	STIK-30-930-6	3000K	90	877 lm	146 lm/W
306W	STIK-30-835-6	3500K	80	1,060 lm	177 lm/W
306W	STIK-30-935-6	3500K	90	900 lm	150 lm/W
306W	STIK-30-840-6	4000K	80	1,087 lm	181 lm/W
306W	STIK-30-940-6	4000K	90	912 lm	152 lm/W
306W	STIK-30-850-6	5000K	80	1,080 lm	180 lm/W
306W	STIK-30-865-6	6500K	80	1,068 lm	178 lm/W
459W	STIK-45-827-9	2700K	80	1,503 lm	167 lm/W
459W	STIK-45-927-9	2700K	90	1,208 lm	134 lm/W
459W	STIK-45-830-9	3000K	80	1,538 lm	171 lm/W
459W	STIK-45-930-9	3000K	90	1,316 lm	146 lm/W
459W	STIK-45-835-9	3500K	80	1,590 lm	177 lm/W
459W	STIK-45-935-9	3500K	90	1,350 lm	150 lm/W
459W	STIK-45-840-9	4000K	80	1,631 lm	181 lm/W
459W	STIK-45-940-9	4000K	90	1,368 lm	152 lm/W
459W	STIK-45-850-9	5000K	80	1,620 lm	180 lm/W
459W	STIK-45-865-9	6500K	80	1,602 lm	178 lm/W
6012W	STIK-60-827-12	2700K	80	2,004 lm	167 lm/W
6012W	STIK-60-927-12	2700K	90	1,610 lm	134 lm/W
6012W	STIK-60-830-12	3000K	80	2,050 lm	171 lm/W
6012W	STIK-60-930-12	3000K	90	1,754 lm	146 lm/W
6012W	STIK-60-835-12	3500K	80	2,120 lm	177 lm/W
6012W	STIK-60-935-12	3500K	90	1,800 lm	150 lm/W
6012W	STIK-60-840-12	4000K	80	2,174 lm	181 lm/W
6012W	STIK-60-940-12	4000K	90	1,824 lm	152 lm/W
6012W	STIK-60-850-12	5000K	80	2,160 lm	180 lm/W
6012W	STIK-60-865-12	6500K	80	2,136 lm	178 lm/W
7215W	STIK-72-827-15	2700K	80	2,505 lm	167 lm/W
7215W	STIK-72-927-15	2700K	90	2,013 lm	134 lm/W
7215W	STIK-72-830-15	3000K	80	2,563 lm	171 lm/W
7215W	STIK-72-930-15	3000K	90	2,193 lm	146 lm/W
7215W	STIK-72-835-15	3500K	80	2,650 lm	177 lm/W
7215W	STIK-72-935-15	3500K	90	2,250 lm	150 lm/W
7215W	STIK-72-840-15	4000K	80	2,718 lm	181 lm/W
7215W	STIK-72-940-15	4000K	90	2,280 lm	152 lm/W
7215W	STIK-72-850-15	5000K	80	2,700 lm	180 lm/W
7215W	STIK-72-865-15	6500K	80	2,670 lm	178 lm/W
8518W	STIK-85-827-18	2700K	80	3,006 lm	167 lm/W
8518W	STIK-85-927-18	2700K	90	2,415 lm	134 lm/W
8518W	STIK-85-830-18	3000K	80	3,075 lm	171 lm/W
8518W	STIK-85-930-18	3000K	90	2,631 lm	146 lm/W
8518W	STIK-85-835-18	3500K	80	3,180 lm	177 lm/W
8518W	STIK-85-935-18	3500K	90	2,700 lm	150 lm/W
8518W	STIK-85-840-18	4000K	80	3,261 lm	181 lm/W
8518W	STIK-85-940-18	4000K	90	2,736 lm	152 lm/W
8518W	STIK-85-850-18	5000K	80	3,240 lm	180 lm/W
8518W	STIK-85-865-18	6500K	80	3,204 lm	178 lm/W
10021W	STIK-100-827-21	2700K	80	3,507 lm	167 lm/W
10021W	STIK-100-927-21	2700K	90	2,818 lm	134 lm/W
10021W	STIK-100-830-21	3000K	80	3,588 lm	171 lm/W
10021W	STIK-100-930-21	3000K	90	3,070 lm	146 lm/W
10021W	STIK-100-835-21	3500K	80	3,710 lm	177 lm/W
10021W	STIK-100-935-21	3500K	90	3,150 lm	150 lm/W
10021W	STIK-100-840-21	4000K	80	3,805 lm	181 lm/W
10021W	STIK-100-940-21	4000K	90	3,192 lm	152 lm/W
10021W	STIK-100-850-21	5000K	80	3,780 lm	180 lm/W
10021W	STIK-100-865-21	6500K	80	3,738 lm	178 lm/W
11524W	STIK-115-827-24	2700K	80	4,008 lm	167 lm/W
11524W	STIK-115-927-24	2700K	90	3,220 lm	134 lm/W
11524W	STIK-115-830-24	3000K	80	4,100 lm	171 lm/W
11524W	STIK-115-930-24	3000K	90	3,508 lm	146 lm/W
11524W	STIK-115-835-24	3500K	80	4,240 lm	177 lm/W
11524W	STIK-115-935-24	3500K	90	3,600 lm	150 lm/W
11524W	STIK-115-840-24	4000K	80	4,348 lm	181 lm/W
11524W	STIK-115-940-24	4000K	90	3,648 lm	152 lm/W
11524W	STIK-115-850-24	5000K	80	4,320 lm	180 lm/W
11524W	STIK-115-865-24	6500K	80	4,272 lm	178 lm/W
12827W	STIK-128-827-27	2700K	80	4,509 lm	167 lm/W
12827W	STIK-128-927-27	2700K	90	3,623 lm	134 lm/W
12827W	STIK-128-830-27	3000K	80	4,613 lm	171 lm/W
12827W	STIK-128-930-27	3000K	90	3,947 lm	146 lm/W
12827W	STIK-128-835-27	3500K	80	4,770 lm	177 lm/W
12827W	STIK-128-935-27	3500K	90	4,050 lm	150 lm/W
12827W	STIK-128-840-27	4000K	80	4,892 lm	181 lm/W
12827W	STIK-128-940-27	4000K	90	4,104 lm	152 lm/W
12827W	STIK-128-850-27	5000K	80	4,860 lm	180 lm/W
12827W	STIK-128-865-27	6500K	80	4,806 lm	178 lm/W
14230W	STIK-142-827-30	2700K	80	5,010 lm	167 lm/W
14230W	STIK-142-927-30	2700K	90	4,025 lm	134 lm/W
14230W	STIK-142-830-30	3000K	80	5,125 lm	171 lm/W
14230W	STIK-142-930-30	3000K	90	4,385 lm	146 lm/W
14230W	STIK-142-835-30	3500K	80	5,300 lm	177 lm/W
14230W	STIK-142-935-30	3500K	90	4,500 lm	150 lm/W
14230W	STIK-142-840-30	4000K	80	5,435 lm	181 lm/W
14230W	STIK-142-940-30	4000K	90	4,560 lm	152 lm/W
14230W	STIK-142-850-30	5000K	80	5,400 lm	180 lm/W
14230W	STIK-142-865-30	6500K	80	5,340 lm	178 lm/W
15533W	STIK-155-827-33	2700K	80	5,511 lm	167 lm/W
15533W	STIK-155-927-33	2700K	90	4,428 lm	134 lm/W
15533W	STIK-155-830-33	3000K	80	5,638 lm	171 lm/W
15533W	STIK-155-930-33	3000K	90	4,824 lm	146 lm/W
15533W	STIK-155-835-33	3500K	80	5,830 lm	177 lm/W
15533W	STIK-155-935-33	3500K	90	4,950 lm	150 lm/W
15533W	STIK-155-840-33	4000K	80	5,979 lm	181 lm/W
15533W	STIK-155-940-33	4000K	90	5,016 lm	152 lm/W
15533W	STIK-155-850-33	5000K	80	5,940 lm	180 lm/W
15533W	STIK-155-865-33	6500K	80	5,874 lm	178 lm/W
17036W	STIK-170-827-36	2700K	80	6,012 lm	167 lm/W
17036W	STIK-170-927-36	2700K	90	4,830 lm	134 lm/W
17036W	STIK-170-830-36	3000K	80	6,150 lm	171 lm/W
17036W	STIK-170-930-36	3000K	90	5,262 lm	146 lm/W
17036W	STIK-170-835-36	3500K	80	6,360 lm	177 lm/W
17036W	STIK-170-935-36	3500K	90	5,400 lm	150 lm/W
17036W	STIK-170-840-36	4000K	80	6,522 lm	181 lm/W
17036W	STIK-170-940-36	4000K	90	5,472 lm	152 lm/W
17036W	STIK-170-850-36	5000K	80	6,480 lm	180 lm/W
17036W	STIK-170-865-36	6500K	80	6,408 lm	178 lm/W
18539W	STIK-185-827-39	2700K	80	6,513 lm	167 lm/W
18539W	STIK-185-927-39	2700K	90	5,233 lm	134 lm/W
18539W	STIK-185-830-39	3000K	80	6,663 lm	171 lm/W
18539W	STIK-185-930-39	3000K	90	5,701 lm	146 lm/W
18539W	STIK-185-835-39	3500K	80	6,890 lm	177 lm/W
18539W	STIK-185-935-39	3500K	90	5,850 lm	150 lm/W
18539W	STIK-185-840-39	4000K	80	7,066 lm	181 lm/W
18539W	STIK-185-940-39	4000K	90	5,928 lm	152 lm/W
18539W	STIK-185-850-39	5000K	80	7,020 lm	180 lm/W
18539W	STIK-185-865-39	6500K	80	6,942 lm	178 lm/W
20042W	STIK-200-827-42	2700K	80	7,014 lm	167 lm/W
20042W	STIK-200-927-42	2700K	90	5,635 lm	134 lm/W
20042W	STIK-200-830-42	3000K	80	7,175 lm	171 lm/W
20042W	STIK-200-930-42	3000K	90	6,139 lm	146 lm/W
20042W	STIK-200-835-42	3500K	80	7,420 lm	177 lm/W
20042W	STIK-200-935-42	3500K	90	6,300 lm	150 lm/W
20042W	STIK-200-840-42	4000K	80	7,609 lm	181 lm/W
20042W	STIK-200-940-42	4000K	90	6,384 lm	152 lm/W
20042W	STIK-200-850-42	5000K	80	7,560 lm	180 lm/W
20042W	STIK-200-865-42	6500K	80	7,476 lm	178 lm/W
21245W	STIK-212-827-45	2700K	80	7,515 lm	167 lm/W
21245W	STIK-212-927-45	2700K	90	6,038 lm	134 lm/W
21245W	STIK-212-830-45	3000K	80	7,688 lm	171 lm/W
21245W	STIK-212-930-45	3000K	90	6,578 lm	146 lm/W
21245W	STIK-212-835-45	3500K	80	7,950 lm	177 lm/W
21245W	STIK-212-935-45	3500K	90	6,750 lm	150 lm/W
21245W	STIK-212-840-45	4000K	80	8,153 lm	181 lm/W
21245W	STIK-212-940-45	4000K	90	6,840 lm	152 lm/W
21245W	STIK-212-850-45	5000K	80	8,100 lm	180 lm/W
21245W	STIK-212-865-45	6500K	80	8,010 lm	178 lm/W
22548W	STIK-225-827-48	2700K	80	8,016 lm	167 lm/W
22548W	STIK-225-927-48	2700K	90	6,440 lm	134 lm/W
22548W	STIK-225-830-48	3000K	80	8,200 lm	171 lm/W
22548W	STIK-225-930-48	3000K	90	7,016 lm	146 lm/W
22548W	STIK-225-835-48	3500K	80	8,480 lm	177 lm/W
22548W	STIK-225-935-48	3500K	90	7,200 lm	150 lm/W
22548W	STIK-225-840-48	4000K	80	8,696 lm	181 lm/W
22548W	STIK-225-940-48	4000K	90	7,296 lm	152 lm/W
22548W	STIK-225-850-48	5000K	80	8,640 lm	180 lm/W
22548W	STIK-225-865-48	6500K	80	8,544 lm	178 lm/W
24051W	STIK-240-827-51	2700K	80	8,517 lm	167 lm/W
24051W	STIK-240-927-51	2700K	90	6,843 lm	134 lm/W
24051W	STIK-240-830-51	3000K	80	8,713 lm	171 lm/W
24051W	STIK-240-930-51	3000K	90	7,455 lm	146 lm/W
24051W	STIK-240-835-51	3500K	80	9,010 lm	177 lm/W
24051W	STIK-240-935-51	3500K	90	7,650 lm	150 lm/W
24051W	STIK-240-840-51	4000K	80	9,240 lm	181 lm/W
24051W	STIK-240-940-51	4000K	90	7,752 lm	152 lm/W
24051W	STIK-240-850-51	5000K	80	9,180 lm	180 lm/W
24051W	STIK-240-865-51	6500K	80	9,078 lm	178 lm/W
25554W	STIK-255-827-54	2700K	80	9,018 lm	167 lm/W
25554W	STIK-255-927-54	2700K	90	7,245 lm	134 lm/W
25554W	STIK-255-830-54	3000K	80	9,225 lm	171 lm/W
25554W	STIK-255-930-54	3000K	90	7,893 lm	146 lm/W
25554W	STIK-255-835-54	3500K	80	9,540 lm	177 lm/W
25554W	STIK-255-935-54	3500K	90	8,100 lm	150 lm/W
25554W	STIK-255-840-54	4000K	80	9,783 lm	181 lm/W
25554W	STIK-255-940-54	4000K	90	8,208 lm	152 lm/W
25554W	STIK-255-850-54	5000K	80	9,720 lm	180 lm/W
25554W	STIK-255-865-54	6500K	80	9,612 lm	178 lm/W
27057W	STIK-270-827-57	2700K	80	9,519 lm	167 lm/W
27057W	STIK-270-927-57	2700K	90	7,648 lm	134 lm/W
27057W	STIK-270-830-57	3000K	80	9,738 lm	171 lm/W
27057W	STIK-270-930-57	3000K	90	8,332 lm	146 lm/W
27057W	STIK-270-835-57	3500K	80	10,070 lm	177 lm/W
27057W	STIK-270-935-57	3500K	90	8,550 lm	150 lm/W
27057W	STIK-270-840-57	4000K	80	10,327 lm	181 lm/W
27057W	STIK-270-940-57	4000K	90	8,664 lm	152 lm/W
27057W	STIK-270-850-57	5000K	80	10,260 lm	180 lm/W
27057W	STIK-270-865-57	6500K	80	10,146 lm	178 lm/W
28260W	STIK-282-827-60	2700K	80	10,020 lm	167 lm/W
28260W	STIK-282-927-60	2700K	90	8,050 lm	134 lm/W
28260W	STIK-282-830-60	3000K	80	10,250 lm	171 lm/W
28260W	STIK-282-930-60	3000K	90	8,770 lm	146 lm/W
28260W	STIK-282-835-60	3500K	80	10,600 lm	177 lm/W
28260W	STIK-282-935-60	3500K	90	9,000 lm	150 lm/W
28260W	STIK-282-840-60	4000K	80	10,870 lm	181 lm/W
28260W	STIK-282-940-60	4000K	90	9,120 lm	152 lm/W
28260W	STIK-282-850-60	5000K	80	10,800 lm	180 lm/W
28260W	STIK-282-865-60	6500K	80	10,680 lm	178 lm/W
29563W	STIK-295-827-63	2700K	80	10,521 lm	167 lm/W
29563W	STIK-295-927-63	2700K	90	8,453 lm	134 lm/W
29563W	STIK-295-830-63	3000K	80	10,763 lm	171 lm/W
29563W	STIK-295-930-63	3000K	90	9,209 lm	146 lm/W
29563W	STIK-295-835-63	3500K	80	11,130 lm	177 lm/W
29563W	STIK-295-935-63	3500K	90	9,450 lm	150 lm/W
29563W	STIK-295-840-63	4000K	80	11,414 lm	181 lm/W
29563W	STIK-295-940-63	4000K	90	9,576 lm	152 lm/W
29563W	STIK-295-850-63	5000K	80	11,340 lm	180 lm/W
29563W	STIK-295-865-63	6500K	80	11,214 lm	178 lm/W
31066W	STIK-310-827-66	2700K	80	11,022 lm	167 lm/W
31066W	STIK-310-927-66	2700K	90	8,855 lm	134 lm/W
31066W	STIK-310-830-66	3000K	80	11,275 lm	171 lm/W
31066W	STIK-310-930-66	3000K	90	9,647 lm	146 lm/W
31066W	STIK-310-835-66	3500K	80	11,660 lm	177 lm/W
31066W	STIK-310-935-66	3500K	90	9,900 lm	150 lm/W
31066W	STIK-310-840-66	4000K	80	11,957 lm	181 lm/W
31066W	STIK-310-940-66	4000K	90	10,032 lm	152 lm/W
31066W	STIK-310-850-66	5000K	80	11,880 lm	180 lm/W
31066W	STIK-310-865-66	6500K	80	11,748 lm	178 lm/W
32569W	STIK-325-827-69	2700K	80	11,523 lm	167 lm/W
32569W	STIK-325-927-69	2700K	90	9,258 lm	134 lm/W
32569W	STIK-325-830-69	3000K	80	11,788 lm	171 lm/W
32569W	STIK-325-930-69	3000K	90	10,086 lm	146 lm/W
32569W	STIK-325-835-69	3500K	80	12,190 lm	177 lm/W
32569W	STIK-325-935-69	3500K	90	10,350 lm	150 lm/W
32569W	STIK-325-840-69	4000K	80	12,501 lm	181 lm/W
32569W	STIK-325-940-69	4000K	90	10,488 lm	152 lm/W
32569W	STIK-325-850-69	5000K	80	12,420 lm	180 lm/W
32569W	STIK-325-865-69	6500K	80	12,282 lm	178 lm/W
34072W	STIK-340-827-72	2700K	80	12,024 lm	167 lm/W
34072W	STIK-340-927-72	2700K	90	9,660 lm	134 lm/W
34072W	STIK-340-830-72	3000K	80	12,300 lm	171 lm/W
34072W	STIK-340-930-72	3000K	90	10,524 lm	146 lm/W
34072W	STIK-340-835-72	3500K	80	12,720 lm	177 lm/W
34072W	STIK-340-935-72	3500K	90	10,800 lm	150 lm/W
34072W	STIK-340-840-72	4000K	80	13,044 lm	181 lm/W
34072W	STIK-340-940-72	4000K	90	10,944 lm	152 lm/W
34072W	STIK-340-850-72	5000K	80	12,960 lm	180 lm/W
34072W	STIK-340-865-72	6500K	80	12,816 lm	178 lm/W
35275W	STIK-352-827-75	2700K	80	12,525 lm	167 lm/W
35275W	STIK-352-927-75	2700K	90	10,063 lm	134 lm/W
35275W	STIK-352-830-75	3000K	80	12,813 lm	171 lm/W
35275W	STIK-352-930-75	3000K	90	10,963 lm	146 lm/W
35275W	STIK-352-835-75	3500K	80	13,250 lm	177 lm/W
35275W	STIK-352-935-75	3500K	90	11,250 lm	150 lm/W
35275W	STIK-352-840-75	4000K	80	13,588 lm	181 lm/W
35275W	STIK-352-940-75	4000K	90	11,400 lm	152 lm/W
35275W	STIK-352-850-75	5000K	80	13,500 lm	180 lm/W
35275W	STIK-352-865-75	6500K	80	13,350 lm	178 lm/W
